UZZ40R-DKAQKQ (2001)

Toyota Lexus Sc430

Production May 2001 - Aug 2005
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0508)

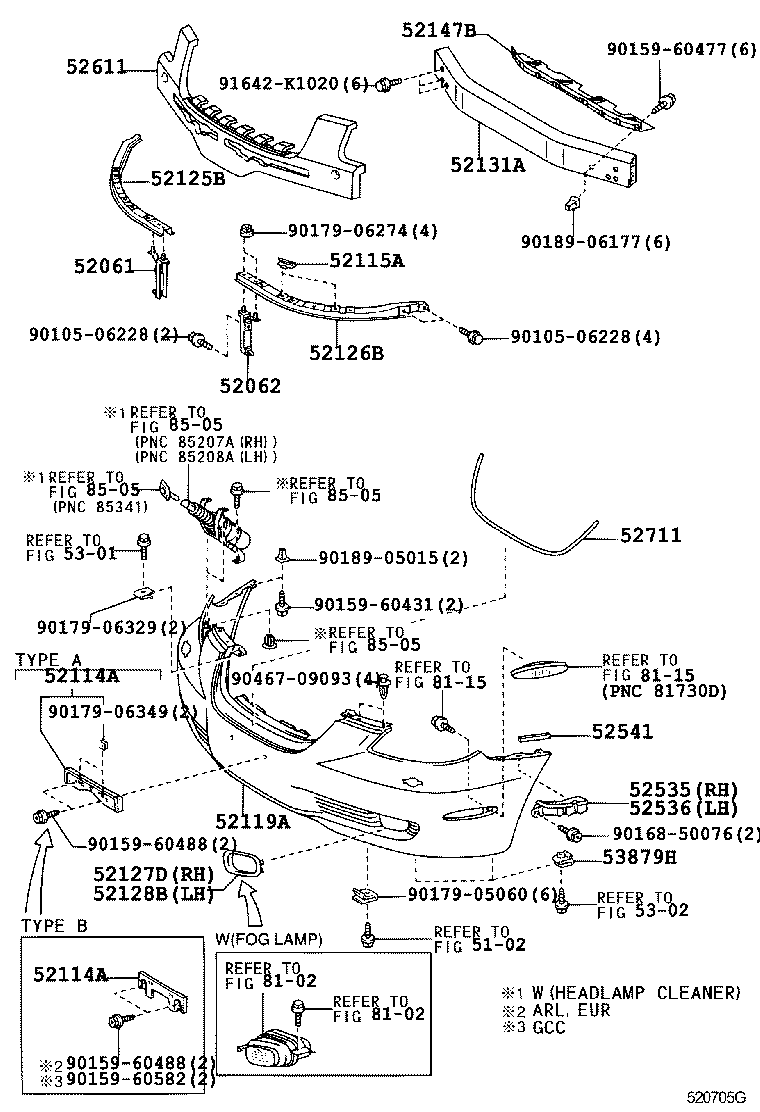

Click highlighted areas on diagram

diagram 5102 52061 52062 52114A 52114A 52115A 52119A 52125B 52126B 52127D 52128B 52131A 52147B 52535 52536 52541 52611 52711 5301 5302 53879H 8102 8102 8115 8115 8505 8505 8505 8505 9010506228 9010506228 9015960431 9015960477 9015960488 9015960488 9015960582 9016850076 9017905060 9017906274 9017906329 9017906349 9018905015 9018906177 9046709093 91642K1020
Part # Description Qty Price
52061 - SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH
52081-24010

UZZ40

 1
52062 - SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH
52081-24010

UZZ40

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-20120

UZZ40..ARL,GCC

TYPE B:REFER TO ILLUSTRATION

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-20120

UZZ40..ARL,GCC

TYPE B:REFER TO ILLUSTRATION

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14130

UZZ40

 4
52119A - COVER, FRONT BUMPER
52119-24923

UZZ40..ARL

 1
52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH
52125-24030

UZZ40

 1
52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH
52126-24020

UZZ40

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-24040

UZZ40

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-24040

UZZ40

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-24060

UZZ40

 1
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-24030

UZZ40

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-24030

UZZ40

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-24030

UZZ40

 1
52541 - PROTECTOR, FRONT BUMPER
52541-24010

UZZ40

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-24050

UZZ40..ARL,EUR

 1
52711 - MOULDING, FRONT BUMPER
52711-24040

UZZ40

 1
53879H - RETAINER, FRONT FENDER LINER
53879-17020

UZZ40

 4
Common parts
90105-06228
90159-60431
90159-60477
90159-60488
90159-60582
90168-50076
90179-05060
90179-06274
90179-06329
90179-06349
90189-05015
90189-06177
90467-09093
91642-K1020
Linked diagrams
5102
5301
5302
8102
8115
8505
