UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

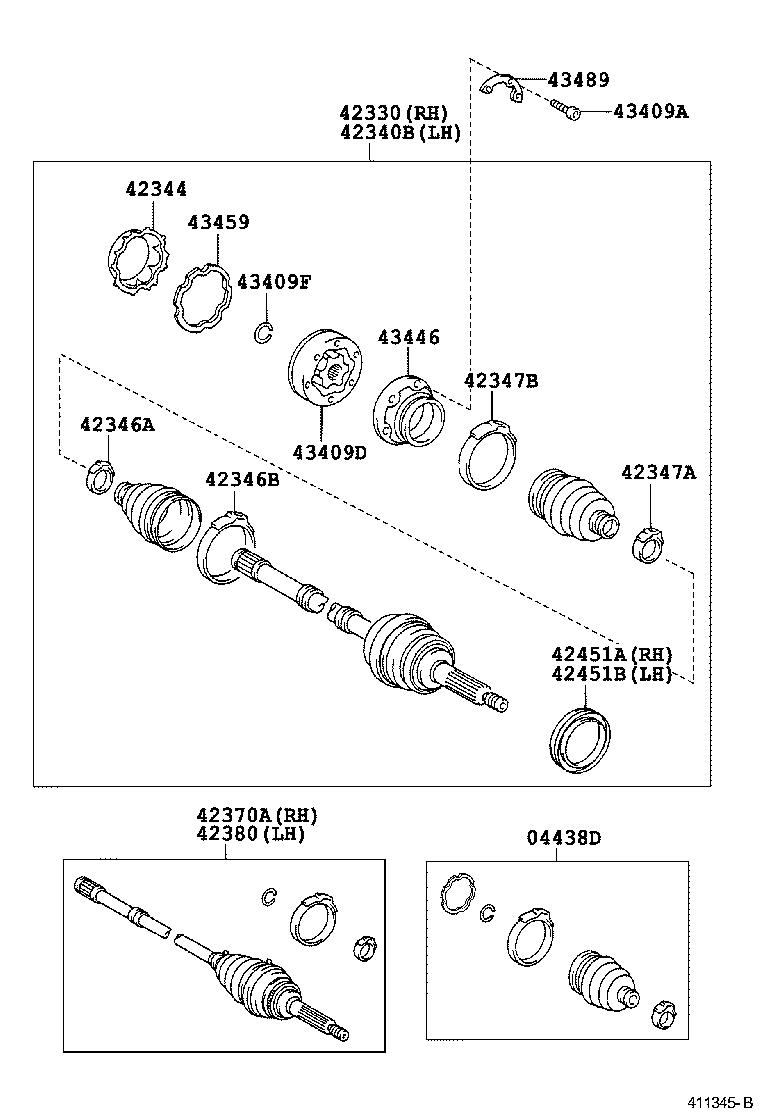

ILLUST NO. 1 OF 2(0105-0508)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04437-24031 |
UZZ40 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-24020 |
UZZ40 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-24050 |
UZZ40 |
1 | ||
| 42344 - COVER, REAR AXLE INBOARD JOINT END | ||||
| 42344-50011 |
UZZ40 |
2 | ||
| 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 90949-01837 |
UZZ40 |
2 | ||
| 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 90949-01838 |
UZZ40 |
2 | ||
| 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 90949-01837 |
UZZ40 |
2 | ||
| 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 90949-01838 |
UZZ40 |
2 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-29109 |
UZZ40 |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42380-29029 |
UZZ40 |
1 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 42453-50010 |
UZZ40 |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 42453-50010 |
UZZ40 |
1 | ||
| 43409A - BOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT) | ||||
| 90110-12003 |
UZZ40 |
12 | ||
| 43409D - JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE | ||||
| 43409-24010 |
UZZ40 |
2 | ||
| 43409F - RING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT) | ||||
| 90520-26028 |
UZZ40 |
2 | ||
| 43446 - COVER, REAR AXLE INBOARD JOINT | ||||
| 43446-24020 |
UZZ40 |
2 | ||
| 43459 - GASKET, REAR AXLE INBOARD JOINT END COVER | ||||
| 43459-50011 |
UZZ40 |
2 | ||
| 43489 - WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT | ||||
| 43489-50010 |
UZZ40 |
4 | ||
ILLUST NO. 2 OF 2(0105- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42301-30040 |
UZZ40 |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90369-49002 |
UZZ40 |
1 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-26008 |
UZZ40 |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-77001 |
UZZ40 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02070 |
UZZ40 |
5 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42301-30040 |
UZZ40 |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90369-49002 |
UZZ40 |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-26008 |
UZZ40 |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-77001 |
UZZ40 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02070 |
UZZ40 |
5 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-24010 |
UZZ40 |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-24010 |
UZZ40 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-30260 |
UZZ40..ARL SINGAPORE SPEC |
2 | ||
| 42431-53011 |
UZZ40 |
2 | ||
| 42452A - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH | ||||
| 42451-30010 |
UZZ40 |
1 | ||
| 42452B - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH | ||||
| 42451-30010 |
UZZ40 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
UZZ40 |
2 | ||
| Common parts | ||||
| 90252-04004 | ||||
