UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

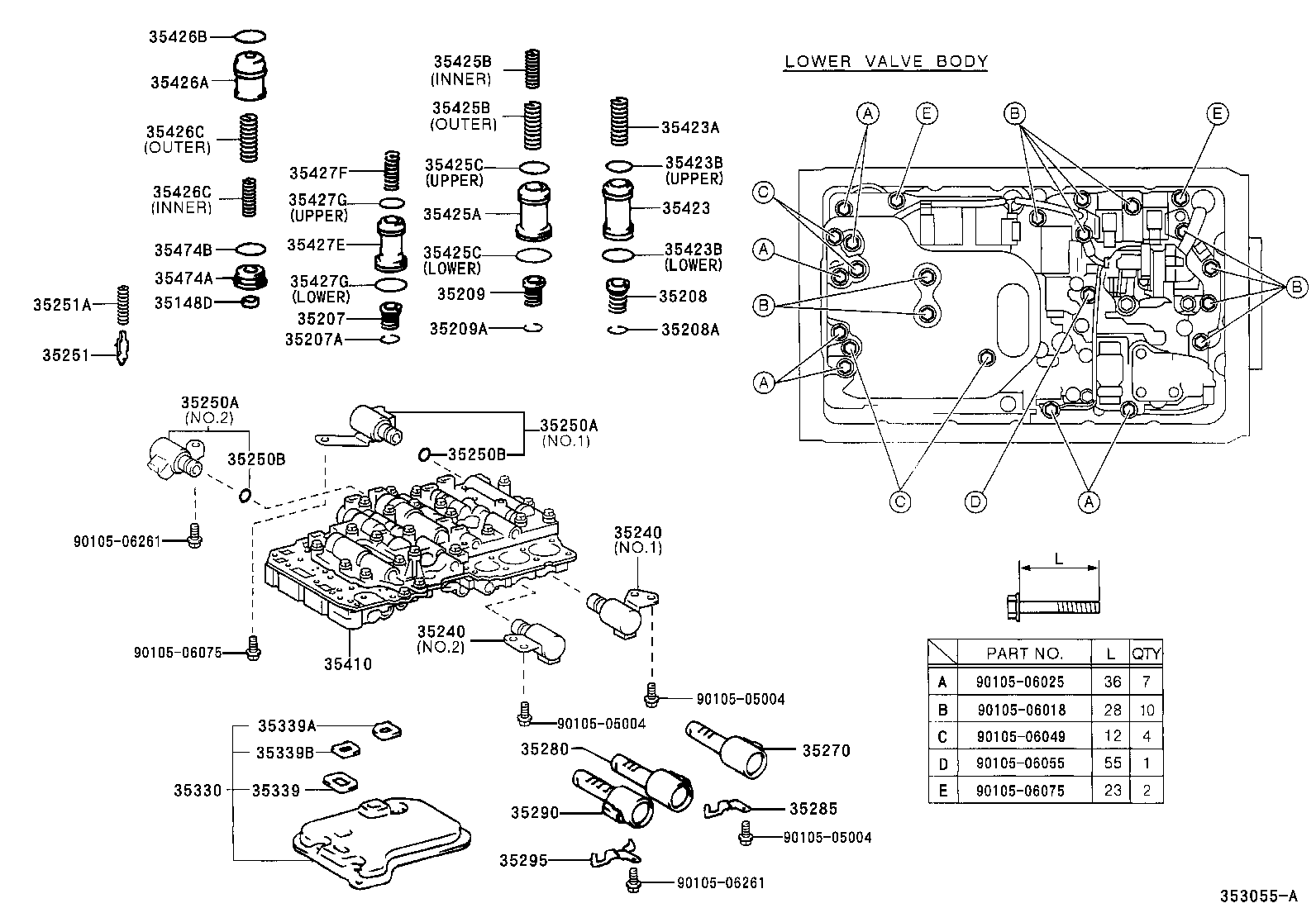

ILLUST NO. 1 OF 2(0105-0508)
Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35148D - GASKET (FOR C-O ACCUMULATOR PISTON) | ||||
| 35148-16010 |
UZZ40 |
1 | ||
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-50010 |
UZZ40 |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UZZ40 |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-22010 |
UZZ40 |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UZZ40 |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-24010 |
UZZ40 |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
UZZ40 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-50010 |
UZZ40 NO.1 |
1 | ||
| 35240-50020 |
UZZ40 NO.2 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-50010 |
UZZ40 NO.1 |
1 | ||
| 35240-50020 |
UZZ40 NO.2 |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-50010 |
UZZ40 NO.1 |
1 | ||
| 35250-50030 |
UZZ40 NO.2 |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-50010 |
UZZ40 NO.1 |
1 | ||
| 35250-50030 |
UZZ40 NO.2 |
1 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
UZZ40 |
2 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
UZZ40 |
2 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
UZZ40 |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
UZZ40 |
1 | ||
| 35270 - SOLENOID ASSY, SHIFT CONTROL | ||||
| 35270-30030 |
UZZ40 |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-30040 |
UZZ40 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-30060 |
UZZ40 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-30040 |
UZZ40 |
1 | ||
| 35295 - PLATE, SOLENOID LOCK, NO.2 | ||||
| 35295-30010 |
UZZ40 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-30070 |
UZZ40 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-30080 |
UZZ40 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
UZZ40 |
1 | ||
| 35339B - GASKET, OIL STRAINER, NO.2 | ||||
| 35339-30100 |
UZZ40 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-50110 |
UZZ40 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
UZZ40 |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25052 |
UZZ40 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
UZZ40 LOWER |
1 | ||
| 90301-23010 |
UZZ40 UPPER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
UZZ40 LOWER |
1 | ||
| 90301-23010 |
UZZ40 UPPER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-40010 |
UZZ40 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-23152 |
UZZ40 OUTER |
1 | ||
| 90501-28035 |
UZZ40 INNER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-23152 |
UZZ40 OUTER |
1 | ||
| 90501-28035 |
UZZ40 INNER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90903-01001 |
UZZ40 UPPER |
1 | ||
| 90903-01003 |
UZZ40 LOWER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90903-01001 |
UZZ40 UPPER |
1 | ||
| 90903-01003 |
UZZ40 LOWER |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-51010 |
UZZ40 |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
UZZ40 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-20167 |
UZZ40 OUTER |
1 | ||
| 90501-20163 |
UZZ40 INNER |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-20167 |
UZZ40 OUTER |
1 | ||
| 90501-20163 |
UZZ40 INNER |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
UZZ40 |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90905-01025 |
UZZ40 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
UZZ40 UPPER |
1 | ||
| 90301-26011 |
UZZ40 LOWER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
UZZ40 UPPER |
1 | ||
| 90301-26011 |
UZZ40 LOWER |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-30010 |
UZZ40 |
1 | ||
| 35474B - RING, O (FOR ACCUMULATOR COVER) | ||||
| 90301-24010 |
UZZ40 |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90105-06018 | ||||
| 90105-06025 | ||||
| 90105-06049 | ||||
| 90105-06055 | ||||
| 90105-06075 | ||||
| 90105-06261 | ||||

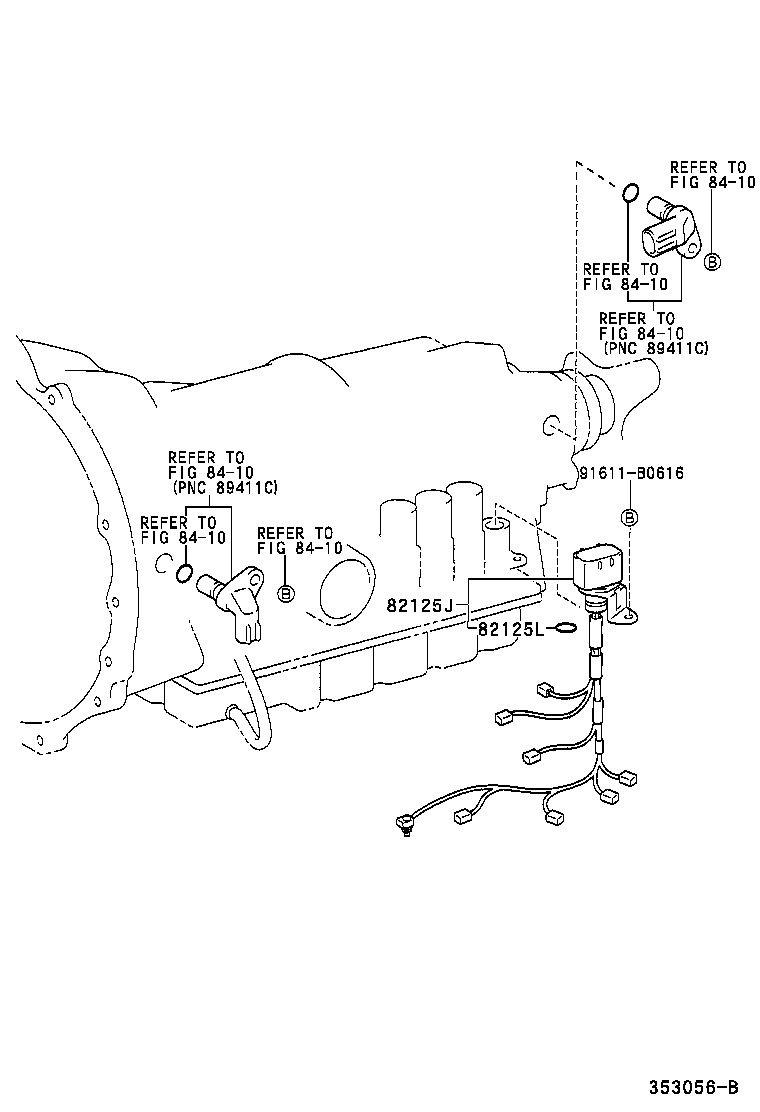

ILLUST NO. 2 OF 2(0105-0508)
Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-50040 |
UZZ40 |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24018 |
UZZ40 |
1 | ||
| Common parts | ||||
| 91611-B0616 | ||||
| Linked diagrams | ||||
| 8410 | ||||
