UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105-0508)

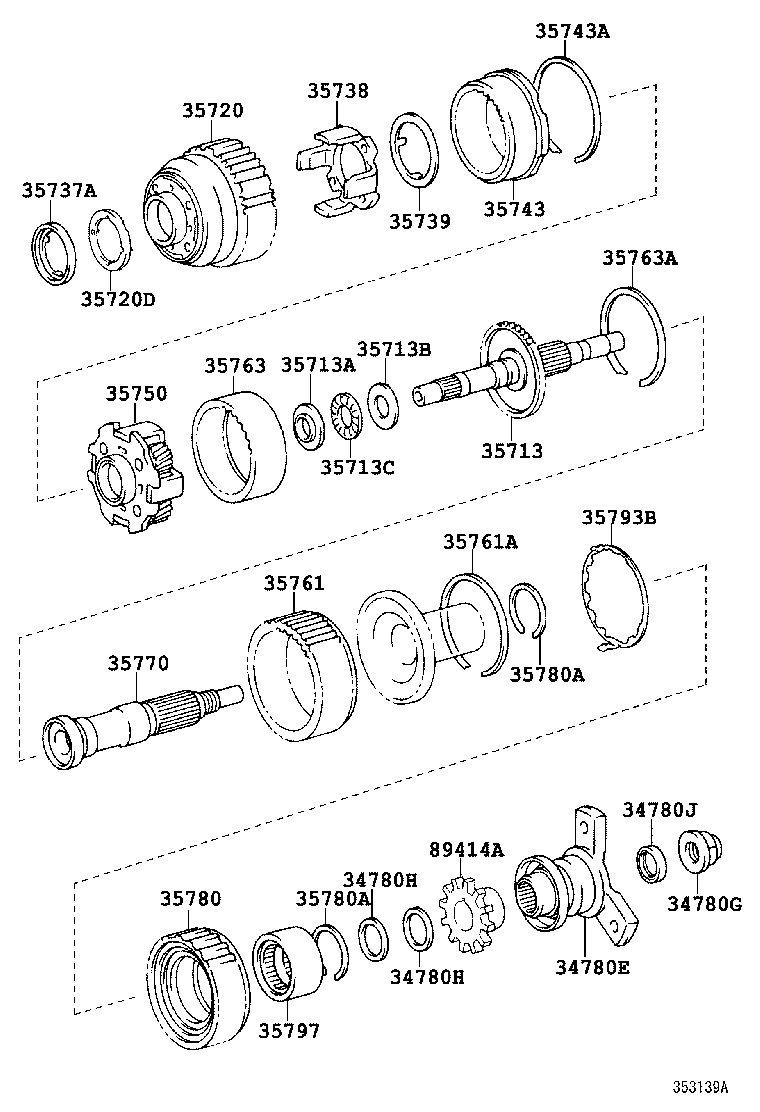

Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34780E - YOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION) | ||||
| 34780-30060 |
UZZ40 |
1 | ||
| 34780G - NUT (FOR ATM FRANGE YOKE) | ||||
| 90179-22027 |
UZZ40 |
1 | ||
| 34780H - WASHER, PLATE (FOR ATM FLANGE YOKE) | ||||
| 90560-34004 |
UZZ40 |
2 | ||
| 34780H - WASHER, PLATE (FOR ATM FLANGE YOKE) | ||||
| 90560-34004 |
UZZ40 |
2 | ||
| 34780J - SEAL, TYPE V OIL (FOR FRANGE YOKE) | ||||
| 90312-27001 |
UZZ40 |
1 | ||
| 35713 - SHAFT, INTERMEDIATE | ||||
| 35713-30060 |
UZZ40 |
1 | ||
| 35713A - RACE, THRUST BEARING, NO.1 (FOR INTERMEDIATE SHAFT) | ||||
| 35789-30290 |
UZZ40 |
1 | ||
| 35713B - RACE, THRUST BEARING, NO.2 (FOR INTERMEDIATE SHAFT) | ||||
| 35789-30300 |
UZZ40 |
1 | ||
| 35713C - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT) | ||||
| 90374-25008 |
UZZ40 |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-30120 |
UZZ40 |
1 | ||
| 35720D - WASHER (FOR FRONT PLANETARY GEAR) | ||||
| 90209-57001 |
UZZ40 |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-30040 |
UZZ40 |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-30050 |
UZZ40 |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-30040 |
UZZ40 |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-30040 |
UZZ40 |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99022 |
UZZ40 |
1 | ||
| 35750 - GEAR ASSY, CENTER PLANETARY | ||||
| 35750-30010 |
UZZ40 |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-30030 |
UZZ40 |
1 | ||
| 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90520-99021 |
UZZ40 |
1 | ||
| 35763 - GEAR, CENTER PLANETARY RING | ||||
| 35763-30010 |
UZZ40 |
1 | ||
| 35763A - RING, SNAP(FOR CENTER PLANETARY RING GEAR) | ||||
| 90520-96004 |
UZZ40 |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-30040 |
UZZ40 |
1 | ||
| 35780 - CLUTCH ASSY, 1 WAY NO.2 | ||||
| 35780-30010 |
UZZ40 |
1 | ||
| 35780A - RING, SNAP (FOR 1 WAY CLUTCH) | ||||
| 90520-45011 |
UZZ40 |
2 | ||
| 35780A - RING, SNAP (FOR 1 WAY CLUTCH) | ||||
| 90520-45011 |
UZZ40 |
2 | ||
| 35793B - RETAINER, 1 WAY CLUTCH | ||||
| 35793-50030 |
UZZ40 |
1 | ||
| 35797 - RACE, 1 WAY CLUTCH INNER | ||||
| 35797-50020 |
UZZ40 |
1 | ||
| 35797-30040 |
UZZ40..5FC |
1 | ||
| 89414A - ROTOR, SENSOR | ||||
| 89414-30080 |
UZZ40 |
1 | ||
