UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105-0508)

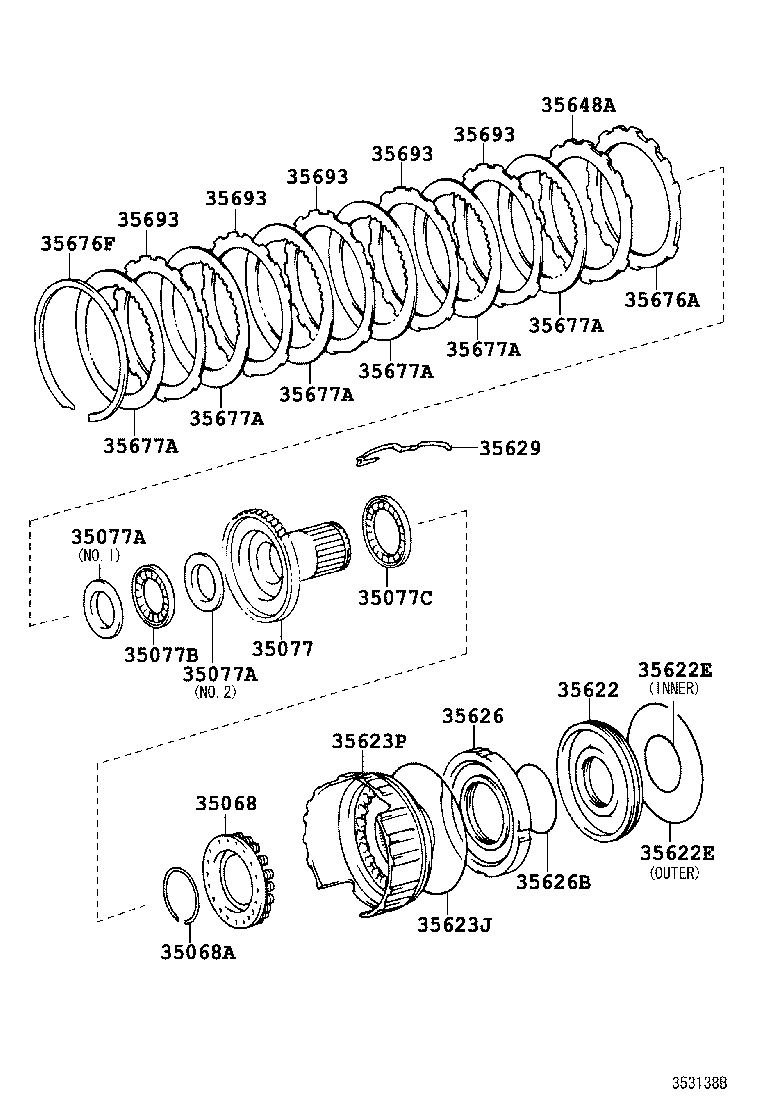

Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-30020 |
UZZ40 |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-61001 |
UZZ40 |
1 | ||
| 35077 - FLANGE SUB-ASSY, RR PLANETARY RING GEAR | ||||
| 35077-30010 |
UZZ40 |
1 | ||
| 35077A - RACE, THRUST BEARING (FOR PLANETARY RING GEAR FLANGE) | ||||
| 35789-50040 |
UZZ40 NO.2 |
1 | ||
| 35789-30330 |
UZZ40 NO.1 |
1 | ||
| 35077A - RACE, THRUST BEARING (FOR PLANETARY RING GEAR FLANGE) | ||||
| 35789-50040 |
UZZ40 NO.2 |
1 | ||
| 35789-30330 |
UZZ40 NO.1 |
1 | ||
| 35077B - BEARING, THRUST NEEDLE ROLLER, NO.1 | ||||
| 90374-39004 |
UZZ40 |
1 | ||
| 35077C - BEARING, THRUST NEEDLE ROLLER, NO.2 | ||||
| 90374-54001 |
UZZ40 |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-30020 |
UZZ40 |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99085 |
UZZ40 OUTER |
1 | ||
| 90301-67006 |
UZZ40 INNER |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99085 |
UZZ40 OUTER |
1 | ||
| 90301-67006 |
UZZ40 INNER |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99100 |
UZZ40 |
1 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-30060 |
UZZ40 |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30040 |
UZZ40 |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-79003 |
UZZ40 |
1 | ||
| 35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER) | ||||
| 35629-50010 |
UZZ40 |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35696-30020 |
UZZ40 T=2.2 |
1 | ||
| 35696-30030 |
UZZ40 T=2.4 |
1 | ||
| 35696-30040 |
UZZ40 T=2.6 |
1 | ||
| 35696-30010 |
UZZ40 T=2.0 |
1 | ||
| 35696-30050 |
UZZ40 T=2.8 |
1 | ||
| 35696-30100 |
UZZ40 T=2.3 |
1 | ||
| 35696-30080 |
UZZ40 T=1.9 |
1 | ||
| 35696-30060 |
UZZ40 T=3.0 |
1 | ||
| 35696-30070 |
UZZ40 T=1.8 |
1 | ||
| 35696-30090 |
UZZ40 T=2.1 |
1 | ||
| 35696-30120 |
UZZ40 T=2.7 |
1 | ||
| 35696-30130 |
UZZ40 T=2.9 |
1 | ||
| 35696-30110 |
UZZ40 T=2.5 |
1 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35679-30010 |
UZZ40 T=6.0 |
1 | ||
| 35676F - RING, SNAP (FOR TRANSMISSION CASE) | ||||
| 90520-99019 |
UZZ40 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35683-50010 |
UZZ40 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35683-50010 |
UZZ40 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35683-50010 |
UZZ40 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35683-50010 |
UZZ40 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35683-50010 |
UZZ40 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35683-50010 |
UZZ40 |
6 | ||
| 35693 - PLATE, BRAKE (FOR 1ST & REVERSE) | ||||
| 35693-30020 |
UZZ40 |
5 | ||
| 35693 - PLATE, BRAKE (FOR 1ST & REVERSE) | ||||
| 35693-30020 |
UZZ40 |
5 | ||
| 35693 - PLATE, BRAKE (FOR 1ST & REVERSE) | ||||
| 35693-30020 |
UZZ40 |
5 | ||
| 35693 - PLATE, BRAKE (FOR 1ST & REVERSE) | ||||
| 35693-30020 |
UZZ40 |
5 | ||
| 35693 - PLATE, BRAKE (FOR 1ST & REVERSE) | ||||
| 35693-30020 |
UZZ40 |
5 | ||
