UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105-0508)

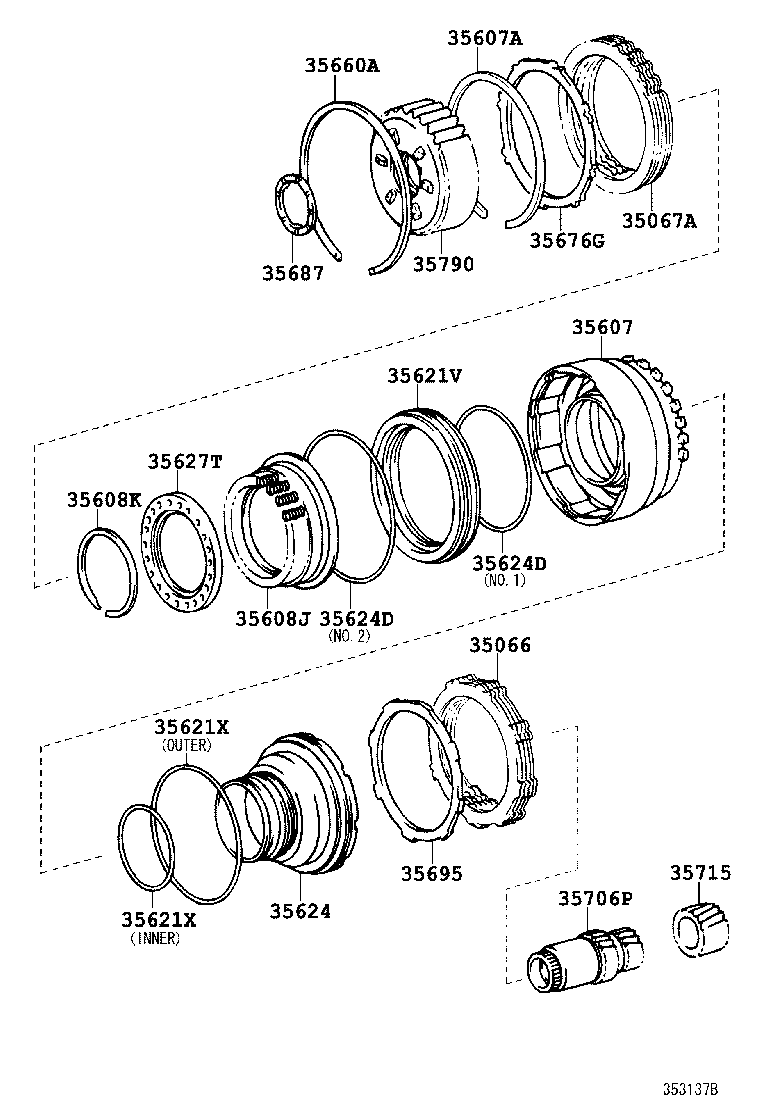

Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35066 - DISC SET, 2ND BRAKE | ||||
| 35066-50010 |
UZZ40 |
1 | ||
| 35067A - DISC SET, 3RD BRAKE, NO.2 | ||||
| 35067-50010 |
UZZ40 |
1 | ||
| 35607 - DRUM SUB-ASSY, BRAKE, NO.1 & NO.2 | ||||
| 35607-30010 |
UZZ40 |
1 | ||
| 35607A - RING, SNAP, NO.1 (FOR BRAKE DRUM) | ||||
| 90520-99020 |
UZZ40 |
1 | ||
| 35608J - SPRING SUB-ASSY, BRAKE PISTON RETURN | ||||
| 35608-30030 |
UZZ40 |
1 | ||
| 35608K - RING, SNAP (FOR BRAKE PISTON RETURN SPRING) | ||||
| 90520-80001 |
UZZ40 |
1 | ||
| 35621V - PISTON, BRAKE, NO.1 | ||||
| 35621-30020 |
UZZ40 |
1 | ||
| 35621X - RING, O (FOR BRAKE PISTON NO.1) | ||||
| 90301-99087 |
UZZ40 OUTER |
1 | ||
| 90301-80001 |
UZZ40 INNER |
1 | ||
| 35621X - RING, O (FOR BRAKE PISTON NO.1) | ||||
| 90301-99087 |
UZZ40 OUTER |
1 | ||
| 90301-80001 |
UZZ40 INNER |
1 | ||
| 35624 - PISTON, 2ND BRAKE | ||||
| 35601-50020 |
UZZ40 |
1 | ||
| 35624D - RING, O (FOR BRAKE PISTON NO.4) | ||||
| 90301-99089 |
UZZ40 NO.2 |
1 | ||
| 90301-99092 |
UZZ40 NO.1 |
1 | ||
| 35624D - RING, O (FOR BRAKE PISTON NO.4) | ||||
| 90301-99089 |
UZZ40 NO.2 |
1 | ||
| 90301-99092 |
UZZ40 NO.1 |
1 | ||
| 35627T - SEAT, BRAKE RETURN SPRING | ||||
| 35627-30020 |
UZZ40 |
1 | ||
| 35660A - RING, SNAP, NO.2 (FOR BRAKE DRUM) | ||||
| 90520-99023 |
UZZ40 |
1 | ||
| 35676G - FLANGE, BRAKE, NO.1 | ||||
| 35676-30190 |
UZZ40 T=3.7 |
1 | ||
| 35676-30220 |
UZZ40 T=4.0 |
1 | ||
| 35676-30210 |
UZZ40 T=3.9 |
1 | ||
| 35676-30200 |
UZZ40 T=3.8 |
1 | ||
| 35676-30180 |
UZZ40 T=3.6 |
1 | ||
| 35676-30230 |
UZZ40 T=4.1 |
1 | ||
| 35687 - WASHER, CLUTCH DRUM THRUST, NO.3 | ||||
| 35687-30010 |
UZZ40 |
1 | ||
| 35695 - PLATE, BRAKE, NO.5 | ||||
| 35695-30010 |
UZZ40 T=2.1 |
1 | ||
| 35695-30060 |
UZZ40 T=3.1 |
1 | ||
| 35695-30040 |
UZZ40 T=2.7 |
1 | ||
| 35695-30030 |
UZZ40 T=2.5 |
1 | ||
| 35695-30050 |
UZZ40 T=2.9 |
1 | ||
| 35695-30020 |
UZZ40 T=2.3 |
1 | ||
| 35706P - GEAR SUB-ASSY, FRONT PLANETARY SUN | ||||
| 35706-30090 |
UZZ40 |
1 | ||
| 35715 - GEAR, RR PLANETARY SUN | ||||
| 35715-30010 |
UZZ40 |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-30070 |
UZZ40 |
1 | ||
