UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105-0508)

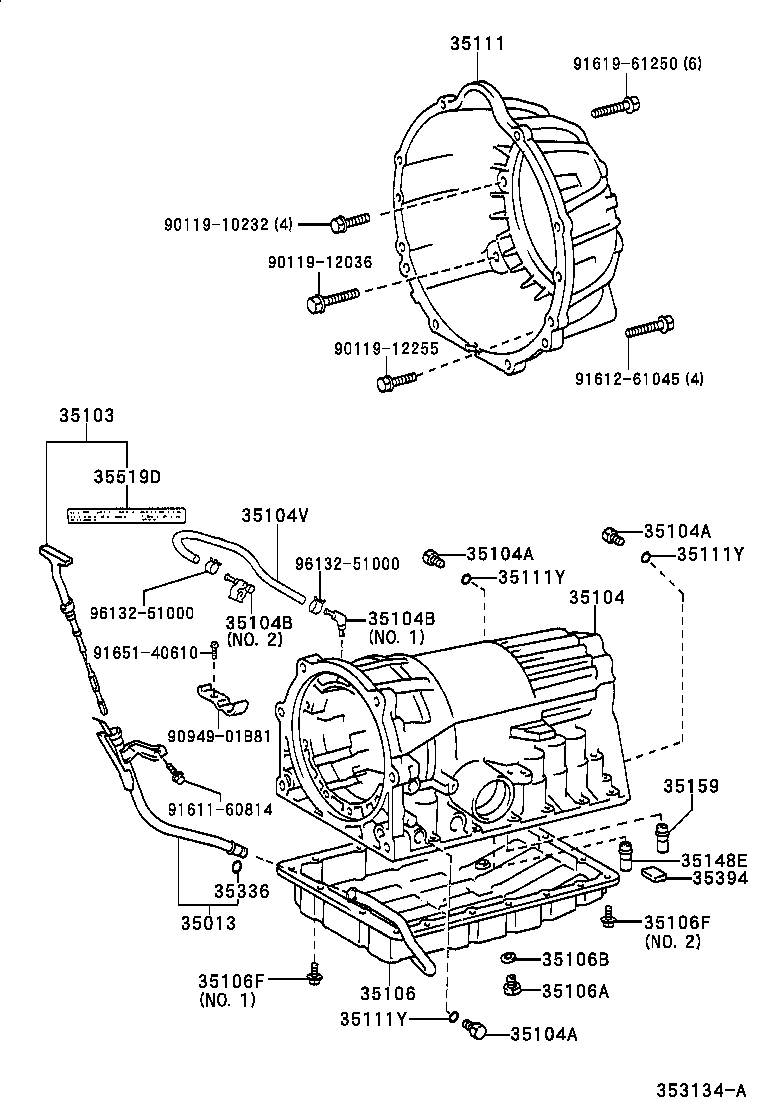

Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-50060 |
UZZ40 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-30750 |
UZZ40 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30200 |
UZZ40 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
UZZ40 |
3 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
UZZ40 |
3 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
UZZ40 |
3 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03168 |
UZZ40 NO.2 |
1 | ||
| 90930-03098 |
UZZ40 NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03168 |
UZZ40 NO.2 |
1 | ||
| 90930-03098 |
UZZ40 NO.1 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-10020 |
UZZ40 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30240 |
UZZ40 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
UZZ40 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
UZZ40 |
1 | ||
| 35178-50010 |
UZZ40..5FC |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06866 |
UZZ40 NO.2 |
1 | ||
| 90119-06513 |
UZZ40 NO.1 |
18 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06866 |
UZZ40 NO.2 |
1 | ||
| 90119-06513 |
UZZ40 NO.1 |
18 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-50010 |
UZZ40 |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
UZZ40 |
3 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
UZZ40 |
3 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
UZZ40 |
3 | ||
| 35148E - GASKET, BRAKE DRUM, NO.2 | ||||
| 35148-30010 |
UZZ40 |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30020 |
UZZ40 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
UZZ40 |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
UZZ40 |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
UZZ40 |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90119-12255 | ||||
| 90949-01B81 | ||||
| 91611-60814 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
| 91651-40610 | ||||
| 96132-51000 | ||||
