UZZ40R-DKAQKQ (2001)

Toyota Lexus Sc430

Production May 2001 - Aug 2005
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0508)

Click highlighted areas on diagram

A650E

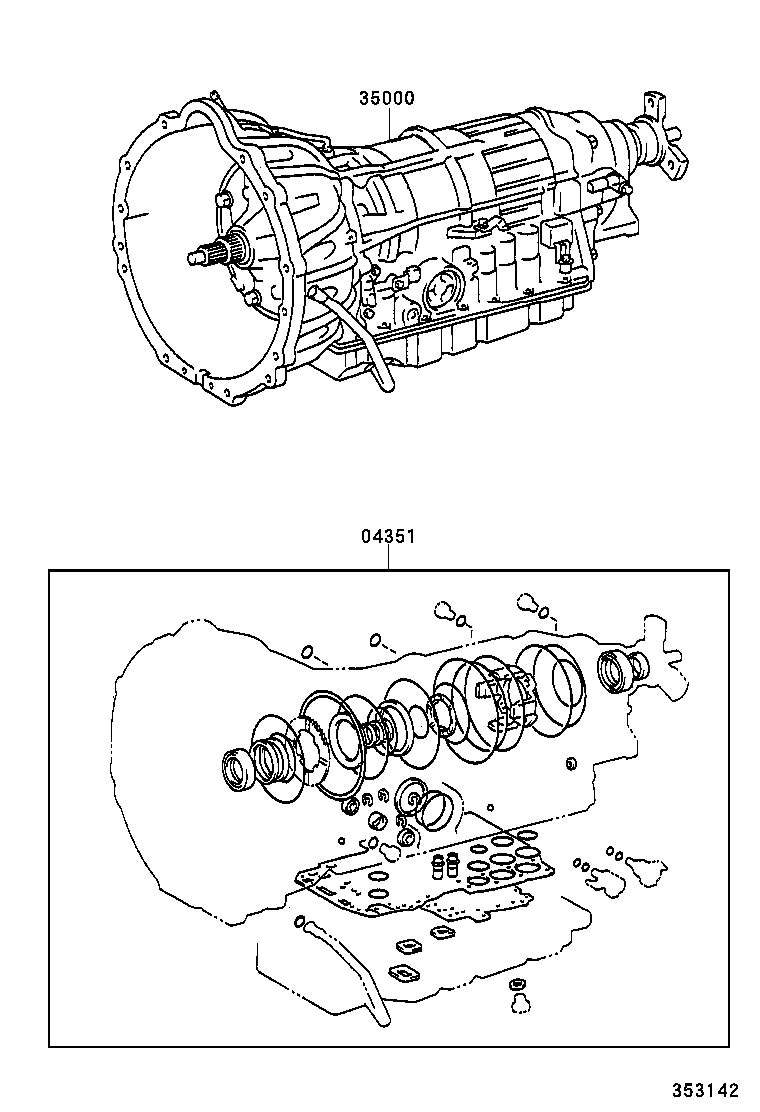

diagram 04351 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-30490

UZZ40..5FC

 1
04351-30491

UZZ40

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-24420

UZZ40..ARL

 1
