UZZ40R-DKAQKQ (2001)

Toyota Lexus Sc430

Production May 2001 - Aug 2005
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0508) ; (0508- )3UZFE..RHD

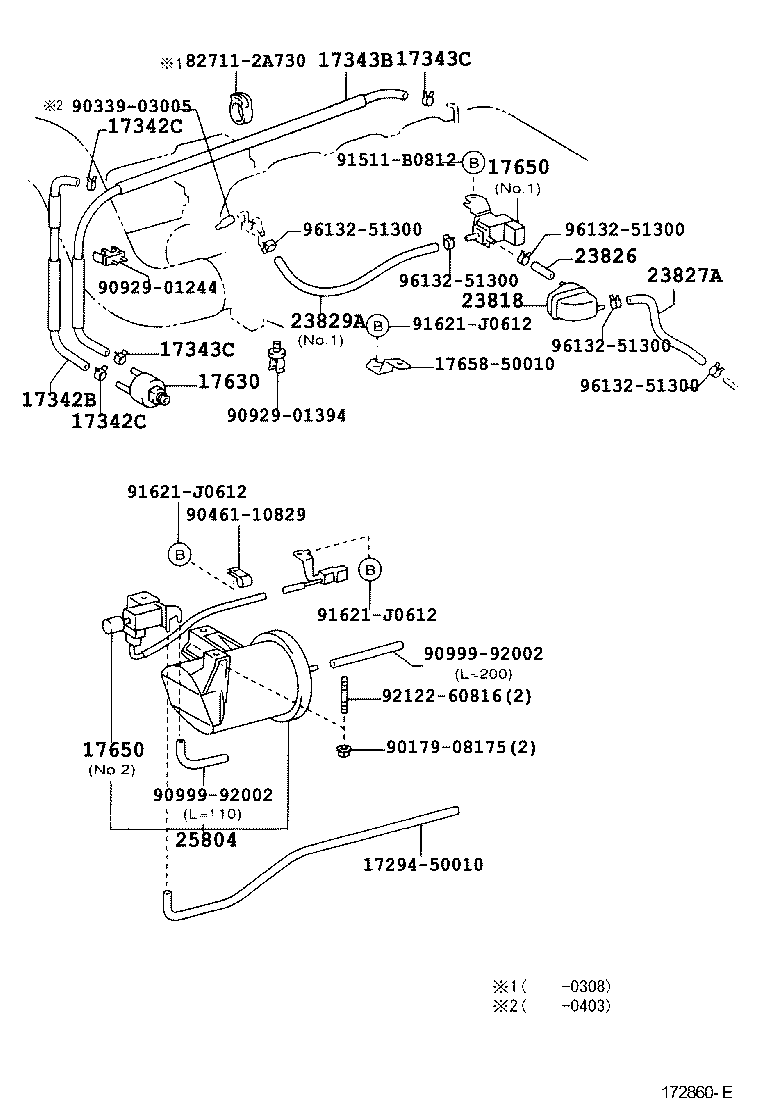

Click highlighted areas on diagram

diagram 1729450010 17342B 17342C 17342C 17343B 17343C 17343C 17630 17650 17650 1765850010 23818 23826 23827A 23829A 25804 827112A730 9017908175 9033903005 9046110829 9092901244 9092901394 9099992002 9099992002 91511B0812 91621J0612 91621J0612 91621J0612 9212260816 9613251300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50090

3UZFE..UZZ40

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099

3UZFE..UZZ40

 2
96132-51000

3UZFE..UZZ40

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099

3UZFE..UZZ40

 2
96132-51000

3UZFE..UZZ40

 2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50071

3UZFE..UZZ40

 1
17343-50070

3UZFE..UZZ40..5FC

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099

3UZFE..UZZ40

 2
96132-51000

3UZFE..UZZ40

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099

3UZFE..UZZ40

 2
96132-51000

3UZFE..UZZ40

 2
17630 - VALVE ASSY, AIR CONTROL
17630-16040

3UZFE..UZZ40

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-50100

3UZFE..UZZ40

NO.1

 1
25860-50121

3UZFE..UZZ40

NO.2

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-50100

3UZFE..UZZ40

NO.1

 1
25860-50121

3UZFE..UZZ40

NO.2

 1
23818 - PIPE, FUEL VAPOR FEED
23818-46110

3UZFE..UZZ40

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-50030

3UZFE..UZZ40

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-50110

3UZFE..UZZ40..RHD

 1
23829A - HOSE, FUEL VAPOR FEED
23829-50070

3UZFE..UZZ40

 1
25804 - VALVE SET, VACUUM CONTROL
25804-50011

3UZFE..UZZ40

 1
Common parts
17294-50010
17658-50010
82711-2A730
90179-08175
90339-03005
90461-10829
90929-01244
90929-01394
90999-92002
91511-B0812
91621-J0612
92122-60816
96132-51300
