UZZ40R-DKAQKQ (2001)

Toyota Lexus Sc430

Production May 2001 - Aug 2005
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0105- )3UZFE..ARL ; (0105- )3UZFE..RHD..6FC..EUR

Click highlighted areas on diagram

diagram 16206 16261 16261A 16261A 16268F 16279 16295 16295A 16295A 16321 16323 16323C 16331A 16346 16355 16355A 16355A 16356 16356A 16356A 8404 8404 8716 8716 9010508267 9017908153 9017908153 9017908153 9034551011 9046720011 9046720011 91511J0822 91621J0814 92122B0822 92122B0822 92122B0825
Part # Description Qty Price
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-50120

3UZFE..UZZ40

 1
16261 - HOSE, WATER BY-PASS
16261-50090

3UZFE..UZZ40

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300

3UZFE..UZZ40

 2
96137-41501

3UZFE..UZZ40

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300

3UZFE..UZZ40

 2
96137-41501

3UZFE..UZZ40

 2
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24019

3UZFE..UZZ40

 1
16279 - PIPE, WATER BY-PASS, NO.3
16208-50030

3UZFE..UZZ40..ARL

 1
16295 - HOSE, WATER BY-PASS, NO.7
16295-50070

3UZFE..UZZ40

 1
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96137-41501

3UZFE..UZZ40

 2
96135-51300

3UZFE..UZZ40

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96137-41501

3UZFE..UZZ40

 2
96135-51300

3UZFE..UZZ40

 2
16321 - INLET, WATER
16321-50020

3UZFE..UZZ40

 1
16323 - HOUSING, WATER INLET
16032-50110

3UZFE..UZZ40

 1
16323C - RING, O(FOR WATER INLET HOUSING)
96761-35035

3UZFE..UZZ40

 1
16331A - THERMOSTAT
90916-03100

3UZFE..UZZ40

*WAX 82-95

 1
16346 - GASKET, THERMOSTAT
16346-50010

3UZFE..UZZ40

 1
16355 - JOINT, WATER BY-PASS, FRONT
16355-50070

3UZFE..UZZ40

 1
16355A - GASKET(FOR WATER BY-PASS JOINT FRONT)
16341-50020

3UZFE..UZZ40

 2
16355A - GASKET(FOR WATER BY-PASS JOINT FRONT)
16341-50020

3UZFE..UZZ40

 2
16356 - JOINT, WATER BY-PASS, REAR
16356-50090

3UZFE..UZZ40

 1
16356A - GASKET(WATER BY-PASS JOINT, REAR)
16341-50020

3UZFE..UZZ40

 2
16356A - GASKET(WATER BY-PASS JOINT, REAR)
16341-50020

3UZFE..UZZ40

 2
Common parts
90105-08267
90179-08153
90345-51011
90467-20011
91511-J0822
91621-J0814
92122-B0822
92122-B0825
Linked diagrams
8404
8716

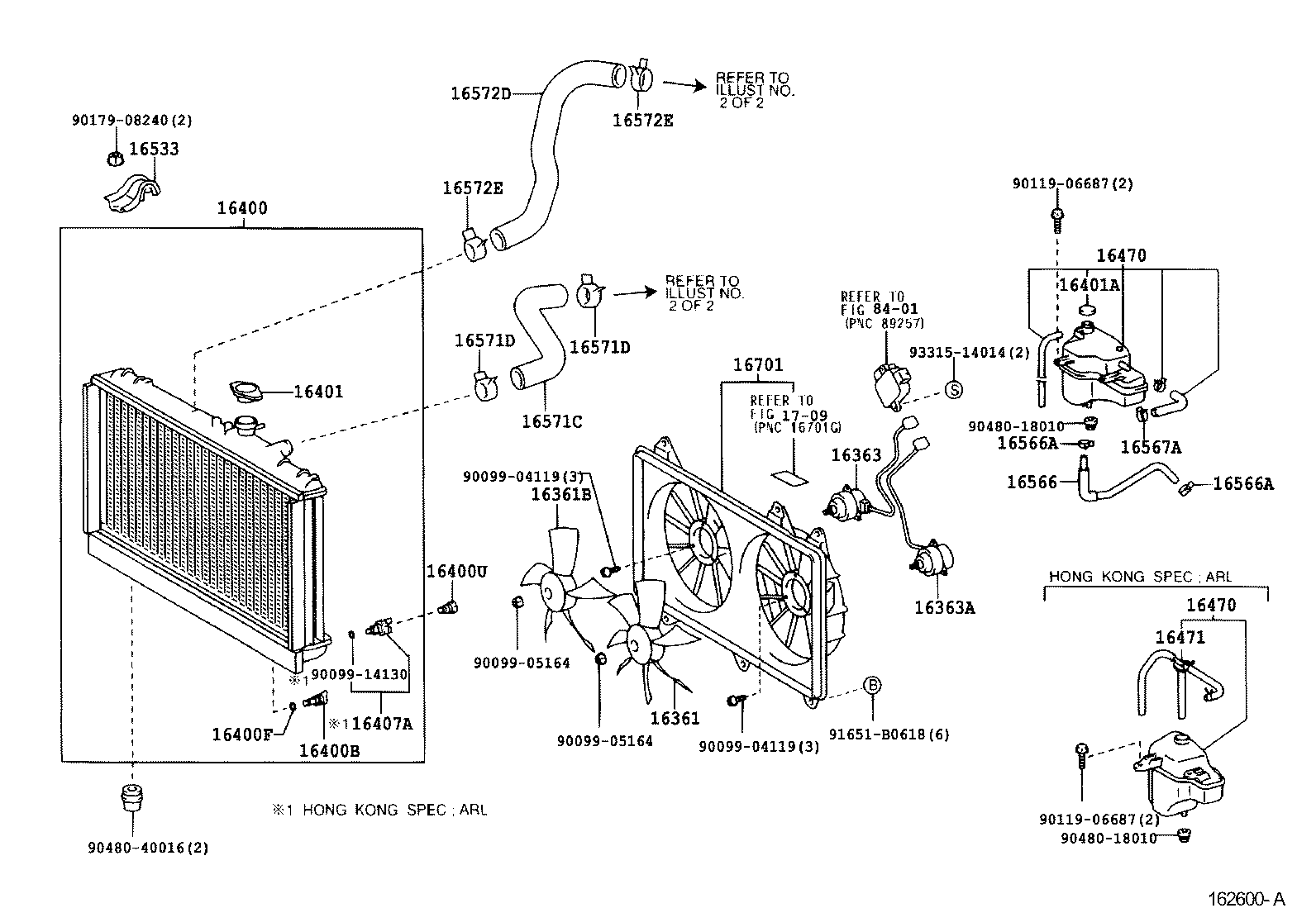

ILLUST NO. 1 OF 2(0105-0107) ; (0107-0508)3UZFE..RHD

Click highlighted areas on diagram

diagram 16361 16361B 16363 16363A 16400 16400B 16400F 16400U 16401 16401A 16407A 16470 16470 16471 16533 16566 16566A 16566A 16567A 16571C 16571D 16571D 16572D 16572E 16572E 16701 1709 8401 9009904119 9009904119 9009905164 9009905164 9009914130 9011906687 9011906687 9017908240 9048018010 9048018010 9048040016 91651B0618 9331514014
Part # Description Qty Price
16361 - FAN
16361-50090

3UZFE..UZZ40

 1
16361B - FAN, NO.2
16361-50100

3UZFE..UZZ40

 1
16363 - MOTOR, COOLING FAN
16363-50050

3UZFE..UZZ40..5FC

 1
16363-50070

3UZFE..UZZ40

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-50060

3UZFE..UZZ40..5FC

 1
16363-20300

3UZFE..UZZ40

 1
16400 - RADIATOR ASSY
16400-50280

3UZFE..UZZ40..ARL

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

3UZFE..UZZ40

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

3UZFE..UZZ40..ARL

 1
16400U - PLUG, STRAIGHT SCREW W/HEAD(FOR RADIATOR)
90341-16016

3UZFE..UZZ40

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-62100

3UZFE..UZZ40..5FC..ARL

 1
16401-28430

3UZFE..UZZ40..RHD

 1
16407A - COCK SUB-ASSY, RADIATOR DRAIN
16407-7A130

3UZFE..UZZ40..RHD

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-50120

3UZFE..UZZ40..ARL

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-50120

3UZFE..UZZ40..ARL

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-50040

3UZFE..UZZ40..RHD

 1
16533 - SUPPORT, RADIATOR, UPPER
16505-50080

3UZFE..UZZ40

 2
16571C - HOSE, RADIATOR, NO.1
16571-50190

3UZFE..UZZ40

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-41003

3UZFE..UZZ40

 2
90466-41007

3UZFE..UZZ40

 2
16571D - CLIP, RADIATOR HOSE, NO.1
90466-41003

3UZFE..UZZ40

 2
90466-41007

3UZFE..UZZ40

 2
16572D - HOSE, RADIATOR, NO.2
16572-50130

3UZFE..UZZ40

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-41007

3UZFE..UZZ40

 2
90466-41003

3UZFE..UZZ40

 2
16572E - CLIP, RADIATOR HOSE, NO.2
90466-41007

3UZFE..UZZ40

 2
90466-41003

3UZFE..UZZ40

 2
16701 - SHROUD SUB-ASSY, FAN
16711-50160

3UZFE..UZZ40

 1
Common parts
90099-04119
90099-05164
90099-14130
90119-06687
90179-08240
90480-18010
90480-40016
91651-B0618
93315-14014
Linked diagrams
1709
8401
