MHU38R-AWXGKW (2005)
Toyota Lexus Rx400h

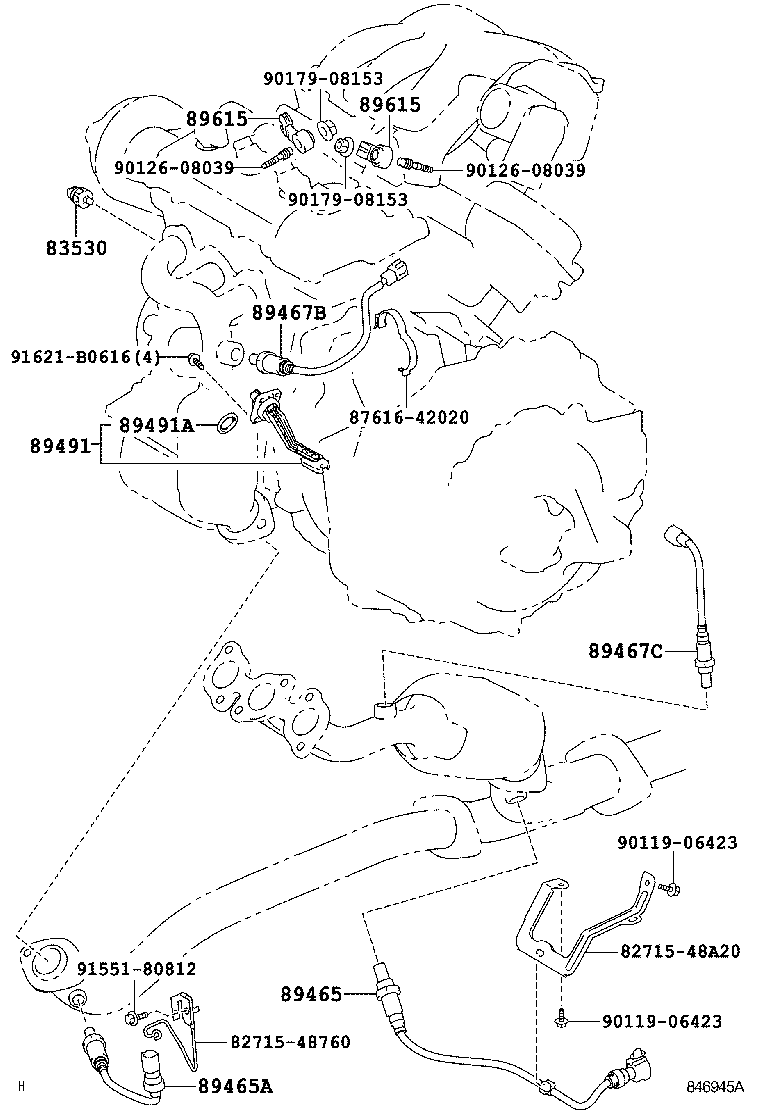

ILLUST NO. 1 OF 8(0503- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
MHU38 DENSO |
1 | ||
| 83530-60020 |
MHU38 YAZAKI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-48200 |
MHU38 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-48210 |
MHU38 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-48060 |
MHU38 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-48080 |
MHU38 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33030 |
MHU38..RHD NEW ZEALAND SPEC |
1 | ||
| 89491-33030 |
MHU38..RHD AUSTRALIA SPEC |
1 | ||
| 89491-33030 |
MHU38 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
MHU38 |
1 | ||
| 90430-27001 |
MHU38..RHD NEW ZEALAND SPEC |
1 | ||
| 90430-27001 |
MHU38..RHD AUSTRALIA SPEC |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
MHU38 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
MHU38 |
2 | ||
| Common parts | ||||
| 82715-48760 | ||||
| 82715-48A20 | ||||
| 87616-42020 | ||||
| 90119-06423 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 91551-80812 | ||||
| 91621-B0616 | ||||

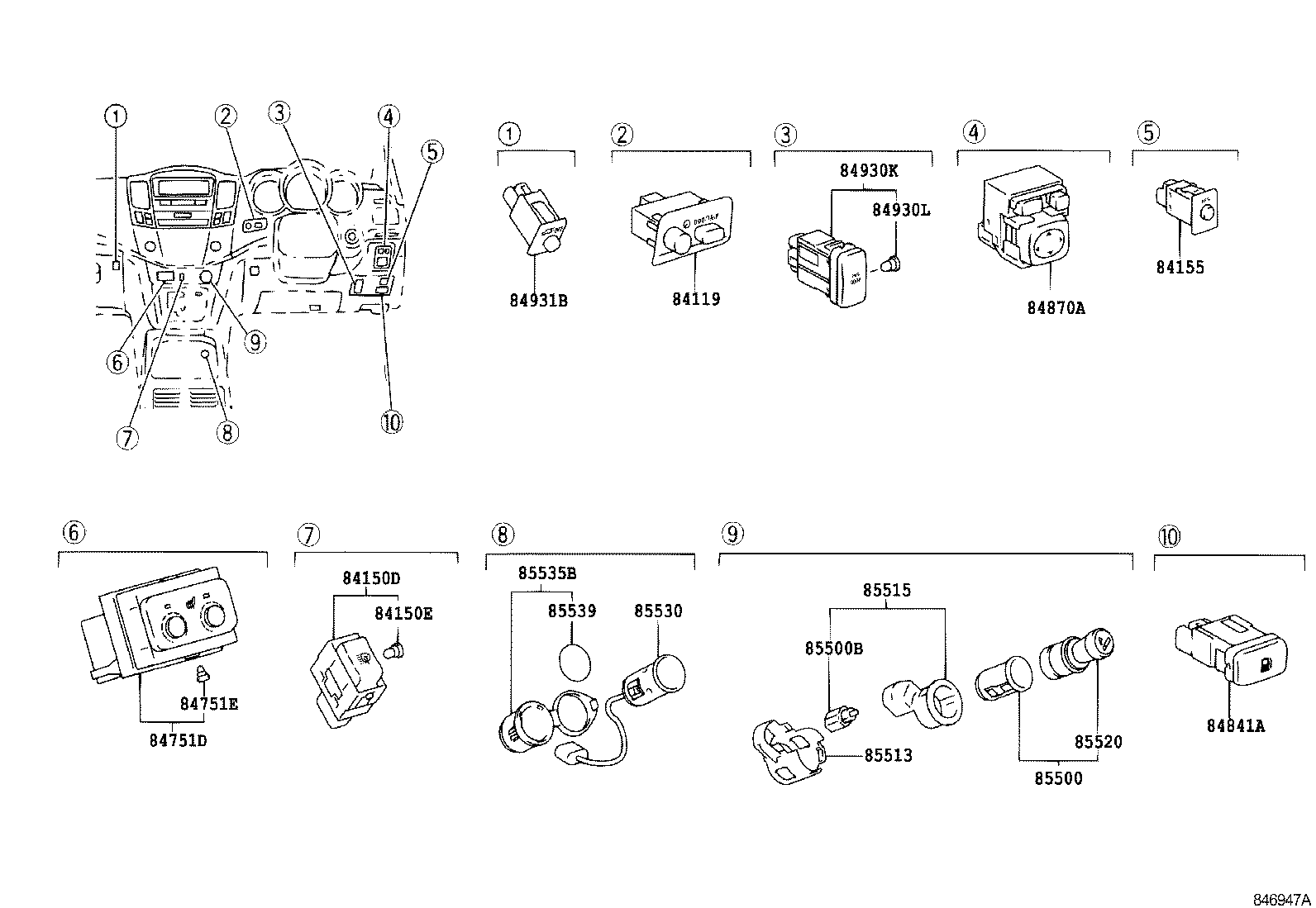

ILLUST NO. 5 OF 8(0503- )RHD
INSTRUMENT PANEL1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-0W010C0 |
MHU38..RHD BLACK,TRIM1#,2# |
1 | ||
| 84119-0W010B0 |
MHU38..RHD SADDLE GRAY,TRIM0# |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-48010 |
MHU38 |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 90010-01039 |
MHU38 14V0.91W,W(GREEN CAP |
1 | ||
| 84155 - SWITCH, HEADLAMP SWIVEL MAIN | ||||
| 84155-48010 |
MHU38 HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION |
1 | ||
| 84155-48010 |
MHU38 HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION |
1 | ||
| 84751D - SWITCH, SEAT HEATER(FRONT) | ||||
| 84751-48080 |
MHU38 SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 84751E - BULB, SEAT HEATER SWITCH(FRONT) | ||||
| 90010-01094 |
MHU38 14V1.12W,W/GREEN CAP,SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-48010 |
MHU38 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-48020 |
MHU38 EASY-ACCESS POWER SYSTEM-WITH |
1 | ||
| 84872-52040 |
MHU38 |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84930-28040 |
MHU38 W(POWER BACK DOOR) |
1 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01039 |
MHU38 14V0.91W,W(GREEN CAP,W(POWER BACK DOOR) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-48010 |
MHU38 W(POWER BACK DOOR) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
MHU38 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
MHU38 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-48010 |
MHU38 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22030 |
MHU38 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
MHU38 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-48040 |
MHU38 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-34030A1 |
MHU38 IVORY,TRIM0# |
1 | ||
| 85535-34030B3 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 85535-48070B0 |
MHU38 LT.GRAY,TRIM1# |
1 | ||
| 85535-34030C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 85535-48070C0 |
MHU38 BLACK,TRIM2# |
1 | ||
| 85535-48070A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
MHU38 |
1 | ||

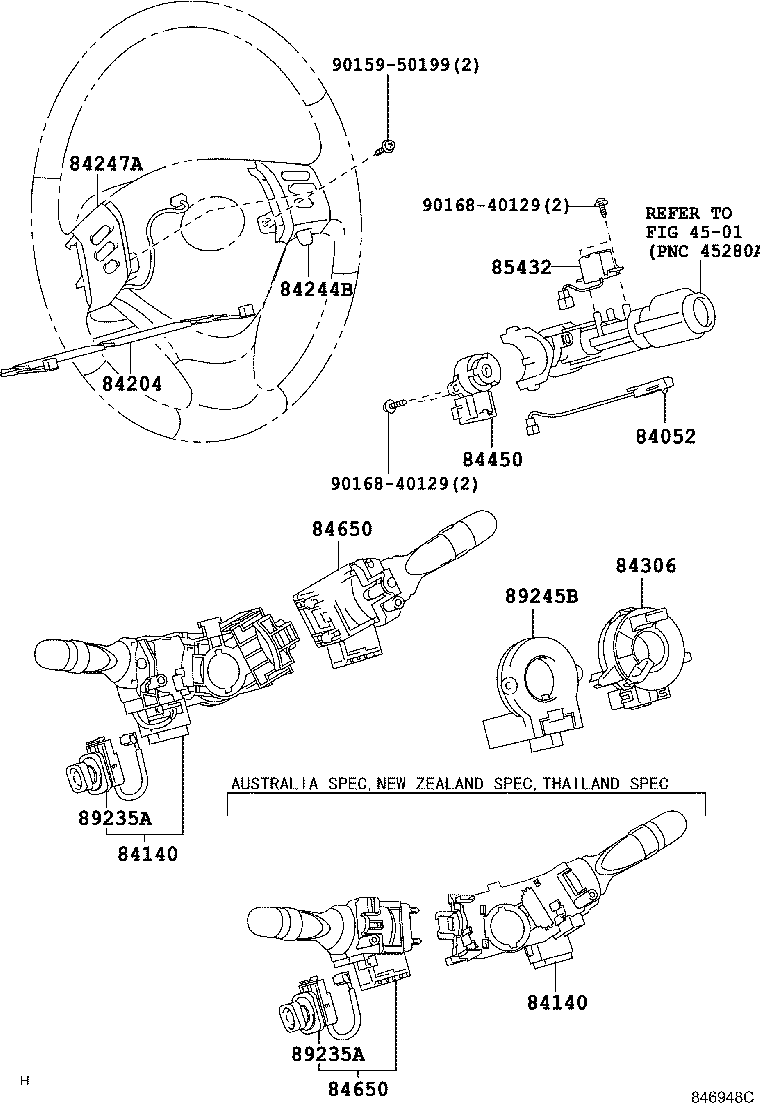

ILLUST NO. 7 OF 8(0503- )
IGNITION & COMBINATION SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22050 |
MHU38 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-48080 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84140-30290 |
MHU38..RHD AUSTRALIA SPEC&LUXURY PACKAGE |
1 | ||
| 84140-30311 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84140-30310 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84140-48040 |
MHU38 |
1 | ||
| 84140-42111 |
MHU38 |
1 | ||
| 84140-30290 |
MHU38..RHD NEW ZEALAND SPEC&LUXURY PACKAGE |
1 | ||
| 84140-42110 |
MHU38 |
1 | ||
| 84140-30290 |
MHU38..RHD THAILAND SPEC&LUXURY PACKAGE |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-48080 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84140-30290 |
MHU38..RHD AUSTRALIA SPEC&LUXURY PACKAGE |
1 | ||
| 84140-30311 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84140-30310 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84140-48040 |
MHU38 |
1 | ||
| 84140-42111 |
MHU38 |
1 | ||
| 84140-30290 |
MHU38..RHD NEW ZEALAND SPEC&LUXURY PACKAGE |
1 | ||
| 84140-42110 |
MHU38 |
1 | ||
| 84140-30290 |
MHU38..RHD THAILAND SPEC&LUXURY PACKAGE |
1 | ||
| 84204 - CABLE SUB-ASSY, STEERING PAD SWITCH | ||||
| 84204-48010 |
MHU38 |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-48080B0 |
MHU38 EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION),SADDLE GRAY,TRIM0# |
1 | ||
| 84244-48080C0 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),BLACK,TRIM1#,2# |
1 | ||
| 84244-48080C0 |
MHU38 EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION),BLACK,TRIM1#,2# |
1 | ||
| 84244-48060B0 |
MHU38 SADDLE GRAY,TRIM0# |
1 | ||
| 84244-48060C0 |
MHU38 BLACK,TRIM1#,2# |
1 | ||
| 84244-48080B0 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),SADDLE GRAY,TRIM0# |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-48010C0 |
MHU38 BLACK,TRIM1#,2# |
1 | ||
| 84247-48010B0 |
MHU38 SADDLE GRAY,TRIM0# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
MHU38 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
MHU38 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48030 |
MHU38 |
1 | ||
| 84652-48110 |
MHU38 |
1 | ||
| 84652-48040 |
MHU38 W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48040 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84652-48090 |
MHU38..RHD AUSTRALIA SPEC&LUXURY PACKAGE |
1 | ||
| 84652-48111 |
MHU38 |
1 | ||
| 84652-48120 |
MHU38 LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48090 |
MHU38..RHD THAILAND SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48040 |
MHU38 LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48121 |
MHU38 LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48121 |
MHU38 W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48090 |
MHU38..RHD NEW ZEALAND SPEC&LUXURY PACKAGE |
1 | ||
| 84652-48121 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84652-48120 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84652-48090 |
MHU38..RHD THAILAND SPEC&LUXURY PACKAGE |
1 | ||
| 84652-48120 |
MHU38 W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48030 |
MHU38 |
1 | ||
| 84652-48110 |
MHU38 |
1 | ||
| 84652-48040 |
MHU38 W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48040 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84652-48090 |
MHU38..RHD AUSTRALIA SPEC&LUXURY PACKAGE |
1 | ||
| 84652-48111 |
MHU38 |
1 | ||
| 84652-48120 |
MHU38 LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48090 |
MHU38..RHD THAILAND SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48040 |
MHU38 LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48121 |
MHU38 LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48121 |
MHU38 W(WINDSHIELD WIPER DEICER) |
1 | ||
| 84652-48090 |
MHU38..RHD NEW ZEALAND SPEC&LUXURY PACKAGE |
1 | ||
| 84652-48121 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84652-48120 |
MHU38 LUXURY PACKAGE |
1 | ||
| 84652-48090 |
MHU38..RHD THAILAND SPEC&LUXURY PACKAGE |
1 | ||
| 84652-48120 |
MHU38 W(WINDSHIELD WIPER DEICER) |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-14040 |
MHU38 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
MHU38..RHD THAILAND SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER) |
1 | ||
| 89235-48010 |
MHU38..RHD THAILAND SPEC&LUXURY PACKAGE |
1 | ||
| 89235-48010 |
MHU38..RHD NEW ZEALAND SPEC&LUXURY PACKAGE |
1 | ||
| 89235-48010 |
MHU38..RHD AUSTRALIA SPEC&LUXURY PACKAGE |
1 | ||
| 89235-48010 |
MHU38 LUXURY PACKAGE |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
MHU38..RHD THAILAND SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER) |
1 | ||
| 89235-48010 |
MHU38..RHD THAILAND SPEC&LUXURY PACKAGE |
1 | ||
| 89235-48010 |
MHU38..RHD NEW ZEALAND SPEC&LUXURY PACKAGE |
1 | ||
| 89235-48010 |
MHU38..RHD AUSTRALIA SPEC&LUXURY PACKAGE |
1 | ||
| 89235-48010 |
MHU38 LUXURY PACKAGE |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-48030 |
MHU38 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

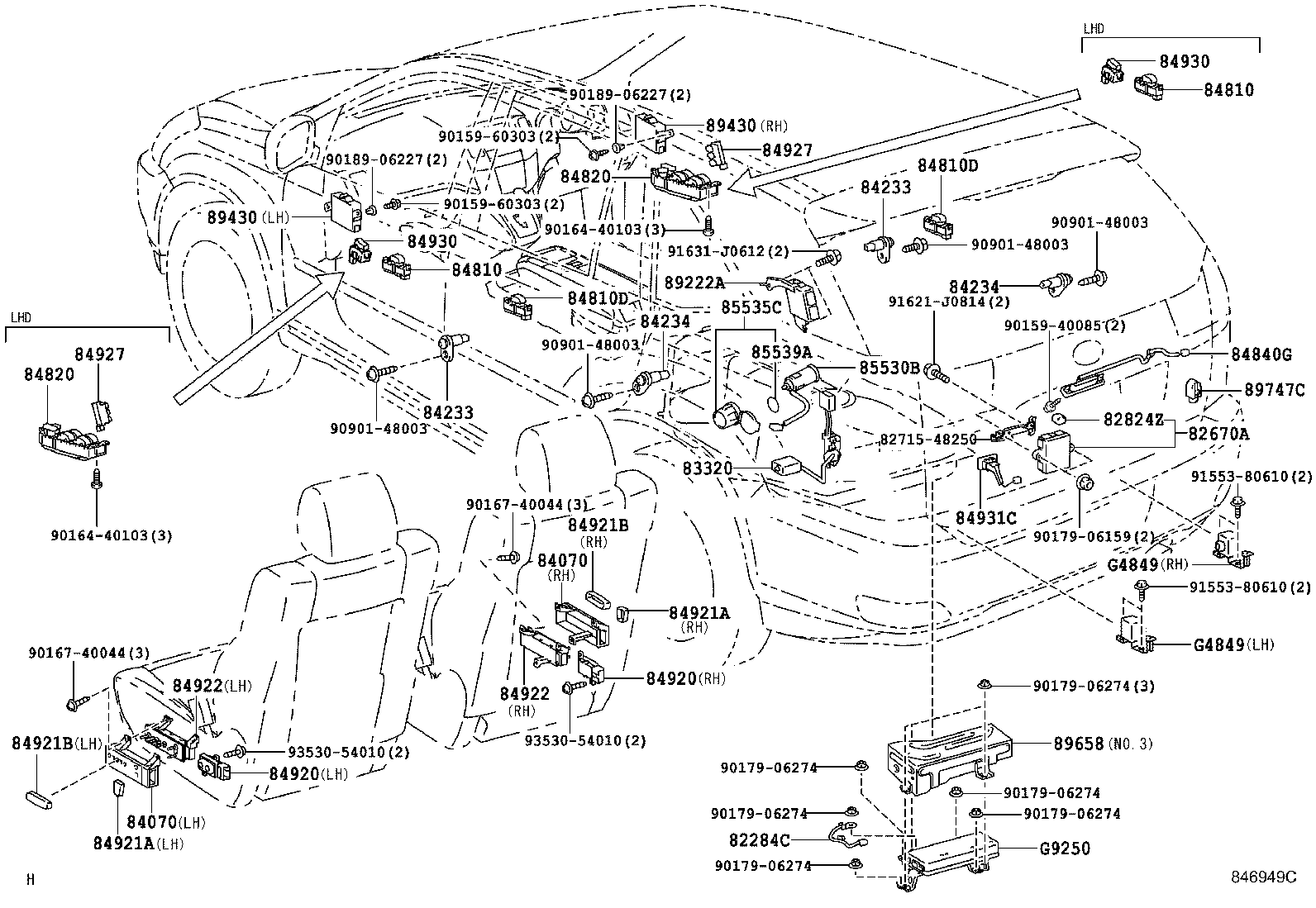

ILLUST NO. 8 OF 8(0503- )
DOOR,ROOF,FLOOR,SEAT & LAGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82284C - WIRE, EARTH | ||||
| 82284-48010 |
MHU38 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-48060 |
MHU38 |
1 | ||
| 82824Z - PIN, SHORT | ||||
| 82824-44020 |
MHU38 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-48040 |
MHU38 |
1 | ||
| 84070 - COMPUTER & SWITCH ASSY, POSITION CONTROL | ||||
| 84070-48010 |
MHU38..RHD LUXURY PACKAGE,RH |
1 | ||
| 84070-48010 |
MHU38..RHD LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,RH |
1 | ||
| 84070 - COMPUTER & SWITCH ASSY, POSITION CONTROL | ||||
| 84070-48010 |
MHU38..RHD LUXURY PACKAGE,RH |
1 | ||
| 84070-48010 |
MHU38..RHD LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,RH |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
MHU38 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
MHU38 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
MHU38 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
MHU38 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-48070 |
MHU38 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-48070 |
MHU38 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-48070 |
MHU38 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-48070 |
MHU38 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-48091 |
MHU38..RHD |
1 | ||
| 84040-48090 |
MHU38..RHD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-48091 |
MHU38..RHD |
1 | ||
| 84040-48090 |
MHU38..RHD |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-21010 |
MHU38 |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84920-60050A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84920-60040A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84920-60040C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84920-60040B3 |
MHU38..RHD LT.GRAY,TRIM1#,RH |
1 | ||
| 84920-60050C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84920-60040C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84920-60050A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84920-60050B5 |
MHU38..RHD FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#,LH |
1 | ||
| 84920-60050B5 |
MHU38..RHD LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#,LH |
1 | ||
| 84920-60050C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84920-60050A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84920-60040A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84920-60040C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84920-60040B3 |
MHU38..RHD LT.GRAY,TRIM1#,RH |
1 | ||
| 84920-60050C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84920-60040C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84920-60050A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84920-60050B5 |
MHU38..RHD FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#,LH |
1 | ||
| 84920-60050B5 |
MHU38..RHD LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#,LH |
1 | ||
| 84920-60050C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60110A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60120B1 |
MHU38 LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-60110B1 |
MHU38 LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-60110C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84921-60110A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60120A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60110C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84921-60120C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84921-60120C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84921-60120A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60110A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60120B1 |
MHU38 LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-60110B1 |
MHU38 LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-60110C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84921-60110A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60120A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60110C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84921-60120C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84921-60120C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84921-60120A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60080A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60070B1 |
MHU38..RHD LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-60080C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84921-60080A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60080C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84921-60080B1 |
MHU38..RHD FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-60080B1 |
MHU38..RHD LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-60100C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84921-60100B1 |
MHU38..RHD LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-60100A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60100C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84921-60100A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60080A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60070B1 |
MHU38..RHD LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-60080C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84921-60080A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,LH |
1 | ||
| 84921-60080C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,LH |
1 | ||
| 84921-60080B1 |
MHU38..RHD FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-60080B1 |
MHU38..RHD LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-60100C0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84921-60100B1 |
MHU38..RHD LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-60100A0 |
MHU38 LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84921-60100C0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#,RH |
1 | ||
| 84921-60100A0 |
MHU38 FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-58010 |
MHU38..RHD RH |
1 | ||
| 84922-60110 |
MHU38..RHD LH |
1 | ||
| 84922-60120 |
MHU38..RHD LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LH |
1 | ||
| 84922-60120 |
MHU38..RHD FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LH |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-58010 |
MHU38..RHD RH |
1 | ||
| 84922-60110 |
MHU38..RHD LH |
1 | ||
| 84922-60120 |
MHU38..RHD LUXURY PACKAGE&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LH |
1 | ||
| 84922-60120 |
MHU38..RHD FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LH |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-48030 |
MHU38..RHD LUXURY PACKAGE |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-48030 |
MHU38..RHD LUXURY PACKAGE |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-48030 |
MHU38 |
1 | ||
| 84930-24020 |
MHU38 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-48030 |
MHU38 |
1 | ||
| 84930-24020 |
MHU38 |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-48020 |
MHU38 W(POWER BACK DOOR) |
1 | ||
| 84930-48021 |
MHU38 W(POWER BACK DOOR) |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-48040 |
MHU38 |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-34030A1 |
MHU38 IVORY,TRIM0# |
1 | ||
| 85535-48070A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 85535-34030B3 |
MHU38 LT.GRAY,TRIM1#,2# |
1 | ||
| 85535-48070B0 |
MHU38 LT.GRAY,TRIM1#,2# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
MHU38 |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-48040 |
MHU38 W(POWER BACK DOOR) |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-48030 |
MHU38 LUXURY PACKAGE&EASY-ACCESS POWER SYSTEM-WITH,LH |
1 | ||
| 89430-48040 |
MHU38 LUXURY PACKAGE&EASY-ACCESS POWER SYSTEM-WITH,RH |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-48030 |
MHU38 LUXURY PACKAGE&EASY-ACCESS POWER SYSTEM-WITH,LH |
1 | ||
| 89430-48040 |
MHU38 LUXURY PACKAGE&EASY-ACCESS POWER SYSTEM-WITH,RH |
1 | ||
| 89658 - BRACKET, POWER STEERING COMPUTER | ||||
| 89658-48040 |
MHU38 NO.2 |
1 | ||
| 89658-48020 |
MHU38 NO.3 |
1 | ||
| 89658-48030 |
MHU38 NO.1 |
1 | ||
| 89747C - BUZZER, POWER SLIDE BACK DOOR WARNING | ||||
| 89747-51010 |
MHU38 W(POWER BACK DOOR) |
1 | ||
| G4849 - SENSOR, REAR CIRCUIT BREAKER | ||||
| G4849-48010 |
MHU38 LH |
1 | ||
| G4849-48020 |
MHU38 RH |
1 | ||
| G4849 - SENSOR, REAR CIRCUIT BREAKER | ||||
| G4849-48010 |
MHU38 LH |
1 | ||
| G4849-48020 |
MHU38 RH |
1 | ||
| G9250 - CONVERTER ASSY, POWER STEERING | ||||
| G9250-48011 |
MHU38 |
1 | ||
| Common parts | ||||
| 82715-48250 | ||||
| 90159-40085 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90167-40044 | ||||
| 90179-06159 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 91553-80610 | ||||
| 91621-J0814 | ||||
| 91631-J0612 | ||||
| 93530-54010 | ||||

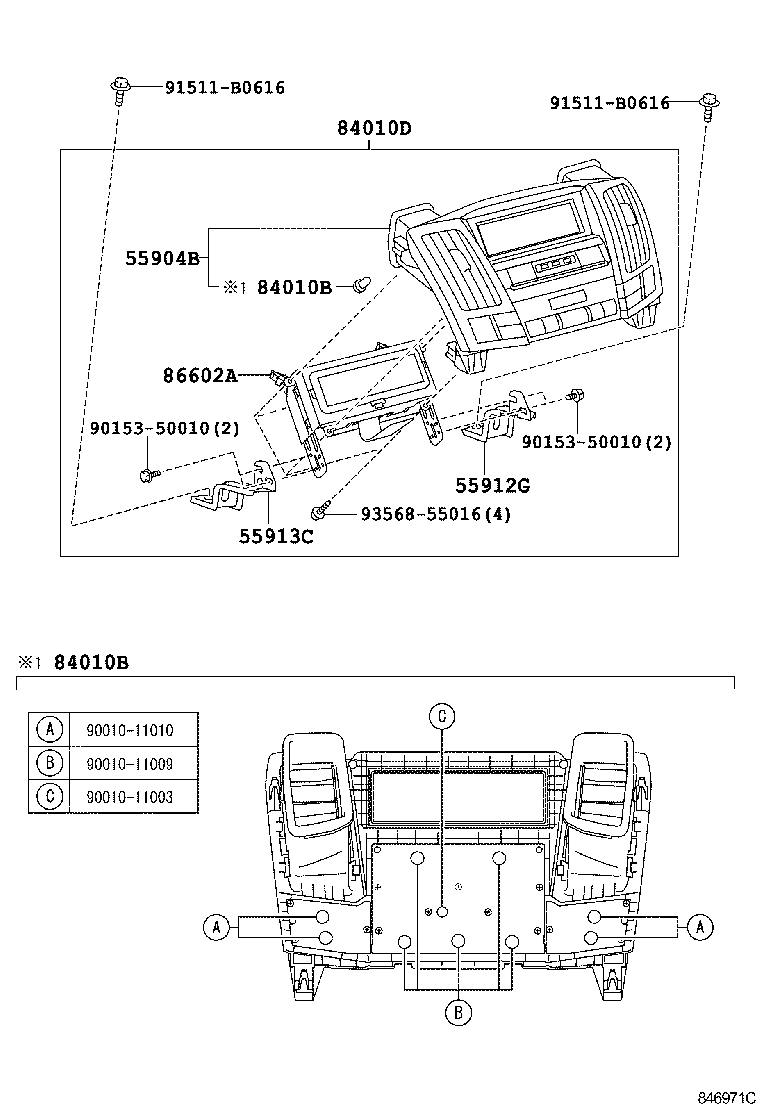

ILLUST NO. 6 OF 8(0503- )
INSTRUMENT PANEL2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55904B - HOUSING SUB-ASSY, HEATER CONTROL | ||||
| 55904-48150 |
MHU38..RHD EMV & NAVIGATION SYSTEM-W(DVD NAVIGATION) |
1 | ||
| 55904-48150 |
MHU38..RHD |
1 | ||
| 55904-48150 |
MHU38..RHD EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 55904-48150 |
MHU38..RHD EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| 55912G - BRACKET, HEATER CONTROL BASE, RH | ||||
| 55912-48010 |
MHU38 |
1 | ||
| 55912-48010 |
MHU38 EMV & NAVIGATION SYSTEM-W(DVD NAVIGATION) |
1 | ||
| 55912-48010 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 55912-48010 |
MHU38 EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| 55913C - BRACKET, HEATER CONTROL BASE, LH | ||||
| 55913-48010 |
MHU38 |
1 | ||
| 55913-48010 |
MHU38 EMV & NAVIGATION SYSTEM-W(DVD NAVIGATION) |
1 | ||
| 55913-48010 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 55913-48010 |
MHU38 EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| 84010B - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90010-11003 |
MHU38 14V 0.91W,TYPE C:REFER ILLUST. |
1 | ||
| 90010-11003 |
MHU38 14V 0.91W,EMV & NAVIGATION SYSTEM-W(DVD NAVIGATION),TYPE C:REFER ILLUST. |
1 | ||
| 90010-11003 |
MHU38 14V 0.91W,EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION),TYPE C:REFER ILLUST. |
1 | ||
| 90010-11010 |
MHU38 14V 1.4W,TYPE A:REFER ILLUST. |
4 | ||
| 90010-11003 |
MHU38 14V 0.91W,EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),TYPE C:REFER ILLUST. |
1 | ||
| 90010-11009 |
MHU38 14V 1.4W,W/CAP,TYPE B:REFER ILLUST. |
5 | ||
| 84010B - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90010-11003 |
MHU38 14V 0.91W,TYPE C:REFER ILLUST. |
1 | ||
| 90010-11003 |
MHU38 14V 0.91W,EMV & NAVIGATION SYSTEM-W(DVD NAVIGATION),TYPE C:REFER ILLUST. |
1 | ||
| 90010-11003 |
MHU38 14V 0.91W,EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION),TYPE C:REFER ILLUST. |
1 | ||
| 90010-11010 |
MHU38 14V 1.4W,TYPE A:REFER ILLUST. |
4 | ||
| 90010-11003 |
MHU38 14V 0.91W,EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),TYPE C:REFER ILLUST. |
1 | ||
| 90010-11009 |
MHU38 14V 1.4W,W/CAP,TYPE B:REFER ILLUST. |
5 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-48220 |
MHU38..RHD EMV & NAVIGATION SYSTEM-W(DVD NAVIGATION) |
1 | ||
| 84010-48220 |
MHU38..RHD EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| 84010-48221 |
MHU38..RHD EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 84010-48220 |
MHU38..RHD |
1 | ||
| 84010-48221 |
MHU38..RHD |
1 | ||
| 84010-48221 |
MHU38..RHD EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| 84010-48221 |
MHU38..RHD EMV & NAVIGATION SYSTEM-W(DVD NAVIGATION) |
1 | ||
| 84010-48220 |
MHU38..RHD EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86602A - DISPLAY SUB-ASSY, MULTI INFORMATION | ||||
| 86602-48080 |
MHU38 EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| 86602-48080 |
MHU38 EMV & NAVIGATION SYSTEM-W(DVD NAVIGATION) |
1 | ||
| 86602-48080 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86602-48140 |
MHU38 |
1 | ||
| 86602-48140 |
MHU38 EMV & NAVIGATION SYSTEM-W(DVD NAVIGATION) |
1 | ||
| 86602-48080 |
MHU38 |
1 | ||
| 86602-48140 |
MHU38 EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| 86602-48140 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 91511-B0616 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
