MHU38R-AWXGKW (2005)
Toyota Lexus Rx400h
Production
Mar 2005
-
Dec 2008
Engine
3MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0503- )

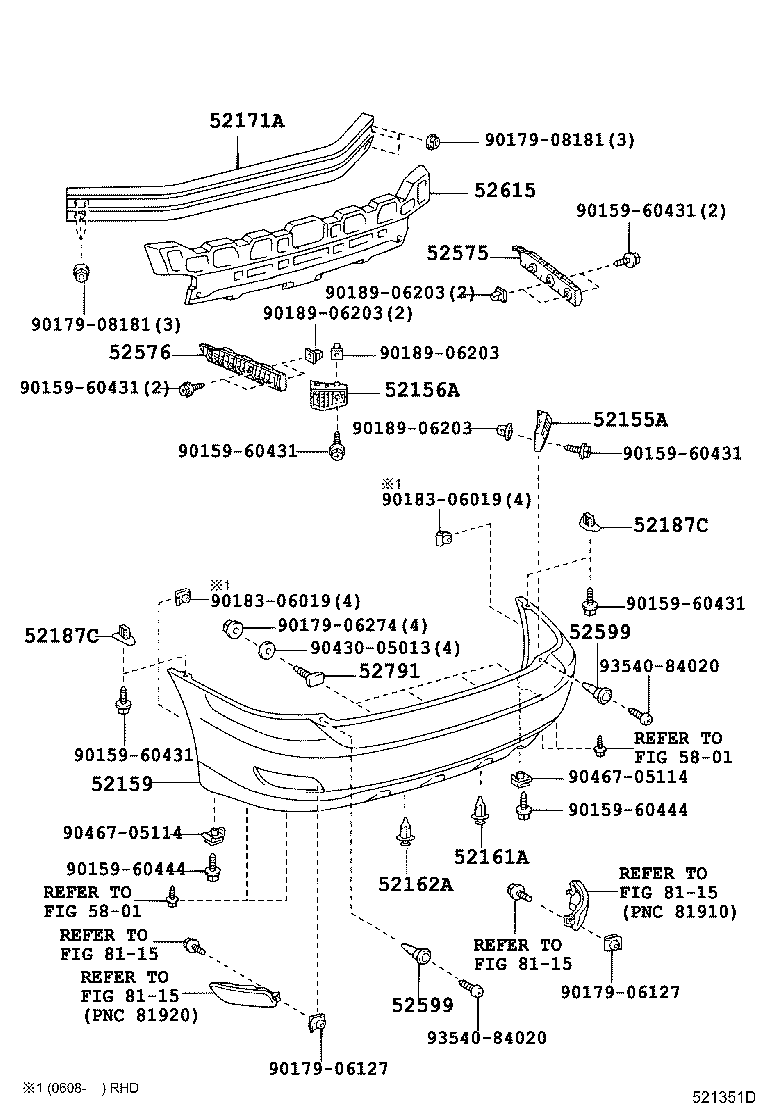

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-48011 |
MHU38 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-48011 |
MHU38 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-48903 |
MHU38 PAINT REQ. |
1 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-16010 |
MHU38 |
1 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52161-16010 |
MHU38 |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-48090 |
MHU38 |
1 | ||
| 52187C - BRACKET, REAR BUMPER SIDE, NO.2 | ||||
| 52187-48010 |
MHU38 |
2 | ||
| 52187C - BRACKET, REAR BUMPER SIDE, NO.2 | ||||
| 52187-48010 |
MHU38 |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-48020 |
MHU38 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-48020 |
MHU38 |
1 | ||
| 52599 - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-48031 |
MHU38 |
2 | ||
| 52599 - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-48031 |
MHU38 |
2 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-48070 |
MHU38 |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-33010 |
MHU38 |
4 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90159-60444 | ||||
| 90179-06127 | ||||
| 90179-06274 | ||||
| 90179-08181 | ||||
| 90183-06019 | ||||
| 90189-06203 | ||||
| 90430-05013 | ||||
| 90467-05114 | ||||
| 93540-84020 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 8115 | ||||
