MHU38L-AWXGKW (2005)
Toyota Lexus Rx400h
(0503-0608)

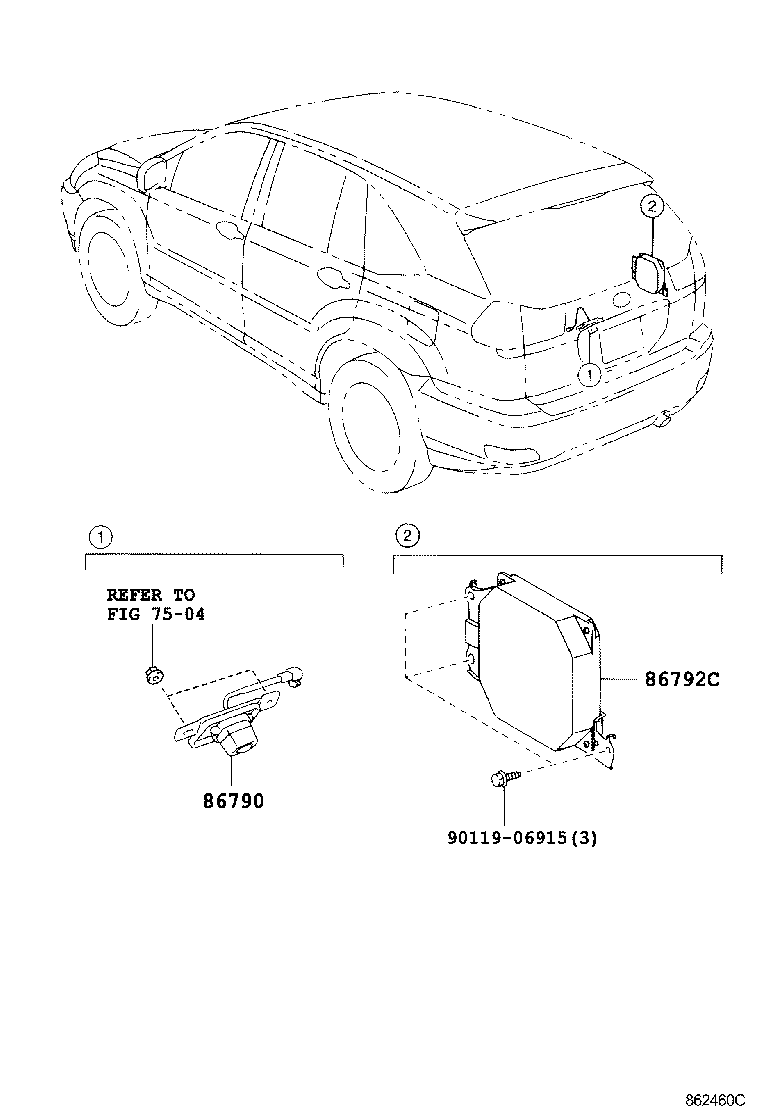

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790 - CAMERA ASSY, TELEVISION | ||||
| 86790-48060 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86790-48020 |
MHU38 EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-48180 |
MHU38..LHD CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48180 |
MHU38..LHD TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48181 |
MHU38..LHD CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48181 |
MHU38..LHD TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48160 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48182 |
MHU38..LHD CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48182 |
MHU38..LHD TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48091 |
MHU38 EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 7504 | ||||
(0608- )

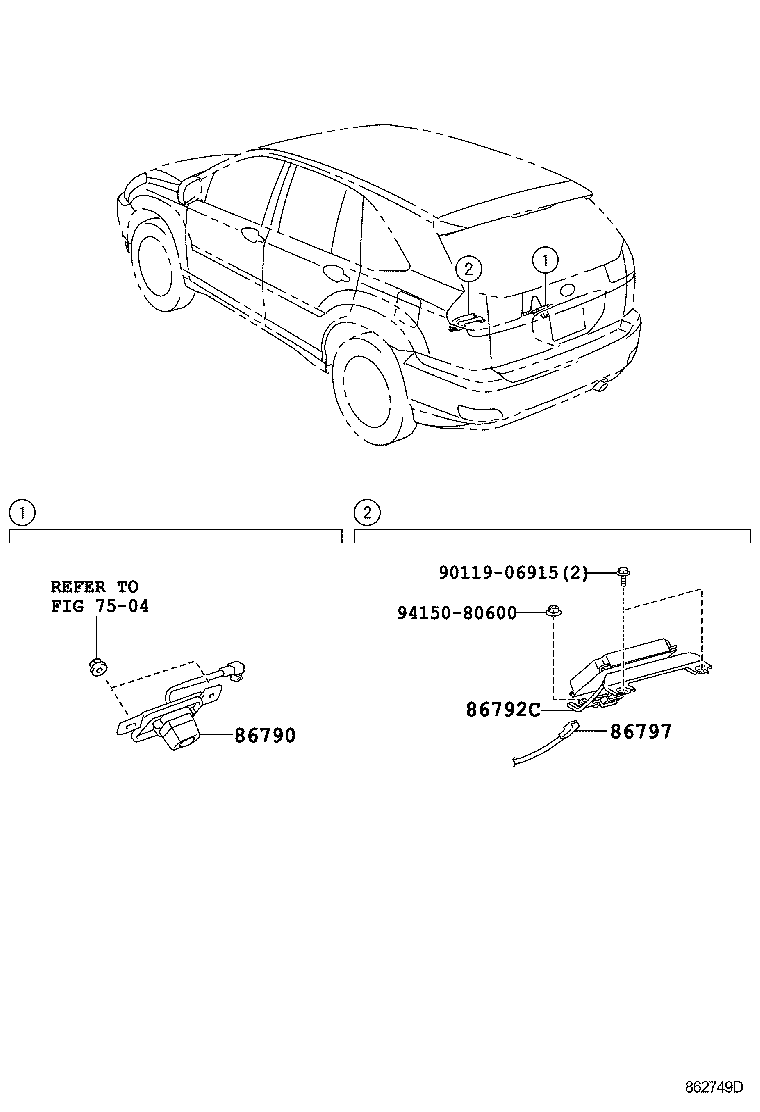

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790 - CAMERA ASSY, TELEVISION | ||||
| 86790-48060 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86790-48020 |
MHU38 EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-48180 |
MHU38..LHD CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48180 |
MHU38..LHD TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48181 |
MHU38..LHD CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48181 |
MHU38..LHD TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48160 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48182 |
MHU38..LHD CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48182 |
MHU38..LHD TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86792-48091 |
MHU38 EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION) |
1 | ||
| 86797 - WIRE, TELEVISION CAMERA, NO.2 | ||||
| 86797-48030 |
MHU38..LHD TAIWAN SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86797-48030 |
MHU38 EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| 86797-48030 |
MHU38..LHD CHINA SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 7504 | ||||
