MHU38L-AWXGKW (2005)
Toyota Lexus Rx400h

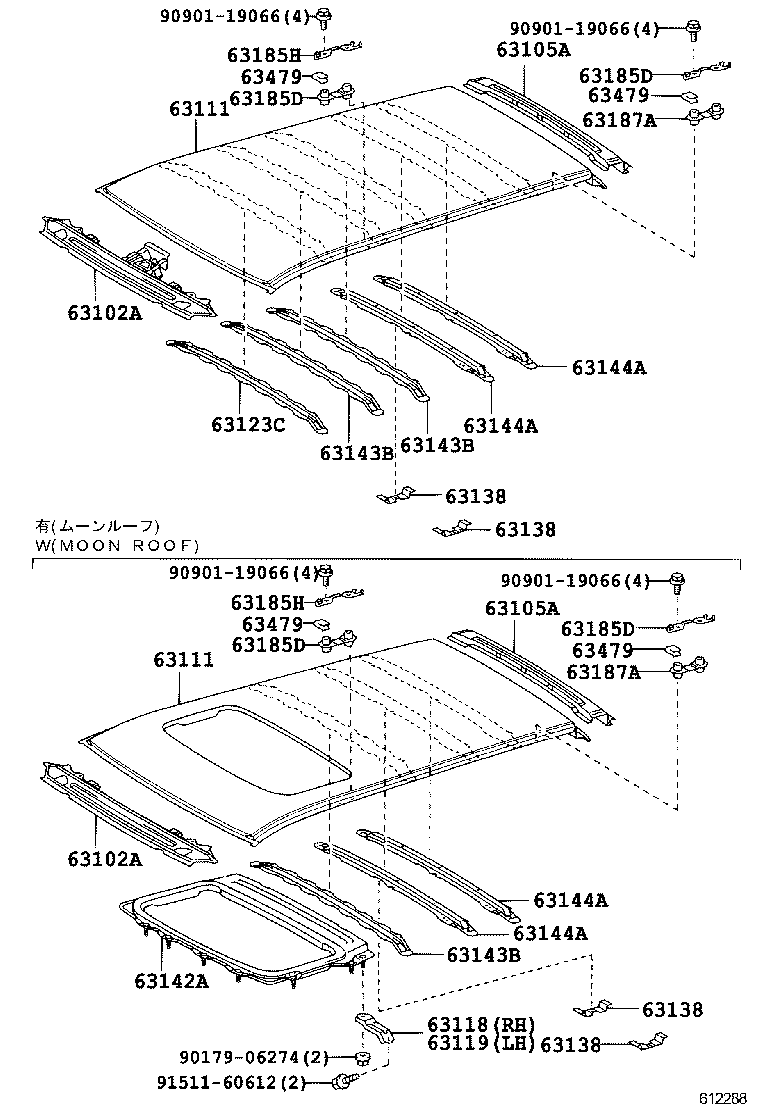

ILLUST NO. 1 OF 3(0503-0812)
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-48050 |
MHU38 |
1 | ||
| 63102-48070 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-48050 |
MHU38 |
1 | ||
| 63102-48070 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-48030 |
MHU38 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-48030 |
MHU38 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-48070 |
MHU38 |
1 | ||
| 63111-48080 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-48070 |
MHU38 |
1 | ||
| 63111-48080 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-48070 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-48070 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63123C - REINFORCEMENT, ROOF PANEL | ||||
| 63123-48020 |
MHU38 |
1 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-12011 |
MHU38 |
2 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-12011 |
MHU38 |
2 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-12011 |
MHU38 |
2 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-12011 |
MHU38 |
2 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-48020 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-48040 |
MHU38 |
2 | ||
| 63143-48050 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-48040 |
MHU38 |
2 | ||
| 63143-48050 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-48040 |
MHU38 |
2 | ||
| 63143-48050 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-48030 |
MHU38 |
2 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-48030 |
MHU38 |
2 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-48030 |
MHU38 |
2 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-48030 |
MHU38 |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-48010 |
MHU38 |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-48010 |
MHU38 |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-48010 |
MHU38 |
2 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-48010 |
MHU38 |
2 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
MHU38 |
4 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
MHU38 |
4 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-42010 |
MHU38 |
2 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-42010 |
MHU38 |
2 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-48010 |
MHU38 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-48010 |
MHU38 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-48010 |
MHU38 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-48010 |
MHU38 |
4 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90901-19066 | ||||
| 91511-60612 | ||||
ILLUST NO. 3 OF 3(0503-0812)
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63187-48010 |
MHU38 |
2 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-42010 |
MHU38 |
2 | ||
| 63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-0E011 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
2 | ||
| 63409-0E011 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
2 | ||
| 63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-0E011 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
2 | ||
| 63409-0E011 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
2 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-48010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
4 | ||
| 63437-48010 |
MHU38 ROOF RAIL-WITH |
4 | ||
| 63437-48010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
4 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-48010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
4 | ||
| 63437-48010 |
MHU38 ROOF RAIL-WITH |
4 | ||
| 63437-48010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
4 | ||
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-0E011 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63460-0E013 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63460-0E011 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63460-0E012 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63460-0E012 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63460-0E013 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63460-0E010 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63460-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63460-0E011 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63460-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63460-0E012 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63460-0E013 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-0E011 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63470-0E011 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63470-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63470-0E012 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63470-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63470-0E011 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63470-0E010 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63470-0E013 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63470-0E012 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63470-0E013 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63470-0E013 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63470-0E012 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-48010 |
MHU38 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-48010 |
MHU38 |
4 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-48020 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63484-48020 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-48020 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63485-48020 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63491-0E010 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63491-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63492-0E010 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63492-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63493-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63493-0E010 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-0E010 |
MHU38 ROOF RAIL-WITH |
1 | ||
| 63494-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63494-0E010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH |
1 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-48010 |
MHU38 ROOF RACK-WITH&ROOF RAIL-WITH&SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
2 | ||
| Common parts | ||||
| 90080-46314 | ||||
| 90105-08399 | ||||
| 90159-50383 | ||||

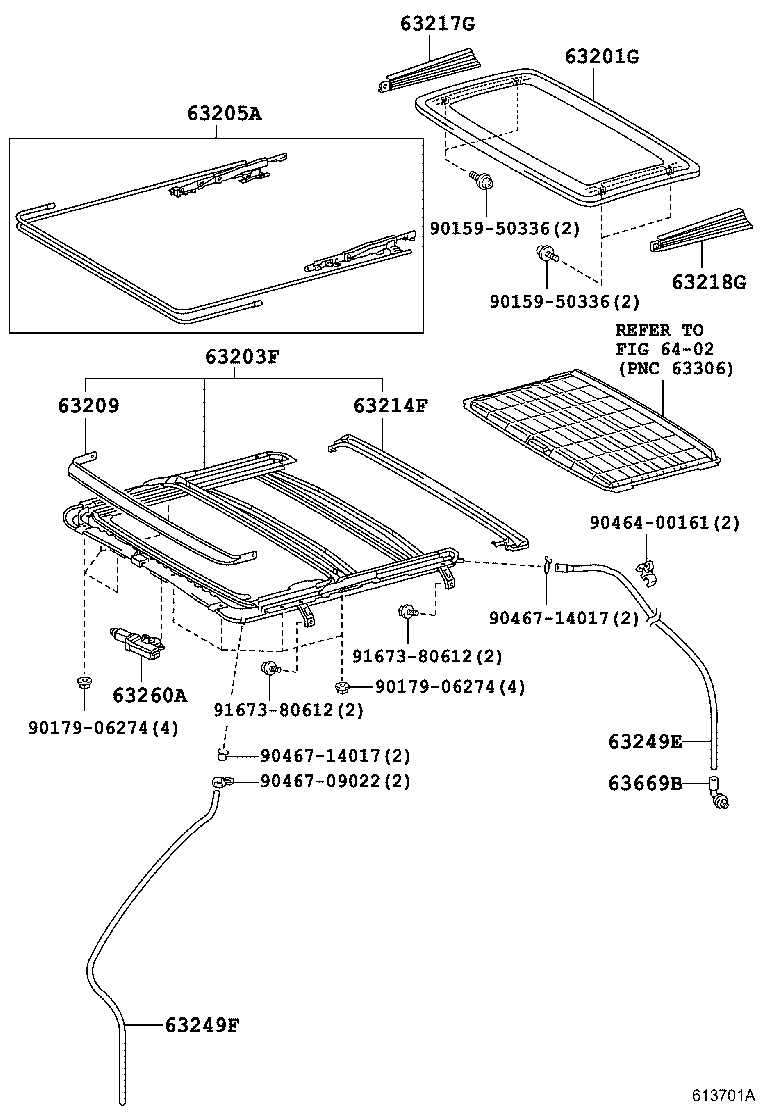

ILLUST NO. 2 OF 3(0503-0812)
SLIDING ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-48101 |
MHU38 *TEM,T=4.0,GRAY,SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63201-48130 |
MHU38 *TEM,T=4.0,GRAY,SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-48070 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-48010 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-48050 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-48010 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-48030 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-48030 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63247-48031 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
2 | ||
| 63247-48050 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-48030 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-48120 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63260-48061 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
MHU38 SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF) |
2 | ||
| Common parts | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90464-00161 | ||||
| 90467-09022 | ||||
| 90467-14017 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 6402 | ||||
