GYL26R-ARXGB (2019)

Toyota Lexus Rx350l/450hl

Production Aug 2019 - Sep 9999
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )2GRFXS..GEN

Click highlighted areas on diagram

HONGKONG, MACAO, TAIWAN SPEC

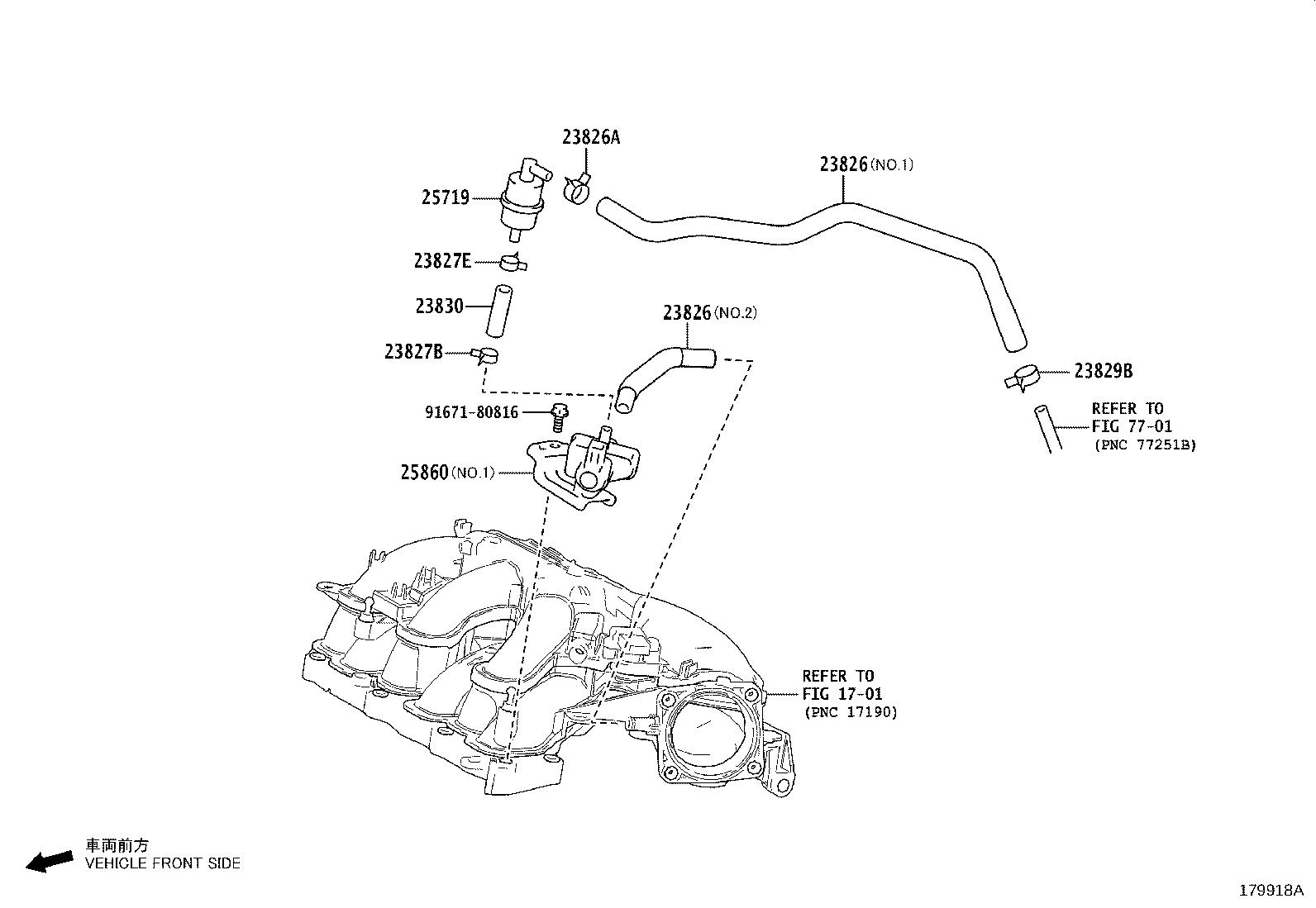

diagram 1701 23826 23826 23826A 23827B 23827E 23829B 23830 25719 25860 7701 9167180816
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31480

2GRFXS..GYL26..RHD

HONGKONG SPEC,NO.2

 1
23826-31480

2GRFXS..GYL26..RHD

MACAO SPEC,NO.2

 1
23826-31260

2GRFXS..GYL26..RHD

HONGKONG SPEC,NO.1

 1
23826-31410

2GR#..GGL26,GYL26

 1
23826-31260

2GRFXS..GYL26..RHD

MACAO SPEC,NO.1

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31480

2GRFXS..GYL26..RHD

HONGKONG SPEC,NO.2

 1
23826-31480

2GRFXS..GYL26..RHD

MACAO SPEC,NO.2

 1
23826-31260

2GRFXS..GYL26..RHD

HONGKONG SPEC,NO.1

 1
23826-31410

2GR#..GGL26,GYL26

 1
23826-31260

2GRFXS..GYL26..RHD

MACAO SPEC,NO.1

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90467-16014

2GRFXS..GYL26..RHD

MACAO SPEC

 1
90467-16014

2GRFXS..GYL26..RHD

HONGKONG SPEC

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96133-41501

2GRFXS..GYL26..RHD

MACAO SPEC

 1
96133-41501

2GRFXS..GYL26..RHD

HONGKONG SPEC

 1
23827E - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90467-16014

2GRFXS..GYL26..RHD

MACAO SPEC

 1
90467-16014

2GRFXS..GYL26..RHD

HONGKONG SPEC

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100

2GR#..GGL26,GYL26

NO.1

 1
96136-41901

2GRFXS..GYL26..RHD

HONGKONG SPEC

 1
90466-13005

2GRFXS..GYL26

NO.2

 1
96136-41901

2GRFXS..GYL26..RHD

MACAO SPEC

 1
23830 - HOSE ASSY, FUEL VAPOR FEED, NO.2
23827-31190

2GRFXS..GYL26..RHD

HONGKONG SPEC

 1
23827-31190

2GRFXS..GYL26..RHD

MACAO SPEC

 1
25719 - TANK, VACUUM SURGE
25719-31070

2GRFXS..GYL26..RHD

MACAO SPEC

 1
25719-31070

2GRFXS..GYL26..RHD

HONGKONG SPEC

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31160

2GR#..GGL26,GYL26

NO.1

 1
25860-31190

2GRFXS..GYL26..RHD

MACAO SPEC,NO.1

 1
25860-31190

2GRFXS..GYL26..RHD

HONGKONG SPEC,NO.1

 1
Common parts
91671-80816
Linked diagrams
1701
7701
