GYL26R-ARXGB (2017)
Toyota Lexus Rx350l/450hl
ILLUST NO. 1 OF 9(1712- )GYL26..RHD

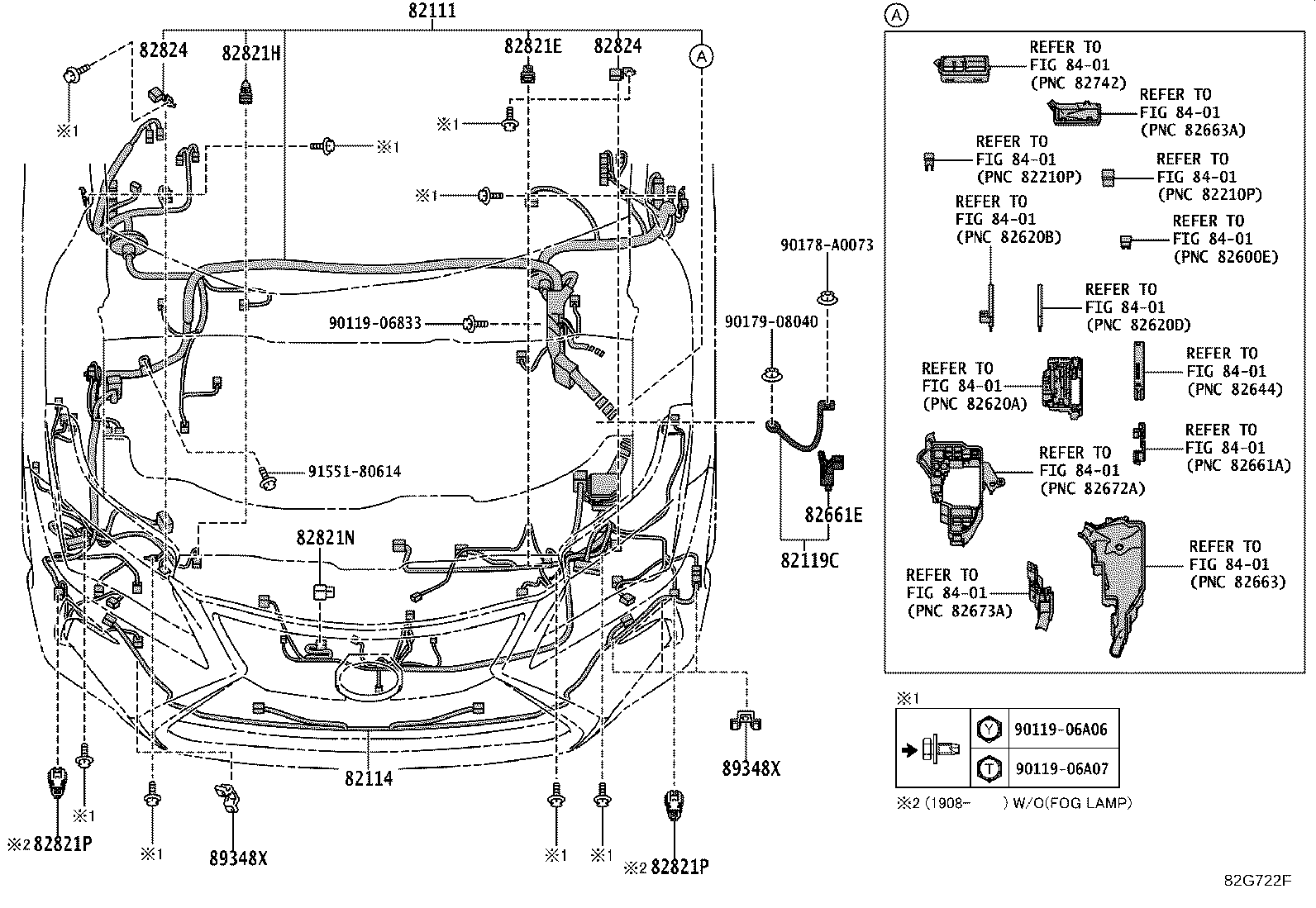

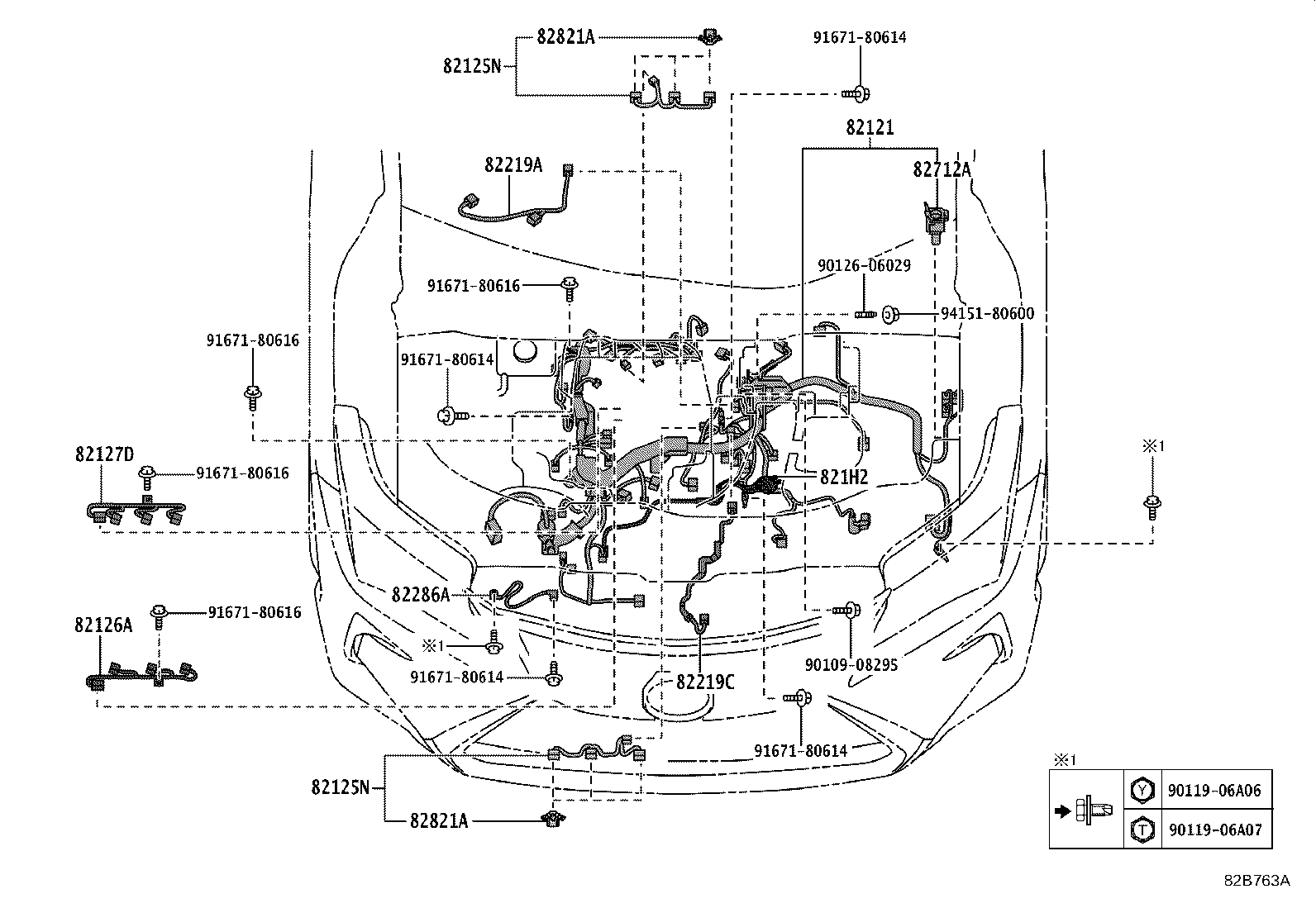

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-4D860 |
GYL26..RHD AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82111-4D840 |
GYL26..RHD |
1 | ||
| 82111-4D860 |
GYL26..RHD AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82111-4D860 |
GYL26..RHD NEW ZEALAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED SINGLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82111-4D880 |
GYL26..RHD AUSTRALIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 82111-4D880 |
GYL26..RHD NEW ZEALAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 82111-4D860 |
GYL26..RHD NEW ZEALAND SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-48060 |
GGL26,GYL26 CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-48030 |
GYL26 |
1 | ||
| 82661E - COVER, RELAY BLOCK, SIDE NO.2 | ||||
| 82661-48150 |
GYL26 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-30650 |
GGL26,GYL26 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-42040 |
GGL26,GYL26 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-48310 |
GGL26,GYL26 AUDIO-*EMV & DVD |
1 | ||
| 82821-48310 |
GGL26,GYL26 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
GGL26,GYL26 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
GGL26,GYL26 |
2 | ||
| Common parts | ||||
| 90119-06833 | ||||
| 90119-06A06 | ||||
| 90119-06A07 | ||||
| 90178-A0073 | ||||
| 90179-08040 | ||||
| 91551-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 9(1712- )RHD

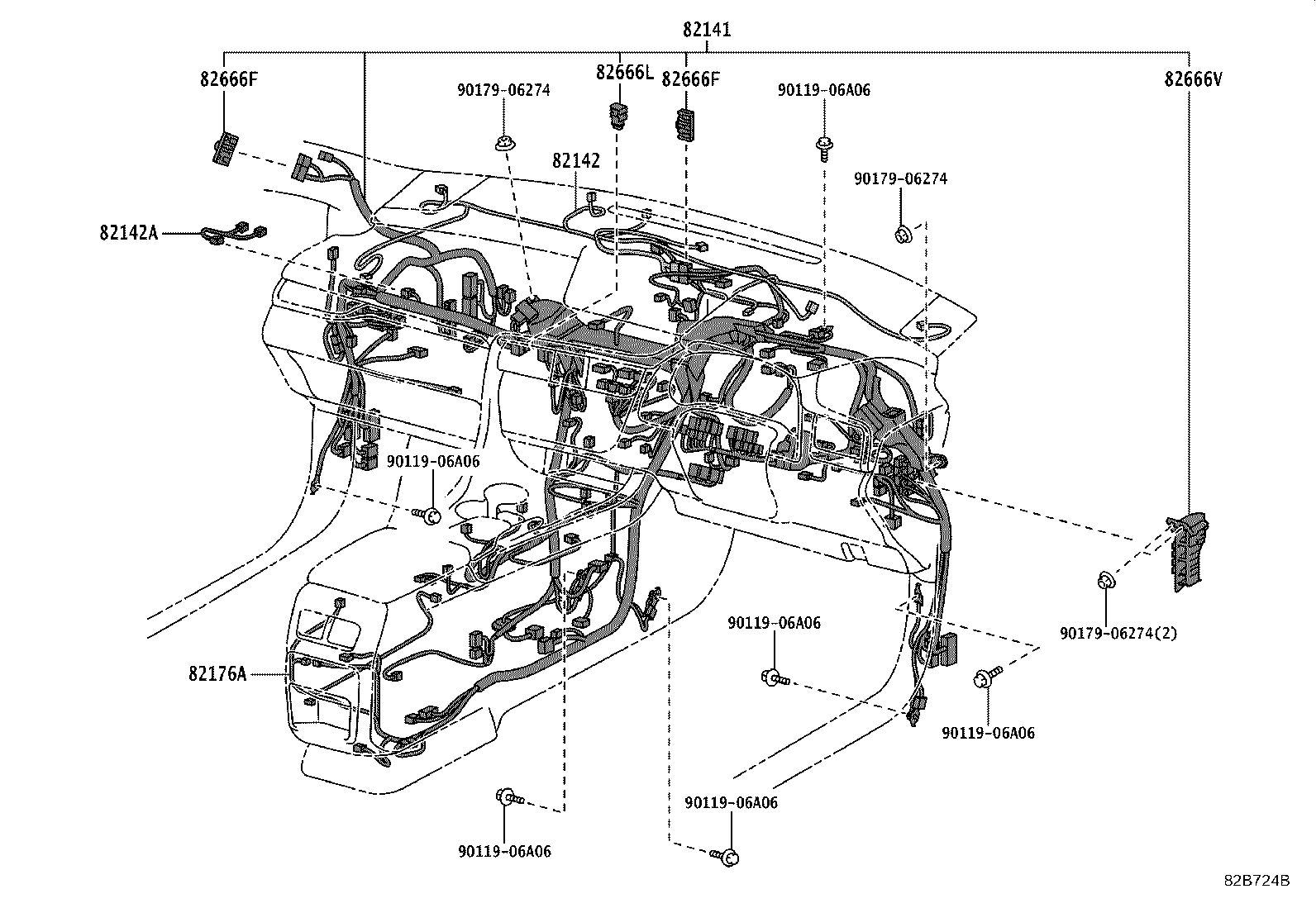

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-4DQ20 |
GYL26..RHD AUDIO-*EMV & DVD&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82141-4DQ10 |
GYL26..RHD AUDIO-*EMV & DVD |
1 | ||
| 82141-4DQ00 |
GYL26..RHD |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-48K20 |
GGL26,GYL26..RHD MINUS ION GENERATOR-WITH&SPEAKER-12SPEAKER |
1 | ||
| 82142-48J90 |
GGL26,GYL26..RHD |
1 | ||
| 82142-48K80 |
GGL26,GYL26..RHD MINUS ION GENERATOR-WITH&HEAD-UP DISPLAY-WITH&SPEAKER-12SPEAKER |
1 | ||
| 82142-48K70 |
GGL26,GYL26..RHD HEAD-UP DISPLAY-WITH&SPEAKER-12SPEAKER |
1 | ||
| 82142-48K60 |
GGL26,GYL26..RHD MINUS ION GENERATOR-WITH&HEAD-UP DISPLAY-WITH |
1 | ||
| 82142-48K10 |
GGL26,GYL26..RHD SPEAKER-15SPEAKER, *MAR |
1 | ||
| 82142-48K10 |
GGL26,GYL26..RHD SPEAKER-12SPEAKER |
1 | ||
| 82142-48K00 |
GGL26,GYL26..RHD MINUS ION GENERATOR-WITH |
1 | ||
| 82142-48K80 |
GGL26,GYL26..RHD MINUS ION GENERATOR-WITH&HEAD-UP DISPLAY-WITH&SPEAKER-15SPEAKER, *MAR |
1 | ||
| 82142-48K50 |
GGL26,GYL26..RHD HEAD-UP DISPLAY-WITH |
1 | ||
| 82142-48K20 |
GGL26,GYL26..RHD MINUS ION GENERATOR-WITH&SPEAKER-15SPEAKER, *MAR |
1 | ||
| 82142-48K70 |
GGL26,GYL26..RHD HEAD-UP DISPLAY-WITH&SPEAKER-15SPEAKER, *MAR |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-48051 |
GGL26,GYL26..RHD |
1 | ||
| 82176A - WIRE, REAR CONSOLE BOX, NO.2 | ||||
| 82176-48100 |
GGL26,GYL26 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-60220 |
GGL26,GYL26 |
2 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-60220 |
GGL26,GYL26 |
2 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-26180 |
GGL26,GYL26 |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-48400 |
GGL26,GYL26 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90179-06274 | ||||
ILLUST NO. 4 OF 9(1712- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-48850 |
GGL26,GYL26..RHD |
1 | ||
| 82151-48A00 |
GGL26,GYL26..RHD "VERSION L"*(L) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-48860 |
GGL26,GYL26..RHD "VERSION L"*(L) |
1 | ||
| 82152-48A40 |
GGL26,GYL26..RHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-48260 |
GGL26,GYL26 "VERSION L"*(L) |
1 | ||
| 82153-48250 |
GGL26,GYL26 |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82157-48020 |
GGL26,GYL26 "VERSION L"*(L) |
2 | ||
| 82157-48030 |
GGL26,GYL26 |
2 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82157-48020 |
GGL26,GYL26 "VERSION L"*(L) |
2 | ||
| 82157-48030 |
GGL26,GYL26 |
2 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-48180 |
GGL26,GYL26 "VERSION L"*(L) |
1 | ||
| 82154-48160 |
GGL26,GYL26 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-48270 |
GGL26,GYL26..GEN CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82181-48260 |
GGL26,GYL26..GEN LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82181-48250 |
GGL26,GYL26..GEN CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 82181-48240 |
GGL26,GYL26..GEN |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-48160 |
GGL26,GYL26..GEN LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-48050 |
GGL26,GYL26 CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-48850 |
GGL26,GYL26 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 82184-48851 |
GGL26,GYL26 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 82184-48870 |
GGL26,GYL26 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82184-48851 |
GGL26,GYL26 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 82184-48871 |
GGL26,GYL26 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82184-48870 |
GGL26,GYL26 |
1 | ||
| 82184-48870 |
GGL26,GYL26 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82184-48850 |
GGL26,GYL26 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 82184-48871 |
GGL26,GYL26 |
1 | ||
| 82184-48871 |
GGL26,GYL26 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-48440 |
GGL26,GYL26 |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-60220 |
GGL26,GYL26 |
1 | ||
| 82821W - COVER, CONNECTOR | ||||
| 82821-30600 |
GGL26,GYL26 CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 82821W - COVER, CONNECTOR | ||||
| 82821-30600 |
GGL26,GYL26 CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
2 | ||
| 89348Y - CLIP, ULTRASONIC SENSOR, REAR | ||||
| 89348-50050 |
GGL26,GYL26 CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
3 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A07 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 5 OF 9(1712- )GYL26

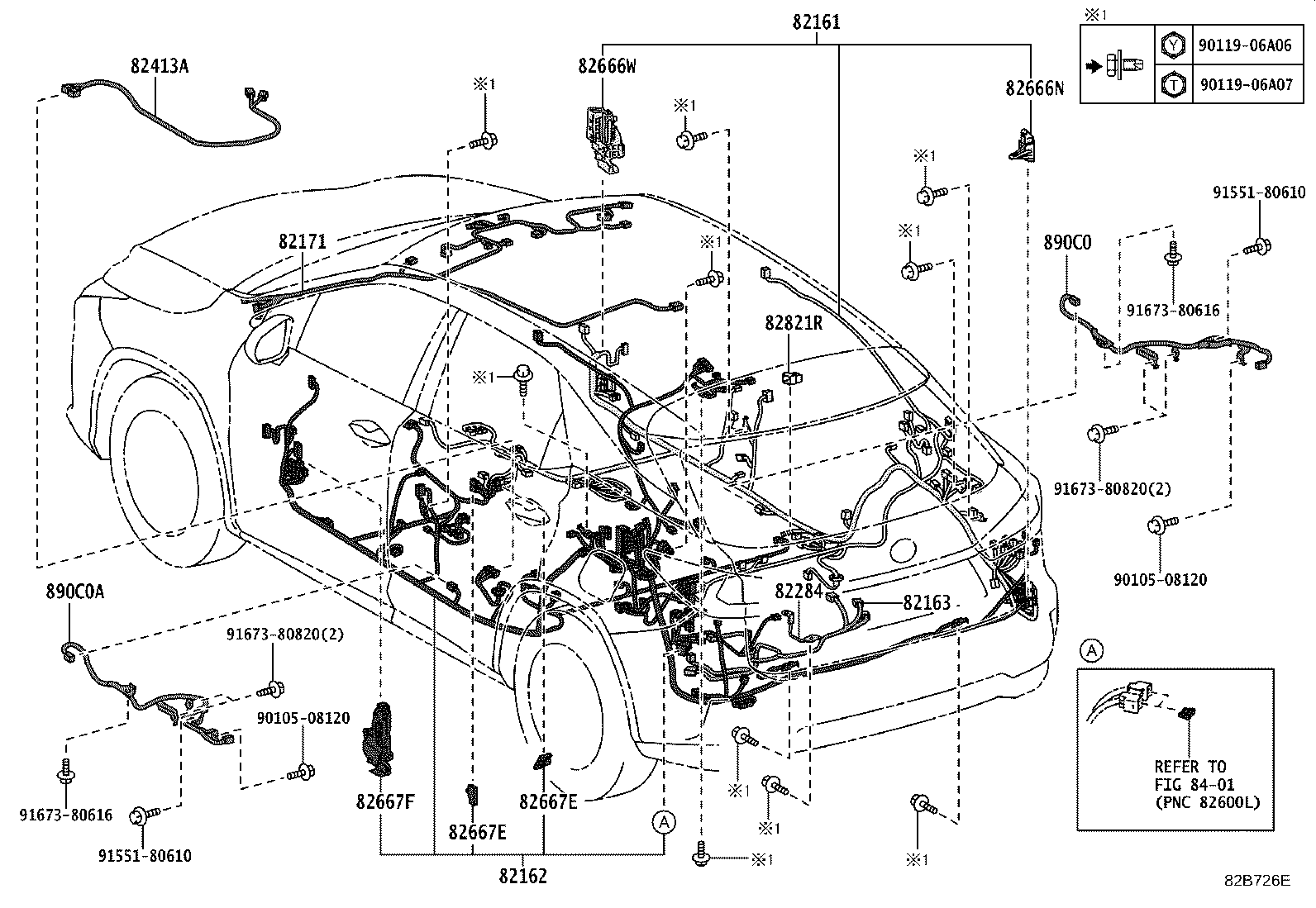

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-4DC30 |
GYL26..RHD |
1 | ||
| 82161-4DC10 |
GYL26..RHD BRUNEI SPEC |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-48U10 |
GYL26..RHD |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-48280 |
GYL26 |
1 | ||
| 82163-48290 |
GYL26 *AVS-WITH |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-48K90 |
GGL26,GYL26..RHD MOON ROOF-WITH |
1 | ||
| 82171-48K70 |
GGL26,GYL26..RHD WIND SHIELD WIPER CONTROL-WITH(RAIN SENSOR) |
1 | ||
| 82171-48L10 |
GGL26,GYL26..RHD ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&MOON ROOF-WITH&WIND SHIELD WIPER CONTROL-WITH(RAIN SENSOR) |
1 | ||
| 82171-48K60 |
GGL26,GYL26..RHD |
1 | ||
| 82171-48K80 |
GGL26,GYL26..RHD ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WIND SHIELD WIPER CONTROL-WITH(RAIN SENSOR) |
1 | ||
| 82171-48L00 |
GGL26,GYL26..RHD MOON ROOF-WITH&WIND SHIELD WIPER CONTROL-WITH(RAIN SENSOR) |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-48050 |
GYL26 |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-48070 |
GYL26 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-48460 |
GGL26,GYL26 |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-48450 |
GGL26,GYL26 |
1 | ||
| 82667E - HOLDER, CONNECTOR, NO.20 | ||||
| 82666-48370 |
GGL26,GYL26 |
2 | ||
| 82667E - HOLDER, CONNECTOR, NO.20 | ||||
| 82666-48370 |
GGL26,GYL26 |
2 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-48420 |
GGL26,GYL26 |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 90980-12413 |
GGL26,GYL26 |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-48010 |
GGL26,GYL26 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-48030 |
GYL26 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06A06 | ||||
| 90119-06A07 | ||||
| 91551-80610 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 9(1712- )GYL26

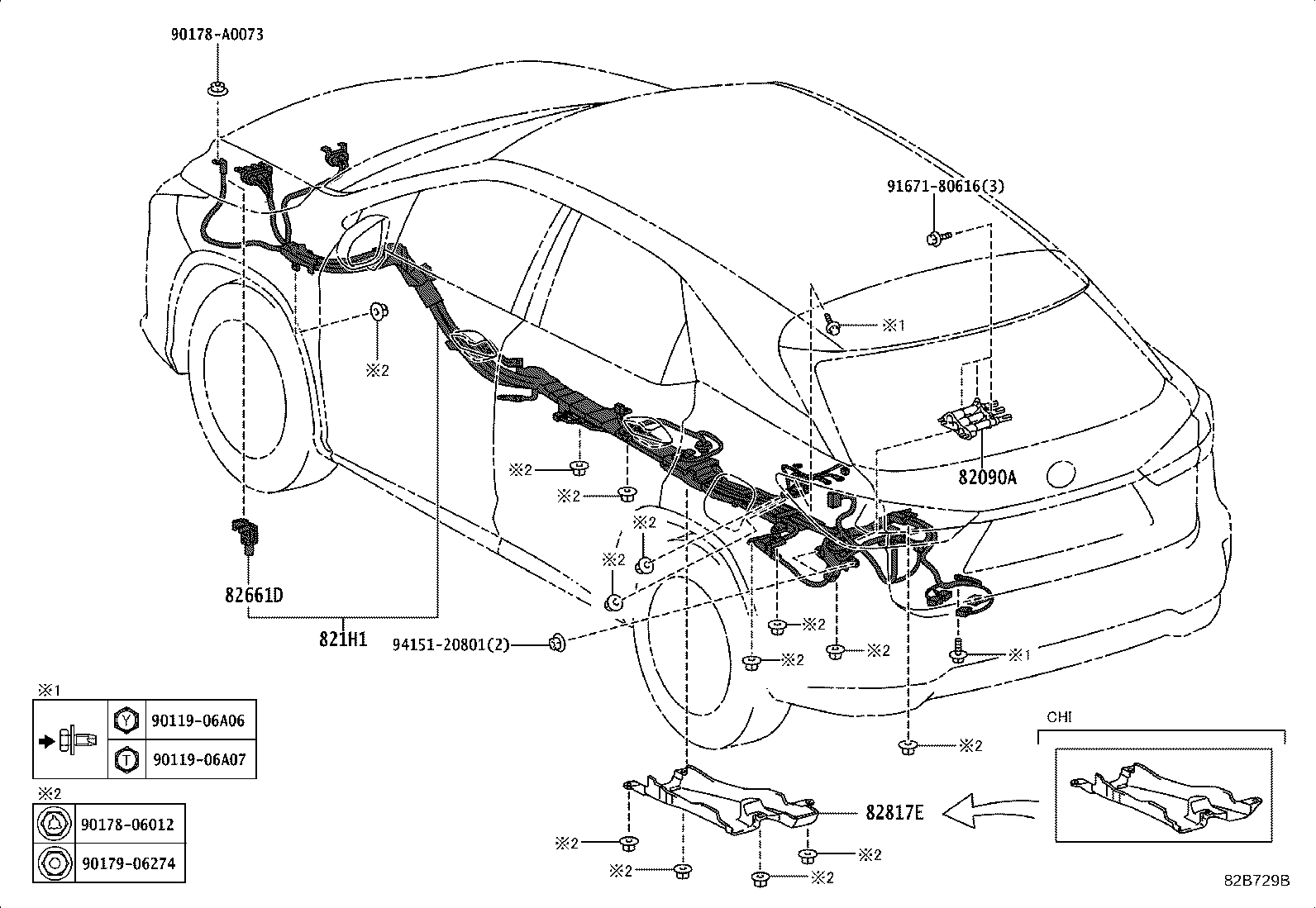

HIGH VOLTAGE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82090A - WIRE ASSY, EXTENSION | ||||
| 82090-48010 |
GYL26 |
1 | ||
| 82090-48011 |
GYL26 |
1 | ||
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-48071 |
GYL26 |
1 | ||
| 821H1-48070 |
GYL26 |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-48160 |
GYL26 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-48R40 |
GYL26 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A07 | ||||
| 90178-06012 | ||||
| 90178-A0073 | ||||
| 90179-06274 | ||||
| 91671-80616 | ||||
| 94151-20801 | ||||
ILLUST NO. 7 OF 9(1712- )

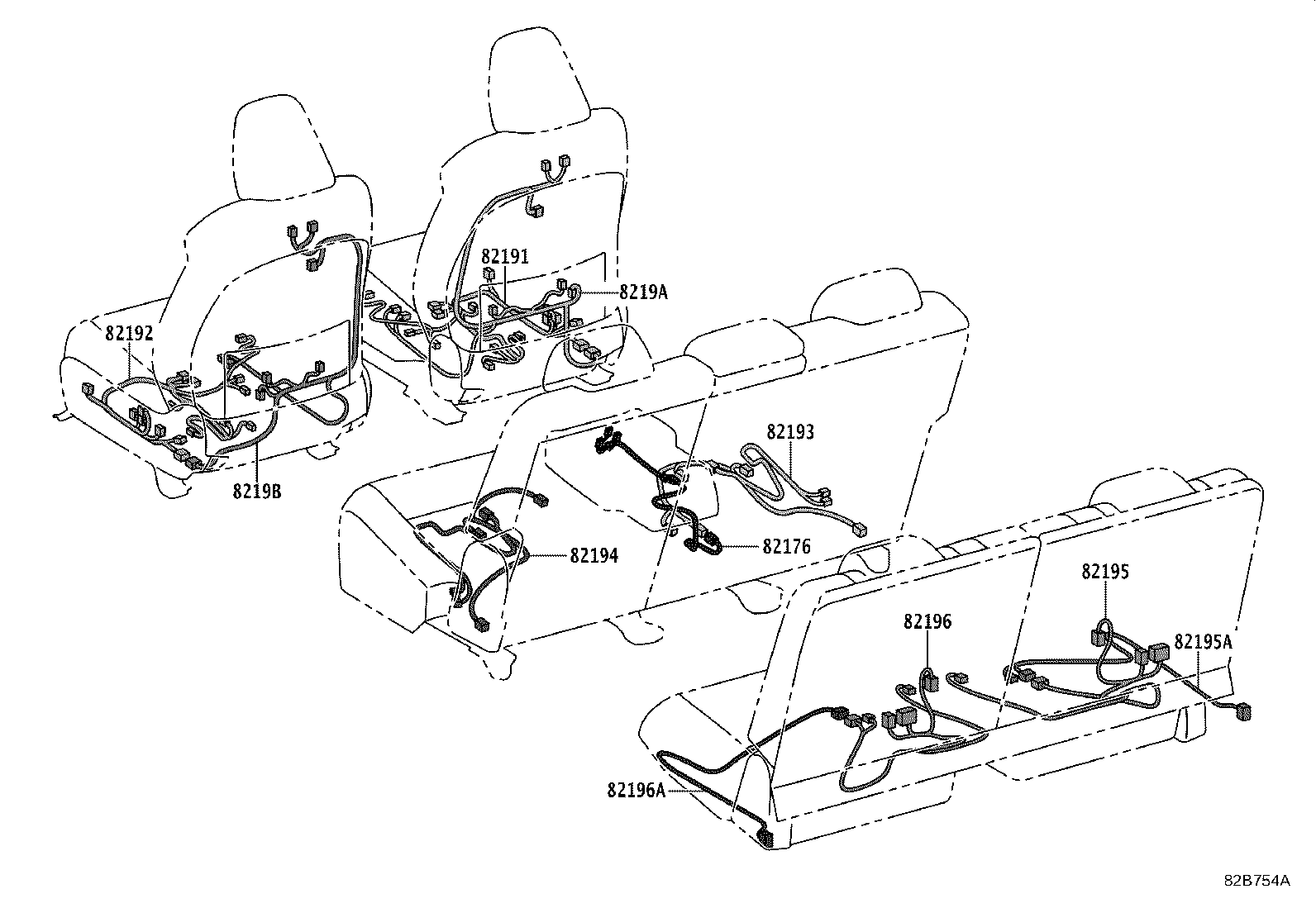

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-48180 |
GGL26,GYL26..RHD AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82176-48170 |
GGL26,GYL26 |
1 | ||
| 82176-48180 |
GGL26,GYL26..RHD AUSTRALIA SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82176-48180 |
GGL26,GYL26..RHD NEW ZEALAND SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82176-48180 |
GGL26,GYL26..RHD NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82176-48180 |
GGL26,GYL26..GEN SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82176-48180 |
GGL26,GYL26..GEN "VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-48840 |
GGL26,GYL26..RHD |
1 | ||
| 82191-48860 |
GGL26,GYL26..RHD "VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82191-48860 |
GGL26,GYL26..RHD NEW ZEALAND SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82191-48860 |
GGL26,GYL26..RHD AUSTRALIA SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-48640 |
GGL26,GYL26..RHD |
1 | ||
| 82192-48710 |
GGL26,GYL26..RHD NEW ZEALAND SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82192-48710 |
GGL26,GYL26..RHD AUSTRALIA SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82192-48710 |
GGL26,GYL26..RHD "VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-48080 |
GGL26,GYL26..RHD AUSTRALIA SPEC |
1 | ||
| 82193-48100 |
GGL26,GYL26..RHD AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82193-48100 |
GGL26,GYL26..RHD NEW ZEALAND SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82193-48100 |
GGL26,GYL26..RHD AUSTRALIA SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82193-48070 |
GGL26,GYL26..GEN SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82193-48070 |
GGL26,GYL26..GEN "VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82193-48080 |
GGL26,GYL26..RHD NEW ZEALAND SPEC |
1 | ||
| 82193-48100 |
GGL26,GYL26..RHD NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82193-48060 |
GGL26,GYL26 |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-48060 |
GGL26,GYL26..GEN "VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82194-48080 |
GGL26,GYL26..RHD AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82194-48080 |
GGL26,GYL26..RHD AUSTRALIA SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82194-48070 |
GGL26,GYL26..RHD AUSTRALIA SPEC |
1 | ||
| 82194-48060 |
GGL26,GYL26..GEN SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82194-48070 |
GGL26,GYL26..RHD NEW ZEALAND SPEC |
1 | ||
| 82194-48090 |
GGL26,GYL26 |
1 | ||
| 82194-48080 |
GGL26,GYL26..RHD NEW ZEALAND SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82194-48080 |
GGL26,GYL26..RHD NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 82195 - WIRE, REAR SEAT, RH NO.2 | ||||
| 82195-48010 |
GGL26,GYL26 |
1 | ||
| 82195A - WIRE, REAR SEAT, RH NO.3 | ||||
| 82195-48030 |
GGL26,GYL26..RHD NEW ZEALAND SPEC |
1 | ||
| 82195-48020 |
GGL26,GYL26 |
1 | ||
| 82195-48030 |
GGL26,GYL26..RHD AUSTRALIA SPEC |
1 | ||
| 82196 - WIRE, REAR SEAT, LH NO.2 | ||||
| 82196-48010 |
GGL26,GYL26..RHD NEW ZEALAND SPEC |
1 | ||
| 82196-48020 |
GGL26,GYL26 |
1 | ||
| 82196-48010 |
GGL26,GYL26..RHD AUSTRALIA SPEC |
1 | ||
| 82196A - WIRE, REAR SEAT, LH NO.3 | ||||
| 82196-48030 |
GGL26,GYL26 |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-48040 |
GGL26,GYL26..RHD NEW ZEALAND SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 8219A-48040 |
GGL26,GYL26..RHD AUSTRALIA SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 8219A-48040 |
GGL26,GYL26..GEN "VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 8219A-48050 |
GGL26,GYL26 |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-48030 |
GGL26,GYL26 |
1 | ||
| 8219B-48040 |
GGL26,GYL26..GEN "VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 8219B-48040 |
GGL26,GYL26..RHD AUSTRALIA SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
| 8219B-48040 |
GGL26,GYL26..RHD NEW ZEALAND SPEC&"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT) |
1 | ||
ILLUST NO. 2 OF 9(1712- )GYL26
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-48601 |
GYL26 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-48060 |
GGL26,GYL26 |
2 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-48060 |
GGL26,GYL26 |
2 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-48020 |
GYL26 |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-48020 |
GYL26 |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-48010 |
GYL26 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-48020 |
GGL26,GYL26 |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-48030 |
GGL26,GYL26 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-48060 |
GYL26 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-48120 |
GGL26,GYL26 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-48240 |
GGL26,GYL26 |
6 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-48240 |
GGL26,GYL26 |
6 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06A06 | ||||
| 90119-06A07 | ||||
| 90126-06029 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
ILLUST NO. 9 OF 9(1712- )

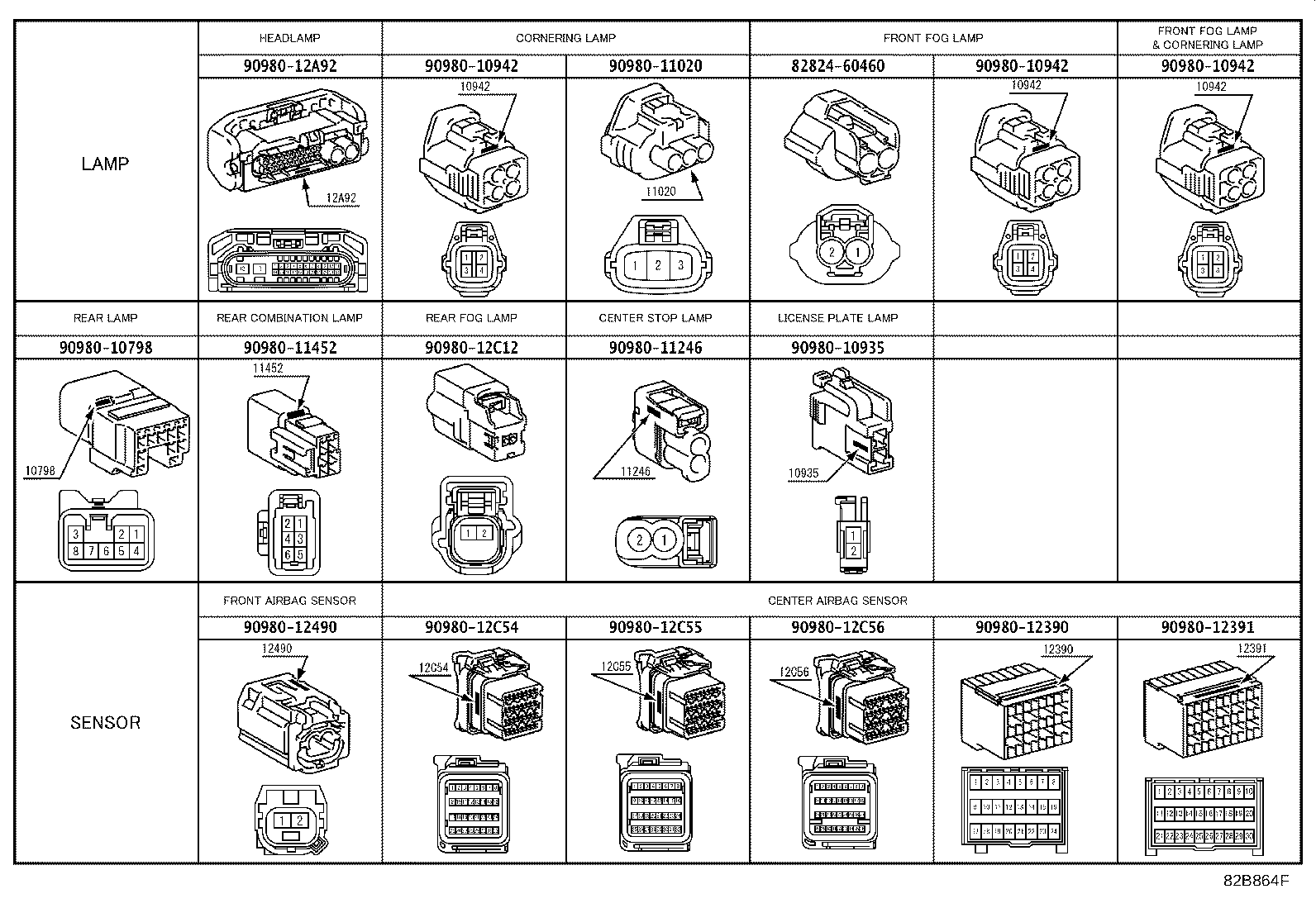

CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10798 | ||||
| 90980-10935 | ||||
| 90980-10942 | ||||
| 90980-11020 | ||||
| 90980-11246 | ||||
| 90980-11452 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12490 | ||||
| 90980-12A92 | ||||
| 90980-12C12 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
ILLUST NO. 9 OF 9(1712- )

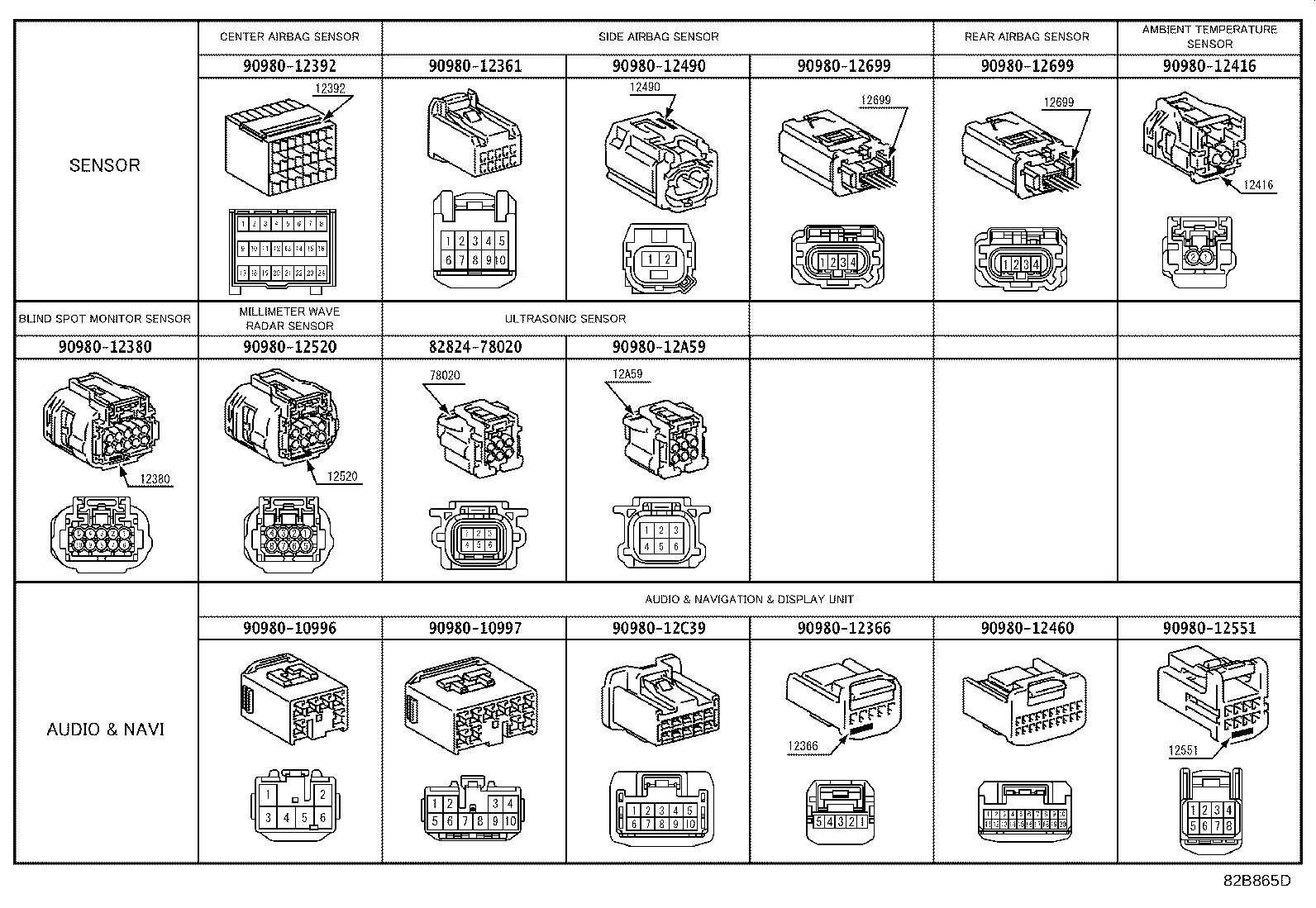

CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12361 | ||||
| 90980-12366 | ||||
| 90980-12380 | ||||
| 90980-12392 | ||||
| 90980-12416 | ||||
| 90980-12460 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12551 | ||||
| 90980-12699 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
ILLUST NO. 8 OF 9(1712- )

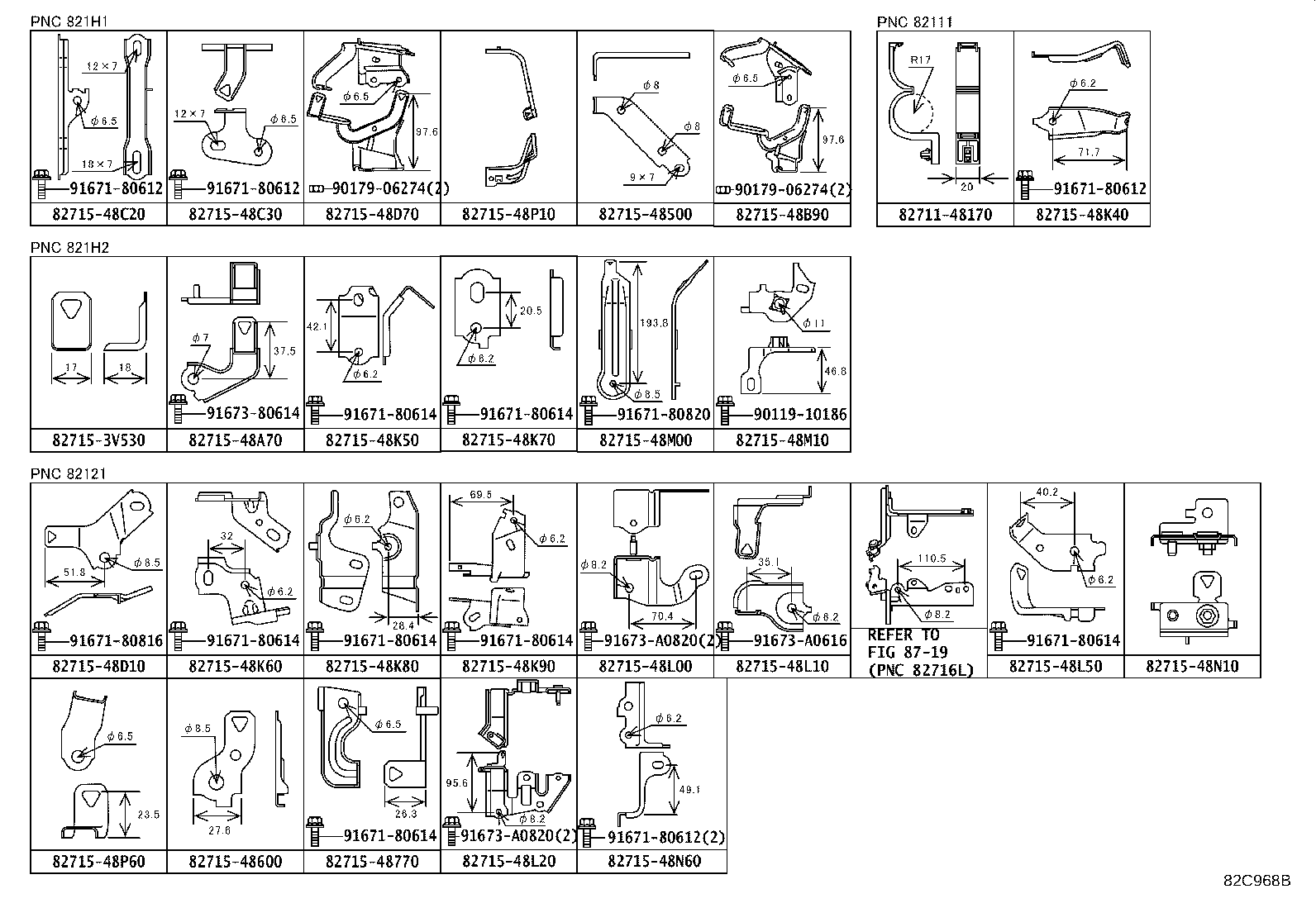

CRAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-48170 | ||||
| 82715-3V530 | ||||
| 82715-48500 | ||||
| 82715-48600 | ||||
| 82715-48770 | ||||
| 82715-48A70 | ||||
| 82715-48B90 | ||||
| 82715-48C20 | ||||
| 82715-48C30 | ||||
| 82715-48D10 | ||||
| 82715-48D70 | ||||
| 82715-48K40 | ||||
| 82715-48K50 | ||||
| 82715-48K60 | ||||
| 82715-48K70 | ||||
| 82715-48K80 | ||||
| 82715-48K90 | ||||
| 82715-48L00 | ||||
| 82715-48L10 | ||||
| 82715-48L20 | ||||
| 82715-48L50 | ||||
| 82715-48M00 | ||||
| 82715-48M10 | ||||
| 82715-48N10 | ||||
| 82715-48N60 | ||||
| 82715-48P10 | ||||
| 82715-48P60 | ||||
| 90119-10186 | ||||
| 90179-06274 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80614 | ||||
| 91673-A0616 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 8719 | ||||
ILLUST NO. 8 OF 9(1712- )

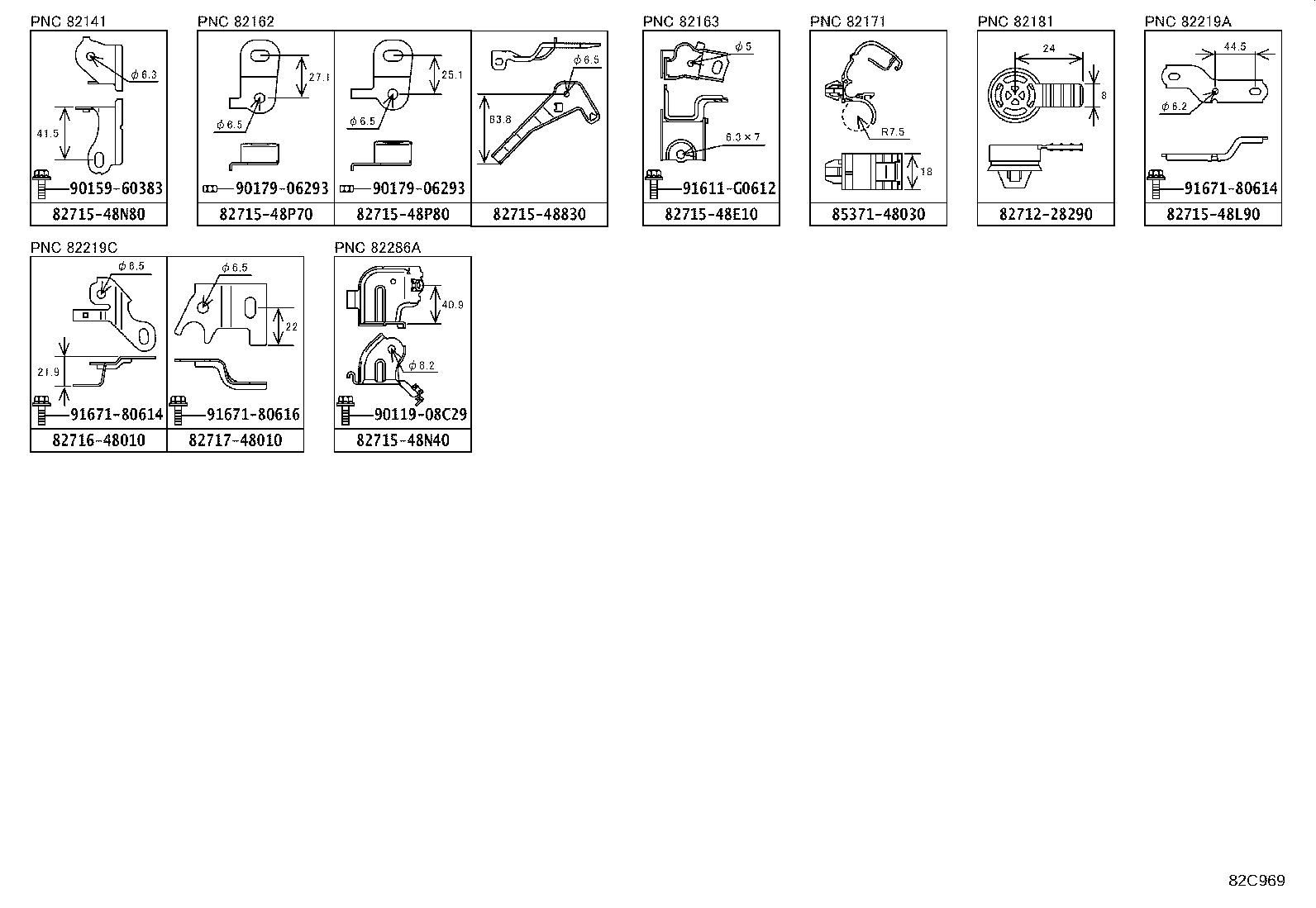

CRAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82712-28290 | ||||
| 82715-48830 | ||||
| 82715-48E10 | ||||
| 82715-48L90 | ||||
| 82715-48N40 | ||||
| 82715-48N80 | ||||
| 82715-48P70 | ||||
| 82715-48P80 | ||||
| 82716-48010 | ||||
| 82717-48010 | ||||
| 85371-48030 | ||||
| 90119-08C29 | ||||
| 90159-60383 | ||||
| 90179-06293 | ||||
| 91611-G0612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
ILLUST NO. 9 OF 9(1712- )

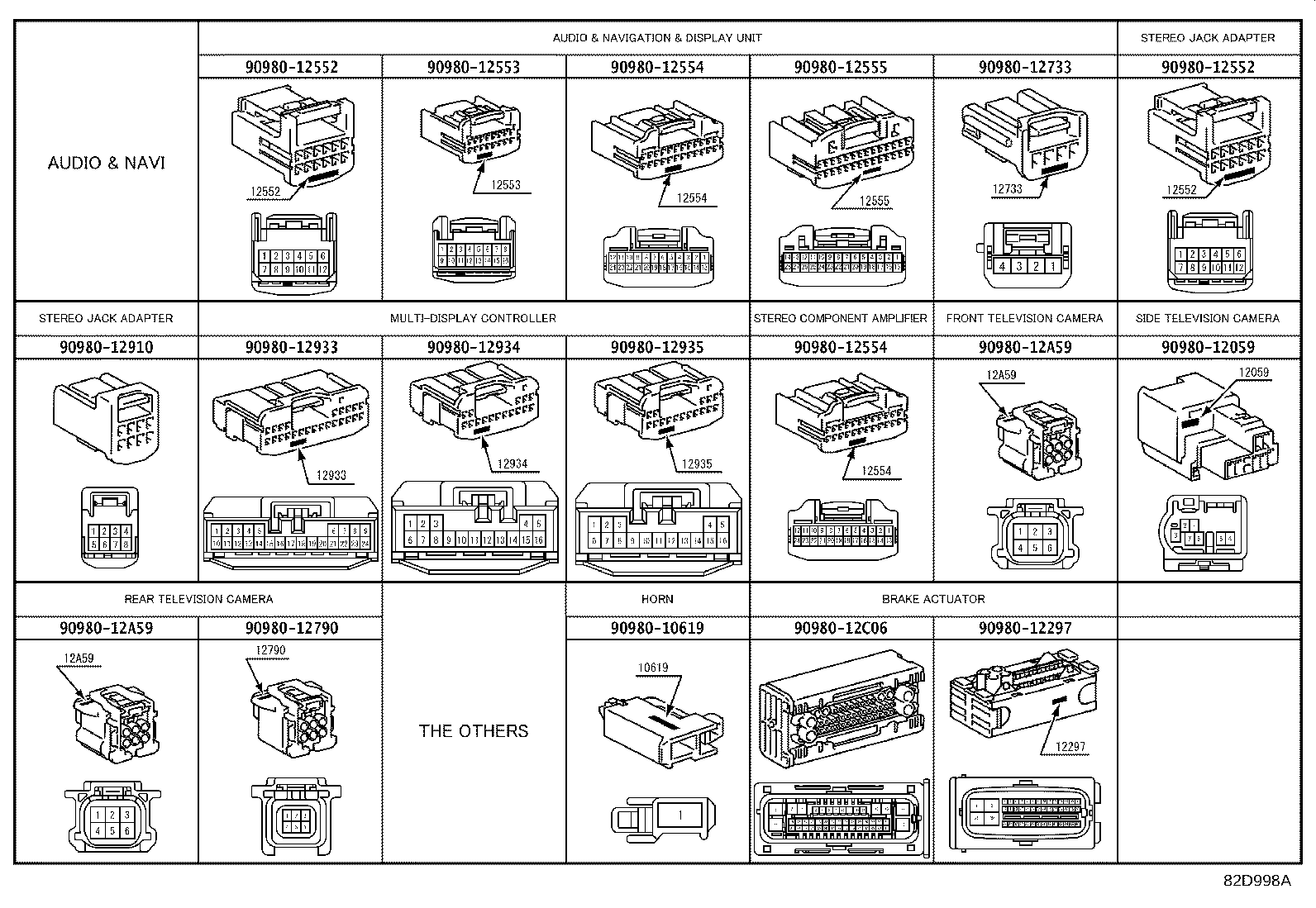

CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-12059 | ||||
| 90980-12297 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12733 | ||||
| 90980-12790 | ||||
| 90980-12910 | ||||
| 90980-12933 | ||||
| 90980-12934 | ||||
| 90980-12935 | ||||
| 90980-12A59 | ||||
| 90980-12C06 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
