GYL26R-ARXGB (2017)
Toyota Lexus Rx350l/450hl
Production
Dec 2017
-
Aug 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

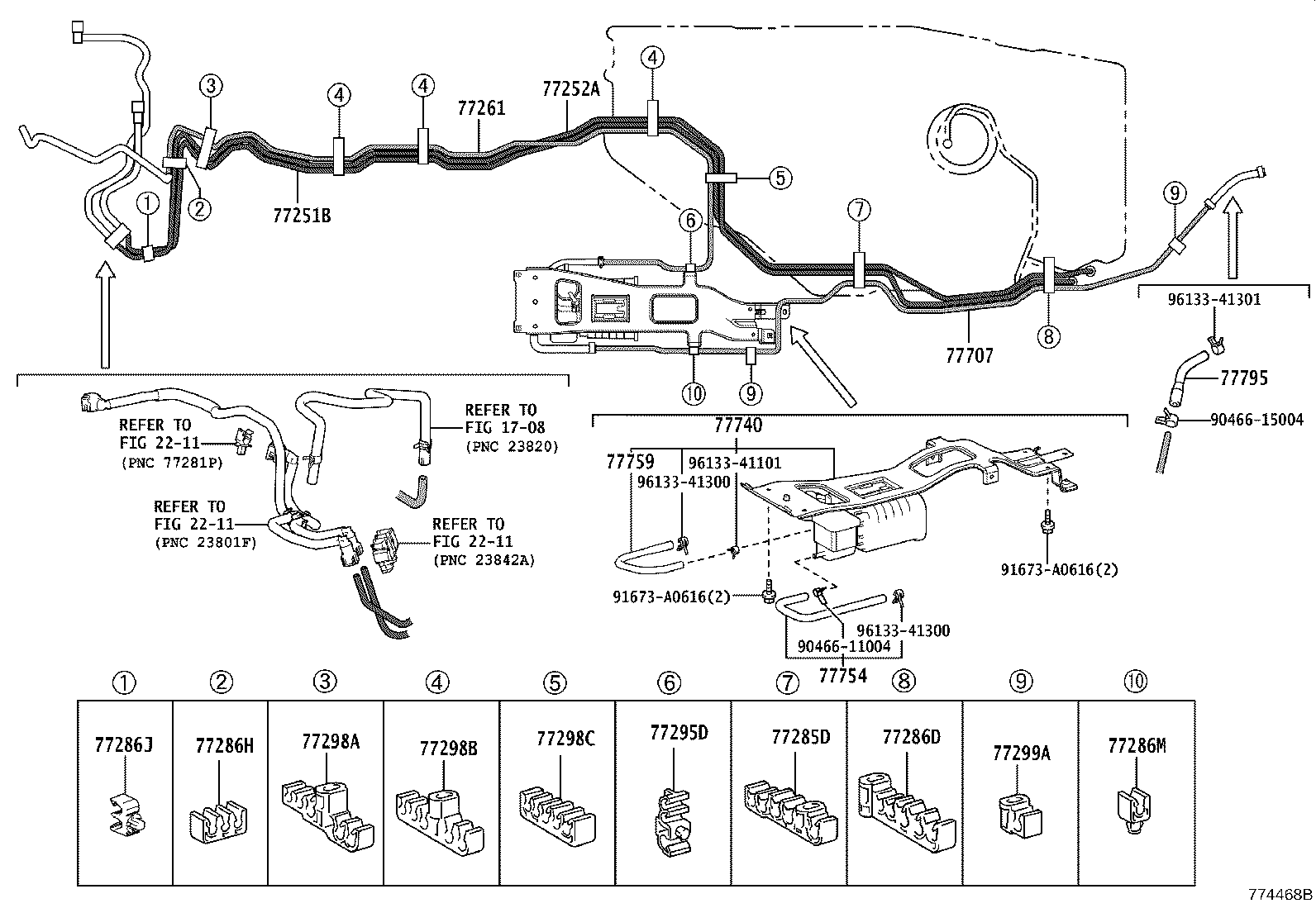

ILLUST NO. 3 OF 4(1712- )GYL26
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48320 |
GYL26 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-48080 |
GYL26 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-48340 |
GYL26 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-48070 |
GYL26 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48140 |
GYL26 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-20170 |
GGL26,GYL26 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-33100 |
GGL26,GYL26 |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77286-48060 |
GYL26 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-42060 |
GYL26 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48200 |
GGL26,GYL26 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68020 |
GYL26 |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 90949-01C53 |
GYL26 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
GYL26 |
2 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-48080 |
GYL26 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48130 |
GYL26 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-48060 |
GYL26 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-48030 |
GYL26 |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-48020 |
GGL26,GYL26 |
1 | ||
| Common parts | ||||
| 90466-11004 | ||||
| 90466-15004 | ||||
| 91673-A0616 | ||||
| 96133-41101 | ||||
| 96133-41300 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 4 OF 4(1712- )
Click highlighted areas on diagram
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-48090 |
GGL26,GYL26 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-48020 |
GGL26,GYL26 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-48120 |
GGL26,GYL26 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GGL26,GYL26 |
1 | ||
| Common parts | ||||
| 90159-50269 | ||||
| 90189-05137 | ||||
ILLUST NO. 1 OF 4(1712- )GYL26
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-48030 |
GYL26 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-48211 |
GYL26 |
1 | ||
| 77159 - PLATE, SUCTION TUBE SUPPORT | ||||
| 77159-48010 |
GYL26 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
GYL26 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-48190 |
GYL26 |
1 | ||
| 77209-48130 |
GYL26 |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-48370 |
GYL26 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-48120 |
GYL26 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-48090 |
GYL26 |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48090 |
GYL26 |
2 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48090 |
GYL26 |
2 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-48120 |
GYL26 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-48190 |
GYL26 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48050 |
GGL26,GYL26 |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48050 |
GGL26,GYL26 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GGL26,GYL26 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-48030 |
GYL26 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-48110 |
GYL26 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33110 |
GYL26 |
2 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33110 |
GYL26 |
2 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77289-48040 |
GYL26 |
3 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
GGL26,GYL26 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
GGL26,GYL26 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-48200 |
GYL26 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-48200 |
GYL26 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-48150 |
GYL26 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
GGL26,GYL26 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
GGL26,GYL26 |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
GYL26 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
GYL26 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
GYL26 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-42010 |
GYL26 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
GYL26 |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77651-26070 |
GYL26 |
2 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77651-26070 |
GYL26 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-60200 |
GYL26 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-48090 |
GYL26 |
1 | ||
| Common parts | ||||
| 82711-26380 | ||||
| 90119-08C76 | ||||
| 90159-50343 | ||||
| 90159-60561 | ||||
| 90189-06006 | ||||
| 90460-22002 | ||||
| 90460-37003 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8202 | ||||

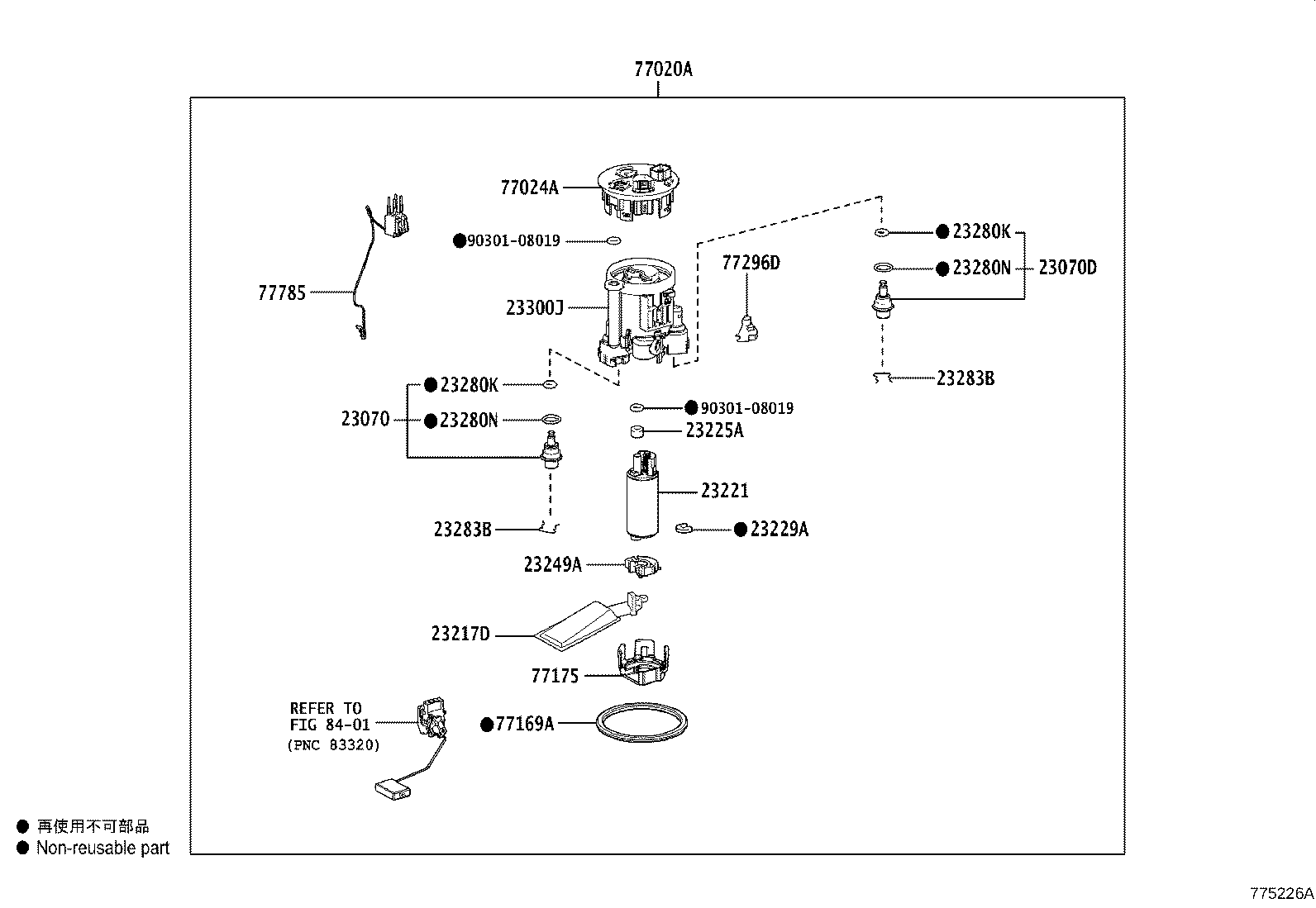

ILLUST NO. 2 OF 4(1712- )GYL26
Click highlighted areas on diagram
FUEL PUMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-36010 |
2GR#..GGL26,GYL26 |
1 | ||
| 23070D - VALVE ASSY, FUEL MAIN, NO.2 | ||||
| 23070-31030 |
2GR#..GGL26,GYL26 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31090 |
2GRFXS..GYL26 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31130 |
2GR#..GGL26,GYL26 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31020 |
2GRFXS..GYL26 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2GRFXS..GYL26 |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
2GRFXS..GYL26 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GR#..GGL26,GYL26 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GR#..GGL26,GYL26 |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2GR#..GGL26,GYL26 |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2GR#..GGL26,GYL26 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
2GR#..GGL26,GYL26 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
2GR#..GGL26,GYL26 |
2 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-31240 |
2GRFXS..GYL26 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-48271 |
GYL26 |
1 | ||
| 77020-48270 |
GYL26 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-48100 |
GYL26 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33030 |
GYL26 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-48010 |
GYL26 |
1 | ||
| 77296D - PLATE, FUEL TUBE SUPPORT | ||||
| 77296-48010 |
GYL26 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-48070 |
GYL26 |
1 | ||
| Common parts | ||||
| 90301-08019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
