GYL26R-ARXGB (2017)

Toyota Lexus Rx350l/450hl

Production Dec 2017 - Aug 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )2GRFXS

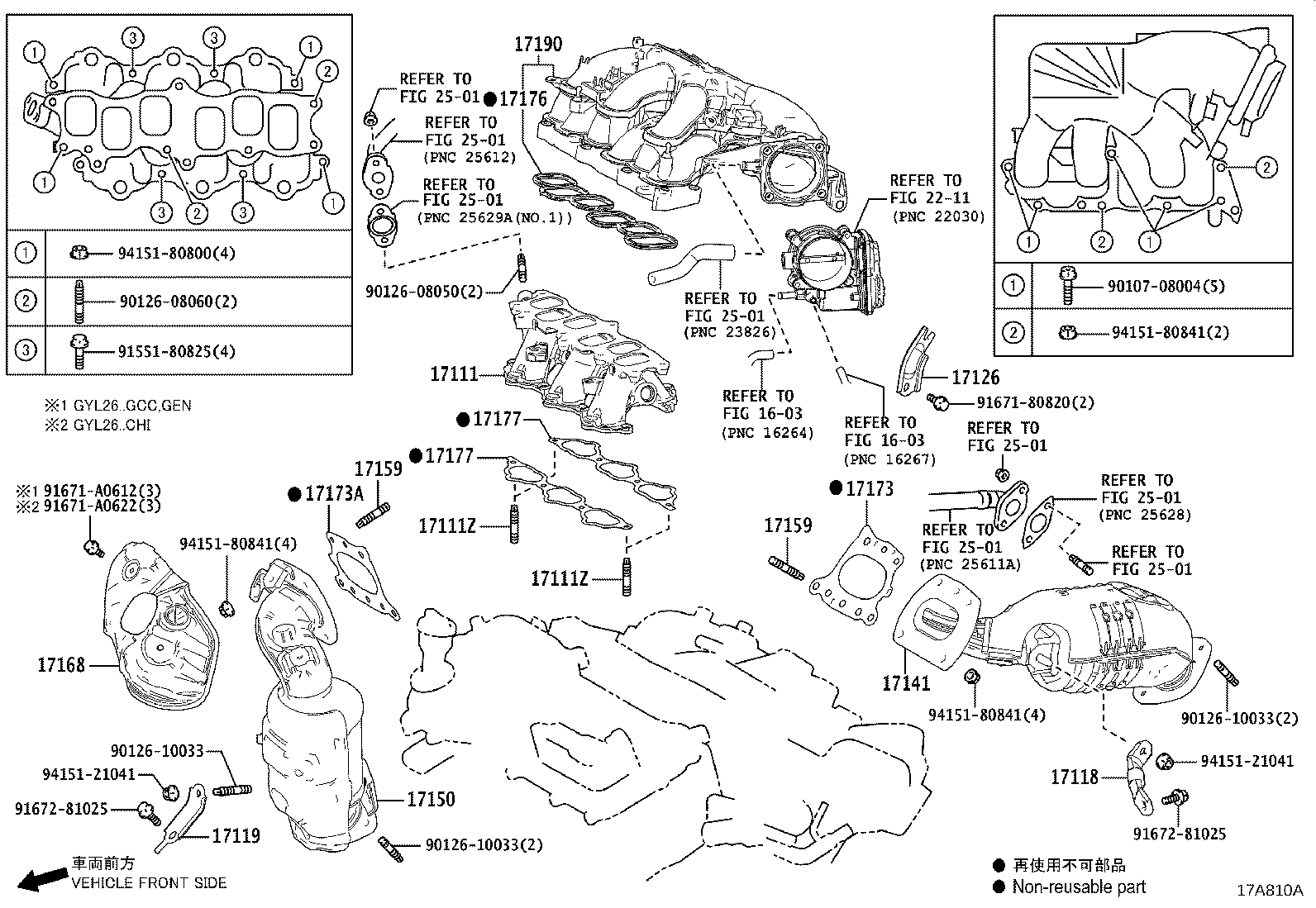

Click highlighted areas on diagram

diagram 1603 1603 17111 17111Z 17111Z 17118 17119 17126 17141 17150 17159 17159 17168 17173 17173A 17176 17177 17177 17190 2211 2501 2501 2501 2501 2501 2501 2501 2501 9010708004 9012608050 9012608060 9012610033 9012610033 9012610033 9155180825 9167180820 91671A0612 91671A0622 9167281025 9167281025 9415121041 9415121041 9415180800 9415180841 9415180841 9415180841
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-31070

2GRFXS..GYL26

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08052

2GR#..GGL26,GYL26

 4
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08052

2GR#..GGL26,GYL26

 4
17118 - STAY, MANIFOLD
17118-31170

2GR#..GGL26,GYL26

 1
17119 - STAY, MANIFOLD, NO.2
17119-31150

2GR#..GGL26,GYL26

 1
17126 - STAY, SURGE TANK, NO.2
17126-31090

2GR#..GGL26,GYL26

 1
17141 - MANIFOLD, EXHAUST
17140-31430

2GRFXS..GYL26

*114=TOYOTA/R31430/Y

 1
17150 - MANIFOLD ASSY, EXHAUST, LH
17150-31220

2GRFXS..GYL26

*114=TOYOTA/L31220/Y

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

2GR#..GGL26,GYL26

 8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

2GR#..GGL26,GYL26

 8
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-31090

2GRFXS..GYL26

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31070

2GR#..GGL26,GYL26

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-31070

2GR#..GGL26,GYL26

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31130

2GR#..GGL26,GYL26

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31070

2GR#..GGL26,GYL26

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31070

2GR#..GGL26,GYL26

 2
17190 - TANK ASSY, INTAKE AIR SURGE
17190-31280

2GRFXS..GYL26

 1
Common parts
90107-08004
90126-08050
90126-08060
90126-10033
91551-80825
91671-80820
91671-A0612
91671-A0622
91672-81025
94151-21041
94151-80800
94151-80841
Linked diagrams
1603
2211
2501
