GYL26L-ARXGBV (2017)

Toyota Lexus Rx350l/450hl

Production Dec 2017 - Aug 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

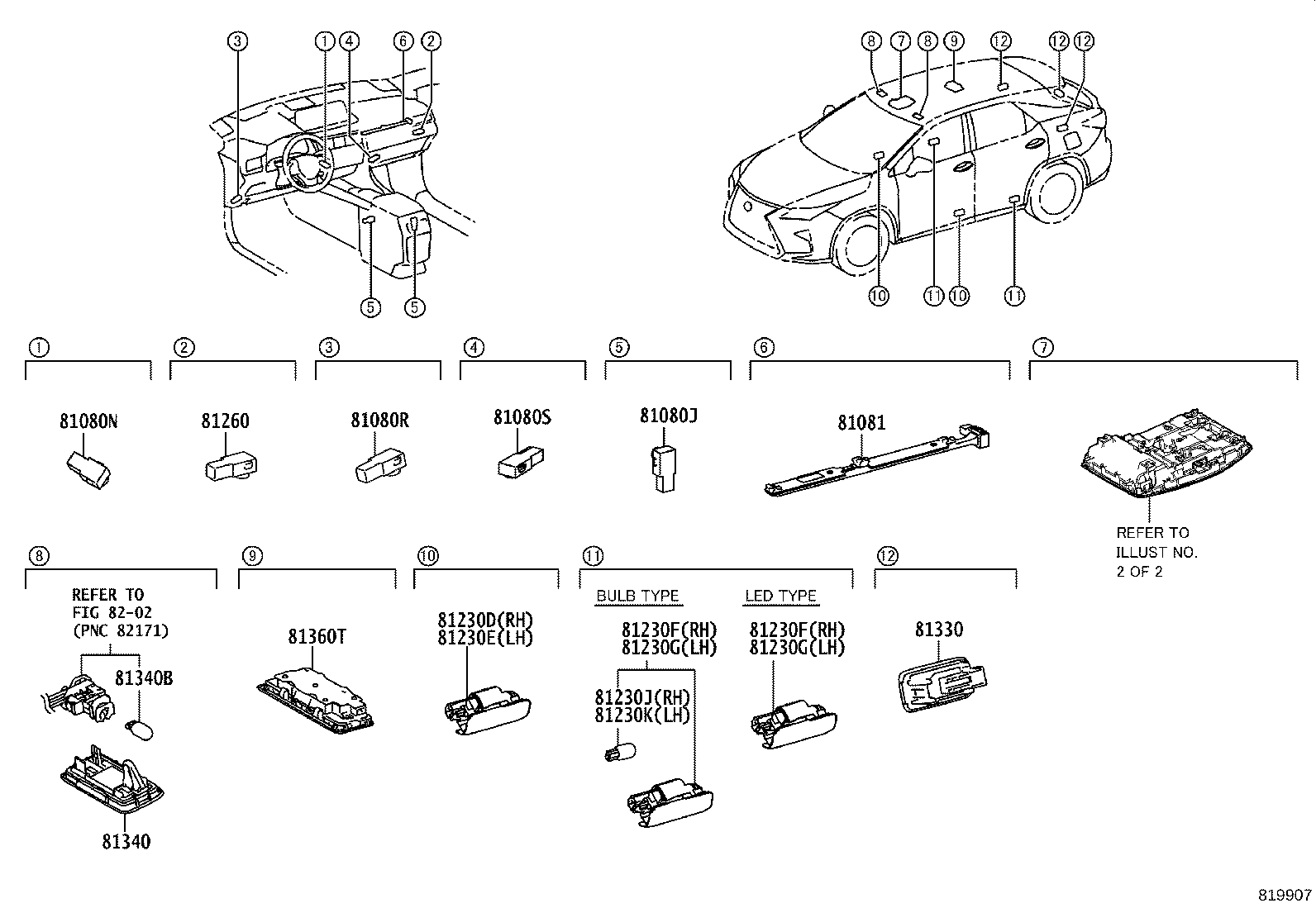

ILLUST NO. 1 OF 2(1712- )LHD

Click highlighted areas on diagram

diagram 81080J 81080N 81080R 81080S 81081 81230D 81230E 81230F 81230F 81230G 81230G 81230J 81230K 81260 81330 81340 81340B 81360T 8202
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-33290

GGL26,GYL26

 2
81080N - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-30010

GGL26,GYL26

 1
81080R - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-33290

GGL26,GYL26

 1
81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-33290

GGL26,GYL26

 1
81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION
81081-48010

GGL26,GYL26..LHD

"VERSION L"*(L)

 1
81230D - LAMP ASSY, FRONT DOOR COURTESY, RH
81230-30200

GGL26,GYL26

 1
81230-50070

GGL26,GYL26

"VERSION L"*(L)

 1
81230E - LAMP ASSY, FRONT DOOR COURTESY, LH
81230-50070

GGL26,GYL26

"VERSION L"*(L)

 1
81230-30200

GGL26,GYL26

 1
81230F - LAMP ASSY, REAR DOOR COURTESY, RH
81230-30200

GGL26,GYL26

 1
81230-50070

GGL26,GYL26

"VERSION L"*(L)

 1
81230F - LAMP ASSY, REAR DOOR COURTESY, RH
81230-30200

GGL26,GYL26

 1
81230-50070

GGL26,GYL26

"VERSION L"*(L)

 1
81230G - LAMP ASSY, REAR DOOR COURTESY, LH
81230-50070

GGL26,GYL26

"VERSION L"*(L)

 1
81230-30200

GGL26,GYL26

 1
81230G - LAMP ASSY, REAR DOOR COURTESY, LH
81230-50070

GGL26,GYL26

"VERSION L"*(L)

 1
81230-30200

GGL26,GYL26

 1
81230J - BULB(FOR REAR DOOR COURTESY LAMP RH)
90981-12010

GGL26,GYL26

12V 5W

 1
81230K - BULB(FOR REAR DOOR COURTESY LAMP LH)
90981-12010

GGL26,GYL26

12V 5W

 1
81260 - LAMP ASSY, GLOVE BOX
81080-33290

GGL26,GYL26

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81360-78020

GGL26,GYL26

 3
81340 - LAMP ASSY, VANITY
81340-30110

GGL26,GYL26

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

GGL26,GYL26

12V 8W

 2
81360T - LAMP ASSY, SPOT
81360-48120A0

GGL26,GYL26

ECRU,TRIM0#,5#,6#

 1
81360-48120B1

GGL26,GYL26

MOON STONE,TRIM1#,2#,4#

 1
Linked diagrams
8202

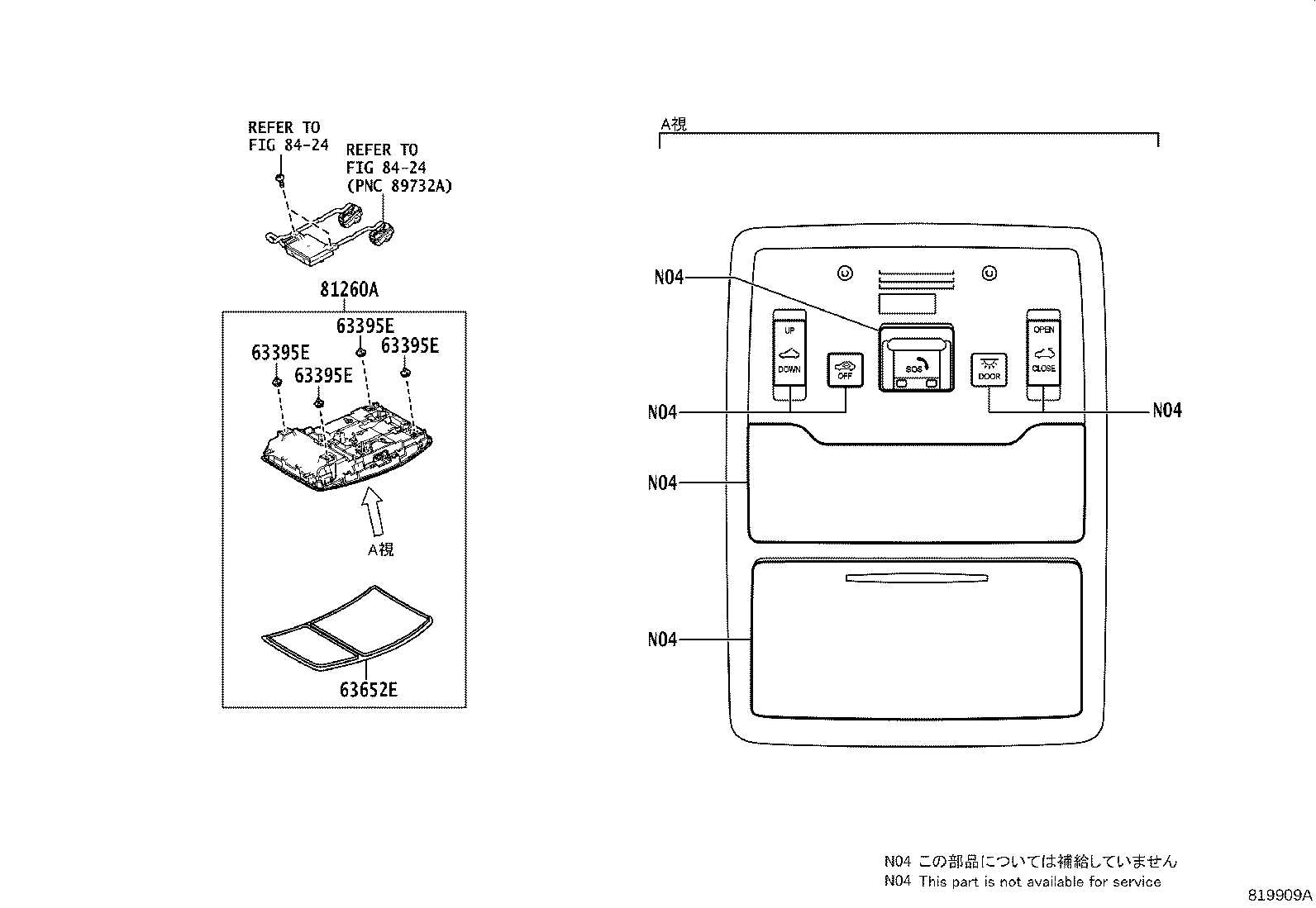

ILLUST NO. 2 OF 2(1712- )

Click highlighted areas on diagram

diagram 63395E 63395E 63395E 63395E 63652E 81260A 8424 8424
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

GGL26,GYL26

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

GGL26,GYL26

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

GGL26,GYL26

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

GGL26,GYL26

 4
63652E - COVER, ROOF CONSOLE BOX, NO.1
63652-48010A0

GGL26,GYL26

ECRU,TRIM0#,5#,6#

 1
63652-48010B0

GGL26,GYL26

MOON STONE,TRIM1#,2#,4#

 1
81260A - LAMP ASSY, MAP
81260-48301A0

GGL26,GYL26..GCC

MOON ROOF-WITH,ECRU,TRIM0#,5#,6#

 1
81260-48C01A0

GGL26,GYL26..GCC

ECRU,TRIM0#,5#,6#

 1
81260-48301B1

GGL26,GYL26..GCC

MOON ROOF-WITH,MOON STONE,TRIM1#,2#,4#

 1
81260-48C01B1

GGL26,GYL26..GCC

MOON STONE,TRIM1#,2#,4#

 1
Linked diagrams
8424
