GYL26L-ARXGBC (2019)
Toyota Lexus Rx350l/450hl
(1908- )GYL26..LHD

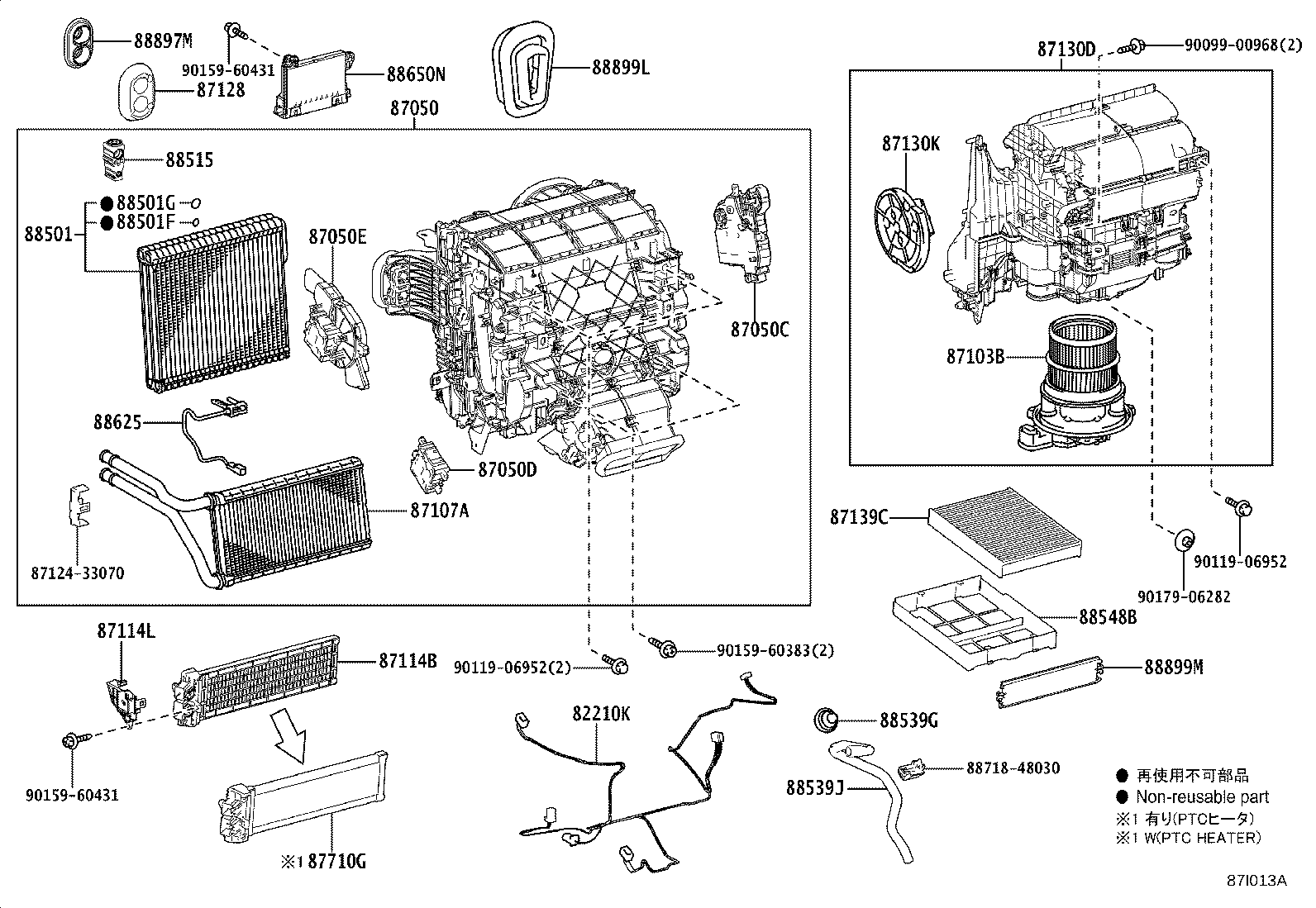

FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-48060 |
GGL26,GYL26..LHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-48590 |
GYL26..LHD |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48170 |
GGL26,GYL26 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-48200 |
GGL26,GYL26..LHD |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-48240 |
GGL26,GYL26..LHD |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-58080 |
GGL26,GYL26..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-48120 |
GGL26,GYL26..LHD |
1 | ||
| 87114L - COVER, HEATER, NO.2 | ||||
| 87114-48140 |
GGL26,GYL26..LHD |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-58030 |
GGL26,GYL26..LHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-48340 |
GGL26,GYL26..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-58050 |
GGL26,GYL26..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-48050 |
GGL26,GYL26 DEODORANT FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-58010 |
GYL26..CHI |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-48440 |
GYL26..LHD |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GGL26,GYL26 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GGL26,GYL26 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
GYL26;GGL26..RHD |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26030 |
GGL26,GYL26 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-48090 |
GGL26,GYL26..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-48050 |
GGL26,GYL26 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28050 |
GGL26,GYL26 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-48K90 |
GYL26..CHI |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 90480-01696 |
GGL26,GYL26 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-48030 |
GGL26,GYL26 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
GGL26,GYL26 |
1 | ||
| Common parts | ||||
| 87124-33070 | ||||
| 88718-48030 | ||||
| 90099-00968 | ||||
| 90119-06952 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||
(1908- )

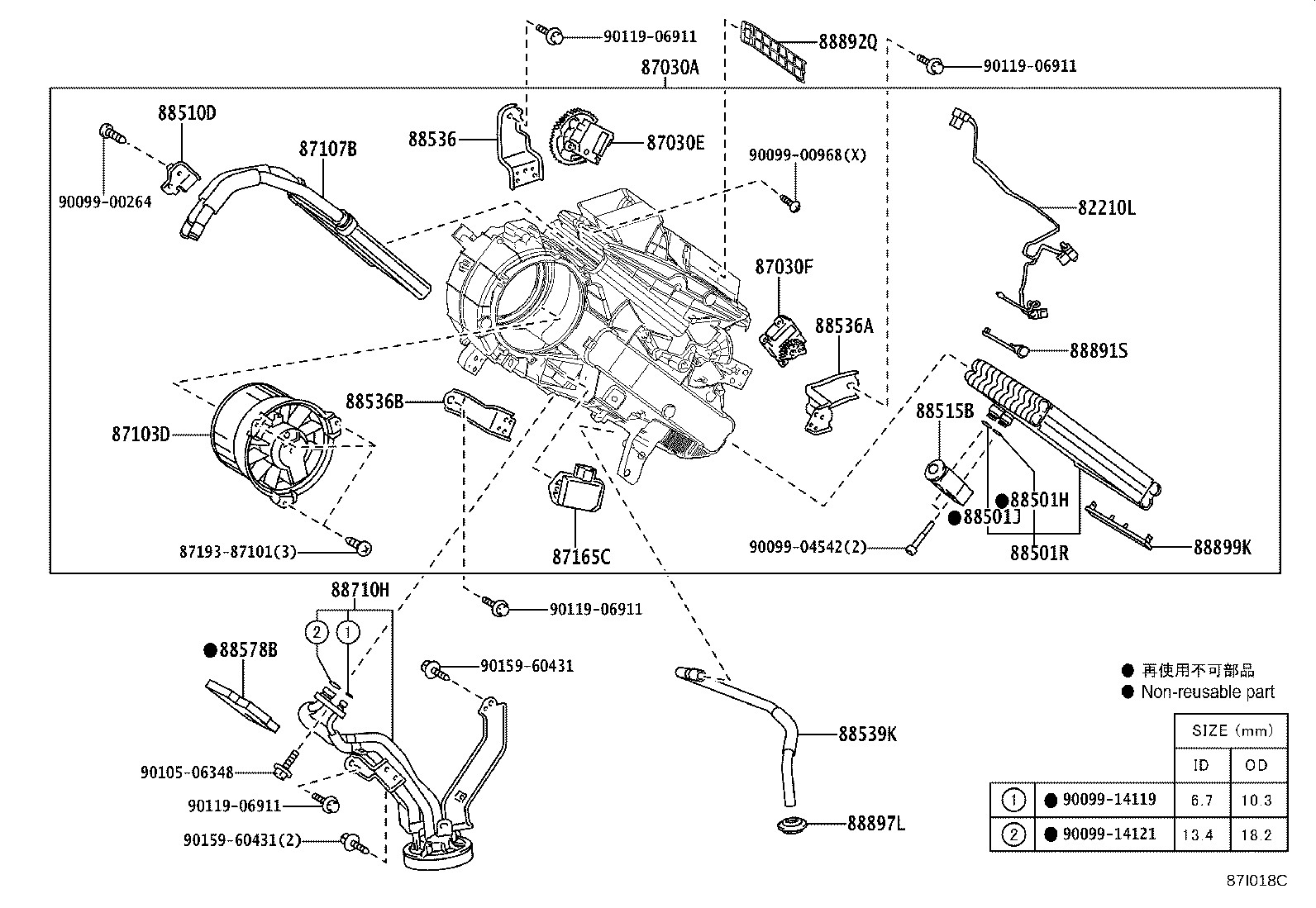

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82210-48010 |
GGL26,GYL26 |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-48060 |
GYL26 |
1 | ||
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-58030 |
GGL26,GYL26 |
1 | ||
| 87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2 | ||||
| 87106-48250 |
GGL26,GYL26 |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-28111 |
GGL26,GYL26 |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-48160 |
GGL26,GYL26 |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-36010 |
GGL26,GYL26 |
1 | ||
| 88501H - O-RING, COOLER EVAPORATOR NO.2(DISCHARGE) | ||||
| 90099-14120 |
GGL26,GYL26 ID=10.8,OD=15.6 |
1 | ||
| 88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION) | ||||
| 90099-14121 |
GGL26,GYL26 ID=13.4,OD=18.2 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28380 |
GYL26 |
1 | ||
| 88510D - CLAMP, COOLER UNIT | ||||
| 88718-48760 |
GGL26,GYL26 |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-48160 |
GGL26,GYL26 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-48380 |
GGL26,GYL26 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-48390 |
GGL26,GYL26 |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88688-48400 |
GGL26,GYL26 |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-48080 |
GGL26,GYL26 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-48160 |
GGL26,GYL26 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-48720 |
GGL26,GYL26 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-20240 |
GGL26,GYL26 |
1 | ||
| 88892Q - PLATE, COOLER | ||||
| 88892-28020 |
GGL26,GYL26 |
1 | ||
| 88897L - GROMMET (FOR DRAIN HOSE) | ||||
| 90480-26030 |
GGL26,GYL26 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-60450 |
GGL26,GYL26 |
1 | ||
| 88899-60520 |
GGL26,GYL26 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90105-06348 | ||||
| 90119-06911 | ||||
| 90159-60431 | ||||
