GYL26L-ARXGB (2017)
Toyota Lexus Rx350l/450hl
(1712-1908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48420 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC |
1 | ||
| 52114-48350 |
GGL26,GYL26..GEN |
1 | ||
| 52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48420 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC |
1 | ||
| 52114-48350 |
GGL26,GYL26..GEN |
1 | ||
| 52127G - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-48140 |
GGL26,GYL26 |
1 | ||
| 52128F - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-48110 |
GGL26,GYL26 |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-48320 |
GGL26,GYL26 NO PAINT REQ. |
1 | ||
| 53111-48330 |
GGL26,GYL26 NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53111-48330 |
GGL26,GYL26 NO PAINT REQ.,ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53112-48310 |
GGL26,GYL26..GEN |
1 | ||
| 53112-48320 |
GGL26,GYL26..GEN "VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53112-48901 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC |
1 | ||
| 53112-48320 |
GGL26,GYL26..GEN HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53112-48320 |
GGL26,GYL26..GEN CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53112-48901 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53112-48320 |
GGL26,GYL26..GEN "VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53112-48901 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53112-48901 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L) |
1 | ||
| 53112-48901 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE |
1 | ||
| 53112-48902 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53112-48902 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE &BACK SONAR) |
1 | ||
| 53112-48901 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 53112-48902 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53112-48902 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53112-48901 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 53112-48901 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS) |
1 | ||
| 53112-48902 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53112-48902 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53112-48902 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53112-48902 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR) |
1 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-48130 |
GGL26,GYL26 |
1 | ||
| 53122A - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-48050 |
GGL26,GYL26 |
1 | ||
| 53145G - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
GGL26,GYL26 |
16 | ||
| 53395H - SEAL, HOOD TO RADIATOR GRILLE | ||||
| 53395-48080 |
GGL26,GYL26 |
1 | ||
| 89C48G - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-48040 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE &BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26 "VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26 HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26 "VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48040 |
GGL26,GYL26 CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RH |
1 | ||
| 89348-48050 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE &BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&"VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26..LHD..GEN TAIWAN SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26 CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26 HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26 "VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| 89348-48050 |
GGL26,GYL26 "VERSION L"*(L)&HEADLAMP-LED TRIPLE BEAM TYPE&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),LH |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90182-06009 | ||||

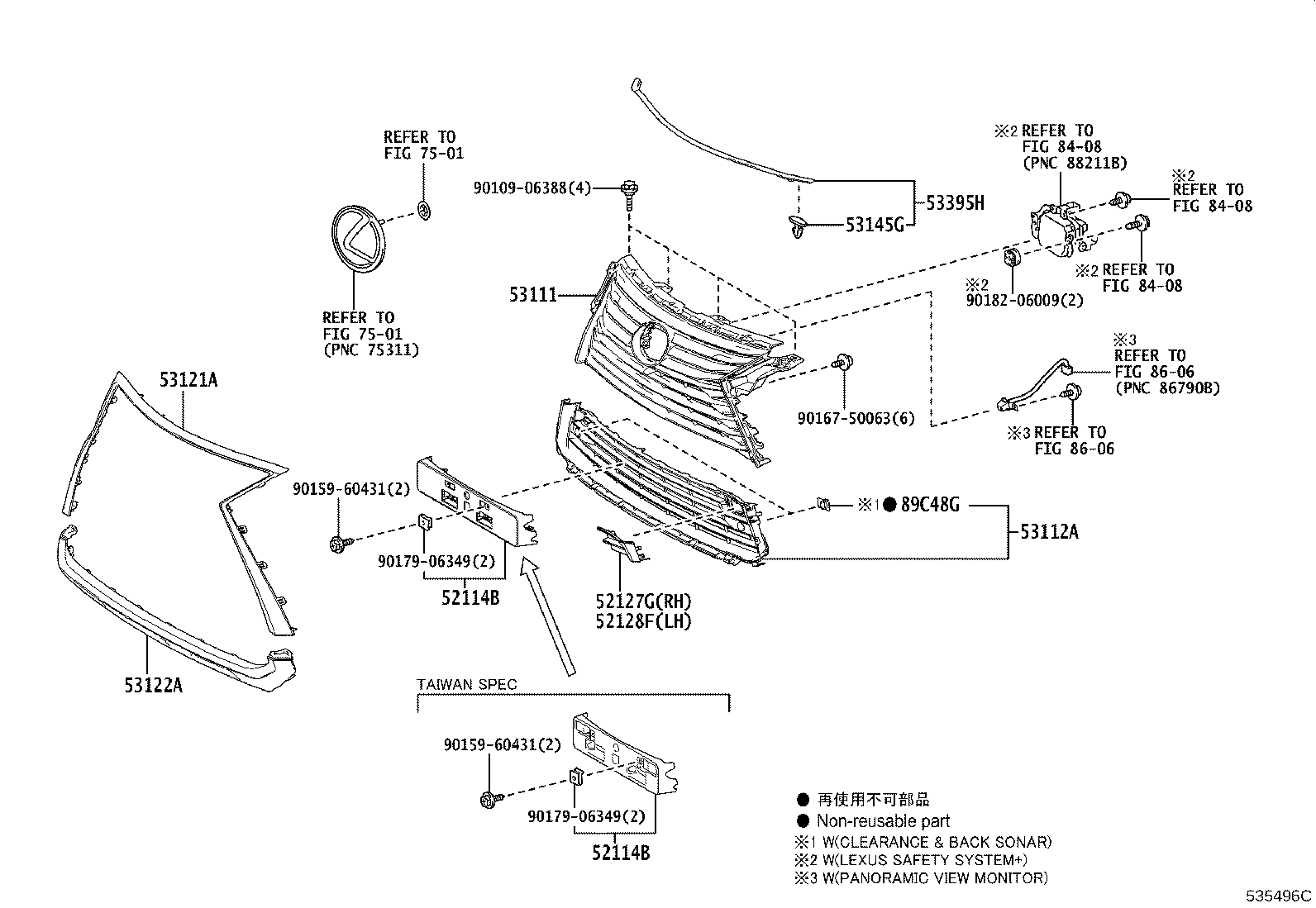

| Linked diagrams | ||||
| 7501 | ||||
| 8408 | ||||
| 8606 | ||||
