GGL26R-ARZGB (2019)

Toyota Lexus Rx350l/450hl

Production Aug 2019 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

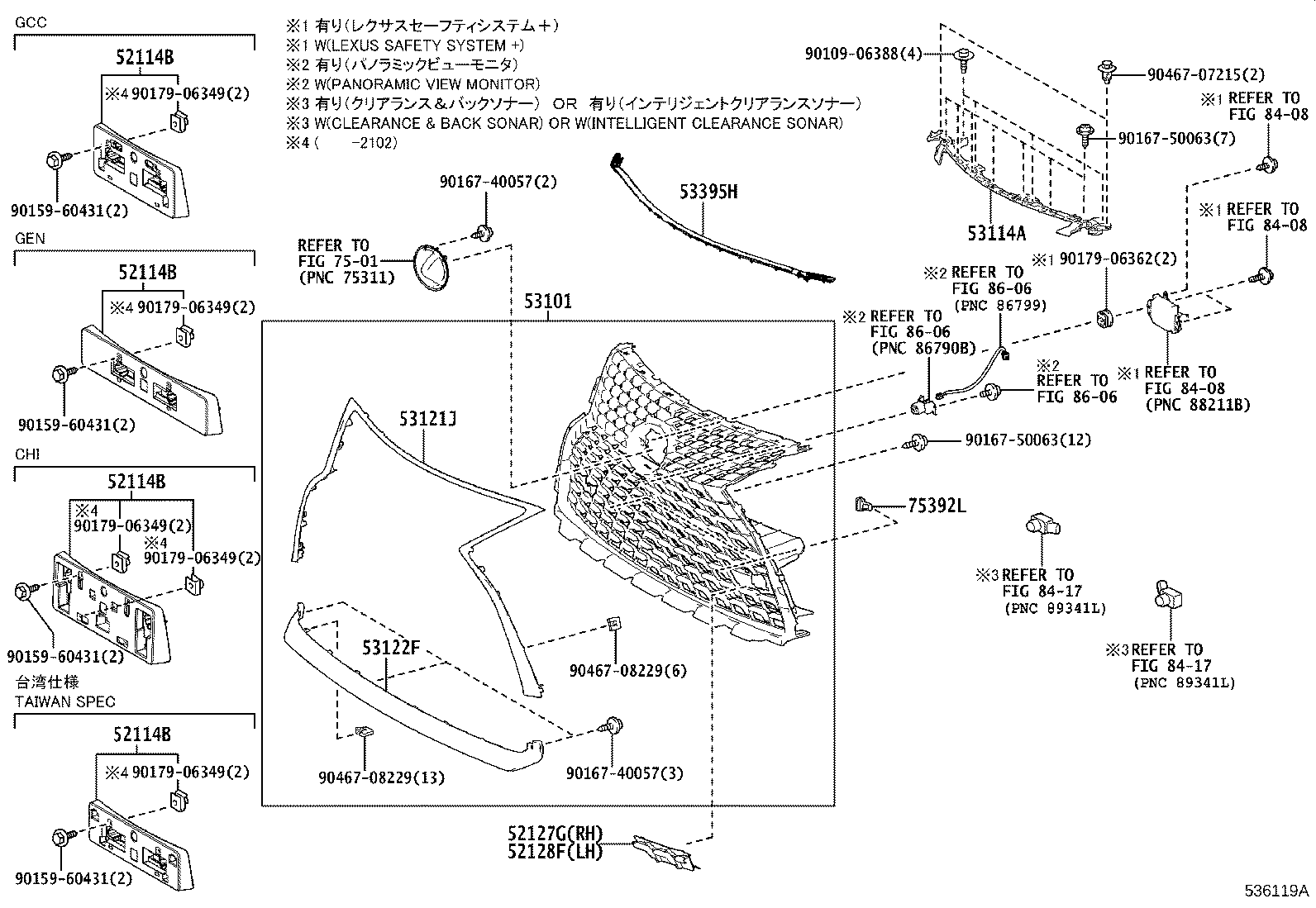

Click highlighted areas on diagram

diagram 52114B 52114B 52114B 52114B 52127G 52128F 53101 53114A 53121J 53122F 53395H 7501 75392L 8408 8408 8408 8417 8417 8606 8606 8606 9010906388 9015960431 9015960431 9015960431 9015960431 9016740057 9016740057 9016750063 9016750063 9017906349 9017906349 9017906349 9017906349 9017906349 9017906362 9046707215 9046708229 9046708229
Part # Description Qty Price
52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-48460

GGL26,GYL26..GEN

 1
52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-48460

GGL26,GYL26..GEN

 1
52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-48460

GGL26,GYL26..GEN

 1
52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-48460

GGL26,GYL26..GEN

 1
52127G - COVER, FRONT BUMPER HOLE, RH
52127-48170

GGL26,GYL26

 1
52128F - COVER, FRONT BUMPER HOLE, LH
52128-48140

GGL26,GYL26

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-48A20

GGL26,GYL26..RHD;GGL26,GYL26..GCC

PLATED,PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&BACK MONITOR-WITH(*PVM)

 1
53101-48A10

GGL26,GYL26..RHD;GGL26,GYL26..GCC

PLATED,PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)

 1
53101-48A10

GGL26..RHD;GYL26..GEN

PLATED,PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)

 1
53101-48A00

GGL26,GYL26..GCC,GEN

PLATED

 1
53101-48A20

GGL26..RHD;GYL26..GEN

PLATED,PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM)

 1
53101-48A10

GGL26..RHD;GYL26..GEN

PLATED,PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)

 1
53114A - GRILLE, RADIATOR, INNER
53114-48100

GGL26,GYL26

 1
53121J - MOULDING, RADIATOR GRILLE, NO.1
53121-48170

GGL26,GYL26

 1
53122F - MOULDING, RADIATOR GRILLE, NO.2
53122-48100

GGL26,GYL26

 1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-48100

GGL26,GYL26

 1
75392L - RETAINER, OUTSIDE MOULDING
75392-35220

GGL26,GYL26

 2
Common parts
90109-06388
90159-60431
90167-40057
90167-50063
90179-06349
90179-06362
90467-07215
90467-08229
Linked diagrams
7501
8408
8417
8606
