GGL26R-ARZGB (2017)
Toyota Lexus Rx350l/450hl

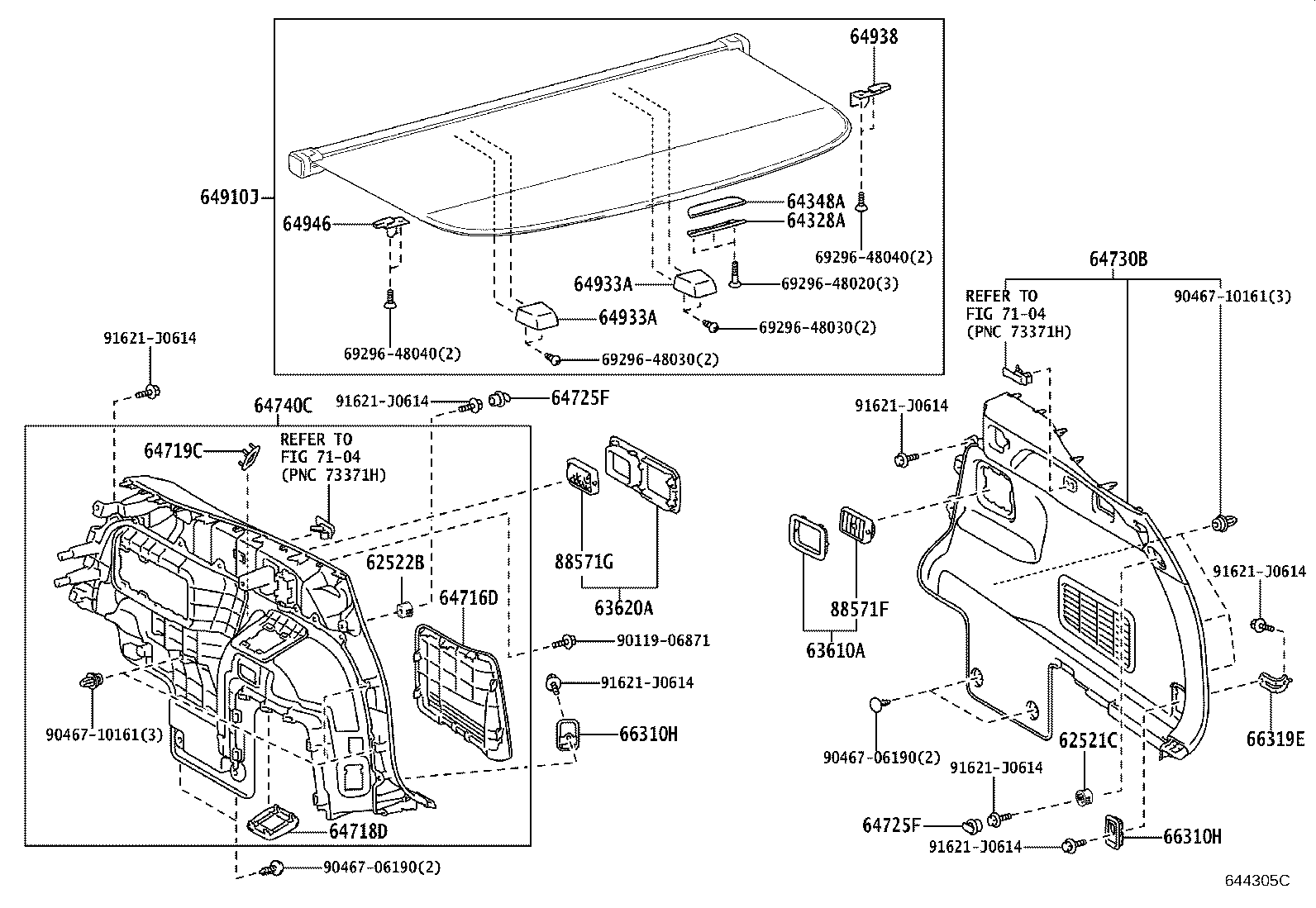

ILLUST NO. 1 OF 2(1712-1908)
DECK TRIM COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62521C - COVER, QUARTER TRIM RH | ||||
| 62521-48020C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 62521-48020E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 62522B - COVER, QUARTER TRIM LH | ||||
| 62521-48020C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 62521-48020E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 63610A - REGISTER ASSY, AIR OUTLET, RH | ||||
| 63610-48010E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 63610-48010C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 63620A - REGISTER ASSY, AIR OUTLET, LH | ||||
| 63620-48010C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 63620-48010E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64328A - COVER, PACKAGE TRAY TRIM CLAMP | ||||
| 64328-48010C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 64328-48010E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64348A - KNOB, PACKAGE TRAY TRIM | ||||
| 64348-48010C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 64348-48010E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-48040E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64716-48040C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-48020C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 64718-48020E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64719C - COVER, DECK TRIM POCKET | ||||
| 64719-48010C1 |
GGL26,GYL26 BLACK,TRIM2#,4# |
1 | ||
| 64719-48010E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-48020C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
2 | ||
| 64725-48020E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
2 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-48020C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
2 | ||
| 64725-48020E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-48170E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64730-48170C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-48160C2 |
GGL26,GYL26 BLACK,TRIM2#,4# |
1 | ||
| 64740-48160E1 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-48150C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 64910-48150E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64933A - BRACKET, TONNEAU COVER HOLDER, RH | ||||
| 64933-48011E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
2 | ||
| 64933-48011C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
2 | ||
| 64933A - BRACKET, TONNEAU COVER HOLDER, RH | ||||
| 64933-48011E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
2 | ||
| 64933-48011C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
2 | ||
| 64938 - HOOK, TONNEAU COVER, A | ||||
| 64938-48011E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64938-48011C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 64946 - HOOK, TONNEAU COVER, B | ||||
| 64946-48011E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 64946-48011C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C1 |
GGL26,GYL26 BLACK,TRIM2#,4# |
2 | ||
| 66310-30011E4 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
2 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C1 |
GGL26,GYL26 BLACK,TRIM2#,4# |
2 | ||
| 66310-30011E4 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
2 | ||
| 66319E - BRACKET, ROPE HOOK, RH | ||||
| 66319-48010 |
GGL26,GYL26 |
1 | ||
| 88571F - GRILLE, COOLER AIR OUTLET, RH | ||||
| 88571-48010C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 88571-48010E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 88571G - GRILLE, COOLER AIR OUTLET, LH | ||||
| 88571-48010C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 88571-48010E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| Common parts | ||||
| 69296-48020 | ||||
| 69296-48030 | ||||
| 69296-48040 | ||||
| 90119-06871 | ||||
| 90467-06190 | ||||
| 90467-10161 | ||||
| 91621-J0614 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(1712- )
DECK BOARD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-48110E0 |
GGL26,GYL26 DOOR INNER GARNISH-FINISHPLATE(STAINLESS),NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58387-48100C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 58387-48110C0 |
GGL26,GYL26 DOOR INNER GARNISH-FINISHPLATE(STAINLESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 58387-48100E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-48170E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58410-48170C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 58411A - BOARD, DECK, NO.1 | ||||
| 58411-48060E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58411-48060C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 58418E - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-48120E1 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58418-48120C1 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 58457M - BRACKET, DECK FLOOR, NO.2 LH | ||||
| 58457-48010 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR |
1 | ||
| 58457-48010 |
GGL26,GYL26 SPEAKER-12SPEAKER |
1 | ||
| 58470C - HANDLE ASSY, DECK BOARD | ||||
| 58470-78020C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 58470-78020E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 58790A - CARRIER ASSY, JACK | ||||
| 58790-48110 |
GGL26,GYL26 |
1 | ||
| 58792F - SUPPORT, JACK CARRIER | ||||
| 58792-48010 |
GGL26,GYL26 |
1 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-48010 |
GGL26,GYL26 |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-48100 |
GGL26 |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-48100 |
GGL26 |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60030C0 |
GGL26 BLACK |
1 | ||
| 64991A - BOX, DECK FLOOR, FR | ||||
| 64991-48080 |
GGL26,GYL26 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-48160 |
GGL26,GYL26 SPEAKER-12SPEAKER |
1 | ||
| 64993-48150 |
GGL26,GYL26 |
1 | ||
| 64993-48160 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-48160 |
GGL26,GYL26 SPEAKER-12SPEAKER |
1 | ||
| 64993-48150 |
GGL26,GYL26 |
1 | ||
| 64993-48160 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR |
1 | ||
| 67936B - COVER, BACK DOOR SCUFF SIDE, RH | ||||
| 67936-48040 |
GGL26,GYL26 DOOR INNER GARNISH-FINISHPLATE(STAINLESS) |
1 | ||
| 67937F - COVER, BACK DOOR SCUFF SIDE, LH | ||||
| 67937-48050 |
GGL26,GYL26 DOOR INNER GARNISH-FINISHPLATE(STAINLESS) |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90467-09206 | ||||
| 90467-09232 | ||||
| 90467-09240 | ||||
| 90467-10161 | ||||
| 93560-54012 | ||||
