GGL26L-ARZGBV (2017)

Toyota Lexus Rx350l/450hl

Production Dec 2017 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712-1908)LHD

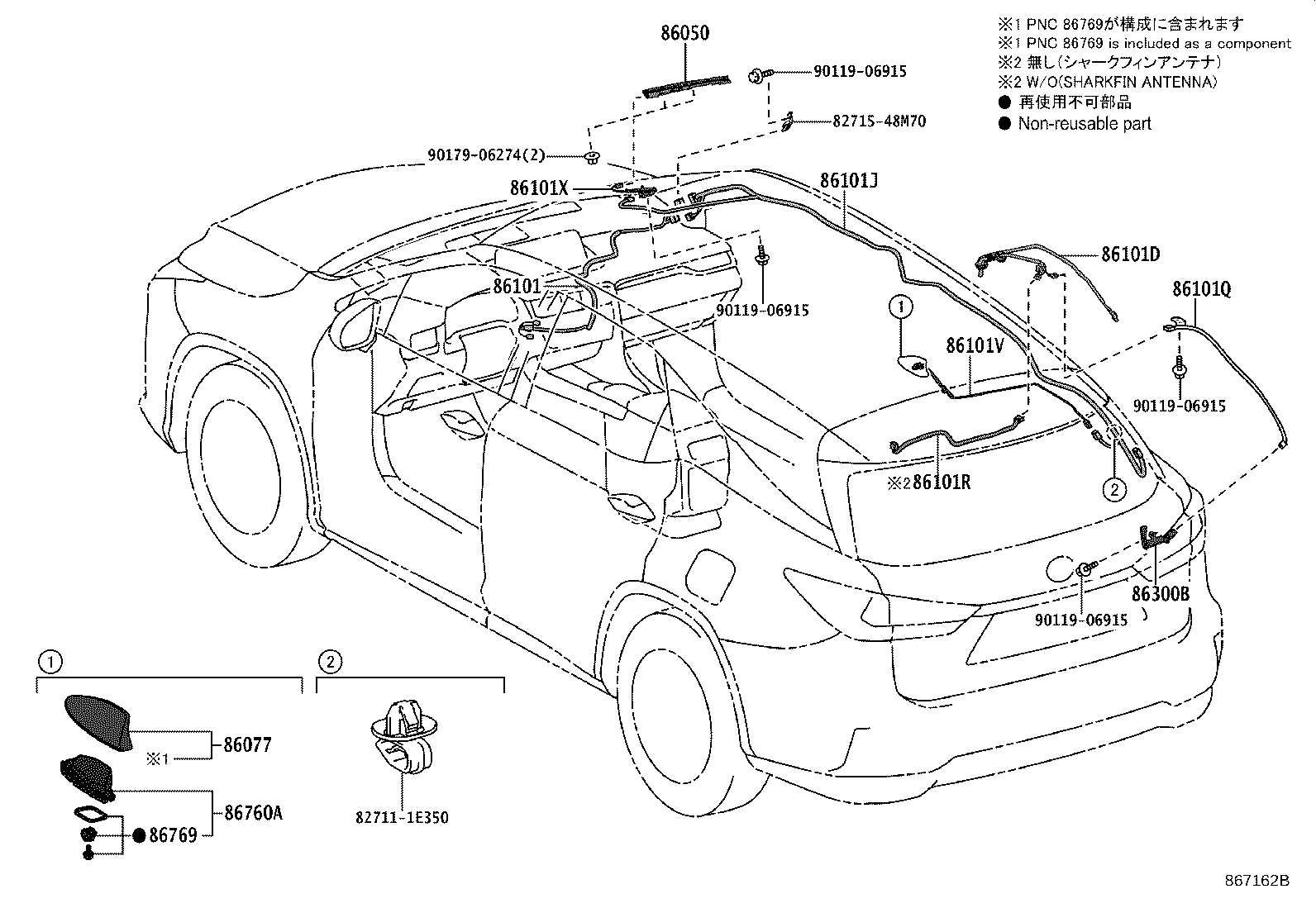

Click highlighted areas on diagram

diagram 827111E350 8271548M70 86050 86077 86101 86101D 86101J 86101Q 86101R 86101V 86101X 86300B 86760A 86769 9011906915 9011906915 9011906915 9011906915 9017906274
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-48P90

GGL26,GYL26..LHD

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)

 1
86101-48P90

GGL26,GYL26..LHD

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

 1
86101-48Q10

GGL26,GYL26..LHD

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-48R90

GGL26,GYL26

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-48U00

GGL26,GYL26

 1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-48S10

GGL26,GYL26

 1
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-48V20

GGL26,GYL26

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-48350

GGL26,GYL26

 1
Common parts
82711-1E350
82715-48M70
90119-06915
90179-06274
