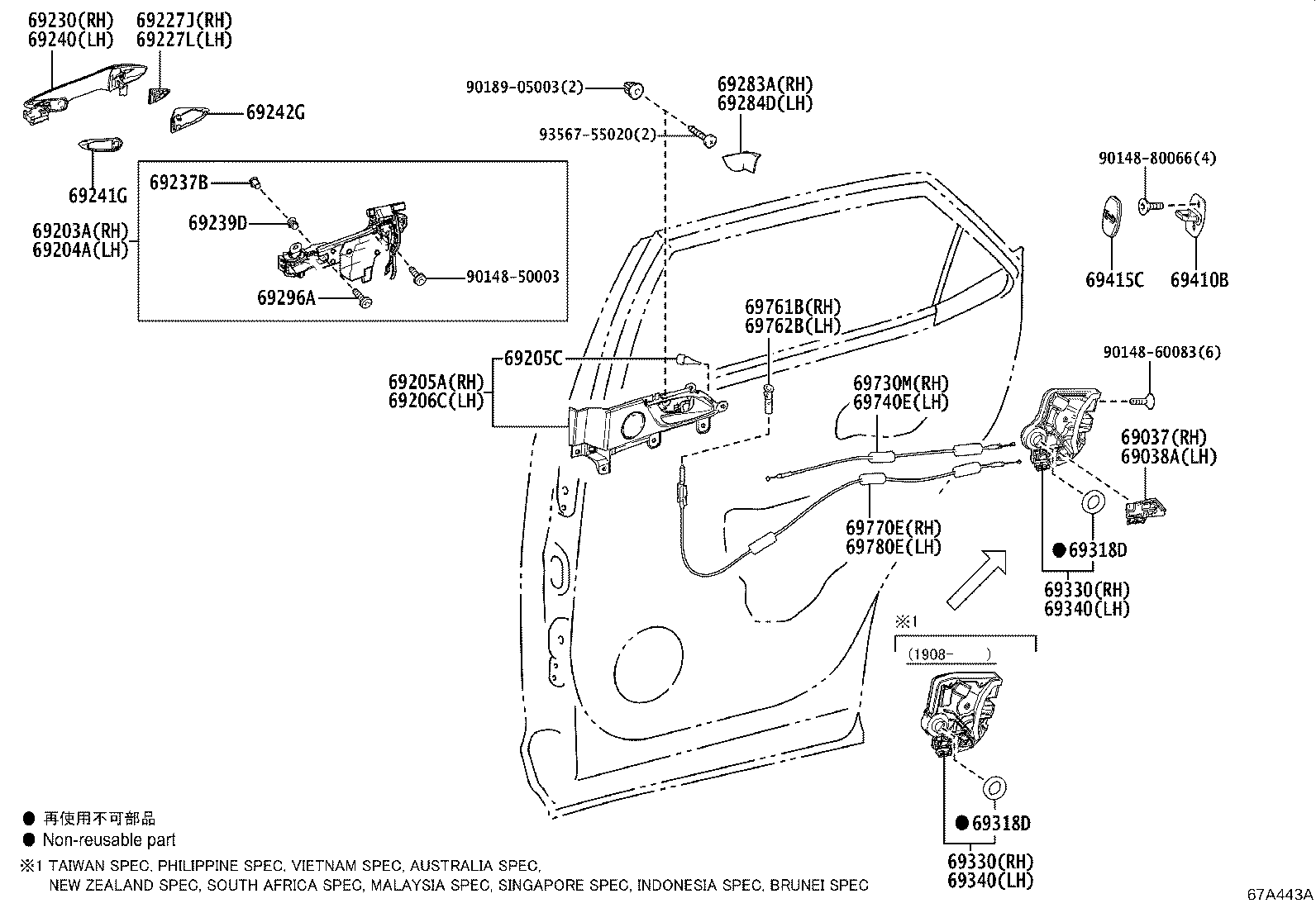

GGL26L-ARZGBV (2017)
Toyota Lexus Rx350l/450hl
(1712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69037 - COVER SUB-ASSY, REAR DOOR LOCK, RH | ||||
| 69037-30010 |
GGL26,GYL26 |
1 | ||
| 69038A - COVER SUB-ASSY, REAR DOOR LOCK, LH | ||||
| 69038-30010 |
GGL26,GYL26 |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-48060 |
GGL26,GYL26 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-48060 |
GGL26,GYL26 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 67607-48040C0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-12SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 67607-48040C0 |
GGL26,GYL26 SPEAKER-12SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 67607-48030E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67607-48040E0 |
GGL26,GYL26 SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67607-48031E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67607-48030C0 |
GGL26,GYL26 BLACK,TRIM2#,4# |
1 | ||
| 67607-48040E0 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67607-48040C0 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4# |
1 | ||
| 67607-48040C0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4# |
1 | ||
| 67607-48031C0 |
GGL26,GYL26 BLACK,TRIM2#,4# |
1 | ||
| 67607-48040E0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67607-48041E0 |
GGL26,GYL26 SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67607-48041C0 |
GGL26,GYL26 SPEAKER-12SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 67607-48041C0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-12SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 67607-48041E0 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67607-48041E0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67607-48040E0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67607-48041E0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67607-48041C0 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4# |
1 | ||
| 67607-48041C0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GGL26,GYL26 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 67608-48030C0 |
GGL26,GYL26 BLACK,TRIM2#,4# |
1 | ||
| 67608-48040C0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-12SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 67608-48040C0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4# |
1 | ||
| 67608-48030E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67608-48040E0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67608-48040C0 |
GGL26,GYL26 SPEAKER-12SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 67608-48040C0 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4# |
1 | ||
| 67608-48031E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67608-48040E0 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67608-48031C0 |
GGL26,GYL26 BLACK,TRIM2#,4# |
1 | ||
| 67608-48040E0 |
GGL26,GYL26 SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67608-48041C0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-12SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 67608-48041E0 |
GGL26,GYL26 SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67608-48040E0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67608-48041C0 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4# |
1 | ||
| 67608-48041C0 |
GGL26,GYL26 SPEAKER-12SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 67608-48041E0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67608-48041C0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,BLACK,TRIM2#,4# |
1 | ||
| 67608-48041E0 |
GGL26,GYL26 "VERSION L"*(L)&SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 67608-48041E0 |
GGL26,GYL26 SPEAKER-15SPEAKER, *MAR,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-78010 |
GGL26,GYL26 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69228-78010 |
GGL26,GYL26 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-48110B2 |
GGL26,GYL26 SONIC TITANIUM,1J7 |
1 | ||
| 69210-48110B1 |
GGL26,GYL26 PLATINUM SILVER ME.,1J4 |
1 | ||
| 69210-48110E1 |
GGL26,GYL26 AMBER CS.,4X2 |
1 | ||
| 69210-48110C1 |
GGL26,GYL26 GRAPHITE BLACK GF.,223 |
1 | ||
| 69210-48110A1 |
GGL26,GYL26 SONIC QUARTZ,085 |
1 | ||
| 69210-48110C0 |
GGL26,GYL26 BLACK,212 |
1 | ||
| 69210-48110B0 |
GGL26,GYL26 MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-48110D0 |
GGL26,GYL26 RED MC.CS.,3R1 |
1 | ||
| 69210-48110E0 |
GGL26,GYL26 SLEEK ECRU ME.,4U7 |
1 | ||
| 69210-48110J0 |
GGL26,GYL26 DEEP BLUE MC.,8X5 |
1 | ||
| 69237B - NUT, REAR DOOR HANDLE | ||||
| 69237-30010 |
GGL26,GYL26 |
2 | ||
| 69239D - BUSH, REAR DOOR HANDLE | ||||
| 69239-30010 |
GGL26,GYL26 |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-48070A1 |
GGL26,GYL26 SONIC QUARTZ,085 |
1 | ||
| 69220-48070C0 |
GGL26,GYL26 BLACK,212 |
1 | ||
| 69220-48070J0 |
GGL26,GYL26 DEEP BLUE MC.,8X5 |
1 | ||
| 69220-48070E1 |
GGL26,GYL26 AMBER CS.,4X2 |
1 | ||
| 69220-48070D0 |
GGL26,GYL26 RED MC.CS.,3R1 |
1 | ||
| 69220-48070E0 |
GGL26,GYL26 SLEEK ECRU ME.,4U7 |
1 | ||
| 69220-48070C1 |
GGL26,GYL26 GRAPHITE BLACK GF.,223 |
1 | ||
| 69220-48070B2 |
GGL26,GYL26 SONIC TITANIUM,1J7 |
1 | ||
| 69220-48070B1 |
GGL26,GYL26 PLATINUM SILVER ME.,1J4 |
1 | ||
| 69220-48070B0 |
GGL26,GYL26 MERCURY GRAY MC.,1H9 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69242-78010 |
GGL26,GYL26 LH |
1 | ||
| 69241-78010 |
GGL26,GYL26 RH |
1 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-78020 |
GGL26,GYL26 LH |
1 | ||
| 69241-78020 |
GGL26,GYL26 RH |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-48010C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 69283-48010E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-48010C0 |
GGL26,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 69284-48010E0 |
GGL26,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 69296A - SCREW, DOOR INSIDE HANDLE | ||||
| 69296-30010 |
GGL26,GYL26 |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GGL26,GYL26 |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GGL26,GYL26 |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-48070 |
GGL26,GYL26 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-48070 |
GGL26,GYL26 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-48070 |
GGL26,GYL26 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-48070 |
GGL26,GYL26 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-33030 |
GGL26,GYL26 |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-60020 |
GGL26,GYL26 |
2 | ||
| 69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER | ||||
| 69730-48080 |
GGL26,GYL26 |
1 | ||
| 69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER | ||||
| 69730-48080 |
GGL26,GYL26 |
1 | ||
| 69761B - BEZEL, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 69761-48030 |
GGL26,GYL26 |
1 | ||
| 69762B - BEZEL, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 69761-48030 |
GGL26,GYL26 |
1 | ||
| 69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K | ||||
| 69770-48091 |
GGL26,GYL26 |
1 | ||
| 69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K | ||||
| 69770-48091 |
GGL26,GYL26 |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90189-05003 | ||||
| 93567-55020 | ||||
