GGL26L-ARZGBV (2017)

Toyota Lexus Rx350l/450hl

Production Dec 2017 - Aug 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )

Click highlighted areas on diagram

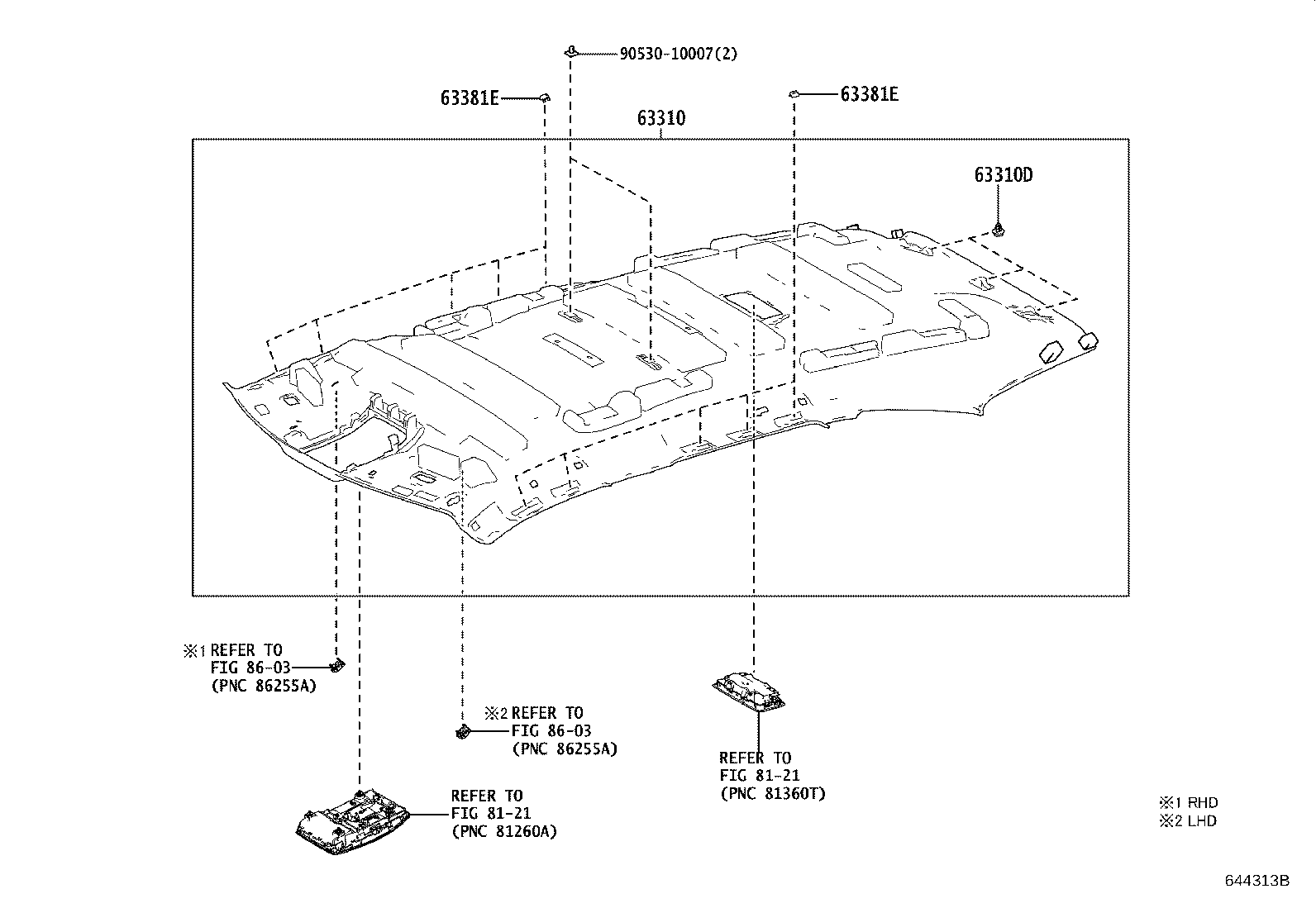

diagram 63310 63310D 63381E 63381E 8121 8121 8603 8603 9053010007
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-48600A0

GGL26,GYL26..LHD

ECRU,TRIM0#,5#,6#

 1
63310-48600B0

GGL26,GYL26..LHD

MOON STONE,TRIM1#,2#,4#

 1
63310-48620B0

GGL26,GYL26..LHD

MOON ROOF-WITH,MOON STONE,TRIM1#,2#,4#

 1
63310-48620A0

GGL26,GYL26..LHD

MOON ROOF-WITH,ECRU,TRIM0#,5#,6#

 1
63310D - CLIP, ROOF HEADLINING
90467-09240

GGL26,GYL26

 3
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30120

GGL26,GYL26

 10
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30120

GGL26,GYL26

 10
Common parts
90530-10007
Linked diagrams
8121
8603

(1712- )

Click highlighted areas on diagram

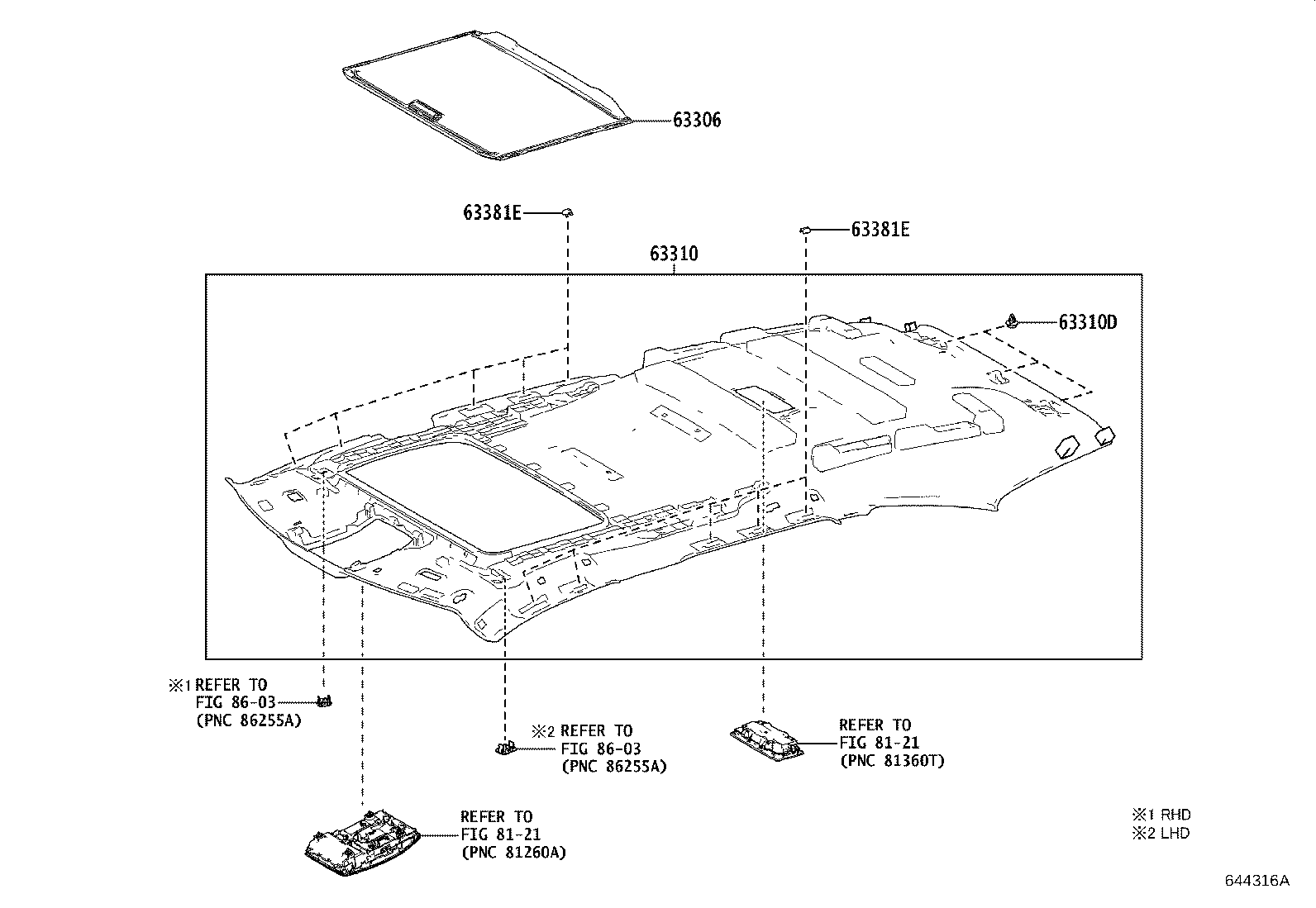

MOON ROOF

diagram 63306 63310 63310D 63381E 63381E 8121 8121 8603 8603
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-48200A0

GGL26,GYL26

MOON ROOF-WITH,ECRU,TRIM0#,5#,6#

 1
63306-48200B1

GGL26,GYL26

MOON ROOF-WITH,MOON STONE,TRIM1#,2#,4#

 1
63310 - HEADLINING ASSY, ROOF
63310-48600A0

GGL26,GYL26..LHD

ECRU,TRIM0#,5#,6#

 1
63310-48600B0

GGL26,GYL26..LHD

MOON STONE,TRIM1#,2#,4#

 1
63310-48620B0

GGL26,GYL26..LHD

MOON ROOF-WITH,MOON STONE,TRIM1#,2#,4#

 1
63310-48620A0

GGL26,GYL26..LHD

MOON ROOF-WITH,ECRU,TRIM0#,5#,6#

 1
63310D - CLIP, ROOF HEADLINING
90467-09240

GGL26,GYL26

 3
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30120

GGL26,GYL26

 10
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30120

GGL26,GYL26

 10
Linked diagrams
8121
8603
