GSU35R-AWAGKW (2006)

Toyota Lexus Rx300/330/350

Production Jan 2006 - Dec 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

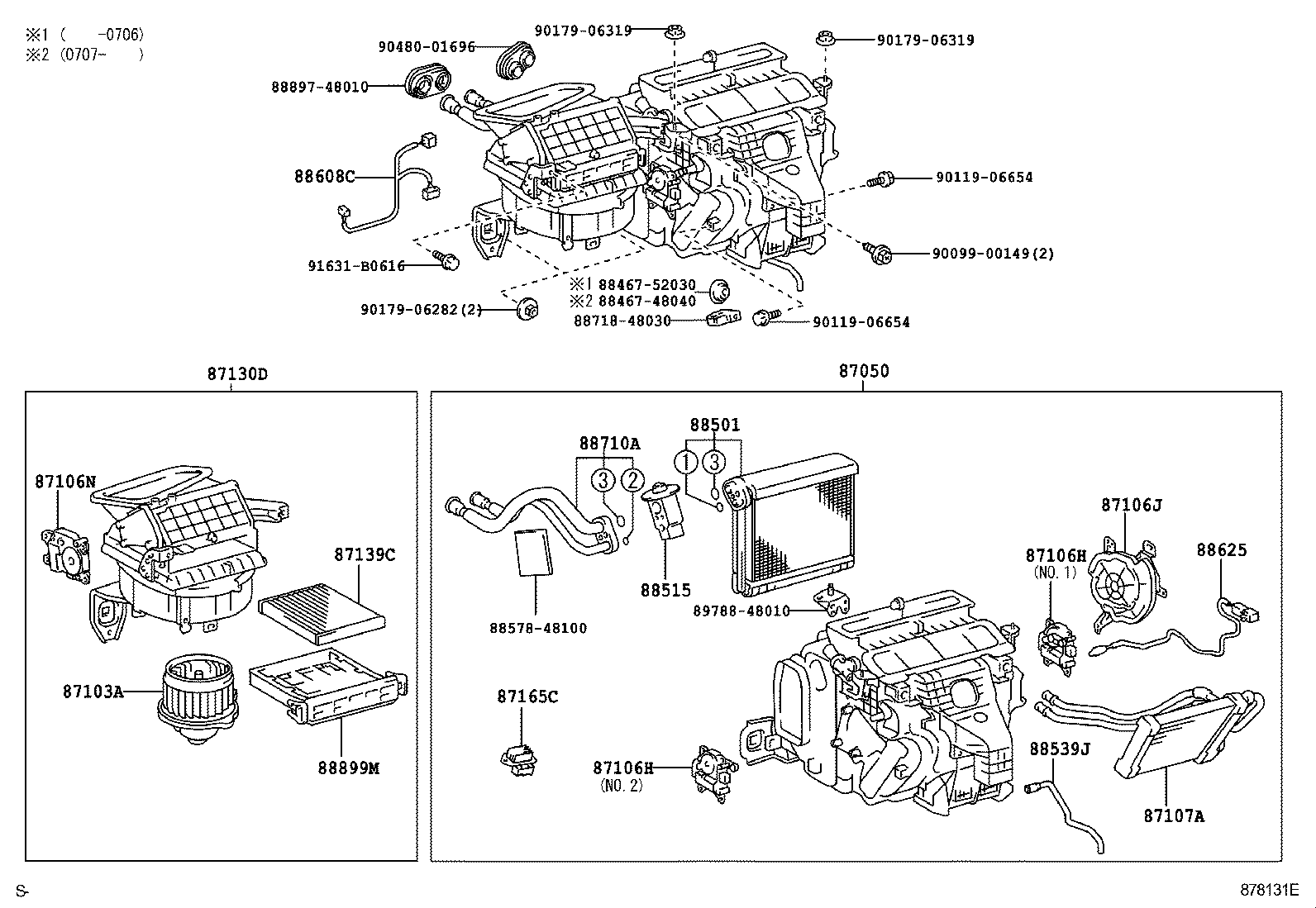

ILLUST NO. 1 OF 2(0601- )RHD

Click highlighted areas on diagram

diagram 87050 87103A 87106H 87106H 87106J 87106N 87107A 87130D 87139C 87165C 8846748040 8846752030 88501 88515 88539J 8857848100 88608C 88625 88710A 8871848030 8889748010 88899M 8978848010 9009900149 9011906654 9011906654 9017906282 9017906319 9017906319 9048001696 91631B0616
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-48230

GSU35..RHD

 1
87050-48231

GSU35..RHD

 1
87050-48232

GSU35..RHD

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-48050

GSU35..RHD

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-48150

GSU35

NO.1

 1
87106-48160

GSU35

NO.2

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-48150

GSU35

NO.1

 1
87106-48160

GSU35

NO.2

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-48060

GSU35..RHD

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-48080

GSU35..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-48050

GSU35..RHD

 1
87130D - BLOWER ASSY
87130-48100

GSU35..RHD

 1
87139C - FILTER, CLEAN AIR
87139-33010

GSU35

 1
87165C - CONTROL, BLOWER MOTOR
87165-13010

GSU35

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-48240

GSU35..RHD

 1
88501-48241

GSU35..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-28180

GSU35

 1
88539J - HOSE, DRAIN COOLER
88539-48030

GSU35

 1
88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88608-48110

GSU35..RHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-48050

GSU35

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-48120

GSU35..RHD

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-41010

GSU35

 1
Common parts
88467-48040
88467-52030
88578-48100
88718-48030
88897-48010
89788-48010
90099-00149
90119-06654
90179-06282
90179-06319
90480-01696
91631-B0616
