GSU35L-AWAGKV (2006)
Toyota Lexus Rx300/330/350
Production
Jan 2006
-
Dec 2008
Engine
2GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )GCC

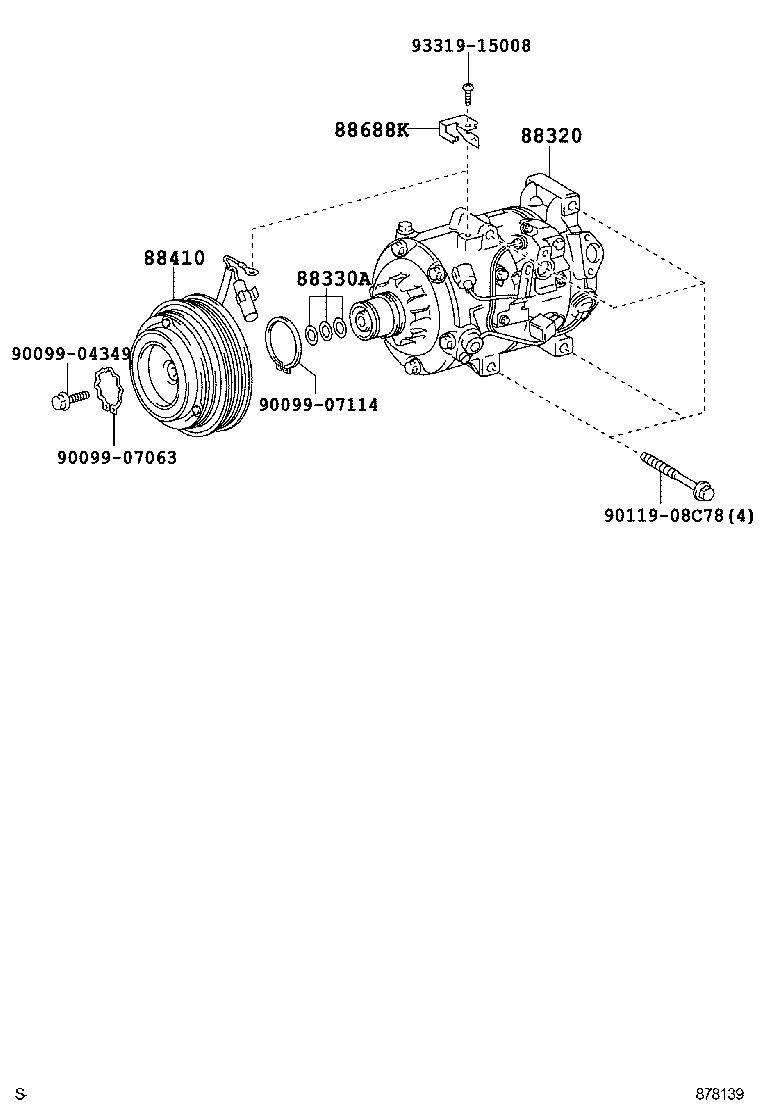

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-48110 |
GSU35..GCC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GSU35 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-33150 |
GSU35 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-33460 |
GSU35..GCC |
1 | ||
| 88688-48250 |
GSU35..GCC |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07063 | ||||
| 90099-07114 | ||||
| 90119-08C78 | ||||
| 93319-15008 | ||||
