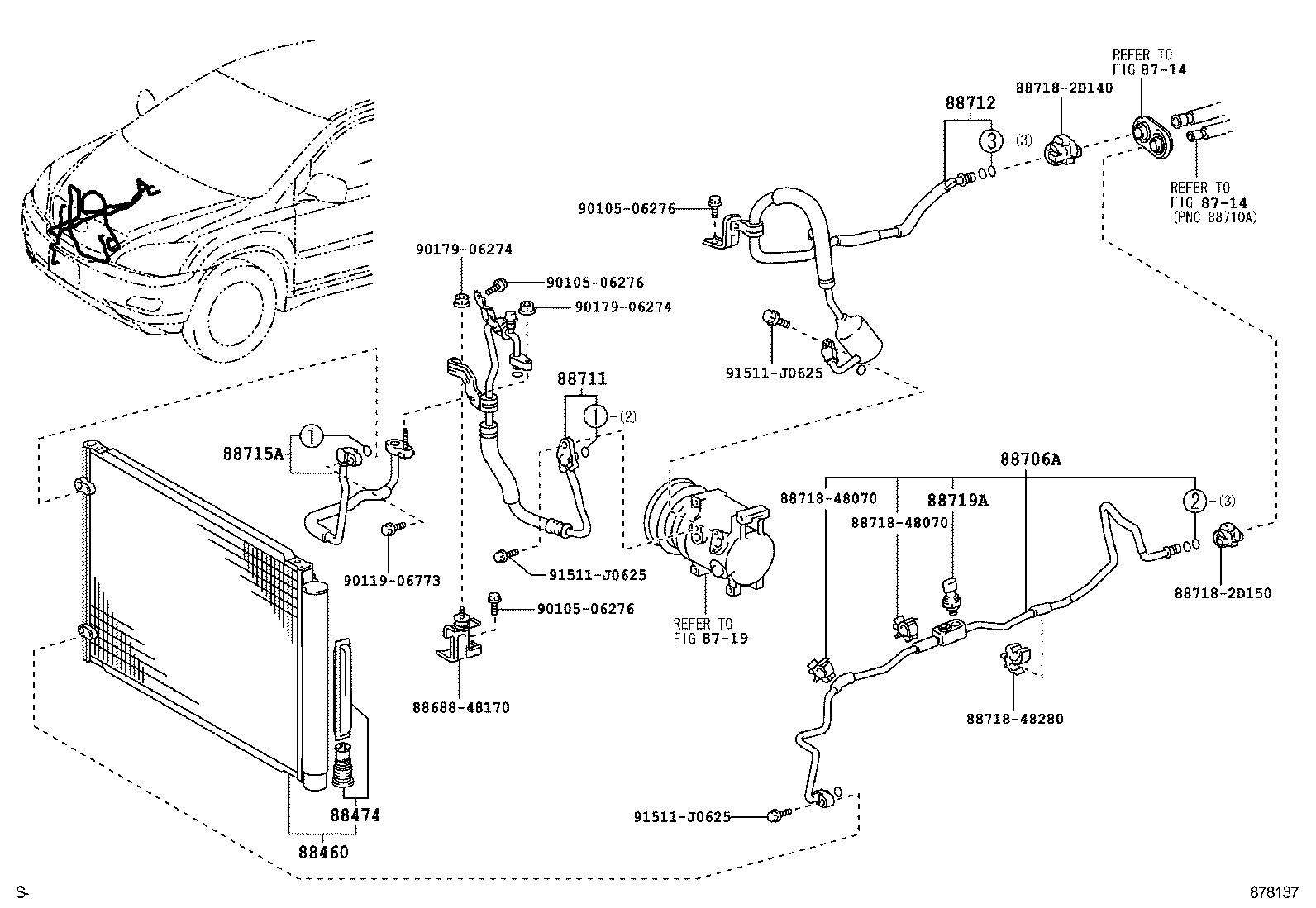

Toyota Lexus rx300/330/350 GSU35 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-48090	GSU35..ARL,GCC	01/2006 - 09/2006	1
88460-48091	GSU35..ARL,GCC	10/2006 - 12/2008	1
88474 - DRYER, COOLER
88474-17010	GSU35	01/2006 - 12/2008	1
88706A - TUBE SUB-ASSY, LIQUID, A
88710-48260	GSU35..LHD	01/2006 - 12/2008	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-48130	GSU35..GCC	01/2006 - 12/2008	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-48100	GSU35..GCC	01/2006 - 06/2007	1
88704-48101	GSU35..GCC	07/2007 - 12/2008	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88705-48090	GSU35	01/2006 - 12/2008	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020	GSU35	01/2006 - 01/2007	1
88719-33020	GSU35	01/2007 - 12/2008	1
Common parts
88688-48170
88718-2D140
88718-2D150
88718-48070
88718-48280
90105-06276
90119-06773
90179-06274
91511-J0625
Linked diagrams
8714
8719

GSU35L-AWAGKV (2006)
