GSU35L-AWAGKV (2006)

Toyota Lexus Rx300/330/350

Production Jan 2006 - Dec 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

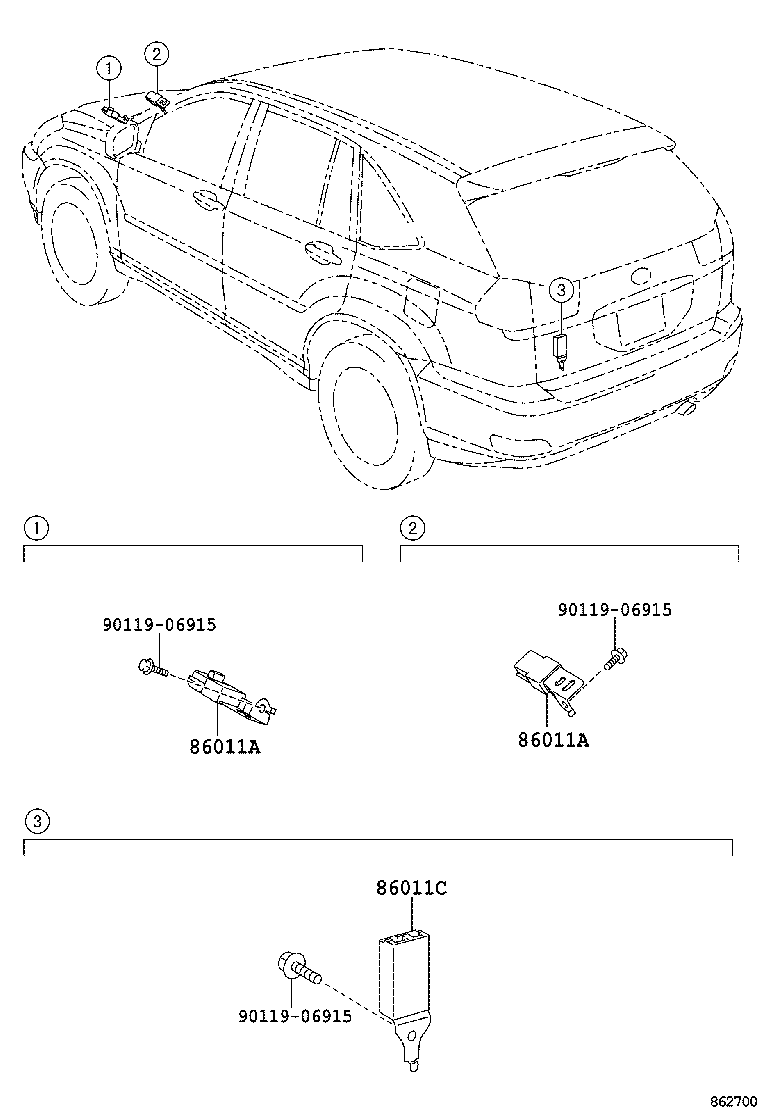

ILLUST NO. 3 OF 3(0601- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011C 9011906915 9011906915 9011906915
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04182

GSU35..ARL,GCC

 2
86011A - CONDENSER, RADIO SETTING
90980-04182

GSU35..ARL,GCC

 2
86011C - FILTER, NOISE
90980-04172

GSU35

 1
Common parts
90119-06915

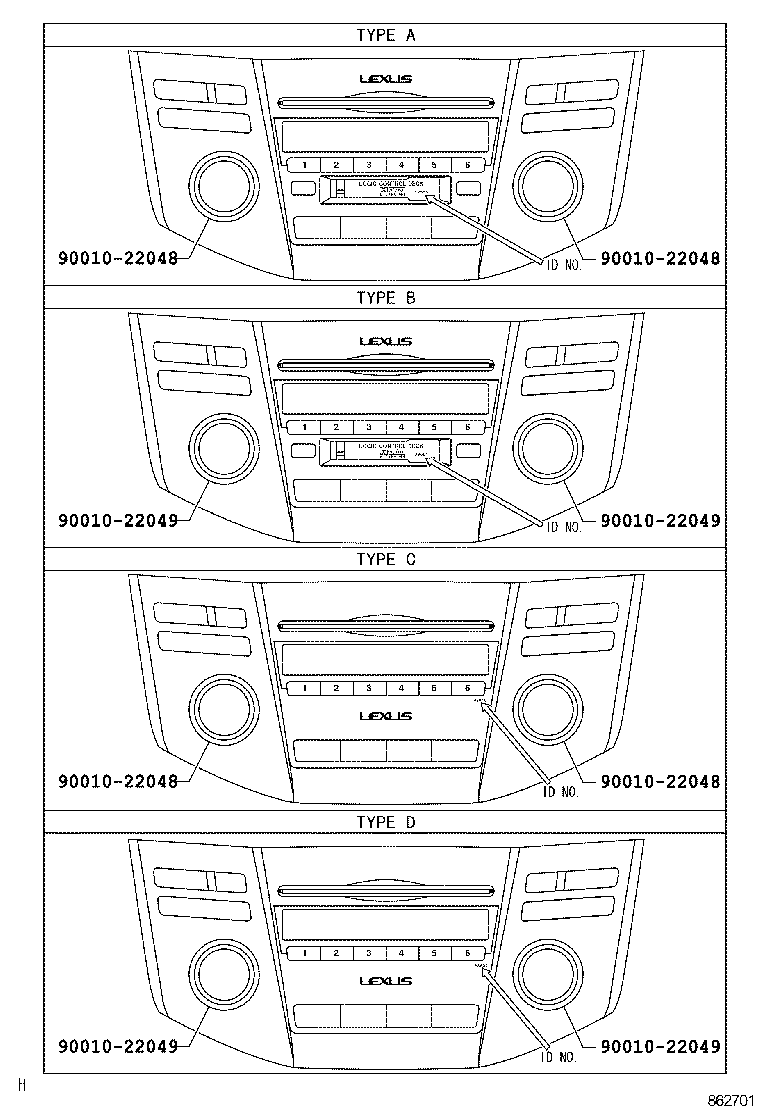

ILLUST NO. 2 OF 3(0601- )

Click highlighted areas on diagram

diagram 9001022048 9001022048 9001022048 9001022048 9001022049 9001022049 9001022049 9001022049
Part # Description Qty Price
Common parts
90010-22048
90010-22049

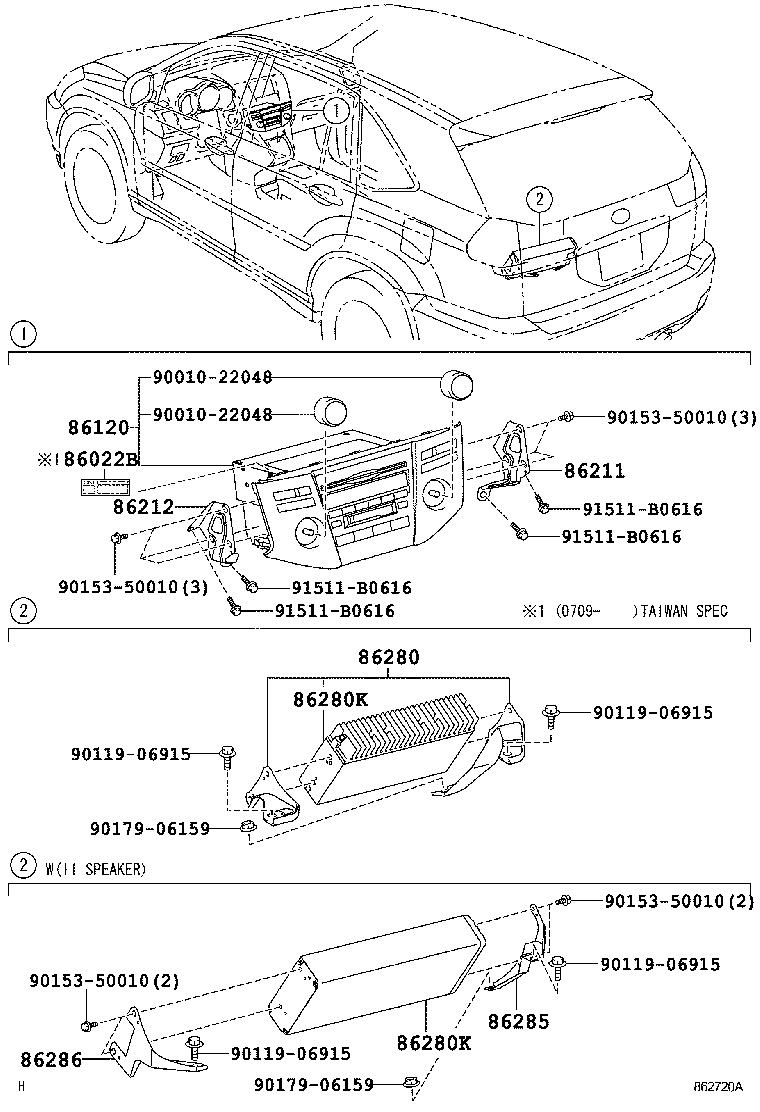

ILLUST NO. 1 OF 3(0601- )

Click highlighted areas on diagram

diagram 86022B 86120 86211 86212 86280 86280K 86280K 86285 86286 9001022048 9001022048 9011906915 9011906915 9011906915 9011906915 9015350010 9015350010 9015350010 9015350010 9017906159 9017906159 91511B0616 91511B0616 91511B0616 91511B0616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-48D30

GSU35..GCC

PIONEER,ID=P2507,EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

 1
86120-48D20

GSU35..GCC

PIONEER,ID=P2812

 1
86120-48D30

GSU35..GCC

PIONEER,ID=P2507,TYPE A:REFER ILLUST.

 1
86120-48D20

GSU35..GCC

PIONEER,ID=P2812,TYPE C:REFER ILLUST.

 1
86211 - BRACKET, RADIO, NO.1
86211-48030

GSU35

 1
86212 - BRACKET, RADIO, NO.2
86212-48030

GSU35

 1
86280K - AMPLIFIER ASSY, STEREO COMPONENT
86280-0E010

GSU35..GCC

 1
86280K - AMPLIFIER ASSY, STEREO COMPONENT
86280-0E010

GSU35..GCC

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-48080

GSU35..GCC

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-48060

GSU35..GCC

 1
Common parts
90010-22048
90119-06915
90153-50010
90179-06159
91511-B0616
