GSU35L-AWAGKV (2006)

Toyota Lexus Rx300/330/350

Production Jan 2006 - Dec 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )LHD

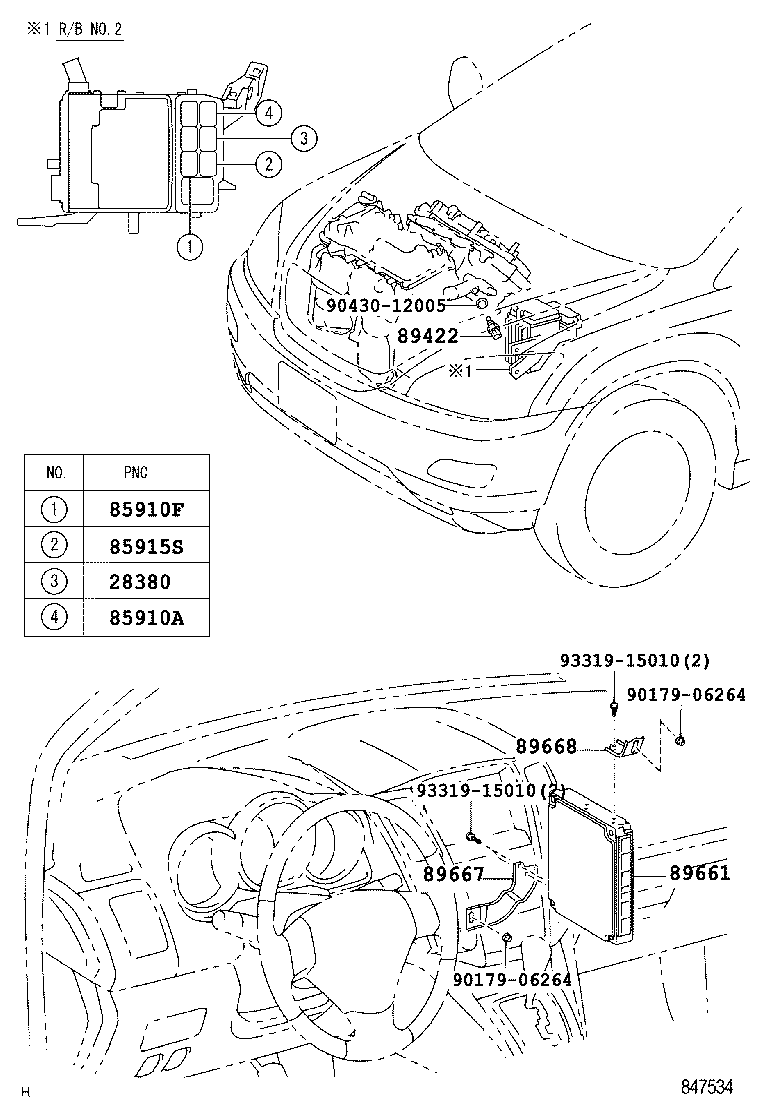

Click highlighted areas on diagram

diagram 28380 85910A 85910F 85915S 89422 89661 89667 89668 9017906264 9017906264 9043012005 9331915010 9331915010
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
90987-04004

2GRFE..GSU35

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027

GSU35

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02027

GSU35

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02027

GSU35

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

GSU35

 1
89661 - COMPUTER, ENGINE CONTROL
89661-48A20

GSU35..GCC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-48060

GSU35..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-48060

GSU35..LHD

 1
Common parts
90179-06264
90430-12005
93319-15010
