GSU35L-AWAGKV (2006)
Toyota Lexus Rx300/330/350

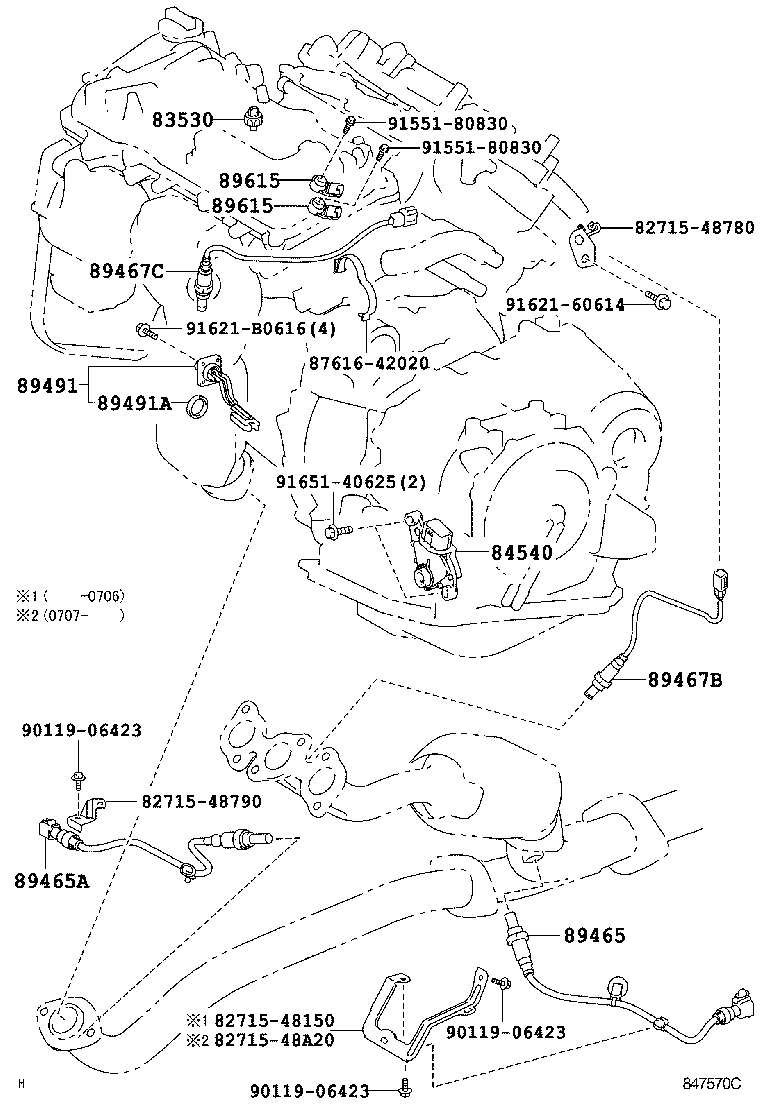

ILLUST NO. 1 OF 7(0601- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GSU35 DENSO |
1 | ||
| 83530-60020 |
GSU35 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-48010 |
GSU35 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-48110 |
GSU35 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-68050 |
GSU35 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-48100 |
GSU35 |
1 | ||
| 89467-48130 |
GSU35 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-48090 |
GSU35 |
1 | ||
| 89467-48120 |
GSU35 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSU35 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSU35 |
2 | ||
| Common parts | ||||
| 82715-48150 | ||||
| 82715-48780 | ||||
| 82715-48790 | ||||
| 82715-48A20 | ||||
| 87616-42020 | ||||
| 90119-06423 | ||||
| 91551-80830 | ||||
| 91621-60614 | ||||
| 91621-B0616 | ||||
| 91651-40625 | ||||

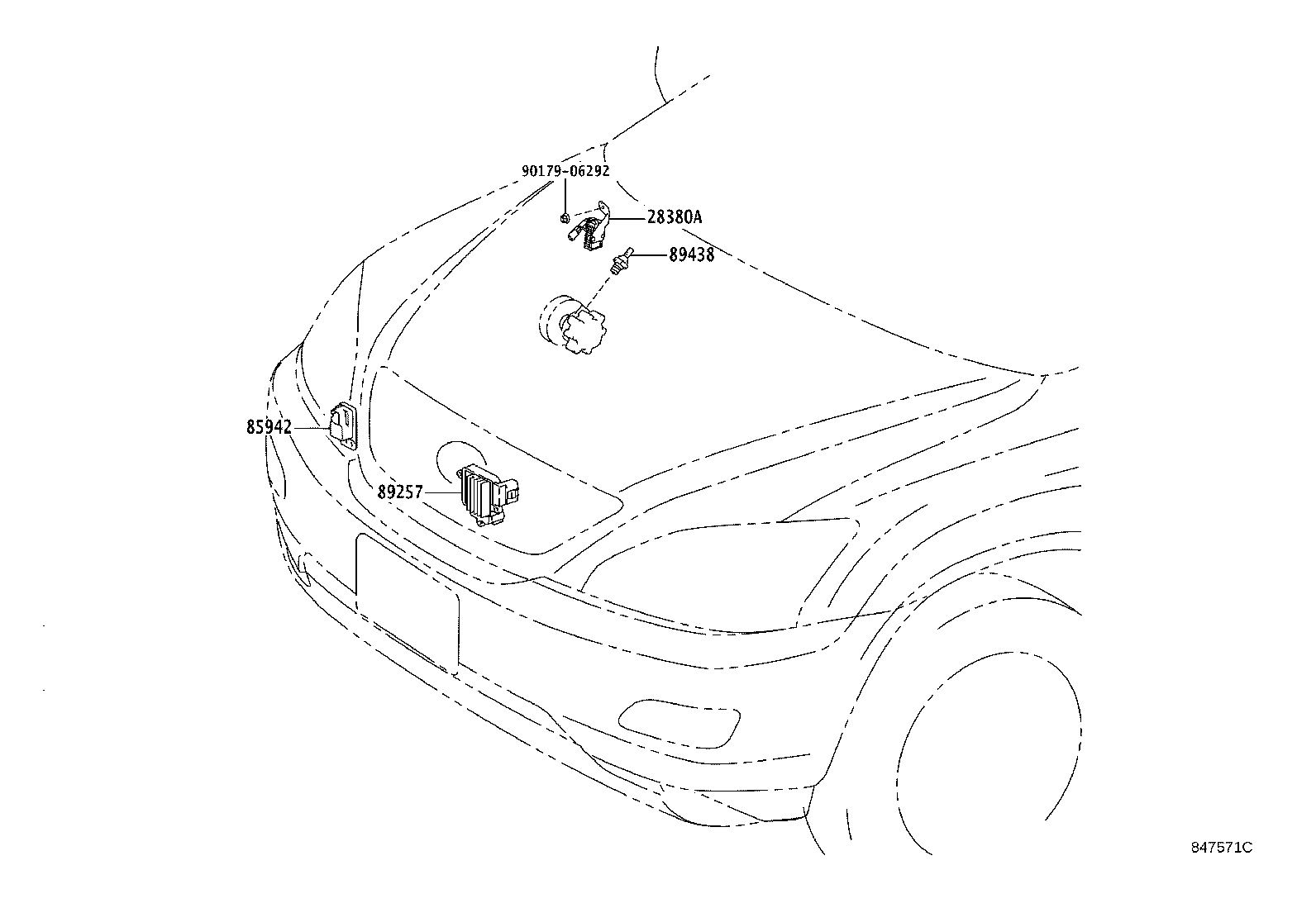

ILLUST NO. 2 OF 7(0601- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31140 |
2GRFE..GSU35 |
1 | ||
| 23080-31080 |
2GRFE..GSU35 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-48010 |
GSU35 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30070 |
GSU35 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
GSU35 |
1 | ||
| Common parts | ||||
| 90179-06292 | ||||

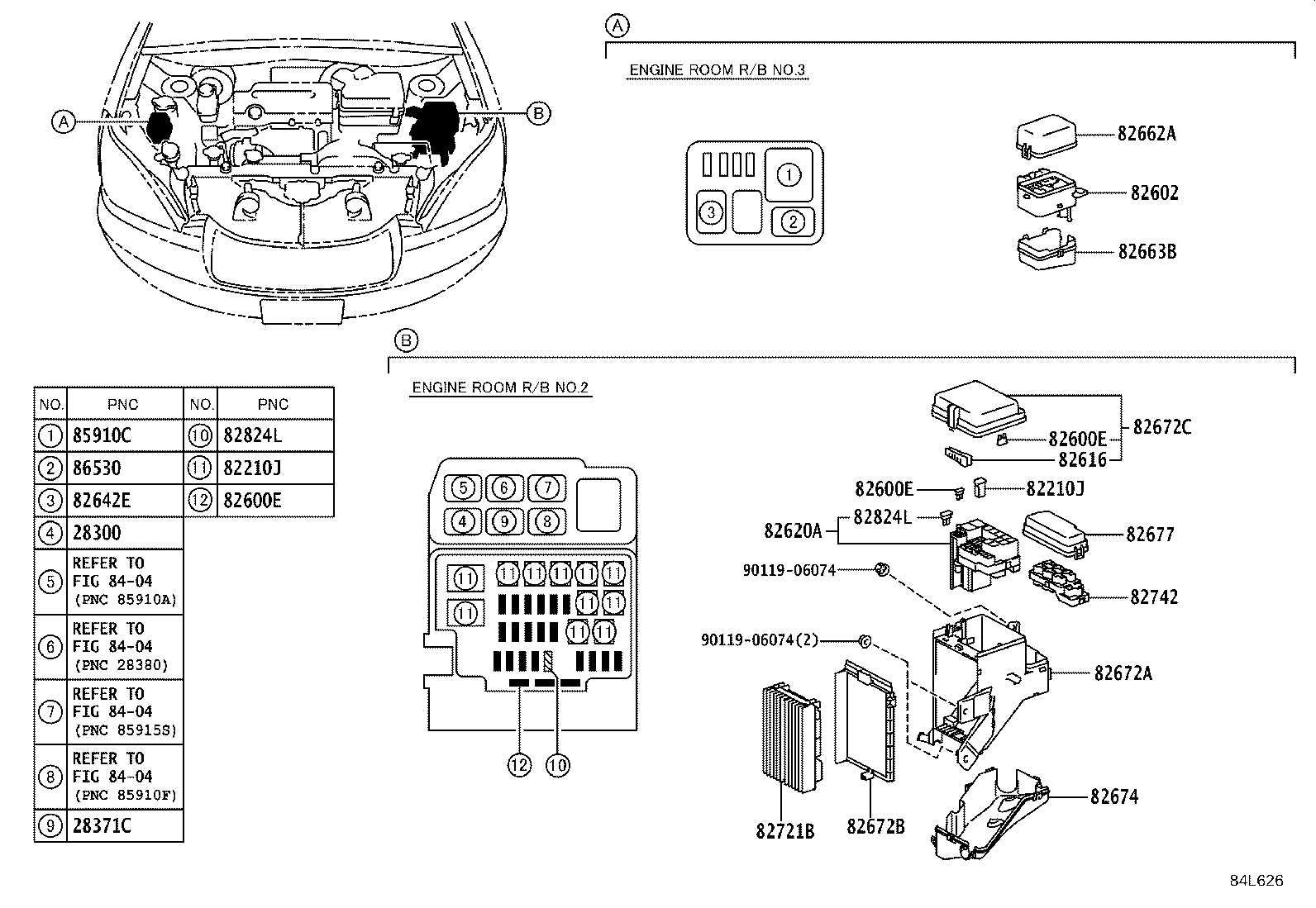

ILLUST NO. 3 OF 7(0601- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2GRFE..GSU35 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2GRFE..GSU35 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08284 |
GSU35 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
GSU35 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08283 |
GSU35 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
GSU35 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
GSU35 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08286 |
GSU35 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
GSU35 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
GSU35 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08284 |
GSU35 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
GSU35 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
GSU35 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08246 |
GSU35 100A,TERM.:MALE,BLUE |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08284 |
GSU35 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
GSU35 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08283 |
GSU35 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
GSU35 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
GSU35 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08286 |
GSU35 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
GSU35 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
GSU35 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08284 |
GSU35 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
GSU35 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
GSU35 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08246 |
GSU35 100A,TERM.:MALE,BLUE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09008 |
GSU35 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
GSU35 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
GSU35 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
GSU35 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
GSU35 25A,MINI FUSE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09008 |
GSU35 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
GSU35 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
GSU35 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
GSU35 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
GSU35 25A,MINI FUSE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09008 |
GSU35 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
GSU35 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
GSU35 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
GSU35 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
GSU35 25A,MINI FUSE |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-48090 |
GSU35 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GSU35 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48040 |
GSU35 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-48060 |
GSU35 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-48040 |
GSU35 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-48040 |
GSU35 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-48050 |
GSU35 |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-48160 |
GSU35 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-48050 |
GSU35 |
1 | ||
| 82677 - COVER, JUNCTION BLOCK, UPPER NO.2 | ||||
| 82677-48030 |
GSU35 |
1 | ||
| 82721B - BLOCK, ENGINE ROOM JUNCTION | ||||
| 82721-48040 |
GSU35 |
1 | ||
| 82721-48041 |
GSU35 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-48050 |
GSU35 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
GSU35 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
GSU35 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
GSU35 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GSU35 |
1 | ||
| Common parts | ||||
| 90119-06074 | ||||
| Linked diagrams | ||||
| 8404 | ||||
