GSU35L-AWAGKV (2006)

Toyota Lexus Rx300/330/350

Production Jan 2006 - Dec 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

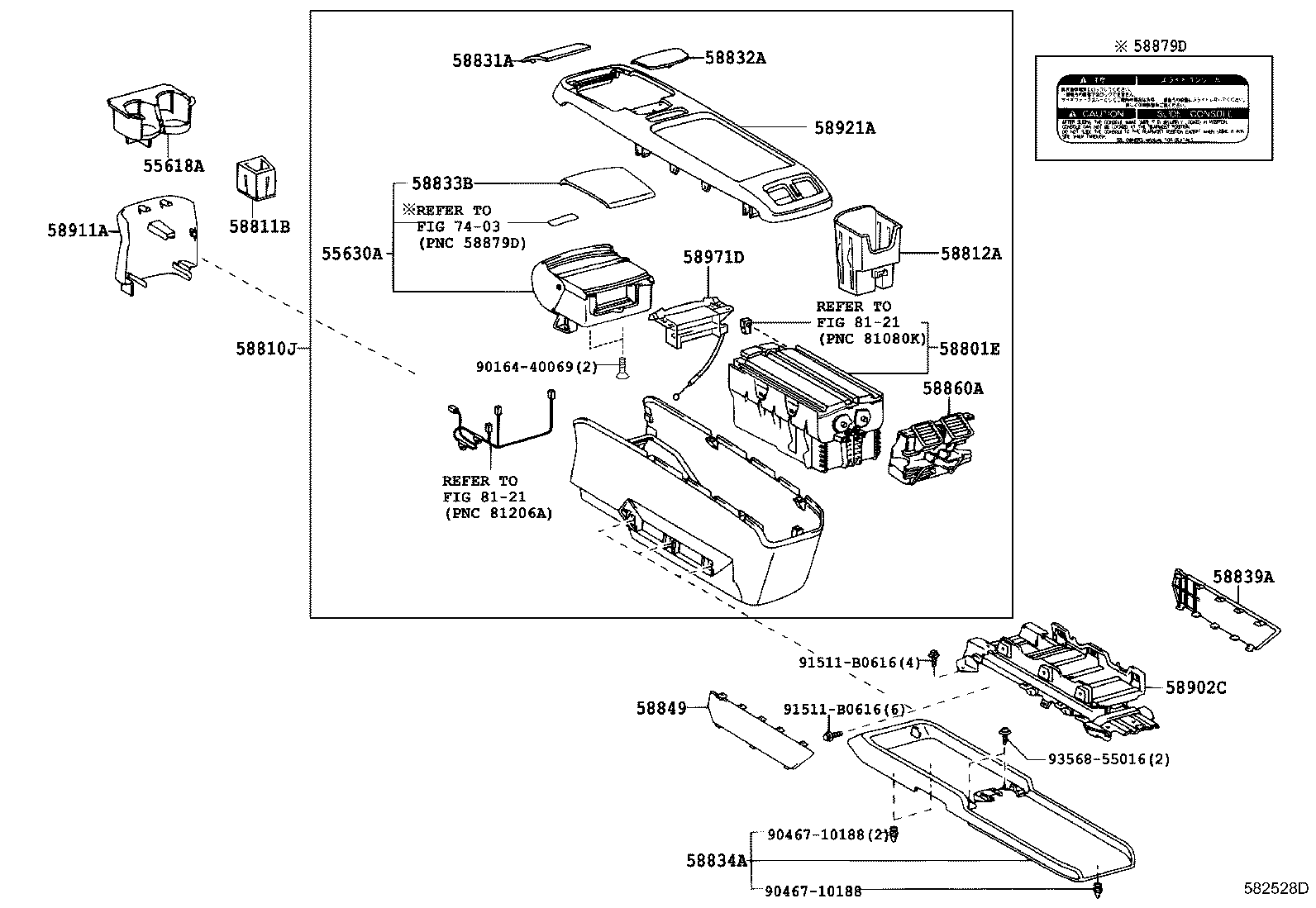

Click highlighted areas on diagram

diagram 55618A 55630A 58801E 58810J 58811B 58812A 58831A 58832A 58833B 58834A 58839A 58849 58860A 58902C 58911A 58921A 58971D 7403 8121 8121 9016440069 9046710188 9046710188 91511B0616 91511B0616 9356855016
Part # Description Qty Price
55618A - HOLDER, CONSOLE BOX CUP
55618-48100

GSU35..LHD

 1
55630A - HOLDER, REAR CONSOLE BOX, CUP
55630-48070A0

GSU35

IVORY,TRIM0#

 1
55630-48070B0

GSU35

LT.GRAY,TRIM11

 1
55630-48070C0

GSU35

BLACK,TRIM2#

 1
55630-48070B0

GSU35

LT.GRAY,TRIM1#

 1
55630-48070B2

GSU35

LT.GRAY,TRIM12

 1
58801E - BOX SUB-ASSY, CONSOLE, UPPER
58801-48050A0

GSU35

IVORY,TRIM0#

 1
58801-48050C0

GSU35

BLACK,TRIM2#

 1
58801-48050B0

GSU35

LT.GRAY,TRIM1#

 1
58810J - BOX ASSY, CONSOLE
58810-48300C0

GSU35

BLACK,TRIM2#

 1
58810-48300B0

GSU35

LT.GRAY,TRIM1#

 1
58810-48300A0

GSU35

IVORY,TRIM0#

 1
58810-48300B2

GSU35

LT.GRAY,TRIM12

 1
58810-48300B0

GSU35

LT.GRAY,TRIM11

 1
58812A - BOX, CONSOLE, LOWER
58812-48020

GSU35

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-48010E1

GSU35

LIGHTBROWN,TRIM0#

 1
58831-48010E0

GSU35

MD.BROWN,TRIM11,2#

 1
58831-48010B0

GSU35

DK.GRAY,TRIM12

 1
58831-48010E0

GSU35

MD.BROWN,TRIM1#,2#

 1
58832A - GARNISH, CONSOLE UPPER PANEL, REAR
58832-48010E0

GSU35

MD.BROWN,TRIM1#,2#

 1
58832-48010E0

GSU35

MD.BROWN,TRIM11,2#

 1
58832-48010E1

GSU35

LIGHTBROWN,TRIM0#

 1
58832-48010B0

GSU35

DK.GRAY,TRIM12

 1
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58833-48020E0

GSU35

MD.BROWN,TRIM11,2#

 1
58833-48020E1

GSU35

LIGHTBROWN,TRIM0#

 1
58833-48020E0

GSU35

MD.BROWN,TRIM1#,2#

 1
58833-48020B0

GSU35

DK.GRAY,TRIM12

 1
58834A - COVER, CONSOLE, LOWER
58834-48030B0

GSU35

LT.GRAY,TRIM1#

 1
58834-48030C0

GSU35

BLACK,TRIM2#

 1
58834-48030A0

GSU35

IVORY,TRIM0#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-48020B0

GSU35

LT.GRAY,TRIM1#

 1
58839-48020C0

GSU35

BLACK,TRIM2#

 1
58839-48020A0

GSU35

IVORY,TRIM0#

 1
58849 - COVER, CONSOLE BOX HOLE, NO.2
58849-48020A0

GSU35

IVORY,TRIM0#

 1
58849-48020B0

GSU35

LT.GRAY,TRIM1#

 1
58849-48020C0

GSU35

BLACK,TRIM2#

 1
58860A - REGISTER ASSY, CONSOLE BOX
58860-48020C0

GSU35

BLACK,TRIM2#

 1
58860-48020B0

GSU35

LT.GRAY,TRIM1#

 1
58860-48020A0

GSU35

IVORY,TRIM0#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-48010

GSU35

 1
58911A - PANEL, BOX SIDE, NO.1
58911-48020A0

GSU35

IVORY,TRIM0#

 1
58911-48020B0

GSU35

LT.GRAY,TRIM1#

 1
58911-48020C0

GSU35

BLACK,TRIM2#

 1
58921A - PANEL, REAR CONSOLE, UPPER
58921-48040A0

GSU35

IVORY,TRIM0#

 1
58921-48040B0

GSU35

LT.GRAY,TRIM1#

 1
58921-48040C0

GSU35

BLACK,TRIM2#

 1
58971D - LEVER, CONSOLE COMPARTMENT DOOR LOCK
58971-48020

GSU35

 1
Common parts
90164-40069
90467-10188
91511-B0616
93568-55016
Linked diagrams
7403
8121
