GSU35L-AWAGKV (2006)
Toyota Lexus Rx300/330/350
Production
Jan 2006
-
Dec 2008
Engine
2GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

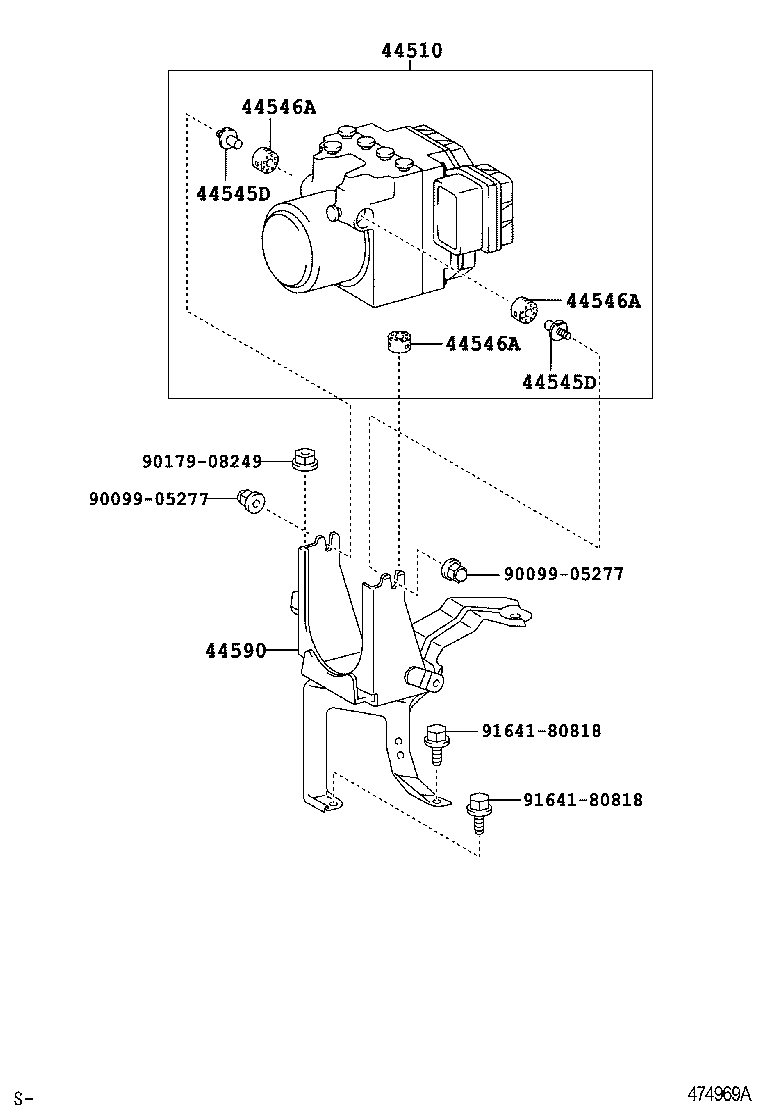

ILLUST NO. 2 OF 2(0601-0812)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-48280 |
GSU35..EUR,GCC |
1 | ||
| 44050-48380 |
GSU35..EUR,GCC |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
GSU35 |
2 | ||
| 44545-42090 |
GSU35 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
GSU35 |
2 | ||
| 44545-42090 |
GSU35 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
GSU35 |
3 | ||
| 44546-42090 |
GSU35 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
GSU35 |
3 | ||
| 44546-42090 |
GSU35 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
GSU35 |
3 | ||
| 44546-42090 |
GSU35 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-48160 |
GSU35 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90179-08249 | ||||
| 91641-80818 | ||||

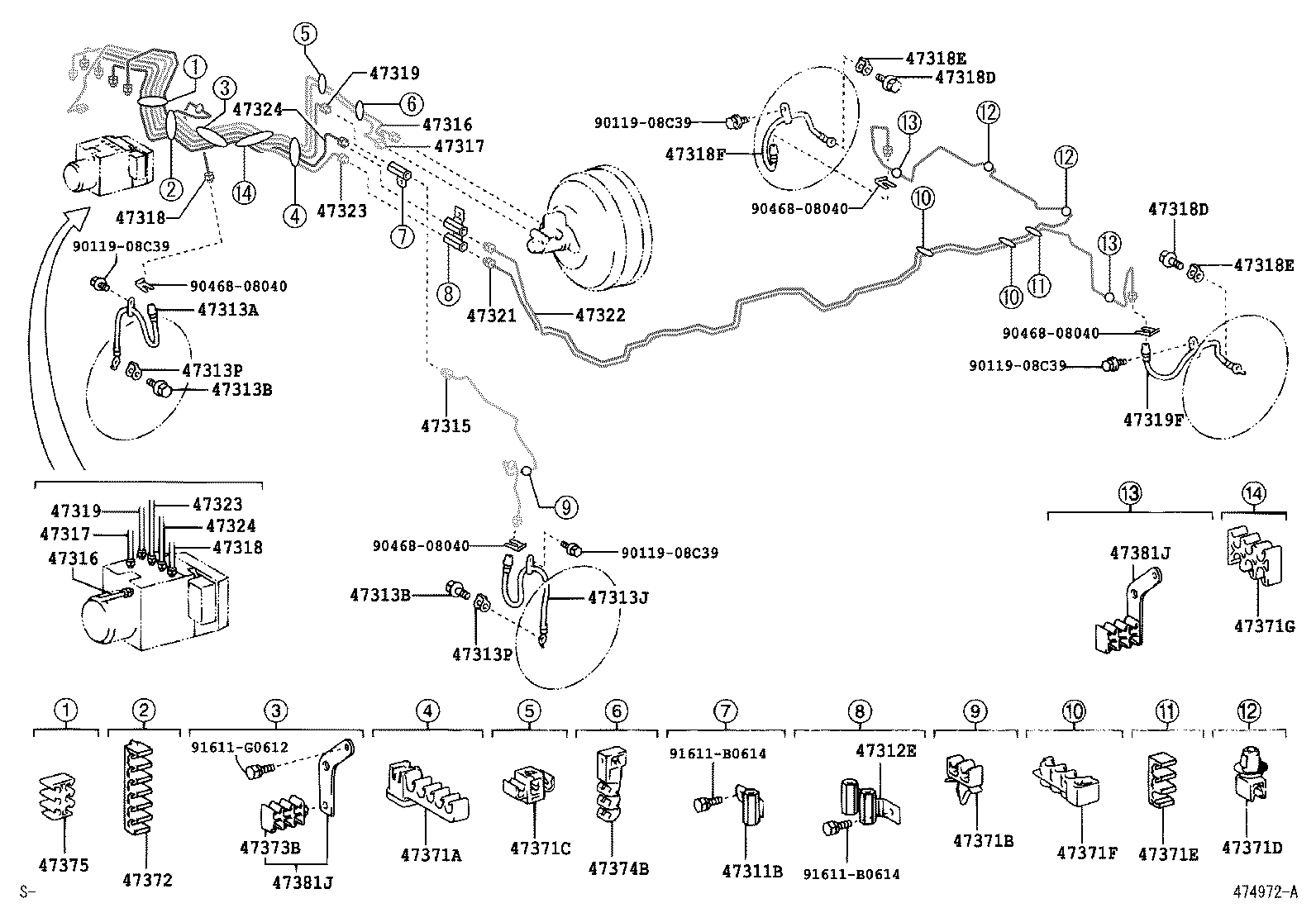

ILLUST NO. 1 OF 2(0601-0812)LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GSU35 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10246 |
GSU35 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D50 |
GSU35 |
1 | ||
| 90947-02F64 |
GSU35 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSU35 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSU35 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02D51 |
GSU35 |
1 | ||
| 90947-02F65 |
GSU35 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSU35 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSU35 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-48080 |
GSU35..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-48250 |
GSU35..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-48250 |
GSU35..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-48250 |
GSU35..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-48250 |
GSU35..LHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-48160 |
GSU35 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-48160 |
GSU35 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSU35 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSU35 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSU35 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSU35 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E16 |
GSU35 |
1 | ||
| 90947-02F62 |
GSU35 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-48230 |
GSU35..LHD |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-48230 |
GSU35..LHD |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F63 |
GSU35 |
1 | ||
| 90947-02E17 |
GSU35 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-48040 |
GSU35 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-48050 |
GSU35 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-48260 |
GSU35..LHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-48260 |
GSU35..LHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-48260 |
GSU35..LHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-48260 |
GSU35..LHD |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01D06 |
GSU35..LHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90469-05013 |
GSU35 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D04 |
GSU35..LHD |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07017 |
GSU35 |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90464-00857 |
GSU35 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D05 |
GSU35 |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90464-00880 |
GSU35..LHD |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01C85 |
GSU35 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D02 |
GSU35 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01969 |
GSU35..LHD |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-04027 |
GSU35..LHD |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-04027 |
GSU35..LHD |
1 | ||
| Common parts | ||||
| 90119-08C39 | ||||
| 90468-08040 | ||||
| 91611-B0614 | ||||
| 91611-G0612 | ||||
