GSU35L-AWAGKV (2006)
Toyota Lexus Rx300/330/350
Production
Jan 2006
-
Dec 2008
Engine
2GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )

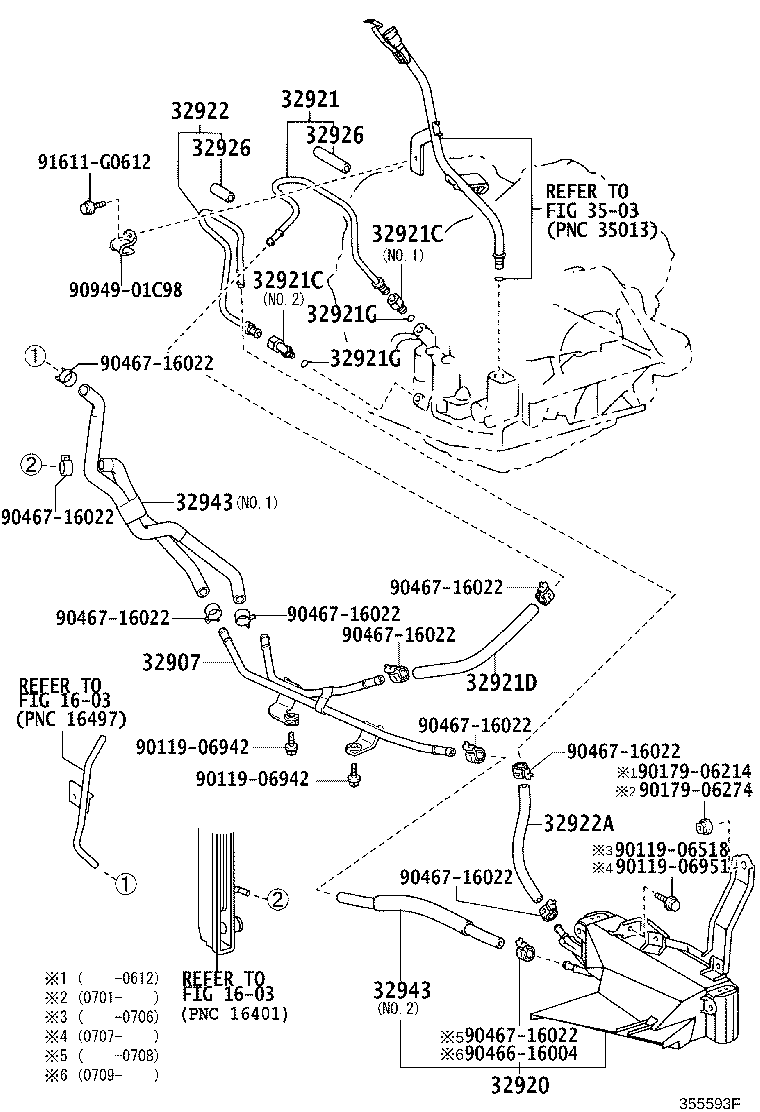

Click highlighted areas on diagram
U151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-48040 |
GSU35 |
1 | ||
| 32920 - COOLER ASSY, OIL W/HOSE | ||||
| 32920-48020 |
GSU35 |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-48140 |
GSU35 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
GSU35 NO.1 |
1 | ||
| 90407-16010 |
GSU35 NO.2 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
GSU35 NO.1 |
1 | ||
| 90407-16010 |
GSU35 NO.2 |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32943-48080 |
GSU35 |
1 | ||
| 32943-48081 |
GSU35 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GSU35 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GSU35 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-48120 |
GSU35 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17174 |
GSU35 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-26010 |
GSU35 L=60,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-26010 |
GSU35 L=60,ID=10 |
2 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-48070 |
GSU35 NO.2 |
1 | ||
| 32930-48010 |
GSU35 NO.1 |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-48070 |
GSU35 NO.2 |
1 | ||
| 32930-48010 |
GSU35 NO.1 |
1 | ||
| Common parts | ||||
| 90119-06518 | ||||
| 90119-06942 | ||||
| 90119-06951 | ||||
| 90179-06214 | ||||
| 90179-06274 | ||||
| 90466-16004 | ||||
| 90467-16022 | ||||
| 90949-01C98 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3503 | ||||
