GSU35L-AWAGKV (2006)
Toyota Lexus Rx300/330/350
Production
Jan 2006
-
Dec 2008
Engine
2GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )

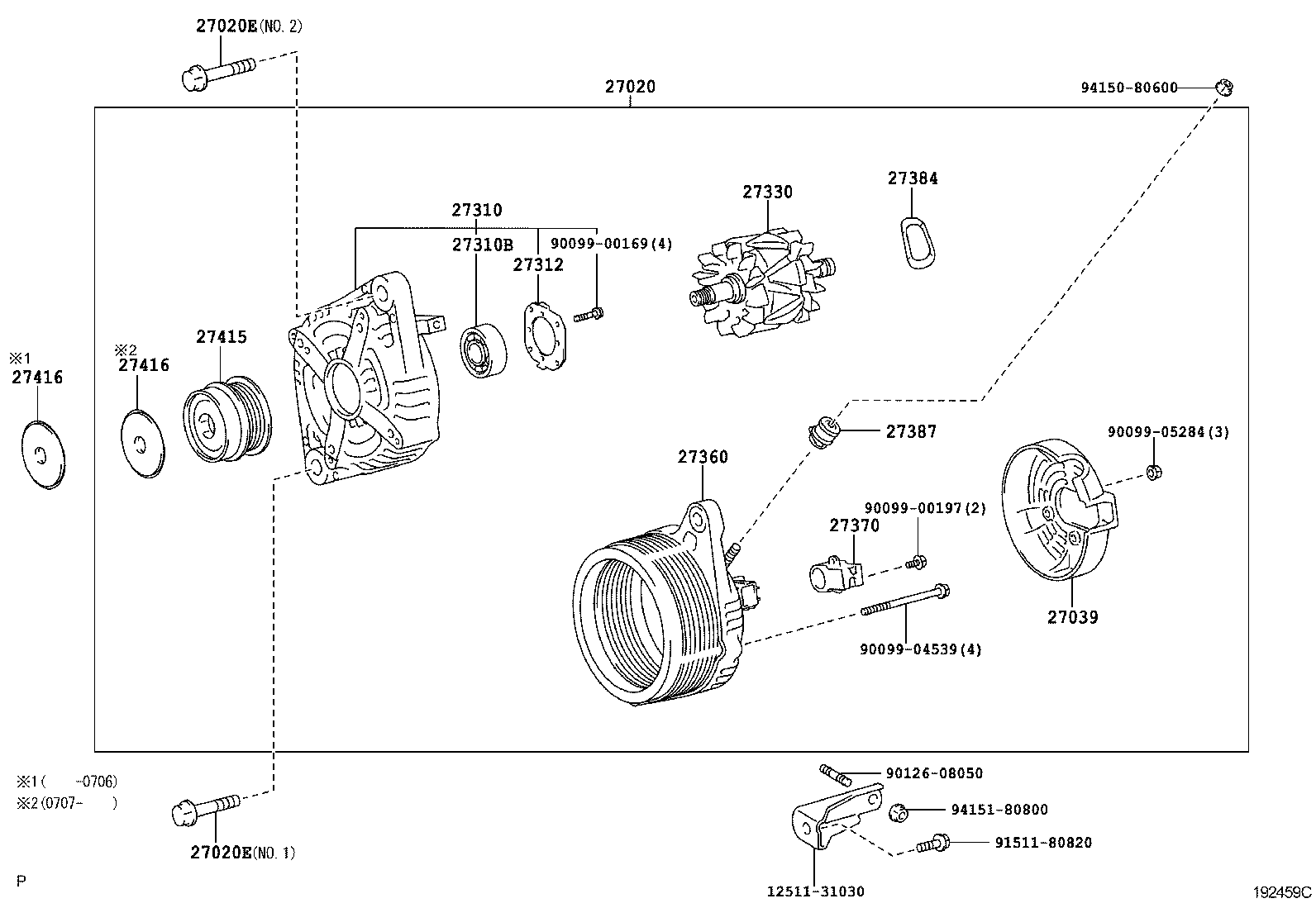

Click highlighted areas on diagram
12V 100A,130A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-31080 |
2GRFE..GSU35..ARL,GCC 12V 100A |
1 | ||
| 27060-31081 |
2GRFE..GSU35..ARL,GCC 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91552-81040 |
2GRFE..GSU35 NO.1 |
1 | ||
| 91552-81070 |
2GRFE..GSU35 NO.2 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91552-81040 |
2GRFE..GSU35 NO.1 |
1 | ||
| 91552-81070 |
2GRFE..GSU35 NO.2 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-27060 |
2GRFE..GSU35 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-31290 |
2GRFE..GSU35 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
2GRFE..GSU35 |
1 | ||
| 90099-10142 |
2GRFE..GSU35 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2GRFE..GSU35 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
2GRFE..GSU35..ARL,GCC |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-31330 |
2GRFE..GSU35..ARL,GCC |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
2GRFE..GSU35 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2GRFE..GSU35 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
2GRFE..GSU35 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W010 |
2GRFE..GSU35 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W010 |
2GRFE..GSU35 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W010 |
2GRFE..GSU35 |
1 | ||
| Common parts | ||||
| 12511-31030 | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 90126-08050 | ||||
| 91511-80820 | ||||
| 94150-80600 | ||||
| 94151-80800 | ||||
