GSU35L-AWAGKV (2006)
Toyota Lexus Rx300/330/350
Production
Jan 2006
-
Dec 2008
Engine
2GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-0812)

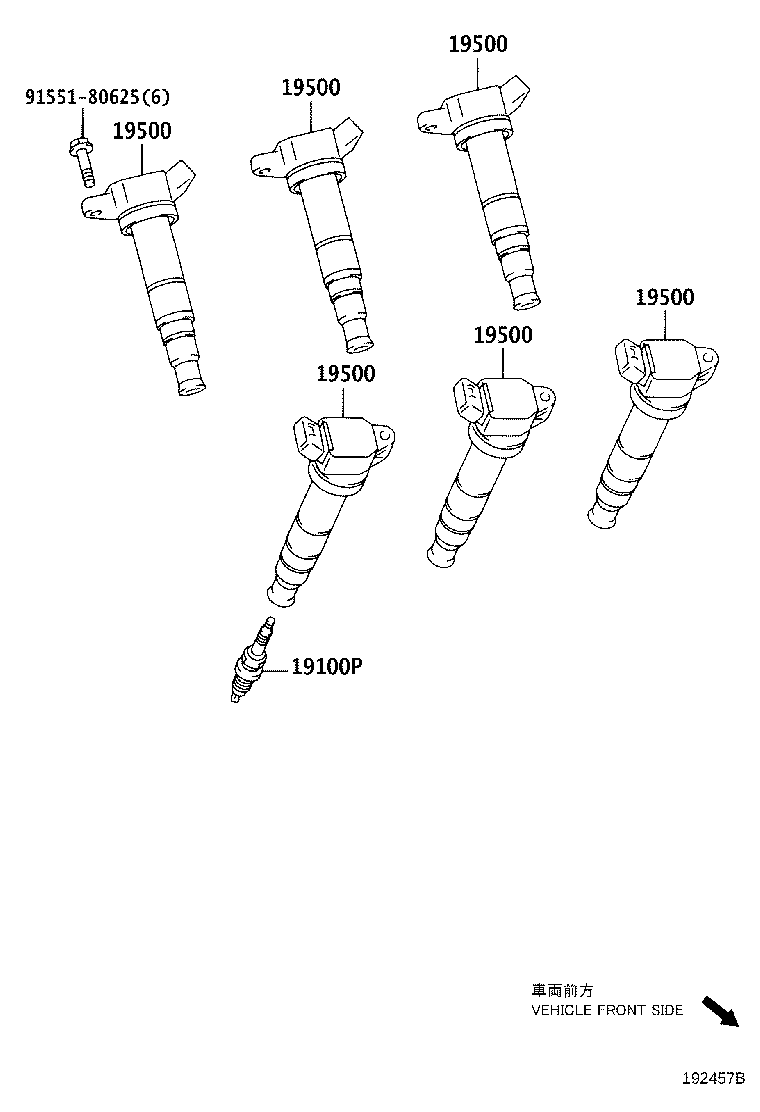

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01247 |
2GRFE..GSU35 FK20HR11 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02255 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 90919-02251 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02255 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 90919-02251 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02255 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 90919-02251 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02255 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 90919-02251 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02255 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 90919-02251 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02255 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| 90919-02251 |
2GRFE..GSU35..ARL,GCC |
6 | ||
| Common parts | ||||
| 91551-80625 | ||||
