GSU35L-AWAGKV (2006)
Toyota Lexus Rx300/330/350
Production
Jan 2006
-
Dec 2008
Engine
2GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )

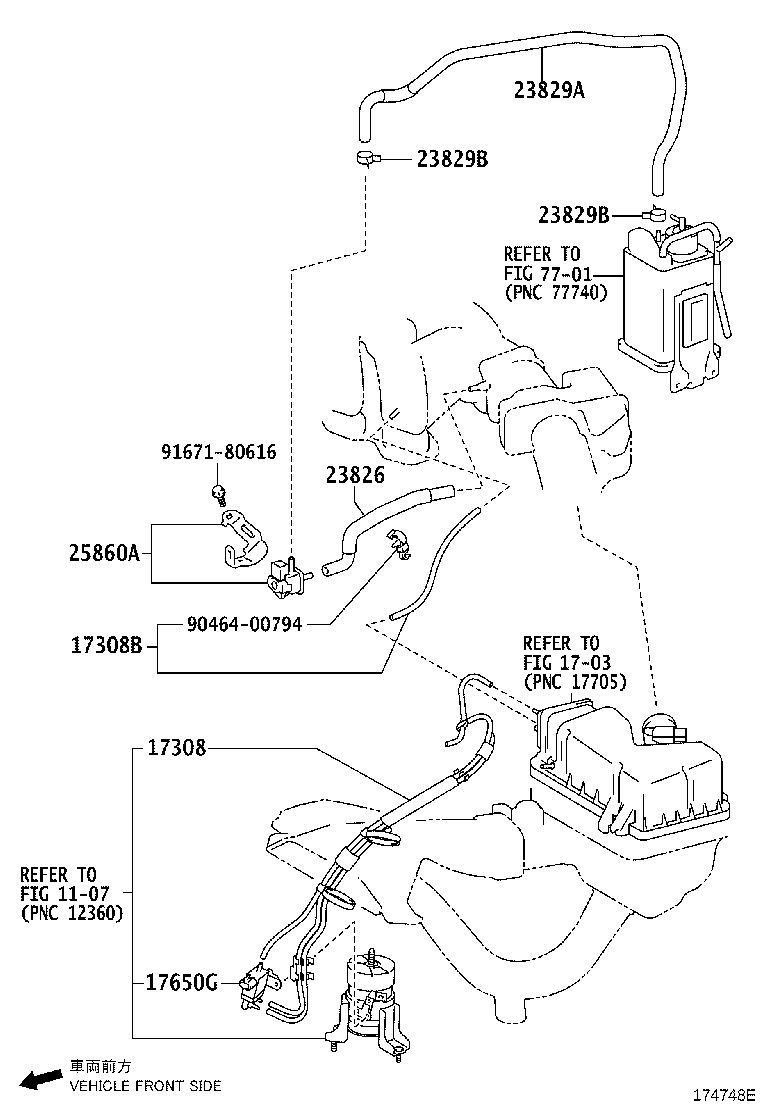

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-20210 |
2GRFE..GSU35 |
1 | ||
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 17308-31020 |
2GRFE..GSU35 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12204 |
2GRFE..GSU35 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-31110 |
2GRFE..GSU35 |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-31020 |
2GRFE..GSU35 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
2GRFE..GSU35 |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
2GRFE..GSU35 |
2 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 25860-31070 |
2GRFE..GSU35 |
1 | ||
| Common parts | ||||
| 90464-00794 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1703 | ||||
| 7701 | ||||
