GSU35L-AWAGKV (2006)
Toyota Lexus Rx300/330/350

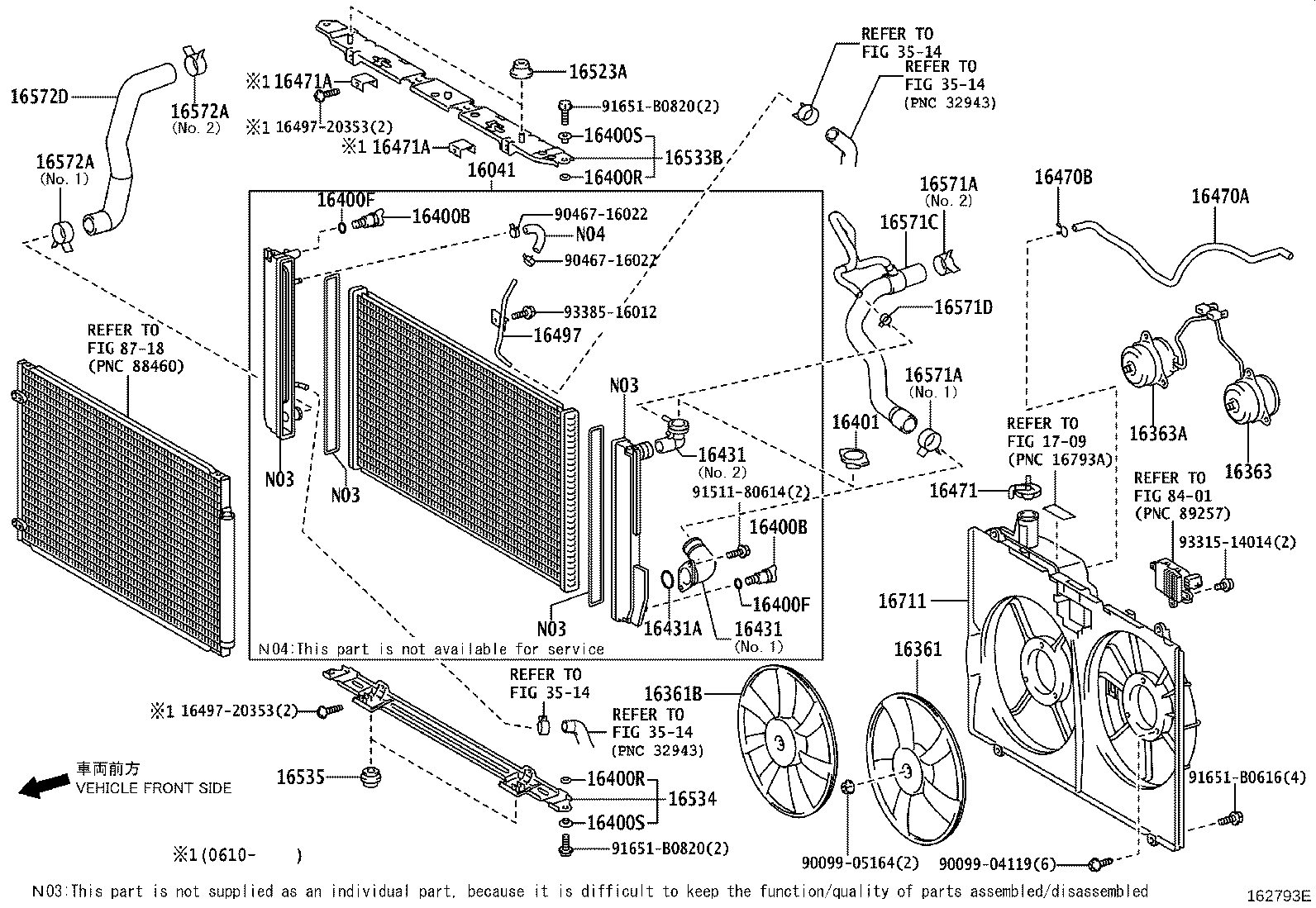

ILLUST NO. 1 OF 2(0601-0812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16041 - RADIATOR ASSY, NO.2 | ||||
| 16041-31480 |
2GRFE..GSU35..ARL,GCC |
1 | ||
| 16361 - FAN | ||||
| 16361-31210 |
2GRFE..GSU35 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-31220 |
2GRFE..GSU35 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20270 |
2GRFE..GSU35 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-31160 |
2GRFE..GSU35 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2GRFE..GSU35 |
2 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2GRFE..GSU35 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GRFE..GSU35 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GRFE..GSU35 |
2 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
2GRFE..GSU35 |
4 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
2GRFE..GSU35 |
4 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-75180 |
2GRFE..GSU35 |
4 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-75180 |
2GRFE..GSU35 |
4 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31480 |
2GRFE..GSU35 |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-31490 |
2GRFE..GSU35 NO.2 |
1 | ||
| 16431-31480 |
2GRFE..GSU35 NO.1 |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-31490 |
2GRFE..GSU35 NO.2 |
1 | ||
| 16431-31480 |
2GRFE..GSU35 NO.1 |
1 | ||
| 16431A - RING, O(FOR RADIATOR WATER INLET) | ||||
| 16492-31480 |
2GRFE..GSU35 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-20142 |
2GRFE..GSU35 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2GRFE..GSU35 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-20020 |
2GRFE..GSU35 |
1 | ||
| 16471A - SUPPORT SUB-ASSY | ||||
| 16406-20300 |
2GRFE..GSU35 |
2 | ||
| 16471A - SUPPORT SUB-ASSY | ||||
| 16406-20300 |
2GRFE..GSU35 |
2 | ||
| 16497 - INLET SUB-ASSY | ||||
| 16495-31480 |
2GRFE..GSU35 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-20020 |
2GRFE..GSU35 |
2 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16505-31010 |
2GRFE..GSU35 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16506-31010 |
2GRFE..GSU35 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
2GRFE..GSU35 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GRFE..GSU35 NO.2 |
1 | ||
| 90466-41006 |
2GRFE..GSU35 NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GRFE..GSU35 NO.2 |
1 | ||
| 90466-41006 |
2GRFE..GSU35 NO.1 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-31210 |
2GRFE..GSU35 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-15022 |
2GRFE..GSU35 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41006 |
2GRFE..GSU35 NO.1 |
1 | ||
| 90466-35001 |
2GRFE..GSU35 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41006 |
2GRFE..GSU35 NO.1 |
1 | ||
| 90466-35001 |
2GRFE..GSU35 NO.2 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-31230 |
2GRFE..GSU35 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-31310 |
2GRFE..GSU35 |
1 | ||
| Common parts | ||||
| 16497-20353 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90467-16022 | ||||
| 91511-80614 | ||||
| 91651-B0616 | ||||
| 91651-B0820 | ||||
| 93315-14014 | ||||
| 93385-16012 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 3514 | ||||
| 8401 | ||||
| 8718 | ||||

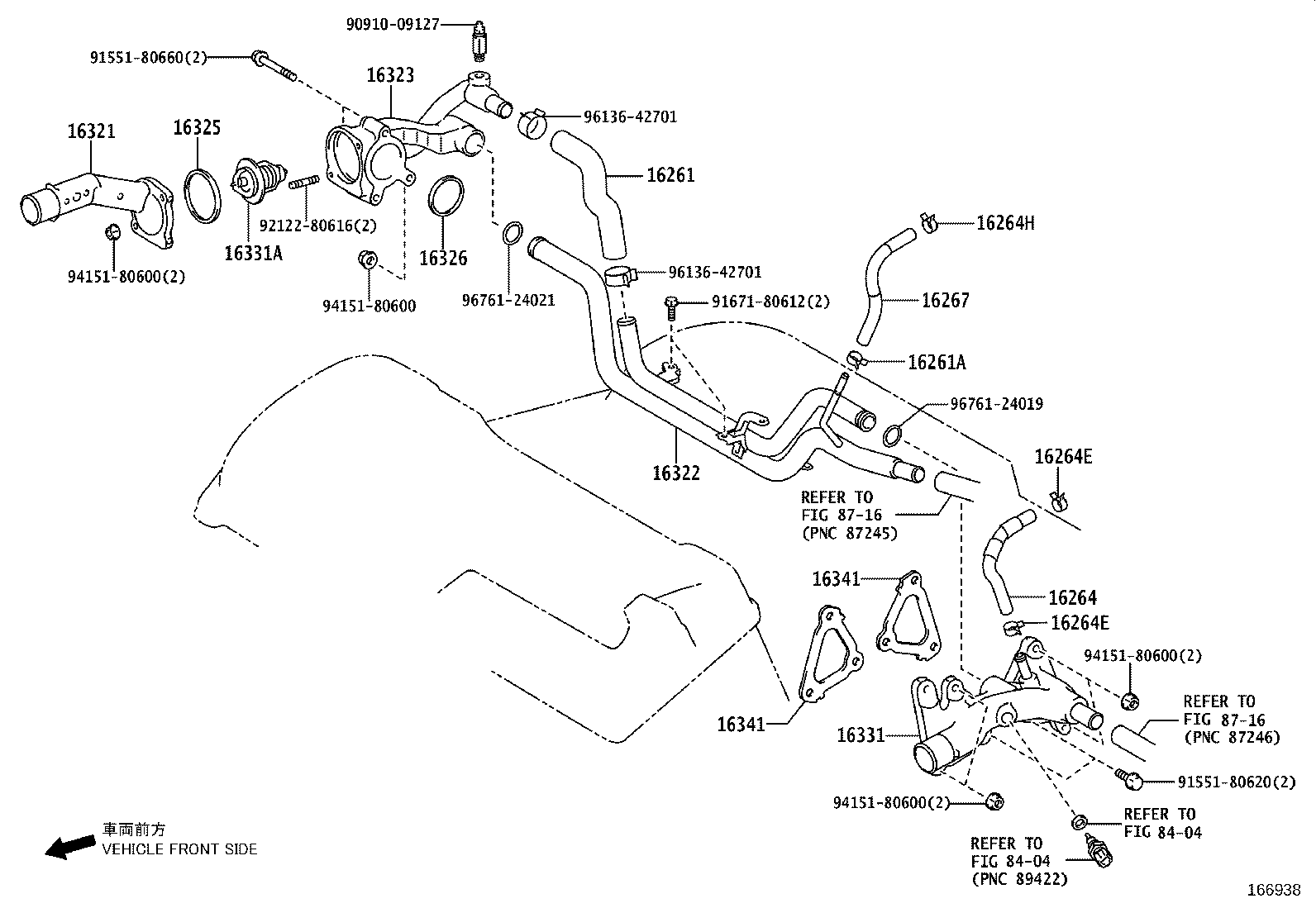

ILLUST NO. 2 OF 2(0601-0812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31050 |
2GRFE..GSU35 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2GRFE..GSU35 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31081 |
2GRFE..GSU35 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSU35 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSU35 |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GSU35 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31040 |
2GRFE..GSU35 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-31011 |
2GRFE..GSU35 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-31030 |
2GRFE..GSU35..GCC |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0W011 |
2GRFE..GSU35 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2GRFE..GSU35 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-31010 |
2GRFE..GSU35 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31150 |
2GRFE..GSU35..GCC |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03140 |
2GRFE..GSU35 *WAX 82-95 |
1 | ||
| 90916-03133 |
2GRFE..GSU35 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GSU35 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GSU35 |
2 | ||
| Common parts | ||||
| 90910-09127 | ||||
| 91551-80620 | ||||
| 91551-80660 | ||||
| 91671-80612 | ||||
| 92122-80616 | ||||
| 94151-80600 | ||||
| 96136-42701 | ||||
| 96761-24019 | ||||
| 96761-24021 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||
