GSU35L-AWAGKV (2006)

Toyota Lexus Rx300/330/350

Production Jan 2006 - Dec 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0812)

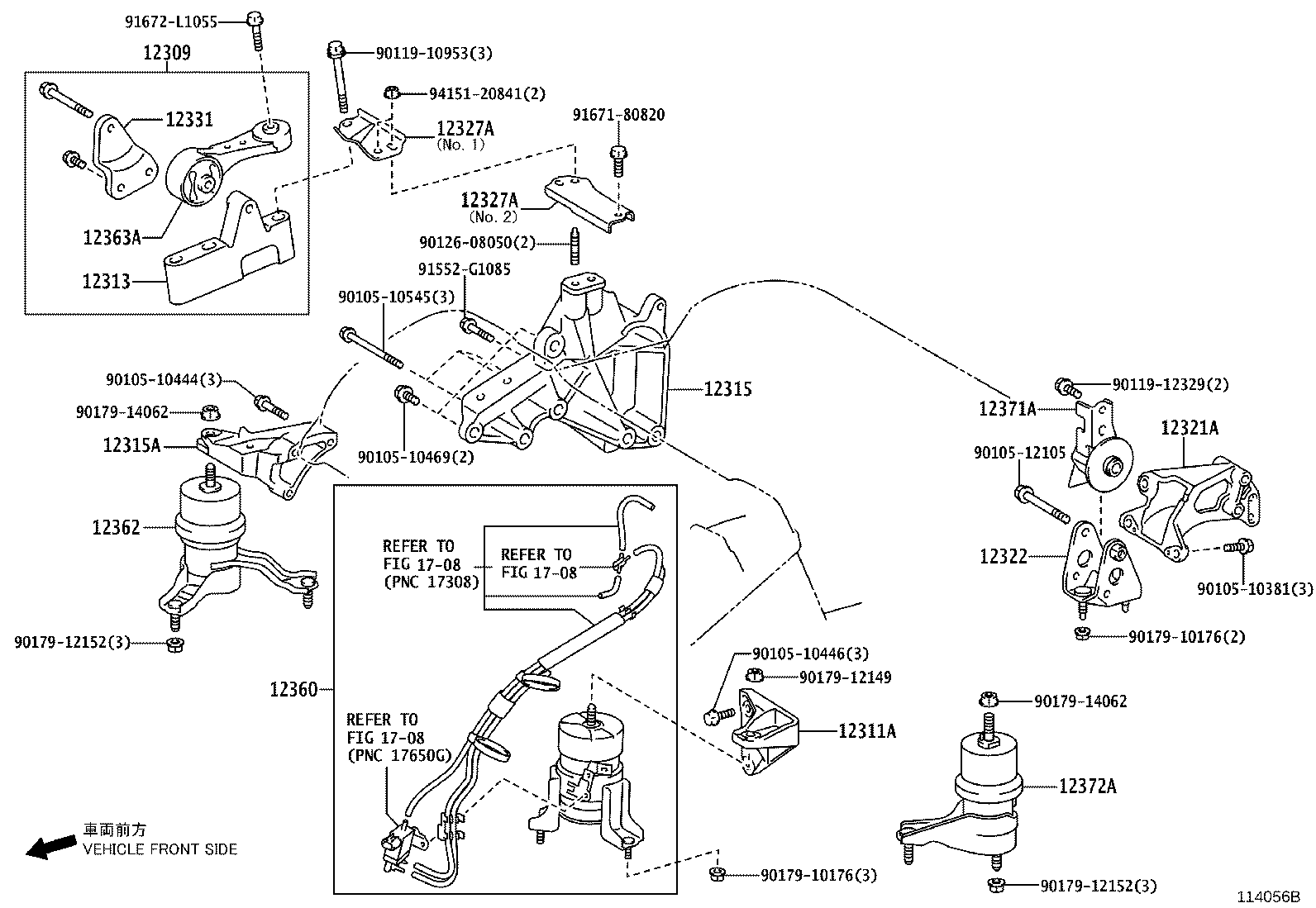

Click highlighted areas on diagram

diagram 12309 12311A 12313 12315 12315A 12321A 12322 12327A 12327A 12331 12360 12362 12363A 12371A 12372A 1708 1708 1708 9010510381 9010510444 9010510446 9010510469 9010510545 9010512105 9011910953 9011912329 9012608050 9017910176 9017910176 9017912149 9017912152 9017912152 9017914062 9017914062 91552G1085 9167180820 91672L1055 9415120841
Part # Description Qty Price
12309 - ROD SUB-ASSY, ENGINE MOVING CONTROL
12309-31020

2GRFE..GSU35

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-20070

2GRFE..GSU35

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-31020

2GRFE..GSU35

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31091

2GRFE..GSU35

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-31140

2GRFE..GSU35

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-31100

2GRFE..GSU35

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-20040

2GRFE..GSU35

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31010

2GRFE..GSU35

NO.2

 1
12327-31030

2GRFE..GSU35

NO.1

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31010

2GRFE..GSU35

NO.2

 1
12327-31030

2GRFE..GSU35

NO.1

 1
12331 - STAY, ENGINE MOUNTING, NO.3 RH
12331-31020

2GRFE..GSU35

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-31020

2GRFE..GSU35

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-31060

2GRFE..GSU35

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-31020

2GRFE..GSU35

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-31131

2GRFE..GSU35

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-20080

2GRFE..GSU35

 1
Common parts
90105-10381
90105-10444
90105-10446
90105-10469
90105-10545
90105-12105
90119-10953
90119-12329
90126-08050
90179-10176
90179-12149
90179-12152
90179-14062
91552-G1085
91671-80820
91672-L1055
94151-20841
Linked diagrams
1708
