GYL15L-AWXGKW (2009)

Toyota Lexus Rx270/350/450h

Production Mar 2009 - Mar 2012
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )2GRFXE..GYL15

Click highlighted areas on diagram

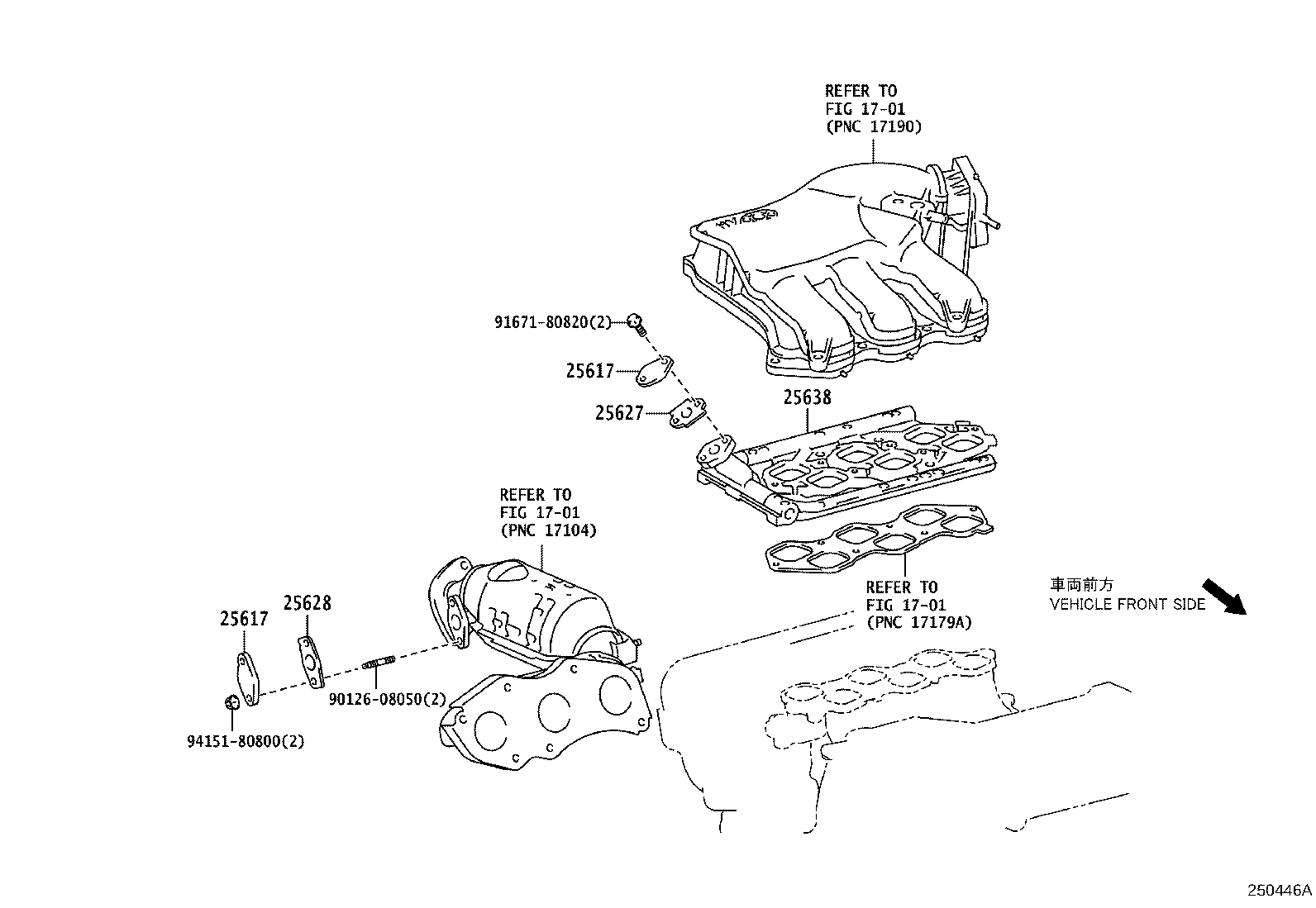

W/O(EGR)

diagram 1701 1701 1701 25617 25617 25627 25628 25638 9012608050 9167180820 9415180800
Part # Description Qty Price
25617 - PLATE, EGR HOLE COVER
25617-31010

2GRFXE..GYL15..LHD

BEIJING SPEC

 2
25617-31010

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 2
25617 - PLATE, EGR HOLE COVER
25617-31010

2GRFXE..GYL15..LHD

BEIJING SPEC

 2
25617-31010

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 2
25627 - GASKET, EGR VALVE
25627-31030

2GRFXE..GYL1#

 2
25629-31030

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25629-31030

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25628 - GASKET, EGR INLET
25628-31010

2GRFXE..GYL1#

 2
25628-31010

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25628-31010

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25638 - CHAMBER, EGR DELIVERY
25638-31010

2GRFXE..GYL1#

 1
Common parts
90126-08050
91671-80820
94151-80800
Linked diagrams
1701

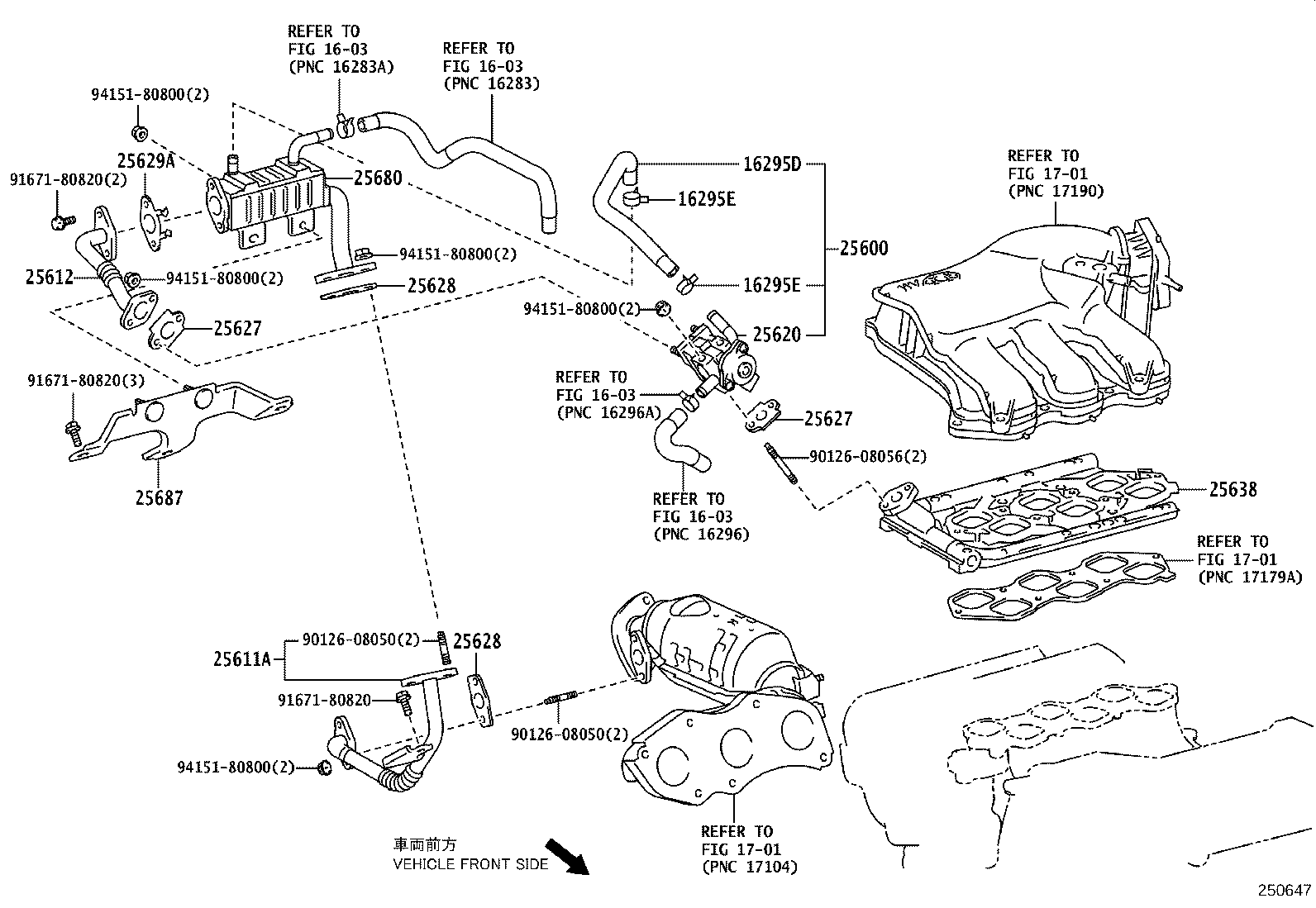

(0903- )2GRFXE

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 16295D 16295E 16295E 1701 1701 1701 25600 25611A 25612 25620 25627 25627 25628 25628 25629A 25638 25680 25687 9012608050 9012608050 9012608056 9167180820 9167180820 9167180820 9415180800 9415180800 9415180800 9415180800 9415180800
Part # Description Qty Price
16295D - HOSE, WATER BY-PASS, NO.7
16295-31010

2GRFXE..GYL1#

 1
16295E - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-52201

2GRFXE..GYL1#

 2
16295E - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-52201

2GRFXE..GYL1#

 2
25600 - VALVE ASSY, EGR INTEGRATED
25600-31010

2GRFXE..GYL1#

 1
25611A - PIPE, EGR, NO.1
25611-31040

2GRFXE..GYL1#

 1
25612 - PIPE, EGR, NO.2
25612-31020

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25612-31020

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25612-31021

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25602-31010

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25612-31021

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25602-31010

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25612-31010

2GRFXE..GYL1#

 1
25612-31030

2GRFXE..GYL1#

 1
25620 - VALVE ASSY, EGR
25620-31070

2GRFXE..GYL1#

 1
25627 - GASKET, EGR VALVE
25627-31030

2GRFXE..GYL1#

 2
25629-31030

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25629-31030

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25627 - GASKET, EGR VALVE
25627-31030

2GRFXE..GYL1#

 2
25629-31030

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25629-31030

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25628 - GASKET, EGR INLET
25628-31010

2GRFXE..GYL1#

 2
25628-31010

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25628-31010

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25628 - GASKET, EGR INLET
25628-31010

2GRFXE..GYL1#

 2
25628-31010

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25628-31010

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25629A - GASKET, EGR PIPE, NO.2
25629-31030

2GRFXE..GYL1#

 1
25638 - CHAMBER, EGR DELIVERY
25638-31010

2GRFXE..GYL1#

 1
25680 - COOLER ASSY, EGR
25680-31020

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25680-31021

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25680-31020

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25680-31030

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25680-31010

2GRFXE..GYL1#

 1
25680-31021

2GRFXE..GYL15..LHD

BEIJING SPEC

 1
25680-31040

2GRFXE..GYL1#

 1
25680-31030

2GRFXE..GYL15..LHD

CHINA(EXCEPT BEIJING) SPEC

 1
25687 - BRACKET, EGR COOLER, NO.1
25687-31010

2GRFXE..GYL1#

 1
Common parts
90126-08050
90126-08056
91671-80820
94151-80800
Linked diagrams
1603
1701
