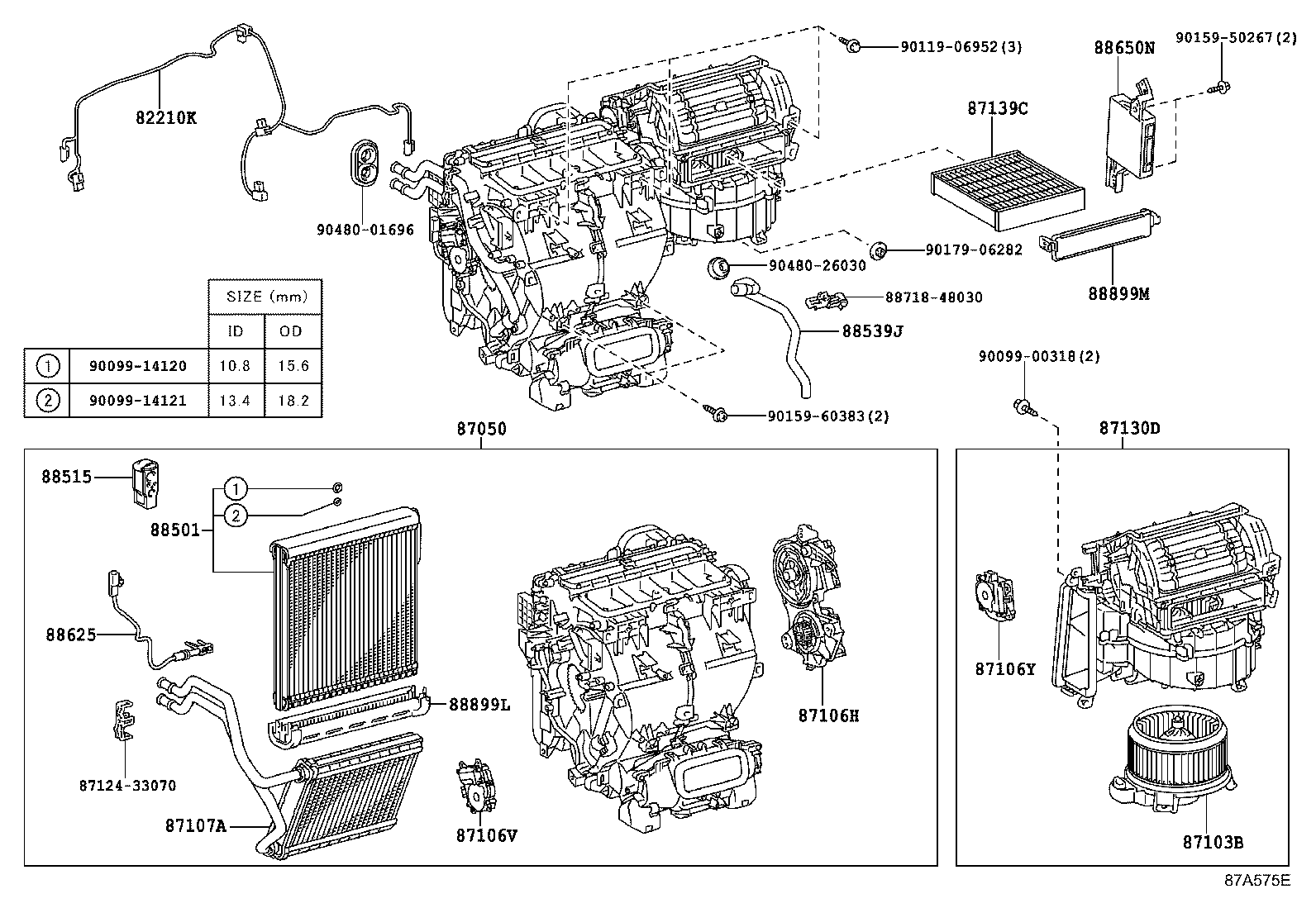

Toyota Lexus rx270/350/450h GYL15 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-33021	AGL10,GGL15,GYL1#..LHD	12/2008 - 03/2012	1
82212-33021	AGL10,GGL15,GYL1#..LHD	03/2012 - 12/2999	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-48380	AGL10,GYL1#..LHD	03/2012 - 02/2015	1
87050-48381	AGL10,GYL1#..LHD	03/2015 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-48100	AGL10,GGL15,GYL1#..LHD	03/2012 - 08/2013	1
87103-33110	AGL10,GGL15,GYL1#..LHD	08/2013 - 12/2999	1
87103-48080	AGL10,GGL15,GYL1#..LHD	12/2008 - 03/2012	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-33290	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
87106-33290	AGL10,GGL15,GYL1#	12/2008 - 03/2012	1
87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)
87106-33260	AGL10,GGL15,GYL1#	12/2008 - 03/2012	1
87106-33260	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
87106Y - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH)
87106-33270	AGL10,GGL15,GYL1#..LHD	03/2012 - 12/2999	1
87106-33270	AGL10,GGL15,GYL1#..LHD	12/2008 - 03/2012	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-33120	AGL10,GGL15,GYL1#	03/2012 - 09/2015	1
87107-33120	AGL10,GGL15,GYL1#	12/2008 - 03/2012	1
87130D - BLOWER ASSY
87130-48290	AGL10,GYL1#..LHD	03/2012 - 08/2013	1
87130-48291	AGL10,GYL1#..LHD	08/2013 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-52040	AGL10,GGL15,GYL1# POLLEN FILTER	03/2012 - 09/2015	1
87139-30040	AGL10,GGL15,GYL1#	12/2008 - 03/2012	1
87139-50100	AGL10,GGL15,GYL1# *DPF	05/2012 - 09/2015	1
87139-50060	AGL10,GGL15,GYL1# DEODORANT FILTER	03/2012 - 04/2012	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-33300	AGL10,GYL1#	03/2015 - 12/2999	1
88501-48301	AGL10,GYL1#	03/2012 - 03/2015	1
88515 - VALVE, COOLER EXPANSION
88515-33020	GYL15;AGL10,GGL15,GYL10..EUR	03/2012 - 09/2015	1
88539J - HOSE, DRAIN COOLER
88539-48040	AGL10,GGL15,GYL1#	12/2008 - 03/2012	1
88539-48040	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-33190	AGL10,GGL15,GYL1#	12/2008 - 03/2012	1
88625-33190	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-48630	GYL15 ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)	03/2012 - 12/2999	1
88650-48630	GYL1# EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)	03/2012 - 12/2999	1
88650-48620	GYL1#	03/2012 - 12/2999	1
88650-48630	GYL15 ULTRA LUXURY PACKAGE	03/2012 - 12/2999	1
88899L - PARTS, COOLING UNIT
88899-33050	AGL10,GGL15,GYL1#	03/2012 - 03/2015	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-33040	AGL10,GGL15,GYL1#	12/2008 - 03/2012	1
88899-33040	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
Common parts
87124-33070
88718-48030
90099-00318
90099-14120
90099-14121
90119-06952
90159-50267
90159-60383
90179-06282
90480-01696
90480-26030

GYL15L-AWXGKV (2012)

(0812- )LHD
