GYL15L-AWXGKV (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )GYL15 ; (0812- )AGL10,GGL15..LHD

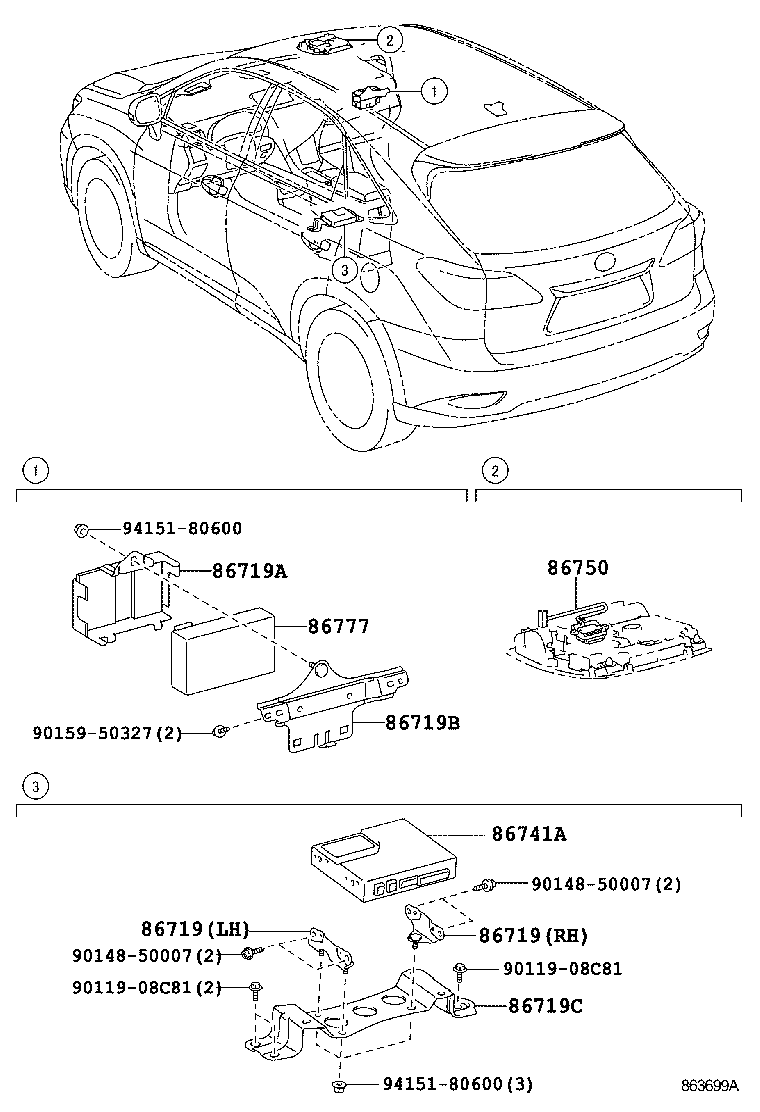

Click highlighted areas on diagram

diagram 86719 86719 86719A 86719B 86719C 86741A 86750 86777 9011908C81 9011908C81 9014850007 9014850007 9015950327 9415180600 9415180600
Part # Description Qty Price
86719C - BRACKET, TELEPHONE NO.3
86719-48110

GYL15;GGL15..LHD

WITH(REAR DISPLAY)

 1
Common parts
90119-08C81
90148-50007
90159-50327
94151-80600
