GYL15L-AWXGKV (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1203- )LHD

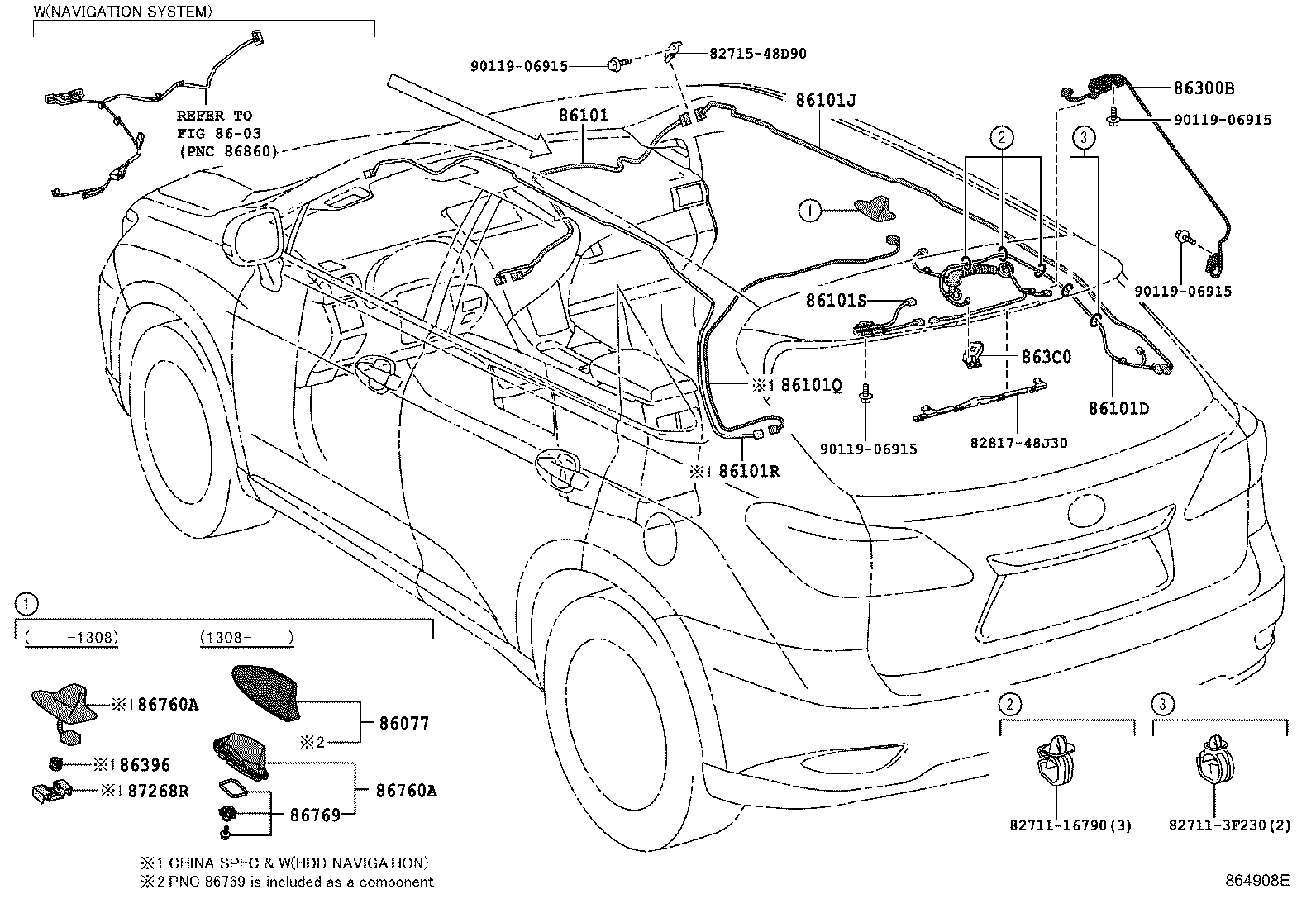

Click highlighted areas on diagram

diagram 8271116790 827113F230 8271548D90 8281748J30 8603 86077 86101 86101D 86101J 86101Q 86101R 86101S 86300B 86396 863C0 86760A 86760A 86769 87268R 9011906915 9011906915 9011906915 9011906915
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-48880

AGL10,GGL15,GYL1#..LHD

EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)

 1
86101-48880

AGL10,GGL15,GYL1#..LHD

 1
86101-48880

AGL10,GGL15,GYL1#..LHD

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-48B30

AGL10,GGL15,GYL1#

 1
86101-48B30

AGL10..LHD;GGL15,GYL1#

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-48A30

AGL10,GGL15,GYL1#

 1
86101-48A50

AGL10,GGL15,GYL15

WITH(PANORAMA ROOF=FIXED)

 1
86101-48A40

AGL10,GGL15,GYL1#

WITH(MOON ROOF)

 1
86101-48A30

AGL10..LHD;GGL15,GYL1#

 1
86101-48A40

AGL10..LHD;GGL15,GYL1#

WITH(MOON ROOF)

 1
86101-48A50

AGL10..LHD;GGL15,GYL15

WITH(PANORAMA ROOF=FIXED)

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-48330

AGL10,GGL15,GYL1#

 1
86300-48280

AGL10,GGL15,GYL1#

 1
Common parts
82711-16790
82711-3F230
82715-48D90
82817-48J30
90119-06915
