GYL15L-AWXGKV (2012)
Toyota Lexus Rx270/350/450h

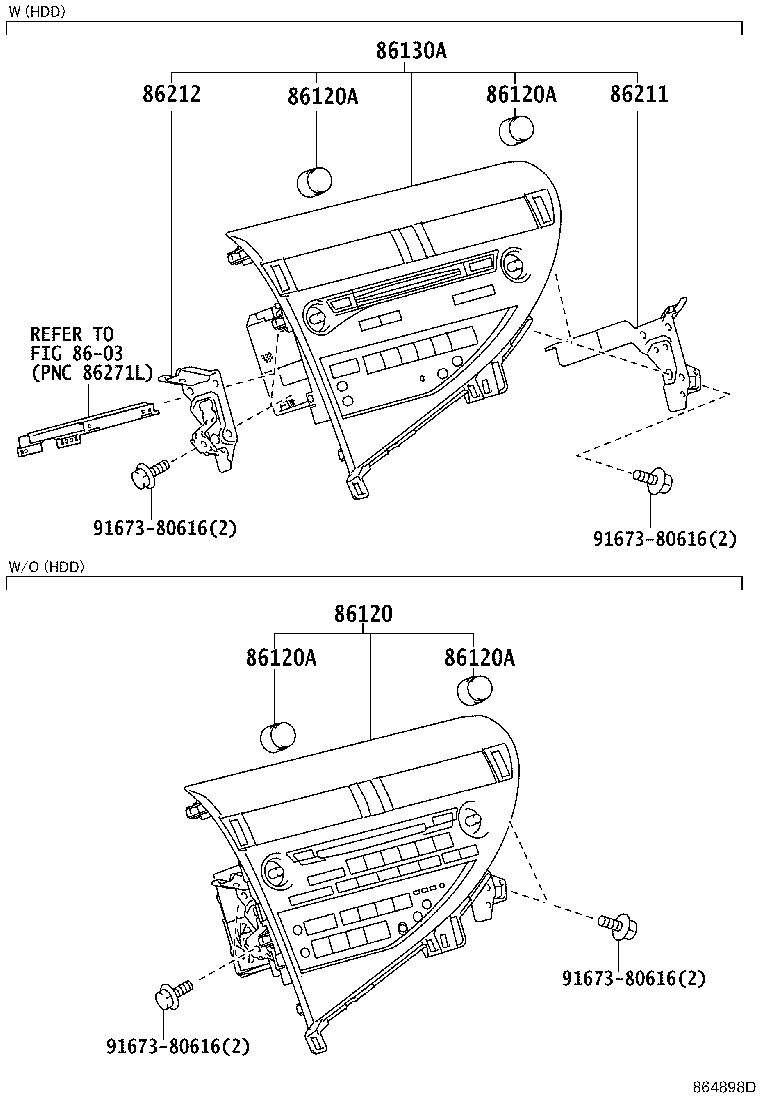

ILLUST NO. 1 OF 4(0812- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-48K50 |
GYL15..LHD PIONEER,ID=P2856,TAIWAN SPEC&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86120-48Q40 |

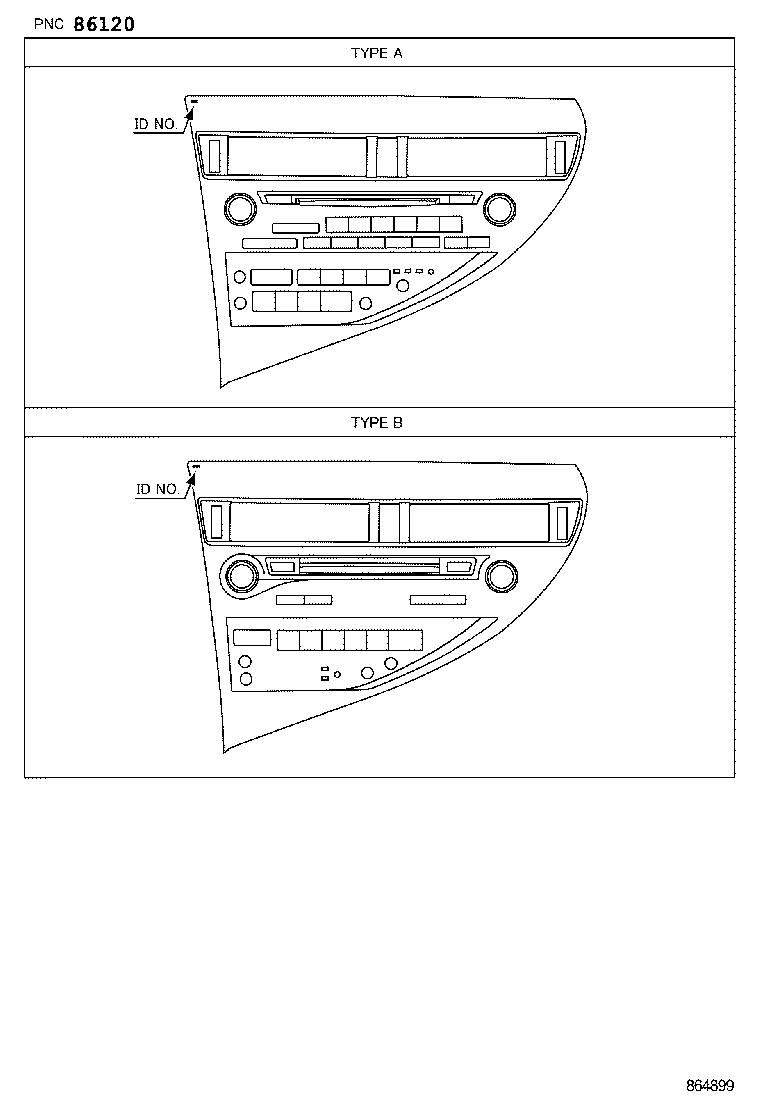

GGL15,GYL15..GCC PIONEER,ID=P10173,TYPE A:REFER ILLUST. |
1 | ||
| 86120-48Q60 |
GGL15,GYL15..GCC PIONEER,ID=P10170,LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
1 | ||
| 86120-48Q41 |
GGL15,GYL15..GCC PIONEER,ID=P10926,TYPE A:REFER ILLUST. |
1 | ||
| 86140-48020 |
GGL15,GYL15..GCC PIONEER,ID=P10273,AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86140-48020 |
GGL15,GYL15..GCC PIONEER,ID=P10273,LATIN AMERICA SPEC W/O(CHILE)&AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86140-48021 |
GGL15,GYL15..GCC PIONEER,ID=P10919,AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86140-48021 |
GGL15,GYL15..GCC PIONEER,ID=P10919,LATIN AMERICA SPEC W/O(CHILE)&AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86120-48Q61 |
GGL15,GYL15..GCC PIONEER,ID=P10933,LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
1 | ||
| 86120-48K50 |
GYL15..LHD PIONEER,ID=P2856,TYPE B:REFER ILLUST. |
1 | ||
| 86120-48Q40 |
GGL15,GYL15..GCC PIONEER,ID=P10173,TYPE A:REFER ILLUST. |
1 | ||
| 86120-48Q60 |
GGL15,GYL15..GCC PIONEER,ID=P10170,LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
1 | ||
| 86140-48020 |
GGL15,GYL15..GCC PIONEER,ID=P10273,AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86140-48020 |
GGL15,GYL15..GCC PIONEER,ID=P10273,LATIN AMERICA SPEC W/O(CHILE)&AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86120-48Q61 |
GGL15,GYL15..GCC PIONEER,ID=P10933,LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
1 | ||
| 86140-48021 |
GGL15,GYL15..GCC PIONEER,ID=P10919,LATIN AMERICA SPEC W/O(CHILE)&AUDIO-DISPLAY AUDIO,CD,12SPEAKER;AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86120-48Q41 |
GGL15,GYL15..GCC PIONEER,ID=P10926,TYPE A:REFER ILLUST. |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22061 |
GYL15..LHD TAIWAN SPEC&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
2 | ||
| 90010-22090 |
AGL10,GGL15,GYL1# |
2 | ||
| 90010-22089 |
GGL15,GYL15..GCC LATIN AMERICA SPEC W/O(CHILE) |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22061 |
GYL15..LHD TAIWAN SPEC&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
2 | ||
| 90010-22090 |
AGL10,GGL15,GYL1# |
2 | ||
| 90010-22089 |
GGL15,GYL15..GCC LATIN AMERICA SPEC W/O(CHILE) |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22061 |
GYL15..LHD TAIWAN SPEC&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
2 | ||
| 90010-22090 |
AGL10,GGL15,GYL1# |
2 | ||
| 90010-22089 |
GGL15,GYL15..GCC LATIN AMERICA SPEC W/O(CHILE) |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22061 |
GYL15..LHD TAIWAN SPEC&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
2 | ||
| 90010-22090 |
AGL10,GGL15,GYL1# |
2 | ||
| 90010-22089 |
GGL15,GYL15..GCC LATIN AMERICA SPEC W/O(CHILE) |
2 | ||
| 86130A - RECEIVER ASSY, MULTI-MEDIA MODULE | ||||
| 86804-48160 |
GGL15,GYL15..GCC PIONEER,ID=P10249,AUDIO-DVD,15SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86804-48400 |
GGL15,GYL15..GCC PIONEER,ID=P10250,AUDIO-DVD,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86804-48161 |
GGL15,GYL15..GCC PIONEER,ID=P10899,AUDIO-DVD,15SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86804-48401 |
GGL15,GYL15..GCC PIONEER,ID=P10910,AUDIO-DVD,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-48130 |
GGL15,GYL15..GCC AUDIO-DVD,15SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86211-48130 |
GGL15,GYL15..GCC AUDIO-DVD,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-48130 |
GGL15,GYL15..GCC AUDIO-DVD,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86212-48130 |
GGL15,GYL15..GCC AUDIO-DVD,15SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 2 OF 4(1203- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-48K50 |
GYL15..LHD PIONEER,ID=P2856,TAIWAN SPEC&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86120-48Q40 |
GGL15,GYL15..GCC PIONEER,ID=P10173,TYPE A:REFER ILLUST. |
1 | ||
| 86120-48Q60 |
GGL15,GYL15..GCC PIONEER,ID=P10170,LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
1 | ||
| 86120-48Q41 |
GGL15,GYL15..GCC PIONEER,ID=P10926,TYPE A:REFER ILLUST. |
1 | ||
| 86140-48020 |
GGL15,GYL15..GCC PIONEER,ID=P10273,AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86140-48020 |
GGL15,GYL15..GCC PIONEER,ID=P10273,LATIN AMERICA SPEC W/O(CHILE)&AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86140-48021 |
GGL15,GYL15..GCC PIONEER,ID=P10919,AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86140-48021 |
GGL15,GYL15..GCC PIONEER,ID=P10919,LATIN AMERICA SPEC W/O(CHILE)&AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86120-48Q61 |
GGL15,GYL15..GCC PIONEER,ID=P10933,LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
1 | ||
| 86120-48K50 |
GYL15..LHD PIONEER,ID=P2856,TYPE B:REFER ILLUST. |
1 | ||
| 86120-48Q40 |
GGL15,GYL15..GCC PIONEER,ID=P10173,TYPE A:REFER ILLUST. |
1 | ||
| 86120-48Q60 |
GGL15,GYL15..GCC PIONEER,ID=P10170,LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
1 | ||
| 86140-48020 |
GGL15,GYL15..GCC PIONEER,ID=P10273,AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86140-48020 |
GGL15,GYL15..GCC PIONEER,ID=P10273,LATIN AMERICA SPEC W/O(CHILE)&AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86120-48Q61 |
GGL15,GYL15..GCC PIONEER,ID=P10933,LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
1 | ||
| 86140-48021 |
GGL15,GYL15..GCC PIONEER,ID=P10919,LATIN AMERICA SPEC W/O(CHILE)&AUDIO-DISPLAY AUDIO,CD,12SPEAKER;AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
1 | ||
| 86120-48Q41 |
GGL15,GYL15..GCC PIONEER,ID=P10926,TYPE A:REFER ILLUST. |
1 | ||

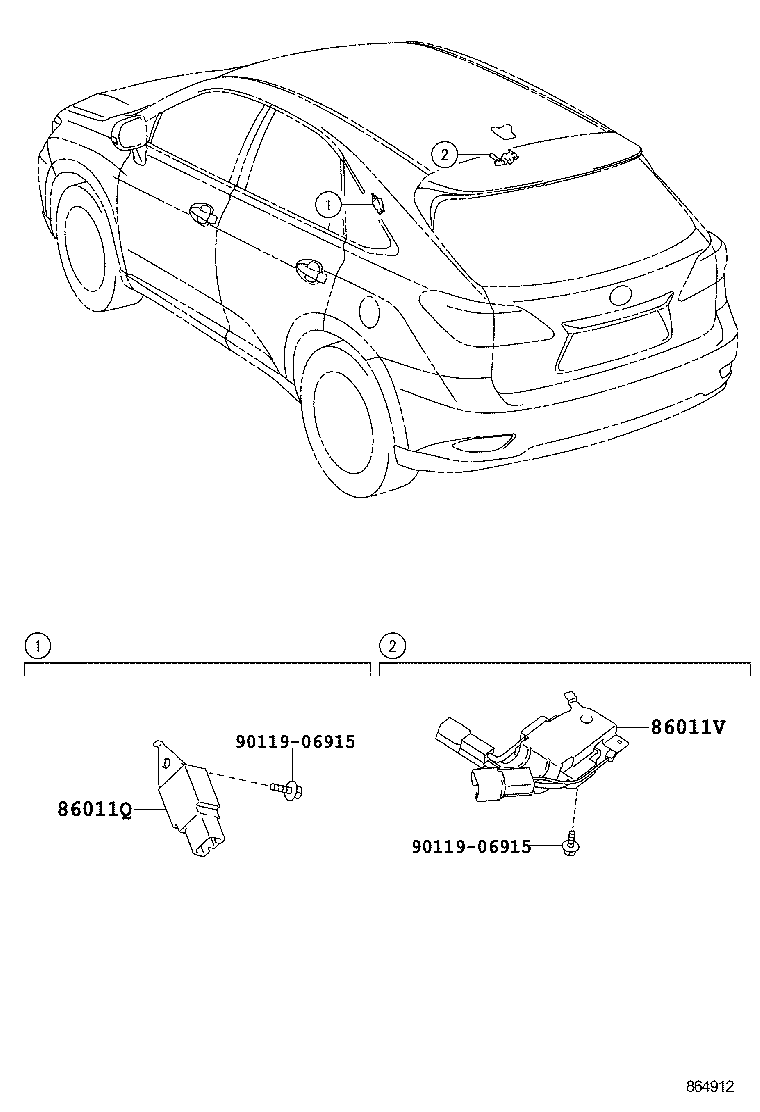

ILLUST NO. 4 OF 4(1203- )GYL1#
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04174 |
AGL10,GGL15,GYL1# |
1 | ||
| 90980-04174 |
AGL10,GGL15,GYL1# |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-05378 |
GYL1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
