GYL15L-AWXGKV (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

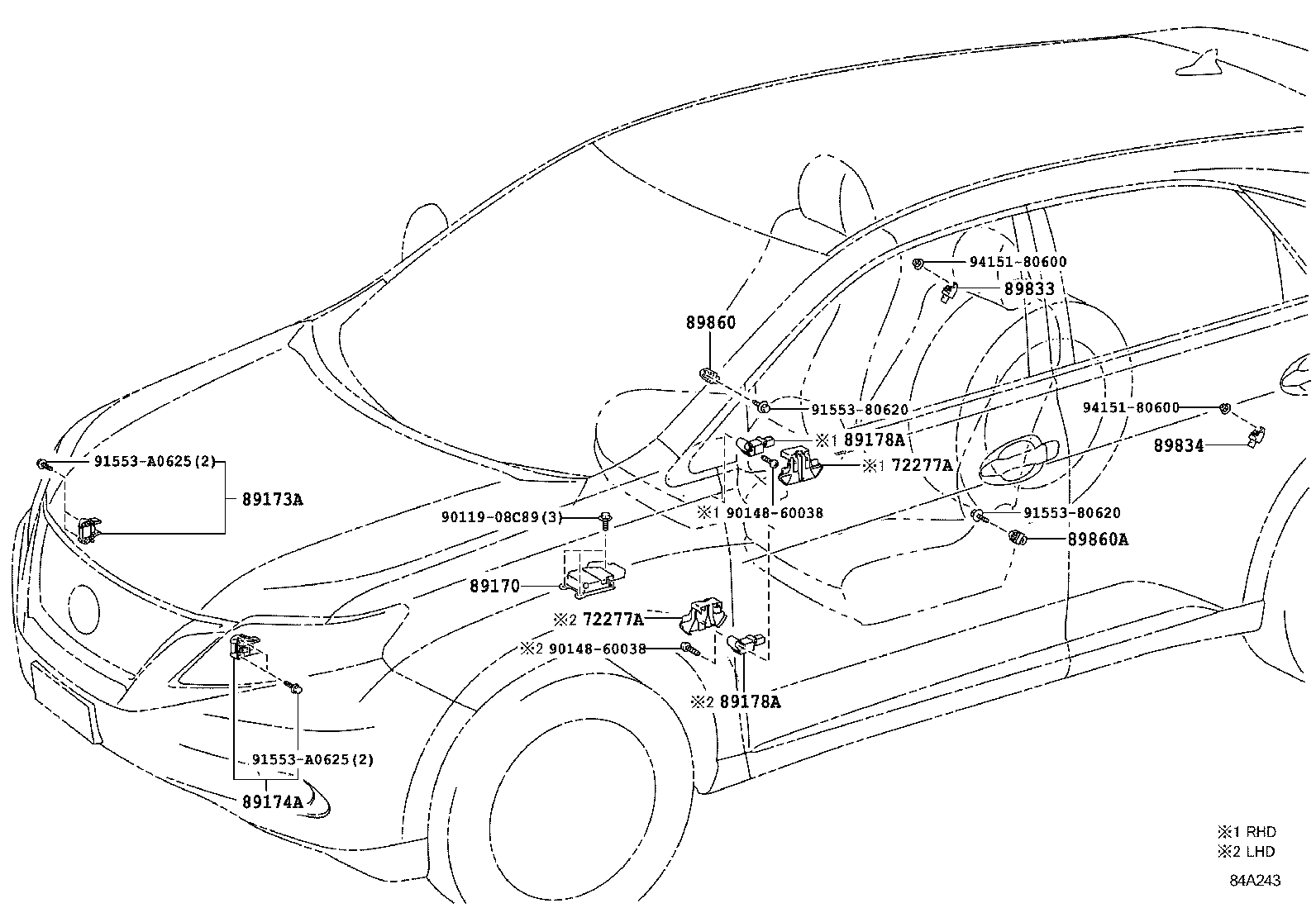

Click highlighted areas on diagram

diagram 72277A 72277A 89170 89173A 89174A 89178A 89178A 89833 89834 89860 89860A 9011908C89 9014860038 9014860038 9155380620 9155380620 91553A0625 91553A0625 9415180600 9415180600
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33021

AGL10,GGL15,GYL1#

 1
72277-33021

AGL10,GGL15,GYL1#

 1
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33021

AGL10,GGL15,GYL1#

 1
72277-33021

AGL10,GGL15,GYL1#

 1
89170 - SENSOR ASSY, AIR BAG
89170-48620

GYL15..GCC

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-39375

AGL10,GGL15,GYL1#

 1
89173-39455

AGL10,GGL15,GYL1#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-39375

AGL10,GGL15,GYL1#

 1
89173-39455

AGL10,GGL15,GYL1#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33050

AGL10,GGL15,GYL1#

 1
89178-33050

AGL10,GGL15,GYL1#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33050

AGL10,GGL15,GYL1#

 1
89178-33050

AGL10,GGL15,GYL1#

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-75020

AGL10,GGL15,GYL1#

(J)

 1
89831-12010

AGL10,GGL15,GYL1#

 1
89831-0E100

AGL10,GGL15,GYL1#

(L)

 1
89831-75020

AGL10,GGL15,GYL1#

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-75020

AGL10,GGL15,GYL1#

(J)

 1
89831-75020

AGL10,GGL15,GYL1#

 1
89831-12010

AGL10,GGL15,GYL1#

 1
89831-0E100

AGL10,GGL15,GYL1#

(L)

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-48030

AGL10,GGL15,GYL1#

 1
89831-48040

AGL10,GGL15,GYL1#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-48030

AGL10,GGL15,GYL1#

 1
89831-48040

AGL10,GGL15,GYL1#

 1
Common parts
90119-08C89
90148-60038
91553-80620
91553-A0625
94151-80600
