GYL15L-AWXGKV (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

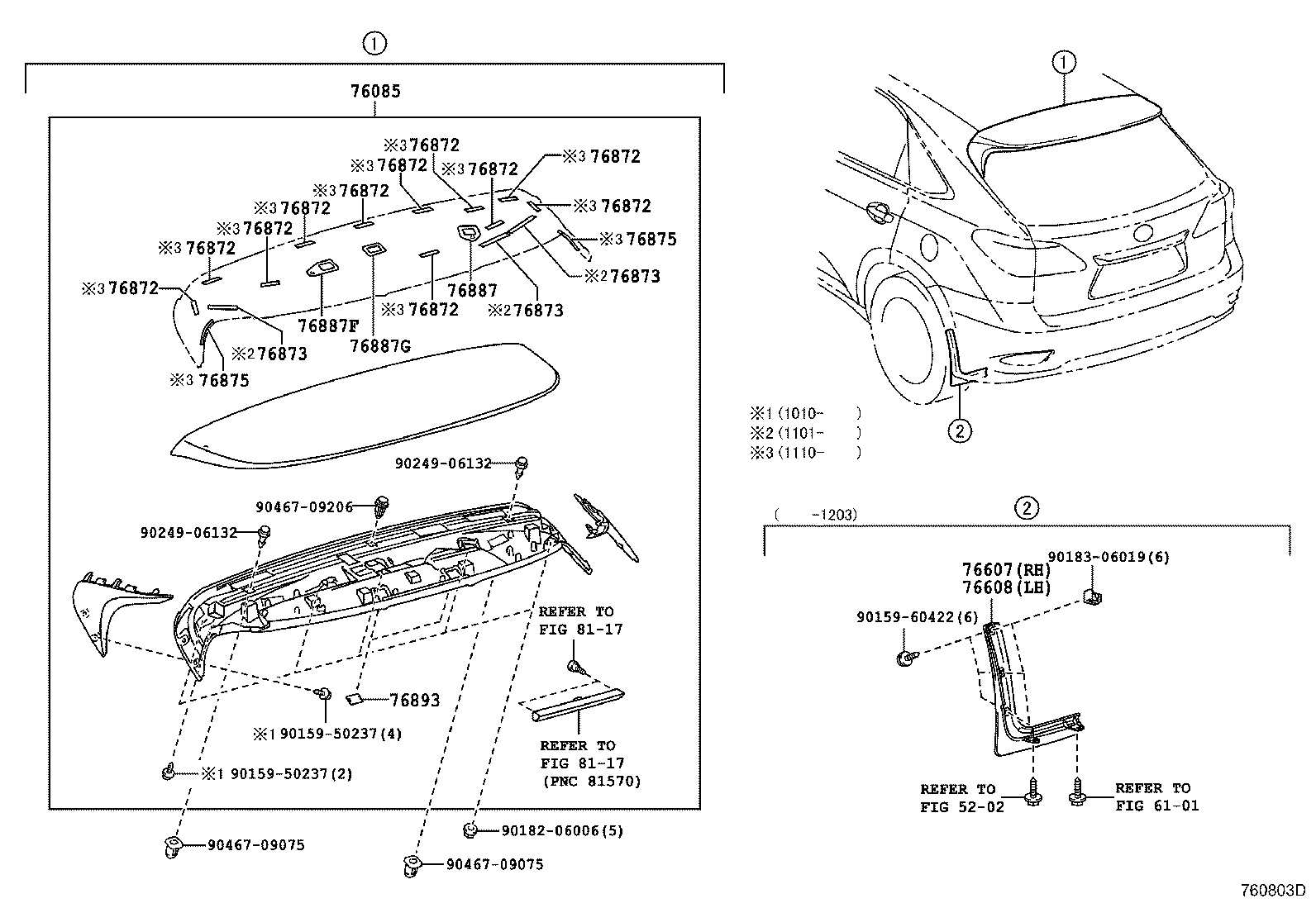

Click highlighted areas on diagram

diagram 5202 6101 76085 76607 76608 76872 76872 76872 76872 76872 76872 76872 76872 76872 76872 76872 76873 76873 76873 76875 76875 76887 76887F 76887G 76893 8117 8117 9015950237 9015950237 9015960422 9018206006 9018306019 9024906132 9024906132 9046709075 9046709075 9046709206
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-48120J1

AGL10,GGL15,GYL1#

SILVERY BLUE ME.,8U9

 1
76085-48120A0

AGL10,GGL15,GYL1#

WHITE PEARL CS.,077

 1
76085-48120E0

GGL15,GYL1#

BEIGE ME.,4T1

 1
76085-48120E1

GGL15,GYL1#

SABLE M.M.,4T5

 1
76085-48120D0

AGL10,GGL15,GYL1#

RED MC.CS.,3R1

 1
76085-48120C0

AGL10,GGL15,GYL1#

BLACK,212

 1
76085-48120B0

AGL10,GGL15,GYL1#

DK.GRAY MC.,1G0

 1
76085-48120J0

GGL15,GYL1#

DK.BLUE MC. CC.,8U0

 1
76085-48120B2

AGL10,GGL15,GYL1#

SILVER M.M.,1G1

 1
76085-48121A0

AGL10..LHD;GGL15,GYL1#

WHITE PEARL CS.,077

 1
76085-48121A1

AGL10..LHD;GGL15,GYL1#

QUARTZ WHITE CS.,078

 1
76085-48121B3

AGL10..LHD;GGL15,GYL1#

MERCURY GRAY MC.,1H9

 1
76085-48121B4

AGL10..LHD;GGL15,GYL1#

PLATINUM SILVER ME.,1J4

 1
76085-48121C0

AGL10..LHD;GGL15,GYL1#

BLACK,212

 1
76085-48121C2

AGL10..LHD;GGL15,GYL1#

STARLIGHT BLACK GF.,217

 1
76085-48121D1

AGL10..LHD;GGL15,GYL1#

GARNET RED MC.,3S0

 1
76085-48121E2

AGL10..LHD;GGL15,GYL1#

SLEEK ECRU ME.,4U7

 1
76085-48121E3

AGL10..LHD;GGL15,GYL1#

FIRE AGATE M.M.,4V3

 1
76085-48121J2

AGL10..LHD;GGL15,GYL1#

LAPIS LAZULI MC.,8V3

 1
76085-48122A0

AGL10..LHD;GGL15,GYL1#

WHITE PEARL CS.,077

 1
76085-48122B3

AGL10..LHD;GGL15,GYL1#

MERCURY GRAY MC.,1H9

 1
76085-48122B4

AGL10..LHD;GGL15,GYL1#

PLATINUM SILVER ME.,1J4

 1
76085-48122C0

AGL10..LHD;GGL15,GYL1#

BLACK,212

 1
76085-48122C2

AGL10..LHD;GGL15,GYL1#

STARLIGHT BLACK GF.,217

 1
76085-48122D1

AGL10..LHD;GGL15,GYL1#

GARNET RED MC.,3S0

 1
76085-48122E2

AGL10..LHD;GGL15,GYL1#

SLEEK ECRU ME.,4U7

 1
76085-48122E3

AGL10..LHD;GGL15,GYL1#

FIRE AGATE M.M.,4V3

 1
76085-48122J2

AGL10..LHD;GGL15,GYL1#

LAPIS LAZULI MC.,8V3

 1
76085-48122A2

GGL15,GYL15

WHITE NOVA GF.,083

 1
76085-48123A0

AGL10..LHD;GGL15,GYL1#

WHITE PEARL CS.,077

 1
76085-48123A2

GGL15,GYL15

WHITE NOVA GF.,083

 1
76085-48123B3

AGL10..LHD;GGL15,GYL1#

MERCURY GRAY MC.,1H9

 1
76085-48123B4

AGL10..LHD;GGL15,GYL1#

PLATINUM SILVER ME.,1J4

 1
76085-48123C0

AGL10..LHD;GGL15,GYL1#

BLACK,212

 1
76085-48123C2

AGL10..LHD;GGL15,GYL1#

STARLIGHT BLACK GF.,217

 1
76085-48123D1

AGL10..LHD;GGL15,GYL1#

GARNET RED MC.,3S0

 1
76085-48123E2

AGL10..LHD;GGL15,GYL1#

SLEEK ECRU ME.,4U7

 1
76085-48123E3

AGL10..LHD;GGL15,GYL1#

FIRE AGATE M.M.,4V3

 1
76085-48123J2

AGL10..LHD;GGL15,GYL1#

LAPIS LAZULI MC.,8V3

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-48011

AGL10,GGL15,GYL1#

 11
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-48021

AGL10,GGL15,GYL1#

 3
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-48021

AGL10,GGL15,GYL1#

 3
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-48021

AGL10,GGL15,GYL1#

 3
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-48031

AGL10,GGL15,GYL1#

 2
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-48031

AGL10,GGL15,GYL1#

 2
76887 - SEAL, REAR SPOILER
76887-48010

AGL10,GGL15,GYL1#

 1
76887-48011

AGL10,GGL15,GYL1#

 1
76887-48010

AGL10,GGL15,GYL1#

 1
76887F - SEAL, REAR SPOILER, NO.2
76887-48020

AGL10,GGL15,GYL1#

 1
76887-48020

AGL10,GGL15,GYL1#

 1
76887-48021

AGL10,GGL15,GYL1#

 1
76887G - SEAL, REAR SPOILER, NO.3
76887-48031

AGL10,GGL15,GYL1#

 1
76887-48030

AGL10,GGL15,GYL1#

 1
76887-48030

AGL10,GGL15,GYL1#

 1
76893 - COVER, REAR SPOILER, NO.1
76893-48010

AGL10,GGL15,GYL1#

 2
76893-48010

AGL10,GGL15,GYL1#

 2
Common parts
90159-50237
90159-60422
90182-06006
90183-06019
90249-06132
90467-09075
90467-09206
