GYL15L-AWXGKV (2012)
Toyota Lexus Rx270/350/450h

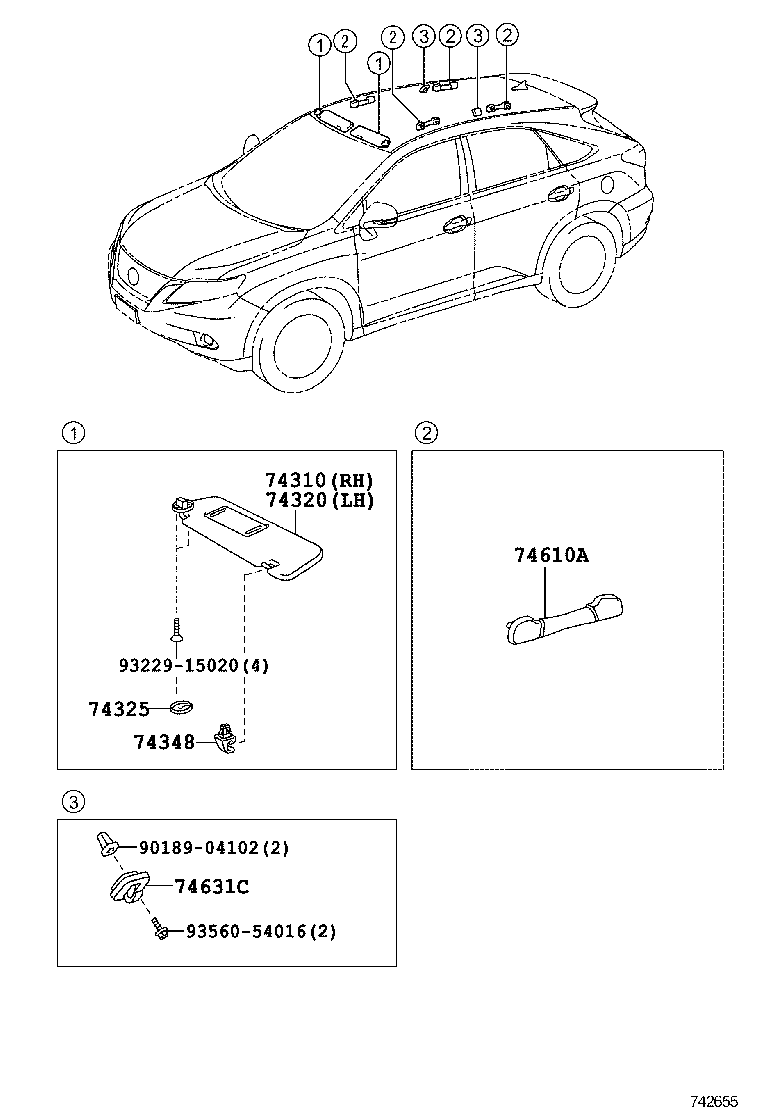

ILLUST NO. 2 OF 2(0812- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-48320B0 |
GGL15,GYL15..GCC LT.GRAY,TRIM1#,20,3#,40 |
1 | ||
| 74310-48320A0 |
GGL15,GYL15..GCC IVORY,TRIM0#,40 |
1 | ||
| 74310-48320C1 |
GGL15,GYL15..GCC BLACK,TRIM21,22 |
1 | ||
| 74310-48400C0 |
GGL15,GYL15..GCC BLACK,TRIM1#,21,22,31,41 |
1 | ||
| 74310-48400A0 |
GGL15,GYL15..GCC IVORY,TRIM0#,40 |
1 | ||
| 74310-48400B0 |
GGL15,GYL15..GCC LT.GRAY,TRIM20,30,40 |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-48310A0 |
AGL10,GGL15,GYL1#..LHD IVORY,TRIM0# |
1 | ||
| 74320-48310B0 |
AGL10,GGL15,GYL1#..LHD LT.GRAY,TRIM1#,2# |
1 | ||
| 74320-48310C1 |
GGL15,GYL15..GCC BLACK,TRIM11,21,22,31,41 |
1 | ||
| 74320-48310B0 |
GGL15,GYL15..LHD LT.GRAY,TRIM10,20,30,40 |
1 | ||
| 74320-48310A0 |
AGL10,GGL15,GYL1#..LHD IVORY,TRIM0#,40 |
1 | ||
| 74325 - COVER, VISOR BRACKET | ||||
| 74317-60020A4 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
1 | ||
| 74317-60020B1 |
AGL10,GGL15,GYL1# LT.GRAY,TRIM1#,2# |
1 | ||
| 74317-60020B1 |
AGL10..LHD;GGL15,GYL15..GCC LT.GRAY,TRIM1#,20,3#,40 |
1 | ||
| 74317-60020C0 |
GGL15,GYL15..GCC BLACK,TRIM21,22 |
1 | ||
| 74317-60020A4 |
AGL10,GGL15,GYL1# IVORY,TRIM0#,40 |
1 | ||
| 74317-60020B1 |
GGL15,GYL15..GCC LT.GRAY,TRIM20,30,40 |
1 | ||
| 74317-60020B1 |
GGL15,GYL15 LT.GRAY,TRIM10,20,30,40 |
1 | ||
| 74317-60020C0 |
GGL15,GYL15..GCC BLACK,TRIM11,21,22,31,41 |
1 | ||
| 74317-60020C0 |
GGL15,GYL15..GCC BLACK,TRIM1#,21,22,31,41 |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
AGL10,GGL15,GYL1# LT.GRAY,TRIM1#,2# |
1 | ||
| 74348-33040A4 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
1 | ||
| 74348-33040B1 |
AGL10..LHD;GGL15,GYL15..GCC LT.GRAY,TRIM1#,20,3#,40 |
1 | ||
| 74348-33040A4 |
AGL10,GGL15,GYL1# IVORY,TRIM0#,40 |
1 | ||
| 74348-33040C0 |
GGL15,GYL15..GCC BLACK,TRIM21,22 |
1 | ||
| 74348-33040C0 |
GGL15,GYL15..GCC BLACK,TRIM11,21,22,31,41 |
1 | ||
| 74348-33040B1 |
GGL15,GYL15 LT.GRAY,TRIM10,20,30,40 |
1 | ||
| 74348-33040B1 |
GGL15,GYL15..GCC LT.GRAY,TRIM20,30,40 |
1 | ||
| 74348-33040C0 |
GGL15,GYL15..GCC BLACK,TRIM1#,21,22,31,41 |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-53030A1 |
AGL10,GGL15,GYL1# IVORY,TRIM0#,40 |
4 | ||
| 74610-53030B0 |
AGL10,GGL15,GYL1# LT.GRAY,TRIM1#,2# |
4 | ||
| 74610-53030C0 |
GGL15,GYL15..GCC BLACK,TRIM11,21,22,31,41 |
4 | ||
| 74610-53030A1 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
4 | ||
| 74610-53030B0 |
GGL15,GYL15 LT.GRAY,TRIM10,20,30,40 |
4 | ||
| 74631C - HOOK, COAT | ||||
| 74631-50031B0 |
AGL10,GGL15,GYL1# LT.GRAY,TRIM1#,2# |
2 | ||
| 74631-50031A2 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
2 | ||
| 74631-48040B0 |
GGL15,GYL15..GCC LT.GRAY,TRIM20,30,40 |
2 | ||
| 74631-48040C0 |
GGL15,GYL15..GCC BLACK,TRIM1#,21,22,31,41 |
2 | ||
| 74631-48040A0 |
GGL15,GYL15..GCC IVORY,TRIM0#,40 |
2 | ||
| 74631-48041B0 |
GGL15,GYL15..GCC LT.GRAY,TRIM20,30,40 |
2 | ||
| 74631-48041A0 |
GGL15,GYL15..GCC IVORY,TRIM0#,40 |
2 | ||
| 74631-48041C0 |
GGL15,GYL15..GCC BLACK,TRIM1#,21,22,31,41 |
2 | ||
| Common parts | ||||
| 90189-04102 | ||||
| 93229-15020 | ||||
| 93560-54016 | ||||

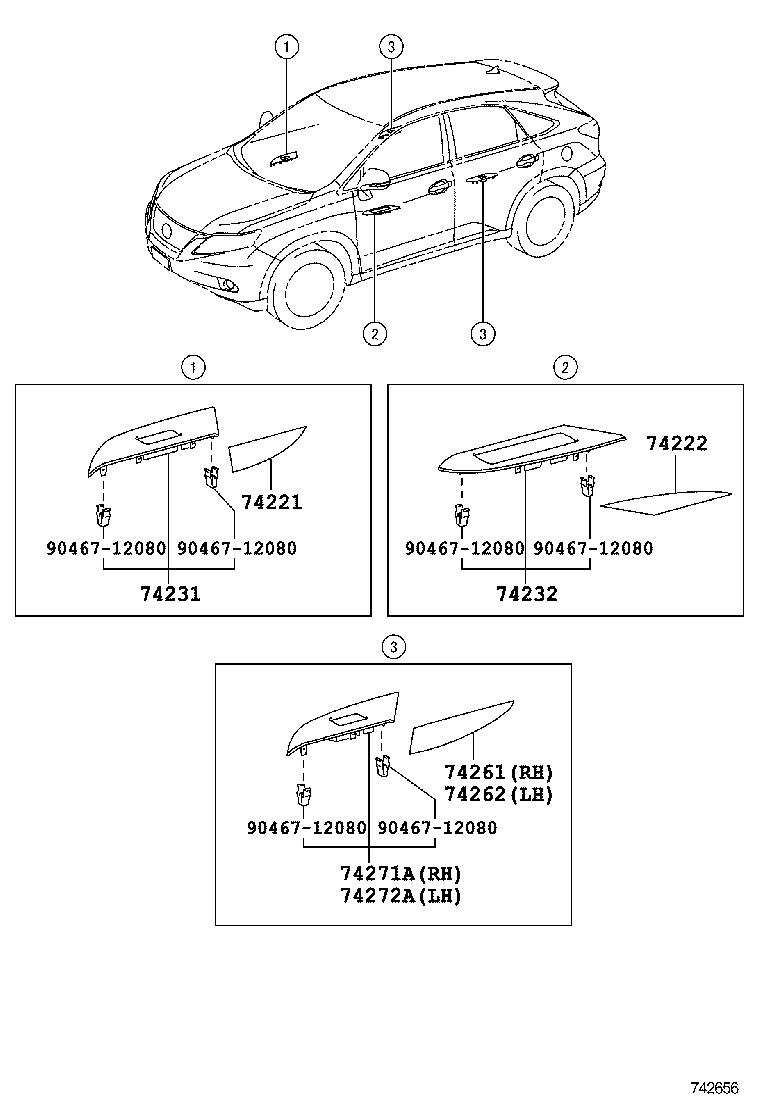

ILLUST NO. 1 OF 2(0812- )LHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-48020A0 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
1 | ||
| 74221-48020C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 74221-48020A0 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-48020A0 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
1 | ||
| 74222-48020A0 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
1 | ||
| 74222-48020C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-48090E0 |
AGL10,GGL15,GYL15..LHD WOOD PACKAGE,DK.BROWN,TRIM1# |
1 | ||
| 74231-48090E1 |
AGL10,GGL15,GYL1#..LHD WOOD PACKAGE,MD.BROWN,TRIM0#,2# |
1 | ||
| 74231-48090E0 |
AGL10,GGL15,GYL1#..LHD WOOD PACKAGE,DK.BROWN,TRIM1# |
1 | ||
| 74231-48090E1 |
AGL10,GGL15,GYL15..LHD WOOD PACKAGE,MD.BROWN,TRIM0#,2# |
1 | ||
| 74231-48110 |
AGL10,GGL15,GYL1#..LHD |
1 | ||
| 74231-48090E0 |
GGL15,GYL15..LHD F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74231-48090E0 |
GGL15,GYL15..LHD SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74231-48090C2 |
GGL15,GYL15..LHD F SPORT&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74231-48090E0 |
GGL15,GYL15..LHD WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74231-48090C2 |
GGL15,GYL15..LHD SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74231-48090C2 |
GGL15,GYL15..LHD WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74231-48090C2 |
GGL15,GYL15..GCC F SPORT&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74231-48150B0 |
GGL15,GYL15..LHD F SPORT&ORNAMENT PANEL-SILVER(PAINT),SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 74231-48110 |
AGL10,GGL15,GYL1#..LHD |
1 | ||
| 74231-48090C2 |
GGL15,GYL15..GCC SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74231-48090C2 |
GGL15,GYL15..GCC WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74231-48090E0 |
GGL15,GYL15..LHD F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74231-48090F0 |
GGL15,GYL15..GCC SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&ORNAMENT PANEL-BAMBOO,NATURAL BROWN,TRIM00,20,30,40 |
1 | ||
| 74231-48090E0 |
AGL10,GGL15,GYL15..LHD SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74231-48090E0 |
AGL10,GGL15,GYL15..LHD WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-48080E0 |
AGL10,GGL15,GYL15..LHD WOOD PACKAGE,DK.BROWN,TRIM1# |
1 | ||
| 74232-48100 |
AGL10,GGL15,GYL1#..LHD |
1 | ||
| 74232-48080E1 |
AGL10,GGL15,GYL15..LHD WOOD PACKAGE,MD.BROWN,TRIM0#,2# |
1 | ||
| 74232-48080E1 |
AGL10,GGL15,GYL1#..LHD WOOD PACKAGE,MD.BROWN,TRIM0#,2# |
1 | ||
| 74232-48080E0 |
AGL10,GGL15,GYL1#..LHD WOOD PACKAGE,DK.BROWN,TRIM1# |
1 | ||
| 74232-48080C2 |
GGL15,GYL15..LHD F SPORT&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74232-48080C2 |
GGL15,GYL15..LHD SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74232-48080C2 |
GGL15,GYL15..LHD WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74232-48080E0 |
GGL15,GYL15..LHD F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74232-48080E0 |
GGL15,GYL15..LHD SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74232-48080E0 |
GGL15,GYL15..LHD WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74232-48080C2 |
GGL15,GYL15..GCC F SPORT&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74232-48140B0 |
GGL15,GYL15..LHD F SPORT&ORNAMENT PANEL-SILVER(PAINT),SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 74232-48080C2 |
GGL15,GYL15..GCC SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74232-48080C2 |
GGL15,GYL15..GCC WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74232-48080E0 |
AGL10,GGL15,GYL15..LHD SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74232-48080E0 |
AGL10,GGL15,GYL15..LHD WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74232-48080F0 |
GGL15,GYL15..GCC SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&ORNAMENT PANEL-BAMBOO,NATURAL BROWN,TRIM00,20,30,40 |
1 | ||
| 74232-48100 |
AGL10,GGL15,GYL1#..LHD |
1 | ||
| 74232-48080E0 |
GGL15,GYL15..LHD F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74261 - COVER, REAR DOOR ARMREST, RH | ||||
| 74261-48020A0 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
1 | ||
| 74261-48020C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 74261-48020A0 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
1 | ||
| 74262 - COVER, REAR DOOR ARMREST, LH | ||||
| 74262-48020A0 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
1 | ||
| 74262-48020A0 |
AGL10,GGL15,GYL1# IVORY,TRIM0# |
1 | ||
| 74262-48020C0 |
AGL10,GGL15,GYL1# BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-48050E0 |
AGL10,GGL15,GYL1# WOOD PACKAGE,DK.BROWN,TRIM1# |
1 | ||
| 74271-48050E1 |
AGL10,GGL15,GYL15 WOOD PACKAGE,MD.BROWN,TRIM0#,2# |
1 | ||
| 74271-48050E0 |
AGL10,GGL15,GYL15 WOOD PACKAGE,DK.BROWN,TRIM1# |
1 | ||
| 74271-48050E1 |
AGL10,GGL15,GYL1# WOOD PACKAGE,MD.BROWN,TRIM0#,2# |
1 | ||
| 74271-48050C2 |
GGL15,GYL15 WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74271-48050E0 |
GGL15,GYL15 F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74271-48050C2 |
GGL15,GYL15 F SPORT&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74271-48050C2 |
GGL15,GYL15 SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74271-48050C2 |
GGL15,GYL15..GCC F SPORT&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74271-48050E0 |
GGL15,GYL15 WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74271-48060 |
AGL10,GGL15,GYL1# |
1 | ||
| 74271-48060 |
AGL10,GGL15,GYL1# |
1 | ||
| 74271-48050E0 |
GGL15,GYL15 SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74271-48050E0 |
AGL10,GGL15,GYL15 SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74271-48050C2 |
GGL15,GYL15..GCC WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74271-48080B0 |
GGL15,GYL15 F SPORT&ORNAMENT PANEL-SILVER(PAINT),SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 74271-48050E0 |
AGL10,GGL15,GYL15 WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74271-48050F0 |
GGL15,GYL15..GCC SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&ORNAMENT PANEL-BAMBOO,NATURAL BROWN,TRIM00,20,30,40 |
1 | ||
| 74271-48050C2 |
GGL15,GYL15..GCC SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74271-48050E0 |
GGL15,GYL15 F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-48050E1 |
AGL10,GGL15,GYL15 WOOD PACKAGE,MD.BROWN,TRIM0#,2# |
1 | ||
| 74272-48050E0 |
AGL10,GGL15,GYL15 WOOD PACKAGE,DK.BROWN,TRIM1# |
1 | ||
| 74272-48050E0 |
AGL10,GGL15,GYL1# WOOD PACKAGE,DK.BROWN,TRIM1# |
1 | ||
| 74272-48060 |
AGL10,GGL15,GYL1# |
1 | ||
| 74272-48050C2 |
GGL15,GYL15 F SPORT&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74272-48050E1 |
AGL10,GGL15,GYL1# WOOD PACKAGE,MD.BROWN,TRIM0#,2# |
1 | ||
| 74272-48050C2 |
GGL15,GYL15 SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74272-48050C2 |
GGL15,GYL15 WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,2#,3#,41 |
1 | ||
| 74272-48050E0 |
GGL15,GYL15 WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74272-48050E0 |
GGL15,GYL15 SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74272-48050E0 |
GGL15,GYL15 F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM0#,40 |
1 | ||
| 74272-48080B0 |
GGL15,GYL15 F SPORT&ORNAMENT PANEL-SILVER(PAINT),SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 74272-48060 |
AGL10,GGL15,GYL1# |
1 | ||
| 74272-48050C2 |
GGL15,GYL15..GCC WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74272-48050C2 |
GGL15,GYL15..GCC F SPORT&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74272-48050E0 |
AGL10,GGL15,GYL15 SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74272-48050C2 |
GGL15,GYL15..GCC SEMI-ANILINE LEATHER SEAT & WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DARK GRAY,TRIM1#,20,22,30,31,41 |
1 | ||
| 74272-48050E0 |
GGL15,GYL15 F SPORT&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| 74272-48050F0 |
GGL15,GYL15..GCC SEMI-ANILINE LEATHER SEAT & PANEL:BAMBOO&ORNAMENT PANEL-BAMBOO,NATURAL BROWN,TRIM00,20,30,40 |
1 | ||
| 74272-48050E0 |
AGL10,GGL15,GYL15 WOOD PANEL&ORNAMENT PANEL-WOOD GRAIN,DK.BROWN,TRIM00,40 |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
