GYL15L-AWXGKV (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

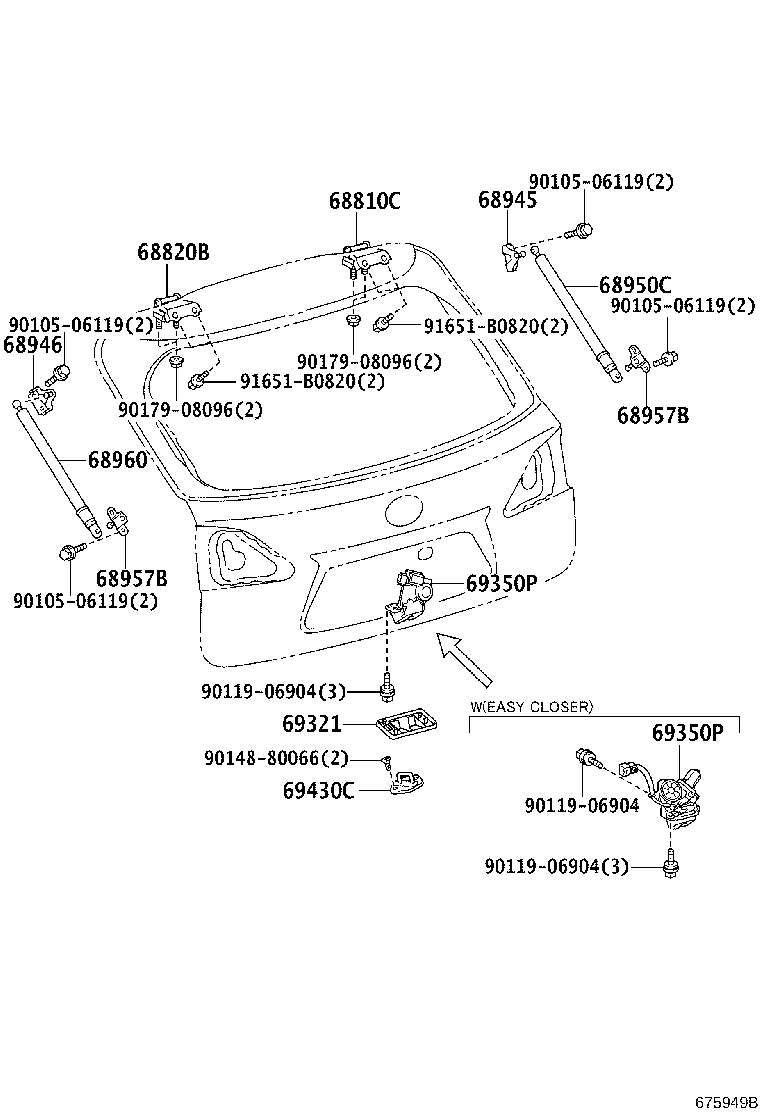

ILLUST NO. 1 OF 2(0812- )

Click highlighted areas on diagram

diagram 68810C 68820B 68945 68946 68950C 68957B 68957B 68960 69321 69350P 69350P 69430C 9010506119 9010506119 9010506119 9010506119 9011906904 9011906904 9011906904 9014880066 9017908096 9017908096 91651B0820 91651B0820
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-48010

AGL10,GGL15,GYL1#

 1
68810-48010

AGL10,GGL15,GYL1#

 1
68820B - HINGE ASSY, BACK DOOR, LH
68810-48010

AGL10,GGL15,GYL1#

 1
68810-48010

AGL10,GGL15,GYL1#

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-48050

AGL10,GGL15,GYL1#

 1
68945-48050

AGL10,GGL15,GYL1#

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68945-48050

AGL10,GGL15,GYL1#

 1
68945-48050

AGL10,GGL15,GYL1#

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0E030

AGL10,GGL15,GYL1#

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
68950-0W510

AGL10,GGL15,GYL1#

 1
68950-0E030

AGL10,GGL15..RHD;GGL15,GYL15..GCC

 1
68957B - BRACKET, BACK DOOR STAY, LOWER
68957-48030

AGL10,GGL15,GYL1#

 2
68957-48030

AGL10,GGL15,GYL1#

 2
68957B - BRACKET, BACK DOOR STAY, LOWER
68957-48030

AGL10,GGL15,GYL1#

 2
68957-48030

AGL10,GGL15,GYL1#

 2
68960 - STAY ASSY, BACK DOOR, LH
68960-0E030

AGL10,GGL15,GYL1#

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
68960-0W510

AGL10,GGL15,GYL1#

 1
68960-0E030

AGL10,GGL15..RHD;GGL15,GYL15..GCC

 1
69321 - COVER, BACK DOOR LOCK
69321-48020

AGL10,GGL15,GYL1#

 1
69321-48030

GYL1#..LHD

PORTUGAL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
69321-48030

AGL10,GGL15,GYL1#

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
69321-48030

AGL10,GGL15..RHD;GGL15,GYL15..GCC

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-48060

AGL10,GGL15,GYL1#

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
69350-48070

GYL1#..LHD

PORTUGAL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
69350-48060

AGL10,GGL15..RHD;GGL15,GYL15..GCC

 1
69350-48080

AGL10,GGL15,GYL1#

 1
69350-48061

AGL10,GGL15..RHD;GGL15,GYL15..GCC

 1
69350-48062

AGL10,GGL15..RHD;GGL15,GYL15..GCC

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-48060

AGL10,GGL15,GYL1#

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
69350-48070

GYL1#..LHD

PORTUGAL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 1
69350-48060

AGL10,GGL15..RHD;GGL15,GYL15..GCC

 1
69350-48080

AGL10,GGL15,GYL1#

 1
69350-48061

AGL10,GGL15..RHD;GGL15,GYL15..GCC

 1
69350-48062

AGL10,GGL15..RHD;GGL15,GYL15..GCC

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-48030

AGL10,GGL15,GYL1#

 1
69430-48030

AGL10,GGL15,GYL1#

 1
Common parts
90105-06119
90119-06904
90148-80066
90179-08096
91651-B0820
