GYL15L-AWXGKV (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )GGL15,GYL1#

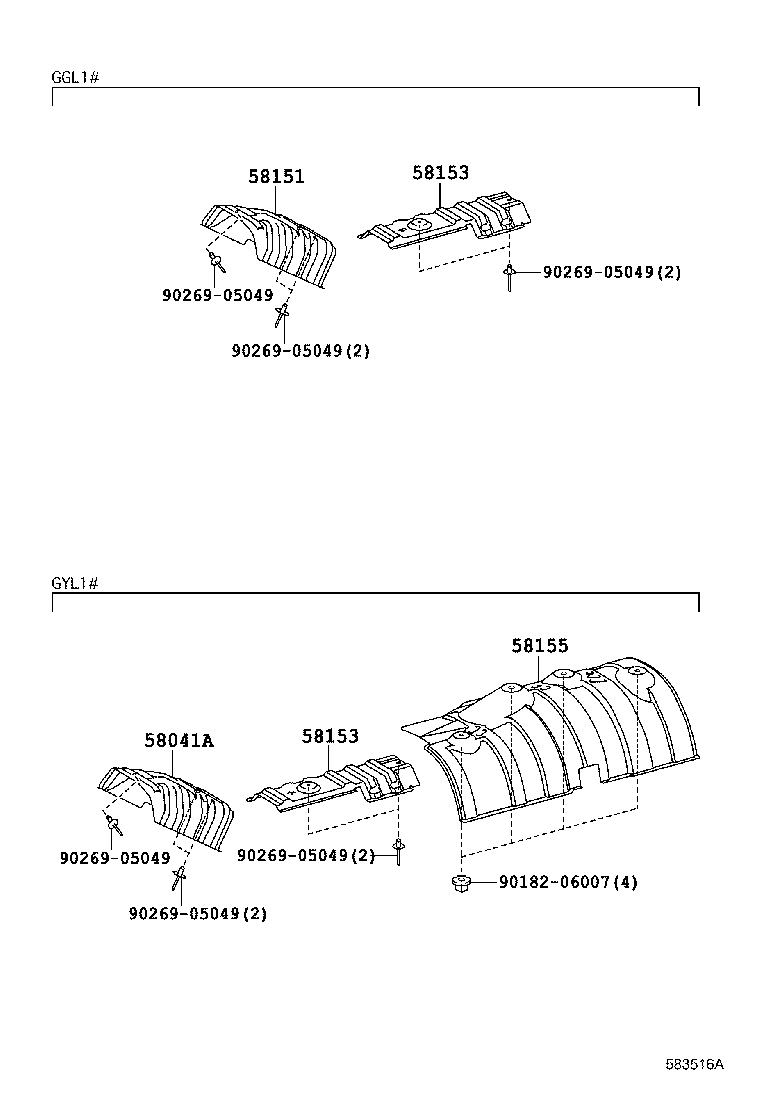

Click highlighted areas on diagram

diagram 58041A 58151 58153 58153 58155 9018206007 9026905049 9026905049 9026905049 9026905049 9026905049 9026905049
Part # Description Qty Price
58041A - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1
58041-48030

GYL1#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-48050

AGL10,GGL15,GYL1#

 1
58153-48050

AGL10,GGL15,GYL1#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-48050

AGL10,GGL15,GYL1#

 1
58153-48050

AGL10,GGL15,GYL1#

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-48040

GYL1#

 1
Common parts
90182-06007
90269-05049
